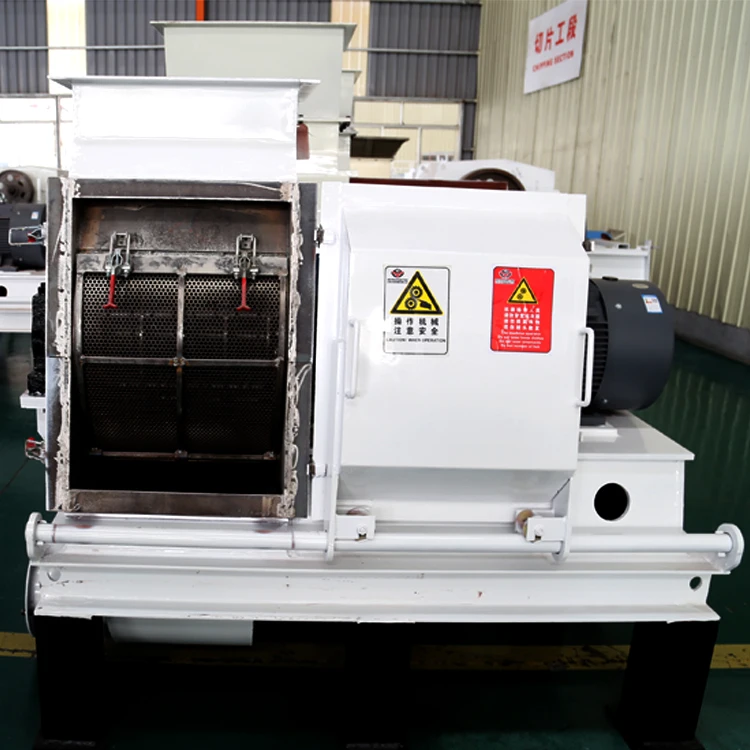

A hammer mill is a mill whose purpose is to shred or crush wood chips material into smaller pieces by the repeated blows of little hammers. These machines have many sorts of applications in many industries
How the hammer mills work?
The raw material goes through the feed hopper into the grinding chamber and crushed by the high speed rotating hammer plates. Under the impact of centrifugal force, the materials will be extruded continuously into powder. By the suction of the fan, the powdery material will be discharged through the sieve, while those cannot go through the sieve will be pulverized again until they can pass the sieve holes.
Technical Parameter of Hammer Mill
Model | Power | Capacity | Hammers |
YGHM 65*27 | 22kw | 0.5-1t/h | 24pcs |
YGHM65*55 | 37kw | 1-2t/h | 48pcs |
YGHM65*75 | 55kw/75kw | 1.5-2.5t/h | 72pcs |
YGHM65*100 | 90kw/110kw | 3-4t/h | 96pcs |

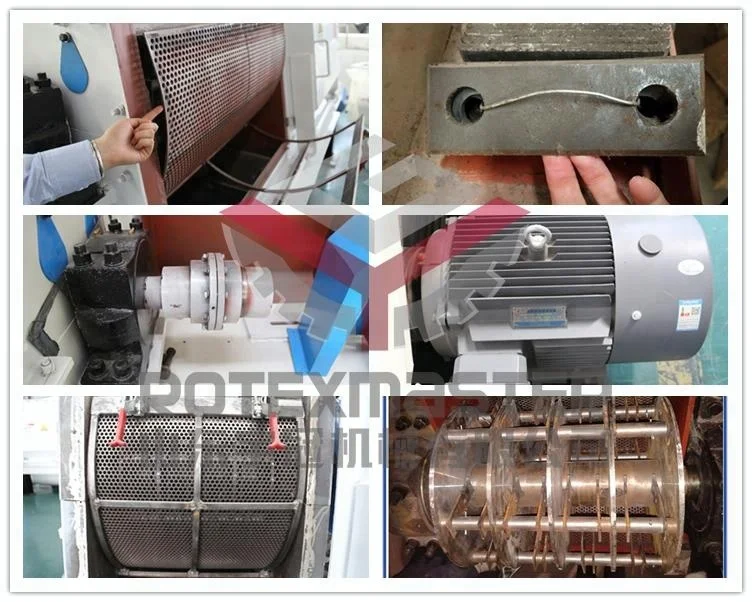

More Detail Parts about Hammer Mill
1. Heavy body, carbon steel material, long using life and machine running stable.
2. Hammer mill material is tungsten carbide spot welding, long wear parts service life will save your money and save your time.

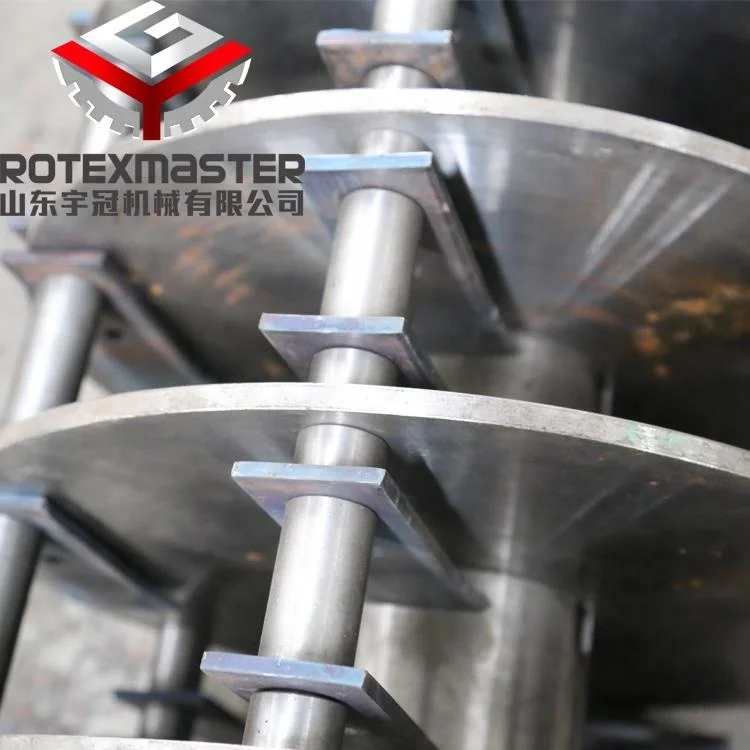

3. Rotor thickness is larger than others, and weight is heavy. Better protection of machines.

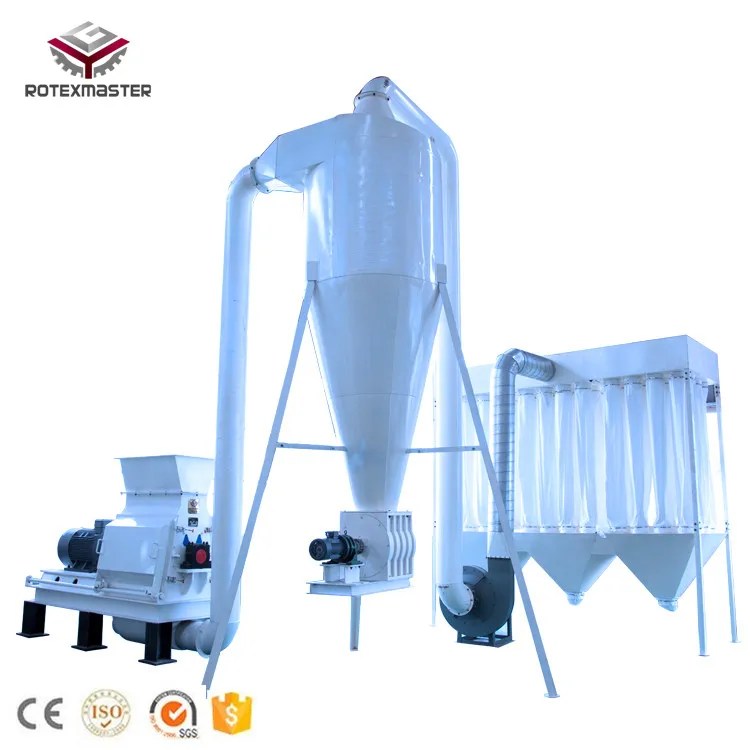

4. Cyclone and bag dust collector system.
5.Stable structure, reliable, easy to install and operate, no vibration, high output.
6. All of our rotors pass an accurate dynamic balancing test, low noise and smooth running. Per tested, double rotor hammer
mill no-load noise is 102 decibels, load noise is 95 decibels.
7. SIEMEN'S brand motor.

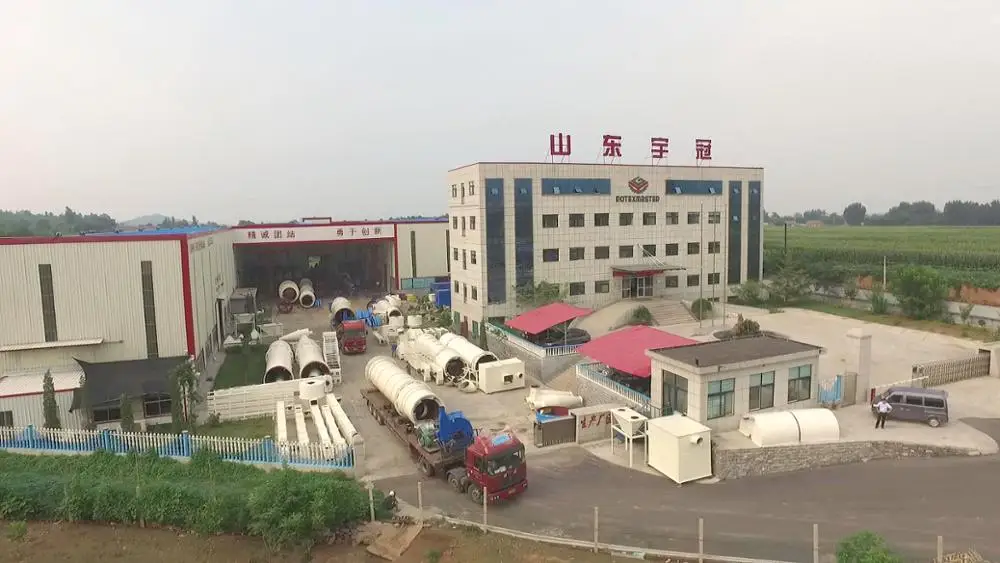

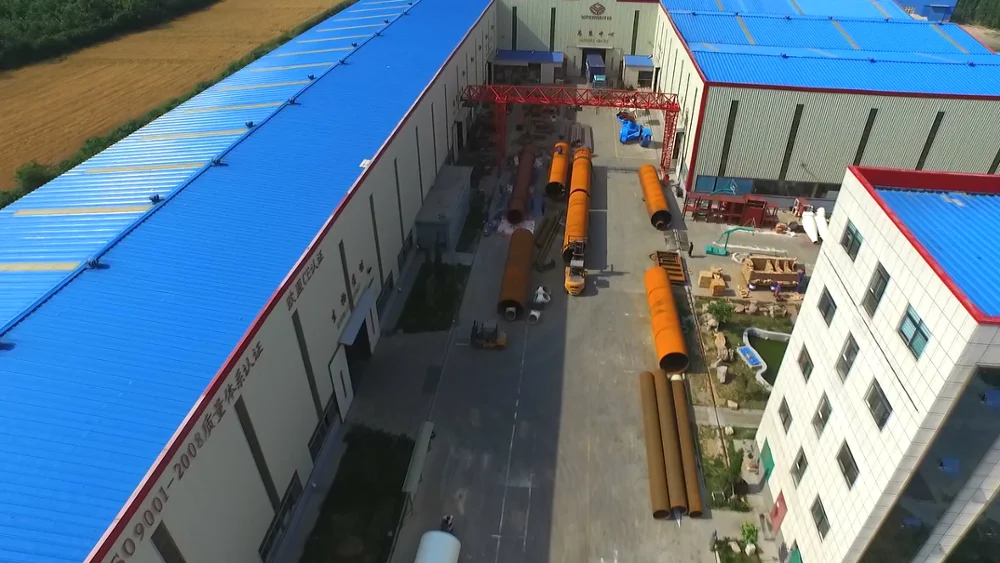

Shandong Rotex Machinery CO.,LTD is a comprehensive manufacturer of bio-energy machinery, feed machinery,organic fertilizer machinery and production lines. located in Zhangqiu, Jinan, the company coverd 2.47 acre area, with more than usd 6.5million turnover, is the leading company in this field.Our main products are pellet machine, hammer mill, dryer, cooler as well as the auxiliary equipment. We are dedicated to develop and supply high quality products for domestic and overseas customers. and has wined an outstanding reputation in international market.
