Product Features

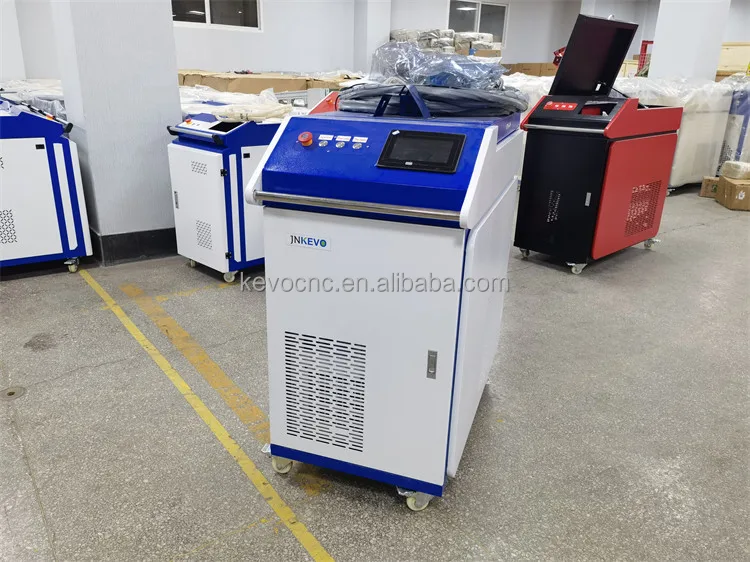

Handheld Laser Welding Machines Features
Limitations of the welding of large metal advertising characters, hand-held weld head overcome space.
Hand-held welding gun operating mode, can be welded to any angle of any part of the work piece.
Hand-held welded head is equipped with 10 m fiber, flexible and convenient can achieve outdoor welding.
Applicable to various complex welds, spot welding of various devices.
Easy to operate
Simple and easy to operate, no deformation of the welding seam, stable laser output to ensure welding consistency, high power density after laser focusing, fast speed, great depth and small deformation, 360-degree micro-welding.
Fast welding speed
The welding speed is more than twice that of solid YAG laser welding, and 3-5 times that of argon arc welding; saves cost, stable and be easy.
Beautiful welding process
Breaking through the limitations of the original workbench, it is suitable for all kinds of complex welding seams, and it is easy to weld any part of the work piece at any angle. The humanized design and technology upgrade can weld beautiful welding seams.
Small body, efficient welding
The welding speed of JNKEVO laser welding machine is 3-10 times that of traditional argon arc welding and plasma welding. The welding heat affected area is small, and it will not cause problems such as deformation, blackening, traces on the back of the joint construction, and the welding depth is large, the melting is sufficient, and the welding is firm.
Dual-drive handheld swing laser welding head
There are 6 welding modes and multiple welding nozzles to meet different welding needs; it has a safety sensor function, which emits a laser after touching the metal and automatically locks the light when it is removed; the spiral jitter function, the width of the weld can be adjusted, and the welding ability is significantly improved.
360° No dead angle micro welding

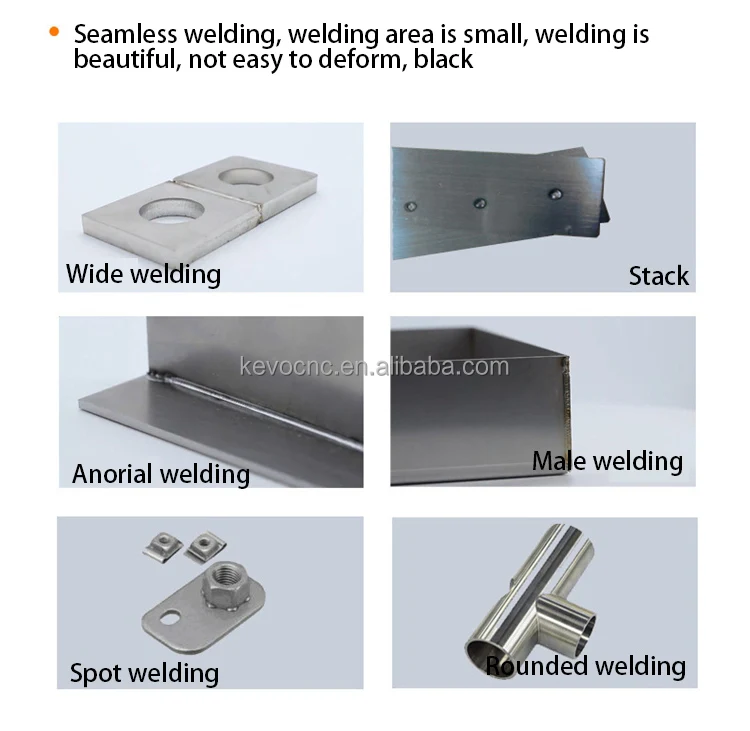

After the laser beam is focused, a small spot can be obtained, which can be accurately positioned, and is applied to micro and small workpieces that are automatically produced in large quantities. Mainly for the welding of thin-walled materials and precision parts, it can realize spot welding, stitch welding, tailor welding, sealing welding, etc. High aspect ratio, small weld
width, small heat aff
width, small heat aff
Application
Handheld Fiber Laser Welder Applications
Used for welding various stainless steel mirror characters, stainless steel brushed characters, stainless steel spherical characters, stainless steel paint characters, stainless steel spray characters, stainless steel solid characters, stainless steel electroplating characters, stainless steel gold foil characters, precision stainless steel characters, titanium flat characters, titanium spherical characters Advertisement words, Seiko titanium gold fonts, flat copper fonts, spherical copper fonts, red copper fonts, red copper antique fonts, seiko aluminum fonts, metal paint fonts (stainless steel strips, iron strips, low carbon steel strips), and metal fonts are welded to form. Lighting and mold industries, optoelectronic communication devices, medical, electronics, copper parts, aluminum parts and small welding processing industries.
Product Details

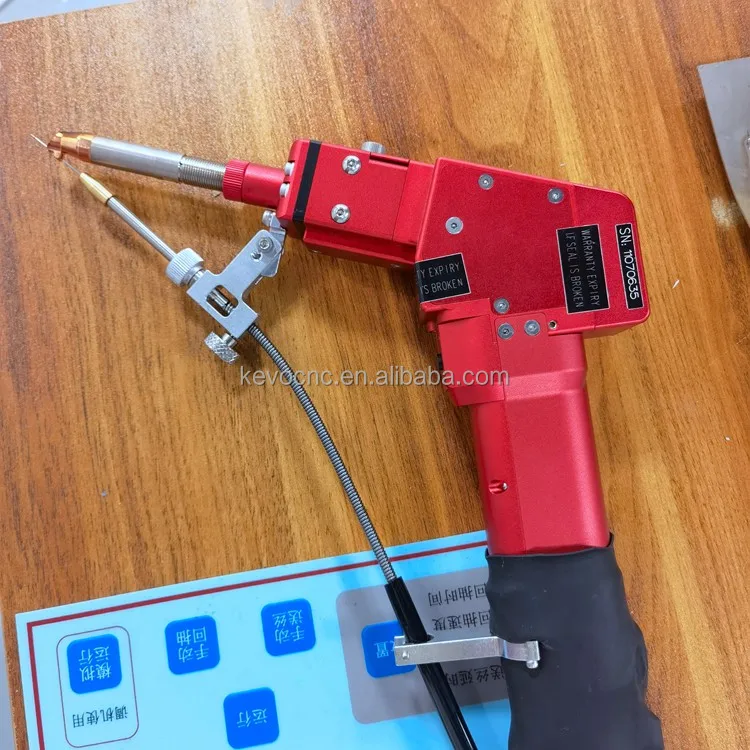

Swing welding head
The process that traditional magnetic head cannot complete, the swing welding head only needs to use 70% of the power, which can save the cost of the laser.
In addition, the swing welding method, the width of the solder joint is adjustable, and the depth of fusion is strong, which makes up for the small shortcomings of the laser solder joint.
The tolerance range and weld width of the processed parts are enlarged, and a better weld forming effect is obtained.
In addition, the swing welding method, the width of the solder joint is adjustable, and the depth of fusion is strong, which makes up for the small shortcomings of the laser solder joint.
The tolerance range and weld width of the processed parts are enlarged, and a better weld forming effect is obtained.
Parameters
Item | Handheld Fiber Laser Welder Parameters | |
Laser Power | 1000W, 1500W, 2000W | |
Laser Generator | IPG, JPT, MAX, Raycus | |
Handheld Welding Head | Wobble head / Normal head | |
Wire for welding ( diameter ) | 0.3mm - 1.2mm | |
Welding Penetration | 1.5mm - 2mm | |
Stainless steel: 4mm - 6mm Carbon steel: 4mm - 6mm Aluminum: 2mm - 4mm | ||
Laser Frequency | 50Hz - 5000Hz | |
Adjustable Power | 5% - 100% - 2000mm, Length: 3000 - 6000mm | |
Beam Quality | 1.1 | |
Voltage | 220V / 380V 50Hz | |
Wavelength | 1070±5nm | |
Fiber Cable Length | 10 meters ( customizable ) | |
Cooling System | Built in water chiller | |
Water coolant | Pure water or distilled water | |
Machine Size | 930x600x800mm | |
Machine Weight | 200 kgs | |
Machine parameters and configurations can also be customized according to your requirements. | ||
Packing & Delivery

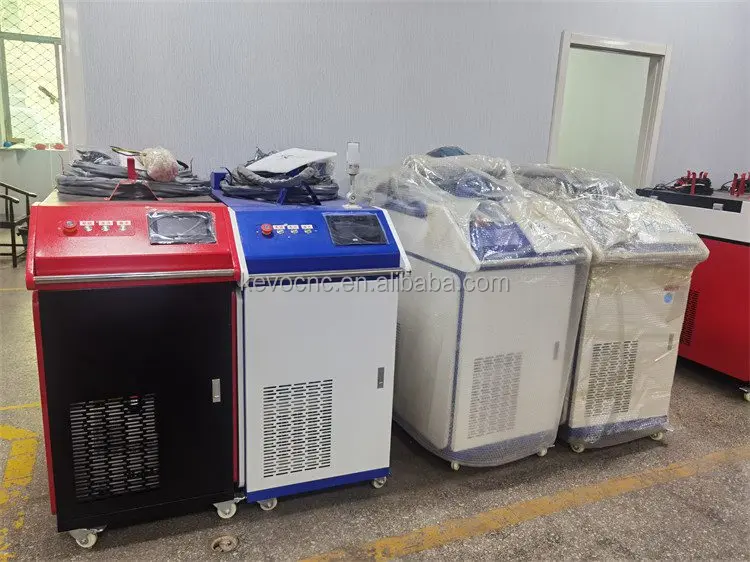

More Than One Unit Delivery
For the order more than one unit fiber laser welding machine, we will make a packing plan according to your model and quantity.
Customs Clearance Documents
After the departure of the fiber laser welder, we will send the confirmed electronic documents to you as soon as possible.
If you need the paper document, please tell us before delivery.
" Click Here " for more info !
Company Profile
Jinan KEVO Machinery Co.,Ltd
is located in Jinan, Shandong Province, which is professional for Laser Machines and Plasma Cutting Machines.
Verified Supplier By SGS !
JNKEVO integrates research and development, production, sales and maintenance services, specialized in manufacturing laser cutting machines, laser welding machines, laser cleaning machines, laser engraving machines, laser marking machines and CNC plasma cutters.
We are a strong factory, with powerful production line, can timely delivery of qualified equipment. JNKEVO equipments have been exported to more than fifty countries and regions, including Europe, America, Asia, Oceania and Africa .
We will continue to adopt international advanced production technology, production processes, development and produce high quality and high performance cnc equipment, continuing to create maximum value for customers.
Stainless Steel Fiber Laser Welding Machines With IPG JPT Max Raycus Laser Generator For Metal Welder
FAQ
Warranty
3 years , and we offer a 24-hour online service.
Lead Time
Usually within 7 - 30 days after deposit, it depends on the product model.
Payment Term
1. Alibaba Trade Assurance ( recommended )
2. TT bank transfer, 30% deposit , 70% balance before shipment.
3. LC at sight, Please contact us to determine the details of the terms.
3. LC at sight, Please contact us to determine the details of the terms.
Mode of Payment
Visa, Mastercard, PAYPAL, APPLE_PAY, GOOGLE_PAY TT bank transfer etc
Supported Currencies
USD, EUR, AUD, GBP, CAD, HKD, JPY, SGD, CNY. Please contact us for other currencies.
Accurate Price
Our products can be customized according to customer's requirements ( working size, power needed etc ), and the package is also different depends on the quantity.
So it would be best to contact with us for your detail requirements, quantity, shipping address etc, so that we can quote accurately according to your requirements.
Whether The Product Meet Your Requirements
We can take a VIDEO according to your requirements , so you can see our product and test result.
MOQ
The MOQ for each product is ONE unit.
Customization
We can customize products based on customer's requirements.
Delivery To Door
The machine can be delivered to door in some countries. Please provide your detailed address, we will confirm and give you reply ASAP.
Please feel free to SEND INQUIRY NOW !
