Kinan новый дизайн 4 порта VGA типа LCD Kvm переключатель в стойку
- Категории: KVM Switches >>>
- Поставщик: Shenzhen,Kinan,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description
Features:
- One USB console controls 4 computers

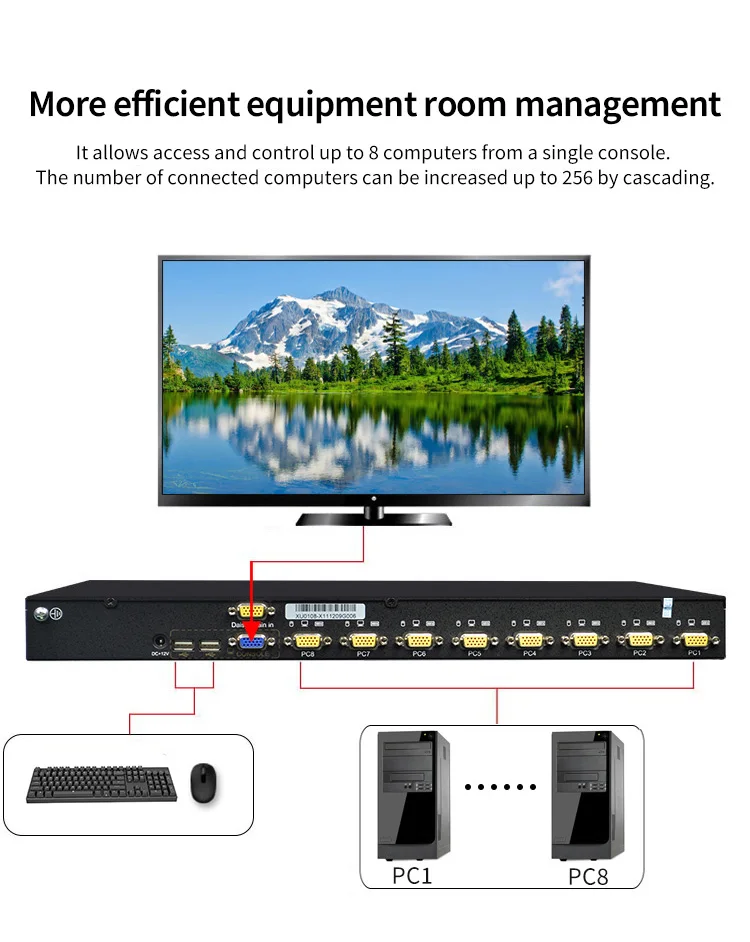

- Daisy-chain up to 31 additional switches-control up to 256 computers from a single console

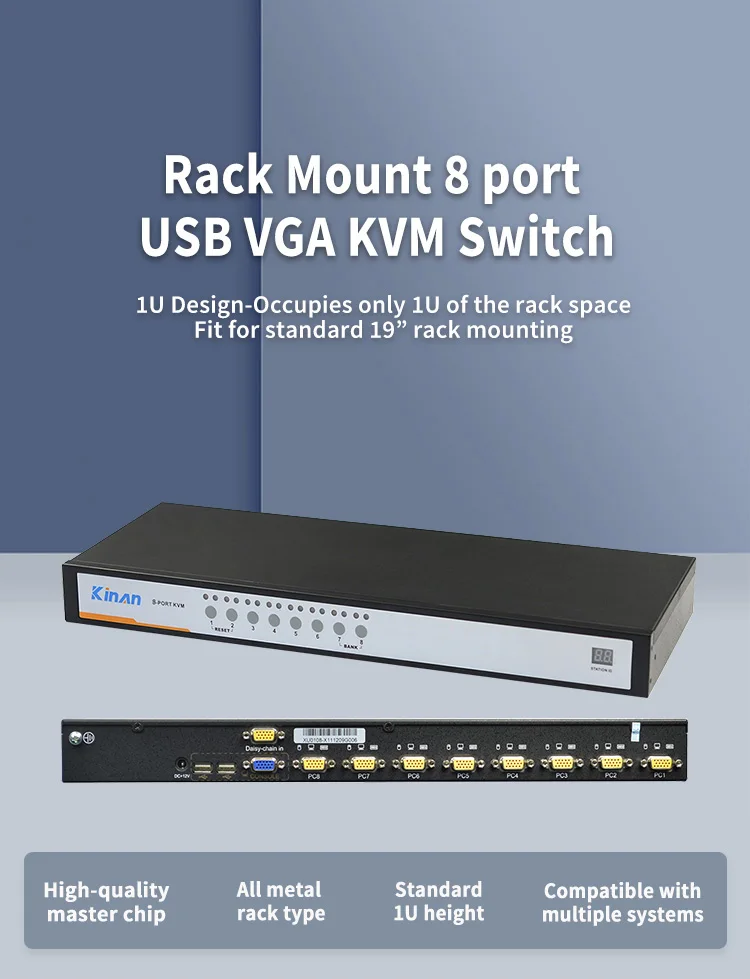

- 1U Design-Occupies only 1U of the rack space
- Fit for standard 19” rack mounting

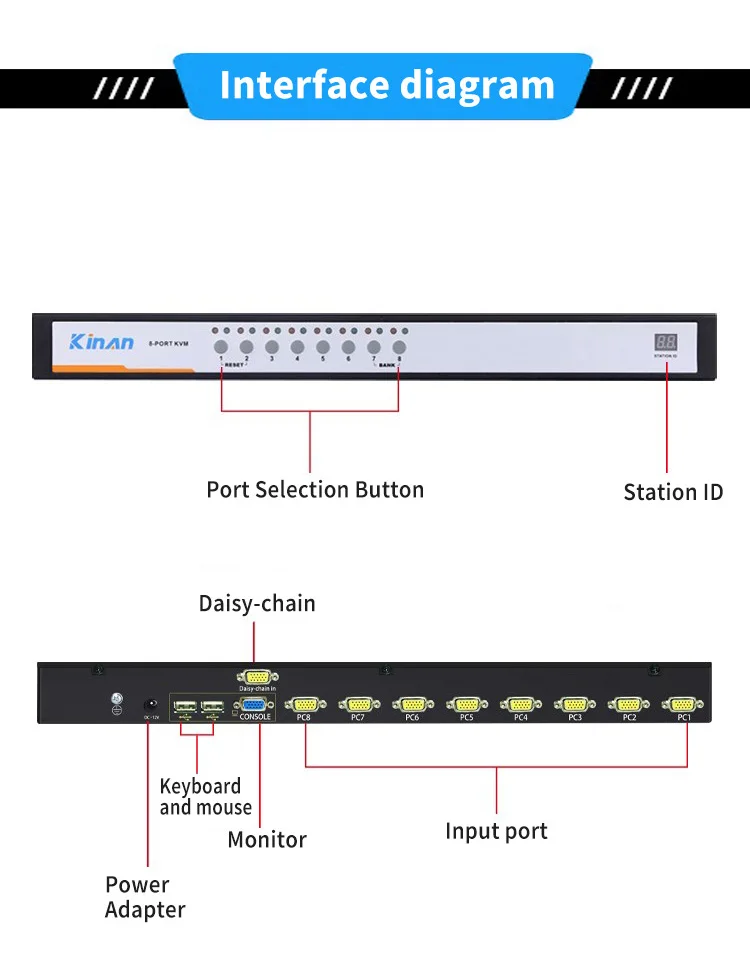

- Standard VGA connector-Connect to a server or KVM switch via a standard VGA connector
- Superior video quality - up to 2048x1536;DDC2B
- Broadcast mode--operations simultaneously performed on all selected computers
- 1.8m USB cable included
- Support hot swap--add or remove computers without having to power down the switch
- Compatible with multi-platform --- Windows, Sun, Unix and Linux
Specifications : XU0108
Model | XU0104 | ||
Computer Connections | 4 | ||
Port Selection | Pushbutton, Hotkeys, OSD menu | ||
Connector | Console | Monitor Monitor | 1*HDB-15 Female(blue) |
KVM port (HDB-15 Female(yellow) | 4*(yellow) | ||
Cascade port | 1*HDB-15 Female(yellow) | ||
Switch | Port Selection | 4* keys | |
LED Indicator | Online | 4* (green) | |
Selected | 4* (orange) | ||
Cascade Display | 2*7- Segment (orange) | ||
I/R Value | DC 12V ; 0.5A | ||
Video signal | 2048×1536;DDC2B | ||
Power Consumption | 3.5W | ||
Emulation | Keyboard/Mouse | PS/2 ,USB | |
Environment Requirements | Operating Temperature | 0~50 ℃ | |
Store Temperature | -20~ 60℃ | ||
Humidity | 0~80% RH, non-condensing | ||
Physical Features | Material | Metal | |
Weight | 1.9kg | ||
Product Dimension | 440mm x 169mm x 43mm | ||
Package Dimension | 512mm x 152mm x 252mm | ||
