Двухрядный Сферический роликовый подшипник 22226 МБ, сделано в Китае
US $18.00-$20.00
Сферический роликовый подшипник 22326 MB CCJA CC K W33 VA406 2CS5
- Категории: Spherical Roller Bearing >>>
- Поставщик: Mingke,International,Trade,(Shandong),Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description
Serve | OEM customization service |
Brand | Follow customer requirements |

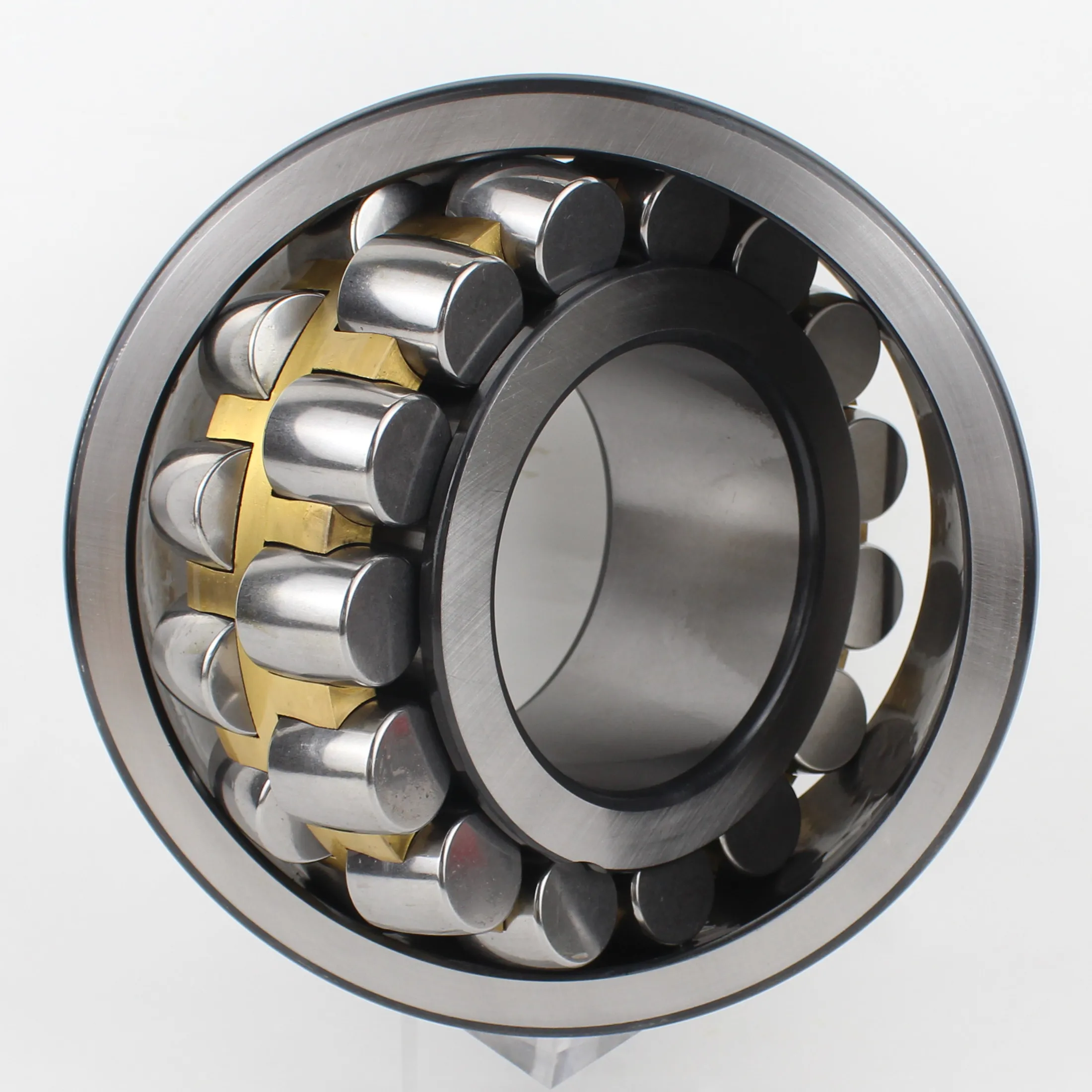

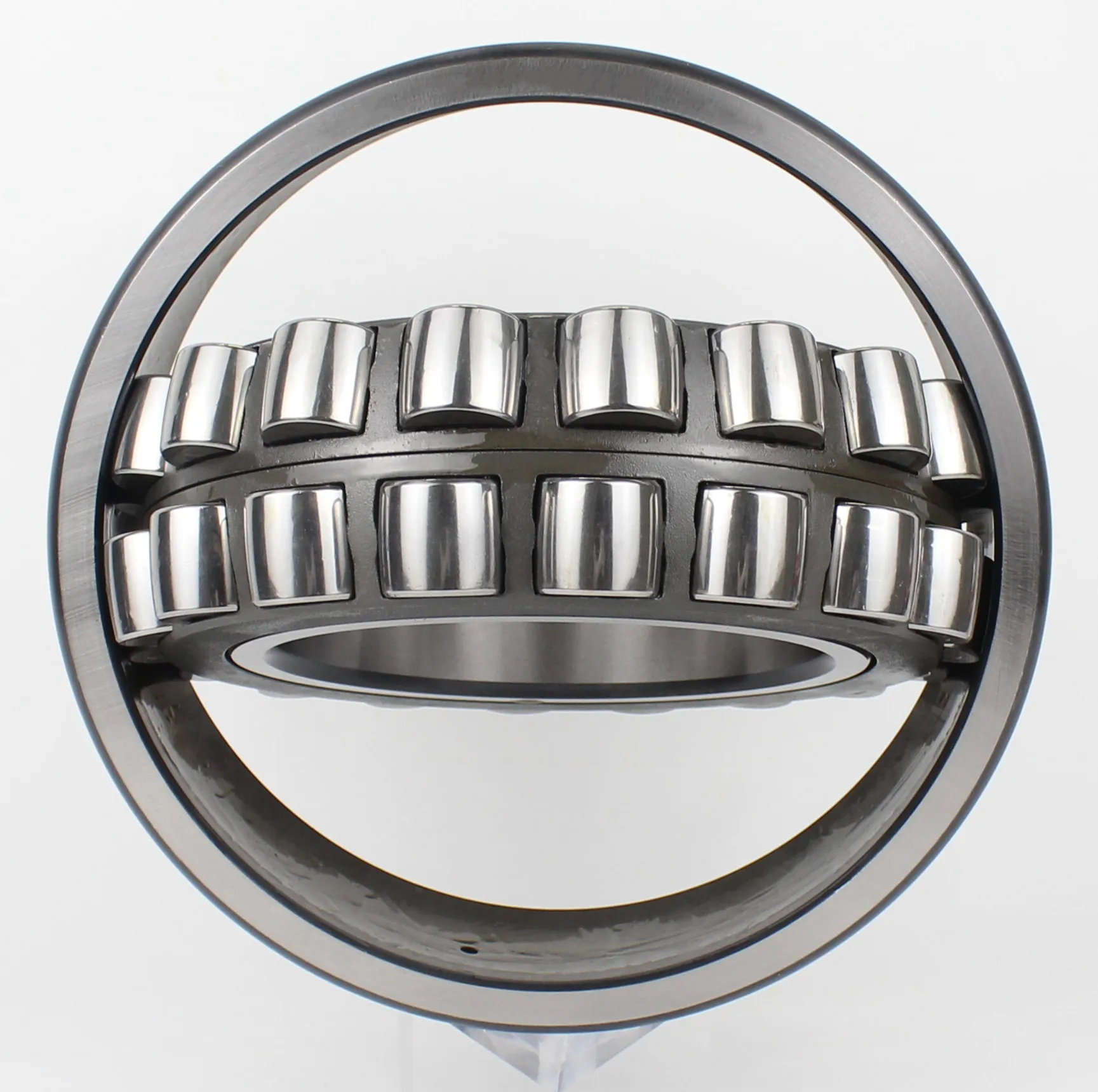

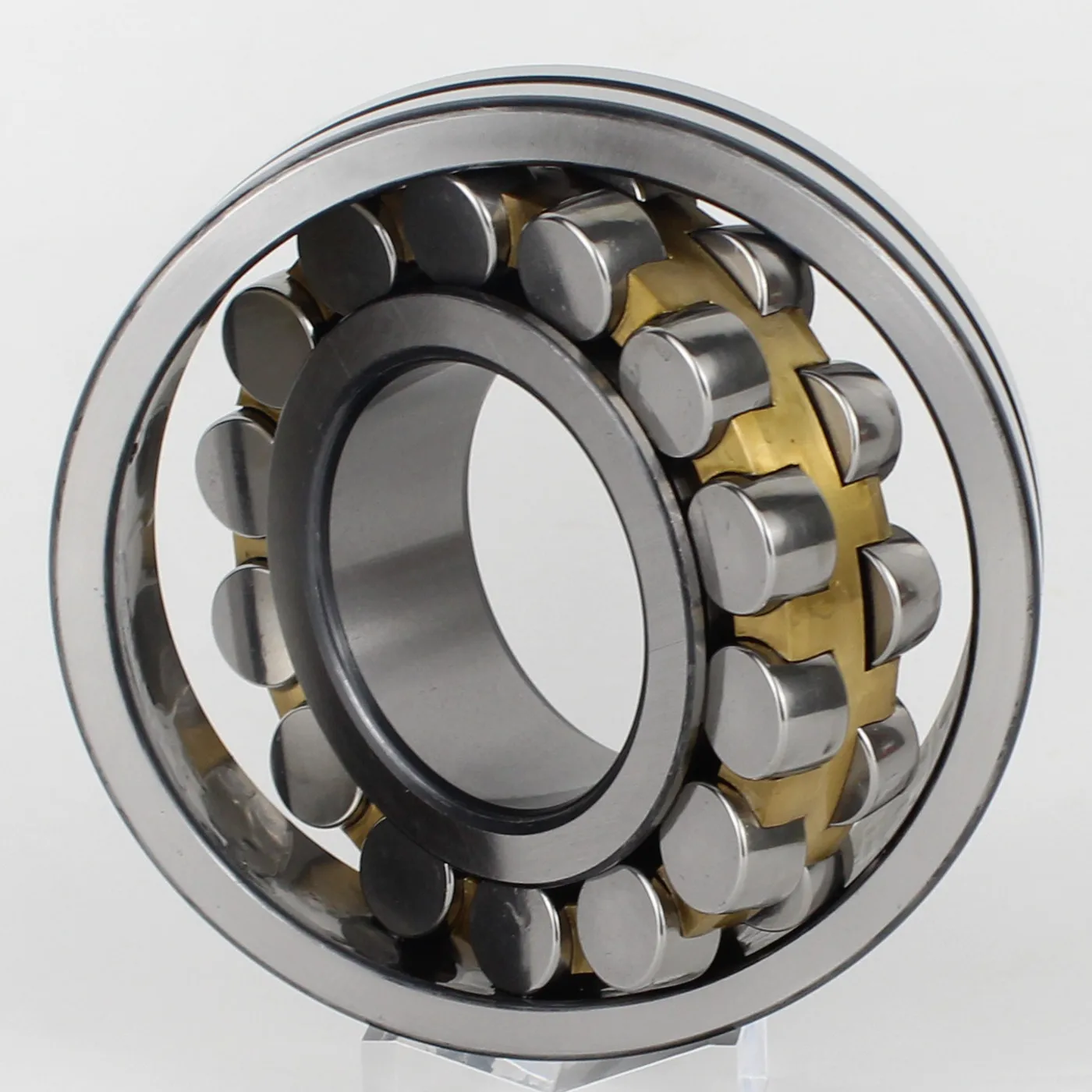

Spherical roller bearings have double-row rollers, the outer ring has a common spherical raceway, and the inner ring has two raceways that are inclined at an angle relative to the bearing axis. This ingenious structure makes it have self-aligning performance, so it is not easy to be affected by the angle of the shaft and the bearing housing on the error or shaft bending. It is suitable for installation errors or shaft deflection caused by angle errors. In addition to being able to withstand radial loads, the bearing can also withstand bidirectional axial loads.
Spherical roller bearings have cylindrical and conical bores. The taper of the conical cone bore is 1:30 and 1:12. This conical bore bearing is equipped with an adapter sleeve or a withdrawal sleeve. The tapered inner hole self-aligning ball bearing can be conveniently and quickly assembled on the optical shaft or the stepper shaft.
The models of spherical roller bearings are: spherical roller bearings (type 20000CC); spherical roller bearings with tapered bore (type 20000CCK); spherical roller bearings (type 20000CC/W33); spherical roller bearings with tapered bore (20000CCK/W33 type); Spherical roller bearings mounted on the adapter sleeve (20000CCK+H type); 6 types of spherical roller bearings mounted on the adapter sleeve (20000CCK/W33+H type)
structure type
Spherical roller bearings are divided into: cylindrical bore and conical bore.
The taper of the tapered inner bore is 1:12 with the rear code K for spherical roller bearings (153000 or 113000) and 1:30 with the rear code for K30 spherical roller bearings. When this type of bearing is matched with a conical shaft, the inner ring moves along the axial direction to adjust the radial clearance of the bearing.
Postcode
After installing the tapered hole spherical roller bearings with the rear codes K and K30 on the matching adapter sleeves, they will become the rear codes K+H type and K30+H type bearings. This kind of bearing can be installed on an optical shaft without a shaft shoulder, and is suitable for occasions where the bearing needs to be frequently installed and removed. In order to improve the lubrication performance of the bearing, there is an annular oil groove in the outer ring of the bearing and three evenly distributed oil holes are drilled, and the rear code is W33.
Purpose and installation
use
Mainly applicable cage: stamped steel plate reinforced cage (suffix E, very few in China). Stamped steel plate cage (suffix CC), glass fiber reinforced polyamide 66 cage (suffix TVPB), machined brass two-piece cage (suffix MB). Machined brass integral cage (suffix CA), stamped steel cage for vibration occasions (suffix JPA). Brass cage (suffix EMA) for vibration occasions. The same structure may have different codes on the bearings.
Main applications: papermaking machinery, reduction gears, railway vehicle axles, rolling mill gearbox bearing seats, rolling mill rolls, crushers, vibrating screens, printing machinery, woodworking machinery, various industrial reducers, vertical self-aligning bearings .
Spherical roller bearings have cylindrical and conical bores. The taper of the conical cone bore is 1:30 and 1:12. This conical bore bearing is equipped with an adapter sleeve or a withdrawal sleeve. The tapered inner hole self-aligning ball bearing can be conveniently and quickly assembled on the optical shaft or the stepper shaft.
The models of spherical roller bearings are: spherical roller bearings (type 20000CC); spherical roller bearings with tapered bore (type 20000CCK); spherical roller bearings (type 20000CC/W33); spherical roller bearings with tapered bore (20000CCK/W33 type); Spherical roller bearings mounted on the adapter sleeve (20000CCK+H type); 6 types of spherical roller bearings mounted on the adapter sleeve (20000CCK/W33+H type)
structure type
Spherical roller bearings are divided into: cylindrical bore and conical bore.
The taper of the tapered inner bore is 1:12 with the rear code K for spherical roller bearings (153000 or 113000) and 1:30 with the rear code for K30 spherical roller bearings. When this type of bearing is matched with a conical shaft, the inner ring moves along the axial direction to adjust the radial clearance of the bearing.
Postcode
After installing the tapered hole spherical roller bearings with the rear codes K and K30 on the matching adapter sleeves, they will become the rear codes K+H type and K30+H type bearings. This kind of bearing can be installed on an optical shaft without a shaft shoulder, and is suitable for occasions where the bearing needs to be frequently installed and removed. In order to improve the lubrication performance of the bearing, there is an annular oil groove in the outer ring of the bearing and three evenly distributed oil holes are drilled, and the rear code is W33.
Purpose and installation
use
Mainly applicable cage: stamped steel plate reinforced cage (suffix E, very few in China). Stamped steel plate cage (suffix CC), glass fiber reinforced polyamide 66 cage (suffix TVPB), machined brass two-piece cage (suffix MB). Machined brass integral cage (suffix CA), stamped steel cage for vibration occasions (suffix JPA). Brass cage (suffix EMA) for vibration occasions. The same structure may have different codes on the bearings.
Main applications: papermaking machinery, reduction gears, railway vehicle axles, rolling mill gearbox bearing seats, rolling mill rolls, crushers, vibrating screens, printing machinery, woodworking machinery, various industrial reducers, vertical self-aligning bearings .
Product Show
Main Products
Company Profile
Our main bearing products include Deep groove ball bearing,Thin wall deep groove ball bearings,Miniature bearings,Ceramic & stainless steel bearings,Angular contact ball bearing,Self-aligning ball bearing Cylindrical roller bearing Spherical roller bearing Tapered roller bearing,Thrust ball bearing,Thrust roller bearing,Spherical bearing with seat,Flange bearing,High temperature bearing,Guide rail & needle roller & slider bearing , and many non-standard bearings are also in our product range. The annual output is more than 10 million sets. To stay in front and making progress, we continually keep expanding our manufacturing capabilities in more cities where are more traffic-developed and Resources-adequate in Liaocheng,Ningbo and Tianjin in China. Our plant was equipped with fully modern enclosed dust-free workshop and warehouse, with improved detection technology. This enables us produce many high quality bearings and meet customers delivery time. All products could meet many advanced international standards with high quality steel and fully testing treatment.Quality Control MingKe has developed a comprehensive quality assurance program and quality system. This program and system establishes controls throughout the entire manufacturing cycle -from raw material purchasing and product manufacturing to end-item delivery. It also assures meeting quality objectives and minimizes the possibility of compromises which could affect product quality and reliability. The quality assurance program is complete and responsive to all requirements of ISO9001:2000.Our MissionWe are dedicated to providing our customers competitive price and excellent service.Our Values Customers - Our first priority is to increase our customer 's competitiveness in their markets by offering outstanding service,best price and products. We maintain strong and long-term relationships with our customers and focus our work on their total satisfaction. Integrity - We set high personal standards for ourselves and expect the people with whom we conduct business to do the same. In our company,we keep our promises. Speed - We know customers have urgent needs. We are skilled at effective communication to interact with customers. In order to provide prompt service,emails and instant message are widely used. People - We believe that our people are our greatest resource; therefore, we empower them, give them the opportunity to develop and grow.MingKe has been successful cooperation with many overseas customers, leaving good reputation of credibility with a high-quality product quality. With adequate resource, strict quality control, high-quality service, and competitive price, MingKe has been the first choice of many customers as bearing supplier. OEM is also welcomed as an optional cooperation method.
Packaging and Shipping
FAQ
Q1.Do you have MOQ?
Depends on different ideas, Can be negotiated.The larger the quantity is, the competitive the unit price will be.
Q2.Should the customer pay the delivery fee,How much is it?
For the delivery fee,many samples are be requested to be sent,so we must get delivery fee.
If you tell me to use the appointed Express,you will give me your express account or you will pay according to the Express.
If you do not request,I will choose a cheap one in China.
Q3.How about the after sale service?
1)We will always keep the quality the same as the buyer's samples and if there is something with the quality,we will make compensation for our customers.
2)We will suggest our packing and take charge in our packing,we will keep the goods safe in the delivery.
3)We will trace the goods from the production to selling,we will solve the problems in the selling for our customers.
Q4.When can I get a price？
We usually quote within 24 hours after we get your inquiry.
Q5: Are you a trade company or manufacturer?
Depends on different ideas, Can be negotiated.The larger the quantity is, the competitive the unit price will be.
Q2.Should the customer pay the delivery fee,How much is it?
For the delivery fee,many samples are be requested to be sent,so we must get delivery fee.
If you tell me to use the appointed Express,you will give me your express account or you will pay according to the Express.
If you do not request,I will choose a cheap one in China.
Q3.How about the after sale service?
1)We will always keep the quality the same as the buyer's samples and if there is something with the quality,we will make compensation for our customers.
2)We will suggest our packing and take charge in our packing,we will keep the goods safe in the delivery.
3)We will trace the goods from the production to selling,we will solve the problems in the selling for our customers.
Q4.When can I get a price？
We usually quote within 24 hours after we get your inquiry.
Q5: Are you a trade company or manufacturer?
We are a professional manufacturer with our own factory.
