23040 CA Bearing Sizes 200x310x82 mm Spherical roller bearing 23040CA







Part of the bearing specification :





d (mm)	D   (mm)	B   (mm)	Bearing No	Weight(Kg)
130	200	52	23026CA	6.17
130	200	69	24026CA	8.05
130	210	64	23126CA	8.83
130	210	80	24126CA	11.2
140	210	53	23028CA	6.55
140	210	69	24028CA	8.55
140	225	68	23128CA	10.5
140	225	85	24128CA	13.5
150	225	56	23030CA	7.95
150	225	75	24030CA	10.5
150	250	80	23130CA	16.1
150	250	100	24130CA	20.2
160	240	60	23032CA	9.74
160	240	80	24032CA	13.1
160	270	86	23132CA	20.5
160	270	106	24132CA	25.2
170	260	67	23034CA	13.1
170	260	90	24034CA	17.5
170	280	88	23134CA	22.2
170	280	109	23134CA	27.5
180	250	52	23936CA	8.24
180	280	74	23036CA	17.5
180	280	100	24036CA	23.21
180	300	96	23136CA	28.1
180	300	118	24136CA	34.5
190	260	52	23938CA	8.45
190	290	75	23038CA	18.3
190	290	100	24038CA	24.5
190	320	104	23138CA	35.2
190	320	128	24138CA	43.3
200	280	60	23940CA	11.5
200	310	82	23040CA	23.3
200	310	109	24040CA	31.4
200	340	112	23140CA	43.2
200	340	140	24140CA	53.5
220	300	60	23944CA	13.1
220	340	90	23044CA	30.5
220	340	118	24044CA	40.2
220	370	120	23144CA	53.5
220	370	150	24144CA	67.2
240	320	60	23948CA	14.4
240	360	92	23048CA	33.5
240	360	118	24048CA	43.2
240	400	128	23148CA	66.5
240	400	160	24148CA	83.2
260	360	75	23952CA	24.3
260	400	104	23052CA	48.5
260	400	140	24052CA	65.5
260	440	144	23152CA	90.5
260	440	180	24152CA	110
280	380	75	23956CA	26.1
280	420	106	23056CA	52.5
280	420	140	24056CA	69.5
280	460	146	23156CA	97.1
280	460	180	24156CA	120
300	420	90	23960CA	40.5
300	460	118	23060CA	71.5
300	460	160	24060CA	97.1
300	500	160	23160CA	125
300	500	200	24160CA	160
320	440	90	23964CA	42.1
320	480	121	23064CA	78.4
320	480	160	24064CA	100
320	540	176	23164CA	165
320	540	218	24164CA	210
340	460	90	23968CA	45.5
340	520	133	23068CA	105
340	520	180	24068CA	140
340	580	190	23168CA	210
340	580	243	24168CA	280
380	520	106	23976CA	69.2
380	560	135	23076CA	115
380	560	180	24076CA	150
380	620	194	23176CA	230
380	620	243	24176CA	300
400	540	106	23980CA	71.5
400	600	148	23080CA	150
400	600	200	24080CA	205
400	650	200	23180CA	265
400	650	250	24180CA	340
420	560	106	23984CA	74.5
420	620	150	23084CA	155
420	620	150	24048CA	210
420	700	224	23184CA	350
420	700	280	24184CA	445
440	600	118	23988CA	99.5
440	650	157	23088CA	180
440	650	212	24088CA	245
440	720	226	23188CA	360
440	720	280	24188CA	460
460	620	118	23992CA	105
460	680	163	23092CA	205
460	680	218	24092CA	275
460	760	240	23192CA	440
460	760	300	24192CA	560
480	650	128	23996CA	125
480	700	165	23096CA	215
480	700	218	24096CA	285
480	790	248	23196CA	485
480	790	308	24196CA	605
500	670	128	239/500CA	130
500	720	167	230/500CA	225
500	720	218	240/500CA	295
500	830	264	231/500CA	580
500	830	325	241/500CA	745
530	710	136	239/530CA	155
530	780	185	230/530CA	310
530	780	250	240/530CA	410
530	870	272	231/530CA	645
530	870	335	241/530CA	830
560	750	140	239/560CA	175
560	820	195	230/560CA	355
560	820	258	240/560CA	465
560	920	280	231/560CA	740
560	920	355	241/560CA	985
600	800	150	239/600CA	220
600	870	200	230/600CA	405
600	870	272	240/600CA	540
600	980	300	231/600CA	895
600	980	375	241/600CA	1200
630	850	165	239/630CA	280
630	920	212	230/630CA	485
630	920	290	240/630CA	655
630	1030	315	231/630CA	1050
630	1030	400	241/630CA	1400
670	900	170	239/670CA	315
670	980	230	230/670CA	600
670	980	308	240/670CA	790
670	1090	336	231/670CA	1250
670	1090	412	241/670CA	1600
710	950	180	239/710CA	365
710	1030	236	230/710CA	670
710	1030	315	240/710CA	895
710	1150	345	231/710CA	1450
710	1150	438	241/710CA	1900
750	1000	185	239/750CA	420
750	1090	250	230/750CA	795
750	1090	335	240/750CA	1065
750	1220	365	231/750CA	1700
750	1220	475	241/750CA	2100
800	1060	195	239/800CA	470
800	1150	258	230/800CA	895
800	1150	345	240/800CA	1200
800	1280	375	231/800CA	1920
800	1280	475	241/800CA	2300
850	1120	200	239/850CA	560
850	1220	272	230/850CA	1050
850	1220	365	240/850CA	1410
850	1360	400	231/850CA	2200
850	1360	500	241/850CA	2710
900	1180	206	239/900CA	605
900	1280	280	230/900CA	1200
900	1280	375	240/900CA	1570
900	1420	515	241/900CA	3350
1000	1420	308	230/1000CA	1600
1000	1420	412	240/1000CA	2140
1000	1580	462	231/1000CA	3500
1000	1580	580	241/1000CA	4300





Spherical roller bearing:

Spherical Roller Bearing are designed to work in applications where severe misalignment

exists whether from mounting or shaft deflection and with relatively heavy radial loads and

some axial loads in either direction. They are also extremely resistant to shock loads and their self-aligning feature allows full capacity loading despite shaft deflection. They are very similar

in purpose to Self-Aligning Double Row Ball Bearing, except the Spherical Roller Bearing

are designed to be more robust by carry heavier loads but at lower maximum speeds .
Spherical Roller Bearing are commonly used in agricultural machines such as combined harvesting machine, air-blower, paper-machine, textile machine,woodworking machinery, overhead crane moving wheel and driving shaft as well as a large number of non agricultural applications.

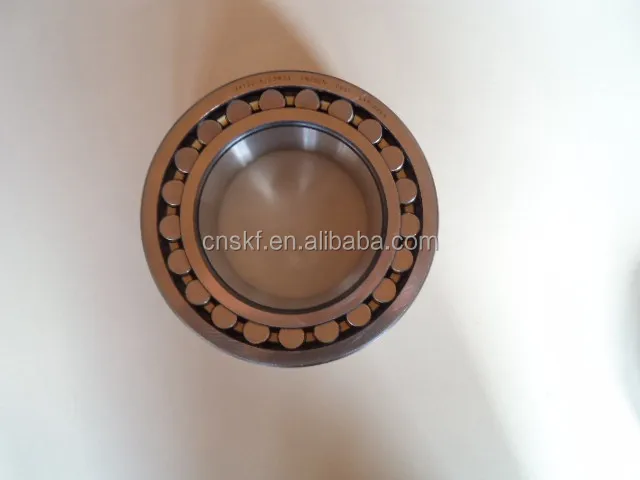

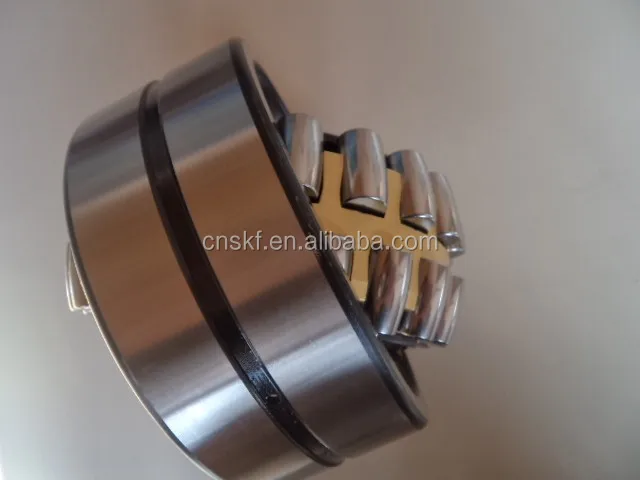

Picture show:



Specification:





Product	23040 CA Bearing Sizes 200x310x82 mm Spherical roller bearing 23040CA
Precision Rating	ABEC1,ABEC3,ABEC5
Clearance	C0,C2,C3,C4,C5 is available
Sealed Cap	Rubber or Metal
Paypal	Acceptable
OEM	Accept
Vibration Level code	V1,V2.V3
Material	Gcr15
Seals Type	ZZ/ZRS.RZ/RS. Open
Thickness	82MM
Bore Size	200MM
Outside Diameter	310MM
Number Of Row	double row
Regular export packing	Plastic drum+White box+ carton
	industrial packaging or as your requiremen.
MOQ	1 pcs
Delivery Time	1-3 days after receiving your payment
Payment Terms	L/C,T/T,Western Union,MoneyGram,Paypal
Port of shippment by sea	Shanghai,guangzhou,qingdao
Place of Origin	Shandong, China
Samples	Available







 Our factory:

Anhui KaiFu Bearing import&export Co., Ltd. is Specializing in production the bearings , our bearing  are widely used by big mechanical corporations. KaiFu bearing has high-quality management team,experienced pratitioners, and quick response and professional service team,and meanwhile is equipped with first-class automatic production lines as well as

complete quality management machines and system.



We sincerely hope to establish a good business relationship with you in the future.











Our advantages:



1. Manufacturer,the most competive price and good quality

2. Perfect group of technical engineers give you the best support

3.Well-trained group of international sales provide the best service

4.OEM brand aviliable

5.Rich stock and quick delivery







  QC:

We have complete process for the production and quality assurance to make sure

our products can meet your requirement. And our quality can compare with the

most chinese famous bearing manufacture. we have the same technology. Such as
1. Assembly
2. Windage test
3. Cleaning
4. Rotary test
5. Greasing and gland
6. Noise inspection
7. Appearance inspection
8. Rust prevention
9. Product packaging







Shipping:

1.small quantity, can delivery by global express: DHL TNT FedEx ARAMEX EMS UPS.

this is door to door.

2.large quantity, can delivery by air, by sea, this is port to port.



Payment:

T/T, L/C, Money Gram, Payal, Western Union etc.



Lead Time:

Sample Lead-times: generally 3-5 workdays.
Production Lead-times: 3-5 days after get payment or as contract required









Our market:











Q:Are you a factory or trading company?

  A:Anhui Kaifu Bearing Co.,Ltd is specialized in manufacturing and

exporting Bearing.

We have own factory and Warehouse located in Anhui city.



Q:Can I get some samples and do you offer the sample free?

  A:Yes, sure, we are honored to offer you samples.If we have stock,

we can send you free sample.

And you just need to pay freight. If there have no stock,

you need to pay sample fee and freight.



Q:What is the MOQ for bearing?
A: Our MOQ is 1 pc.







...
