S05HID05-1W Один входной сигнал 5VDC двойной выход 200mA 1 Вт 3000VDC высокой степенью изоляции защита от перенапряжения мощности
- Категории: DC\/DC Converters >>>
- Поставщик: Henlv,Power,Shanghai,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description

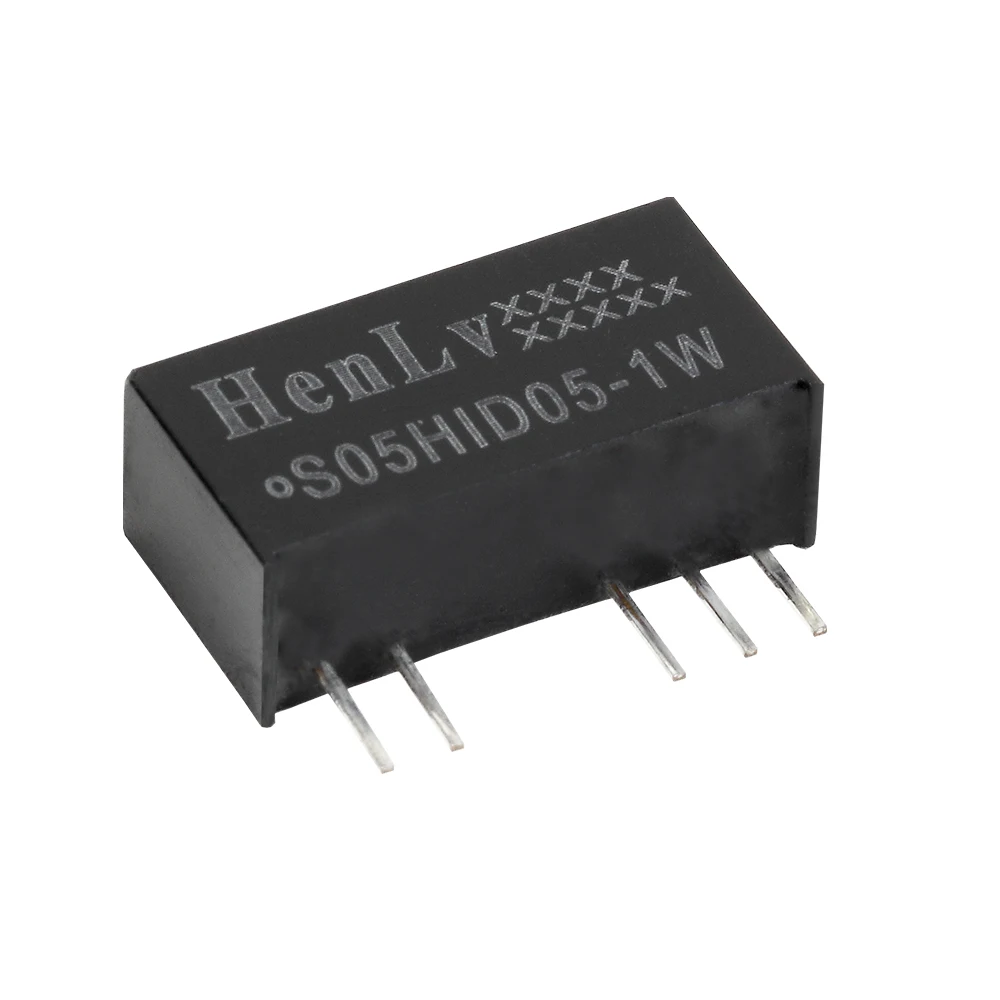

Henlv Factory directly sell customizable S05HID05-1W single intput 5VDC to double output 5VDC 200mA 1W 3000VDC high isolation Voltage protection power converter
1.Name:Constant voltage DC-DC Power converter
2. Modle:S05HID05-1W
3.Hoder type:SIP
4.Input voltage:5VDC
5.Output voltage:±5VDC
6.Isolation voltage:3000VDC (High Isolation)
7.Output current:500mA
8.Output wattage:1W
9.Voltage protection:Yes

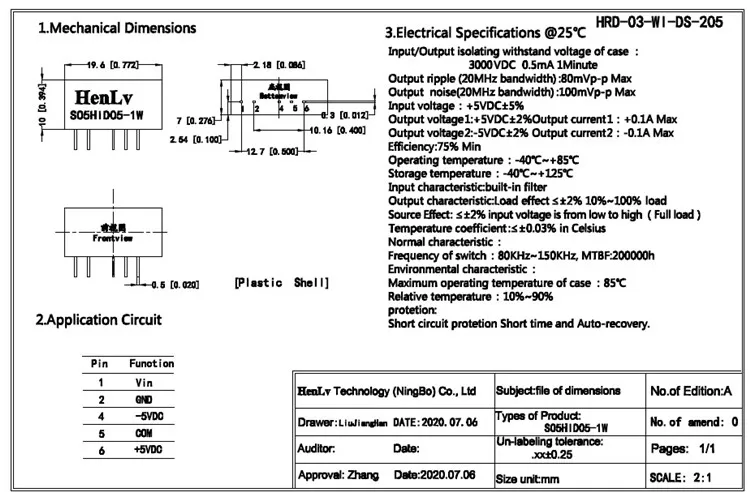

Specification
Application:
Railway communication,display screen, monitoring equipment,petrochemical industry,industrial control,long-distance DC power supply system,switching system and other communication equipment,Automated industry , Mechanical control system,Machinery and electrical equipment,Security Monitoring Electronic equipment etc.
Remark:
Customized is approved .Welcome to call us if have special demands .
SXXHIDXX-1W Series | ||||||||||||
Item No. | Input Voltage | Output Voltage | Output Current | Isolation | Power | Size(mm) | ||||||
S05HID05-1W | 5VDC | ±5VDC | 0.5mA | 3000VAC | 1W | 19.6x6x10mm | ||||||
Company Profile
HenLv Power (Shanghai) Technology Co., Ltd
Henlv specializes in power module technology research and manufactures high-quality products include AC/DC converter, DC/DC converter,and most of which got CE, ROHS ,etc.certifications. Product applicable field includes Railway communication, Display screen, Monitoring equipment , Petroleum chemical industry, Industrial control and Distance DC power supply system.
About Henlv
In 2005, HenLv was founded in Shanghai, China.
In 2007,Henlv was awarded the member Unit of China Power Supply Society.
In 2008,Headquarters landed in the world's third largest port -- Ningbo, China
In 2009, Registered (HenLv) trademark.
In 2010,Shenzhen subsidiary was established.
In 2010, Henlv passed various CE, RoHs and other industry qualification certifications.
In 2011, many of the company's products won national invention patents, utility model patents, and appearance design patents.
In 2012, Henlv was rated as the top ten in the power industry.
In 2014, Henlv was rated as Ningbo Technology Enterprise.
In 2015, Henlv was rated as a national high-tech enterprise.
In 2017, Henlv passed the weapon equipment quality management certification.
In 2019,Replacing the quality management system certification
In 2020, HenLv·China) Research and development manufacturing headquarters base groundbreaking.
In 2007,Henlv was awarded the member Unit of China Power Supply Society.
In 2008,Headquarters landed in the world's third largest port -- Ningbo, China
In 2009, Registered (HenLv) trademark.
In 2010,Shenzhen subsidiary was established.
In 2010, Henlv passed various CE, RoHs and other industry qualification certifications.
In 2011, many of the company's products won national invention patents, utility model patents, and appearance design patents.
In 2012, Henlv was rated as the top ten in the power industry.
In 2014, Henlv was rated as Ningbo Technology Enterprise.
In 2015, Henlv was rated as a national high-tech enterprise.
In 2017, Henlv passed the weapon equipment quality management certification.
In 2019,Replacing the quality management system certification
In 2020, HenLv·China) Research and development manufacturing headquarters base groundbreaking.
In the future,Henlv will be better...

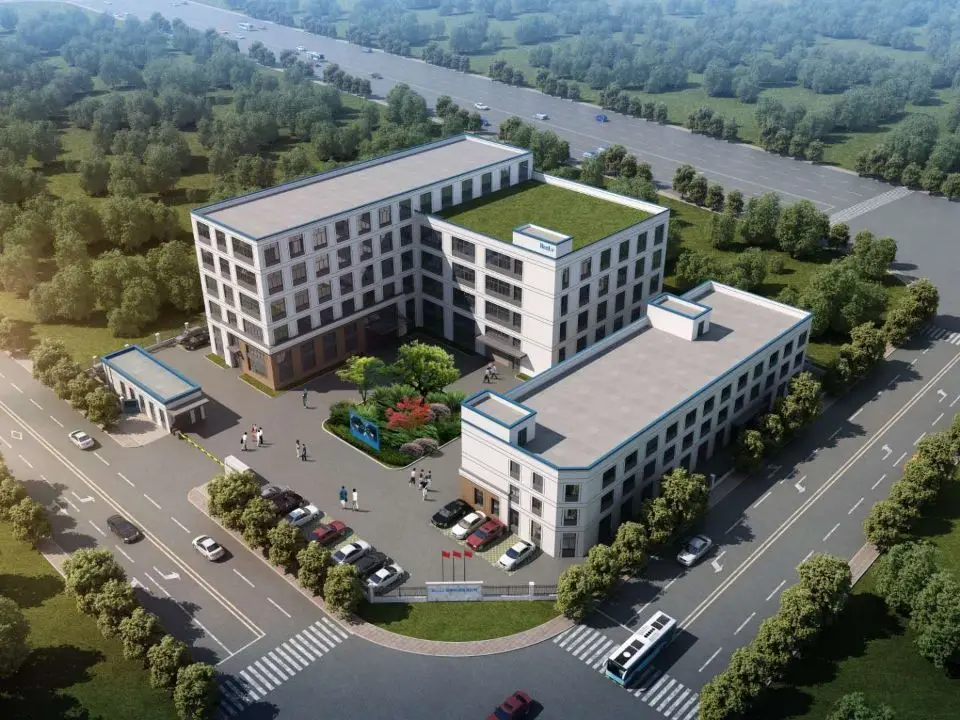

Henlv Head office new building
Our Exhibition
FAQ
1. Can I have a sample order?
Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
2. What is the lead time?
Sample needs 3-7 days, mass production time needs 7-15 workdays according to the quantity.
3. Do you have any MOQ limit?
Our MOQ EXW is 10pcs
4. How do you ship the goods and how long does it take arrive?
We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive.
5. Do you accept to put our label on the products or box ?
Yes, we accept .
6.What method of payment do you support?
T/T,PayPal,Western Union,Trade Assurance are all OK.
7.What if I cannot find what I need on your products list?
What we list are standard types of power module, if can't find what you needed, please tell us, we will send you the specificaiton
on mail or skype.
Sample needs 3-7 days, mass production time needs 7-15 workdays according to the quantity.
3. Do you have any MOQ limit?
Our MOQ EXW is 10pcs
4. How do you ship the goods and how long does it take arrive?
We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive.
5. Do you accept to put our label on the products or box ?
Yes, we accept .
6.What method of payment do you support?
T/T,PayPal,Western Union,Trade Assurance are all OK.
7.What if I cannot find what I need on your products list?
What we list are standard types of power module, if can't find what you needed, please tell us, we will send you the specificaiton
on mail or skype.
