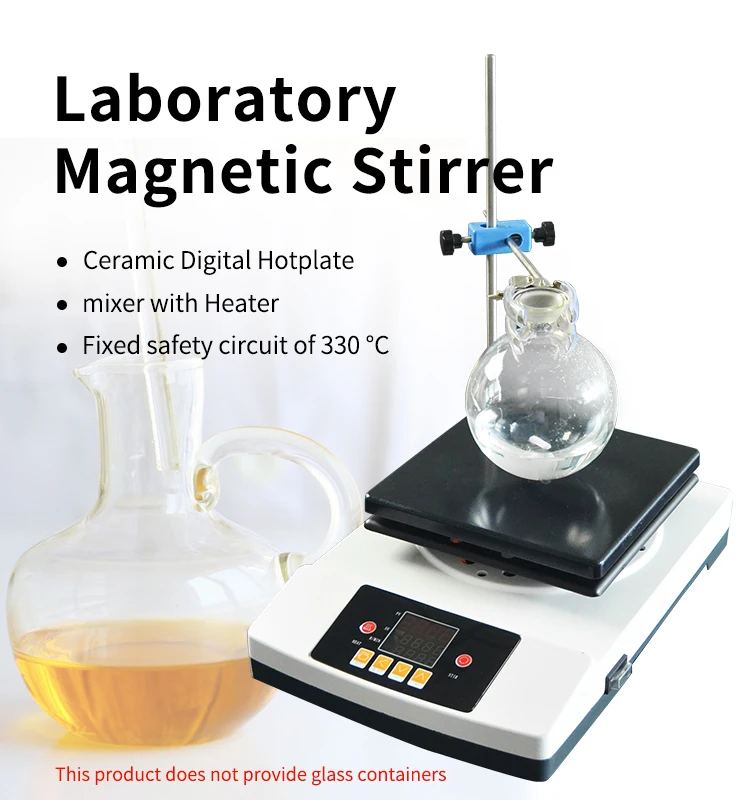

Features of the ZNCL-BS laboratory hot plate magnetic stirrer
1. Patented products, adopt square ceramic, metal surface, anti-corrosion, smoothly easy to clean
2. Take advantage of long life patented synthesis crystal heating coating, heating life is ten times of heating wire. What’s more, heating temp is stable max to 300°C
3. Adopt imported PAPST series Brushless DC Motor, Stable performance, Low noisy, Long life, No sparkle
4. Disposable molded ABS~plastic shell, Beautiful looks; Anti~corrosive, Fine insulation. (30℃working plate suits your seat and perspective)
5. No polar adjust speed digital display rotary speed and control line makes the rotary speed steady or big torque
6. Set in Constant temp line, temp control accuracy, easy to operate
7. Inside, outside probe can measure the temp of electric
Model | ZNCL-BS | |||
Heating plate size(mm) | 140*140 | 180*180 | 230*230 | 280*280 |
Power supply | 220V/50Hz | |||
Speed range(rpm) | 0~2500 digital speed, stepless speed regulation | |||
Motor power(W) | 40W, DC14-24V | |||
Temperature accuracy | ±1℃, intelligent digital display, internal and external and external with sensor, SCR control | |||
Heating temperature | Highest surface temperature is 380℃ | |||
Overtemperature protection | 390℃ automatic protection | |||
Heating power(W) | 350 | 500 | 800 | 120 |
Face plate material | Special coating vaccum coating(high temperature resistance, corrosion resistance, resistance to strong acid and alkali, smooth and easy to clean) | |||
Heating, stirring capacity(mm) | 50-500 beaker | 50-2000 beaker | 50-3000 beaker | 50-5000 beaker |
Overall dimensions | 325*215*120 | 430*270*150 | 500*330*150 | |
Packing size | 315*205*170 | 375*265*170 | 480*320*200 | 550*380*200 |
Weight(g) | 3200±200 | 4500±200 | 6000±200 | 7500±200 |
Working time | Continuous |
Shanghai Linbel Instrument Co., Ltd. is a high-tech company which has internationally advanced R&D, production and sales ability. Workshop is equipped with modern production lines and world's leading production equipment and computer-controlled monitoring system.our products are low temperature cooling liquid circulating pump, high and low temperature circulation tank, rotary evaporator, glass reactor and low temperature reaction vessel.Integrity management has always been our strategy, with advanced technology to reduce costs and be rewarded high-performing So we look forward to working with you to bring you the best results.
Q1. What is your products range?
• Industry water chiller, recirculating cooling chiller, rotary evaporator, alcohol recovery equipment, short path distillation kit, glass molecular distillation equipment, falling film evaporator, jacketed glass reactor and other lab equipment.
Q2. Are you trading company or manufacturer?
• We are professional manufacture of lab equipment and we have our own factory.
Q3. Do you provide samples? Is it free?
• Yes, we could offer the sample. Considering the high value of our products, the sample is not free, but we will give you our best price including shipping cost.
Q4. Do you have warranty?
• Yes, we offer 1 year warranty for the spare part.
Q5. How long is your delivery time?
• Generally it is within 7 working days after receiving the payment if the goods are in stock. Or it is 15 working days if the goods are not in stock, depending on order quantity.
Q6. What is your terms of payment?
• Payment≤15,000USD, 100% in advance. Payment≥15,000USD, 70% T/T in advance, balance before shipment.
(If you are concerned about payment security for the first order, we advise you can place Trade Assurance Order via Alibaba. you will get 100% payment refund if we can't meet agreed delivery time.)
Jack Zhang
Email: info@linbel.com
linbel.com
Add: 1000 Chengliu Middle Road, Jiading Dist, Shanghai, China
Don't hesitate to contactg us, this is the product you need. Please click "Send" immediately!
