Product Description
4x1 HDMI KVM Switch (Type-C) 4K@60Hz 4:4:4
#HCK0401A1U
This 4x1 HDMI KVM Switch provides you with great flexibility in integrating cross-platform computer equipment easily. It makes you available to switch easily and reliably between any HDMI computers using one HDMI compliant display.
This 4x1 HDMI KVM Switch provides you with great flexibility in integrating cross-platform computer equipment easily. It makes you available to switch easily and reliably between any HDMI computers using one HDMI compliant display.
Specification
HCK0401A1U | 4x1 HDMI KVM Switch 4K@60Hz 4:4:4 | |||
Functionality: | ||||
Auto Scan | Yes | |||
Port selection | Front panel buttons | Yes | ||
Keyboard hotkeys | Yes | |||
IR remote control | Yes | |||
Technical: | ||||
Resolution | Up to 3840x2160@60Hz 4:4:4 | |||
Auto to get EDID | Yes | |||
Data rate | 18 Gbps | |||
Auto scan interval | 1~250 Seconds | |||
Beep Sound | On/Off | |||
OSD | No | |||
Supported OS | Unix/Windows/Debian /Ubuntu /Fedora /Mac OS X/ Raspbian /Ubuntu for Raspberry Pi and other Linux based system | |||
Console ports | Keyboard emulation | 1 * USB Type A | ||
Mouse emulation | 1 * USB Type A | |||
USB 2.0 Hub ports | 1 * USB Type A | |||
Video /Audio | 1 * HDMI Type A | |||
System ports | USB Data | 4 * USB Type B | ||
L/R Audio output | 1 * AUX | |||
Video / Audio | 3 * HDMI Type A 1 * Type-C | |||
ESD protection | Human body model - ±8kV (Air-gap discharge) | |||
Mechanical: | ||||
Chasing material | Aluminum Alloy | |||
Product dimensions | 300 (L) x 117 (W) x 30w (H) mm | |||
Item weight | 800g | |||
Features
◪ With Type-c port, it is easy to connect with USB-C interface equipment
◪ Available to use keyboard and mouse without any delay after switching input sources
◪ Using only 1 set of keyboard, mouse and monitor to control 4 computer devices
◪ Support resolution up to 3840*2160@60Hz 4:4:4
◪ HDCP 2.2 compliant
◪ Support hot plug, connect or disconnect devices to the KVM at any time without turning off devices
◪ Support analog L/R audio output
◪ Support HDR10 and Dolby Vision
◪ Support keyboard and mouse pass through mode to improve mouse and keyboard compatibility
◪ Support resolution up to 3840*2160@60Hz 4:4:4
◪ HDCP 2.2 compliant
◪ Support hot plug, connect or disconnect devices to the KVM at any time without turning off devices
◪ Support analog L/R audio output
◪ Support HDR10 and Dolby Vision
◪ Support keyboard and mouse pass through mode to improve mouse and keyboard compatibility
◪ With EDID emulators in each input port, keep PCs always having correct display information.
◪ With USB 2.0 hub port, it is possible to connect bar code scanner, USB hard drive or other USB devices to KVM.

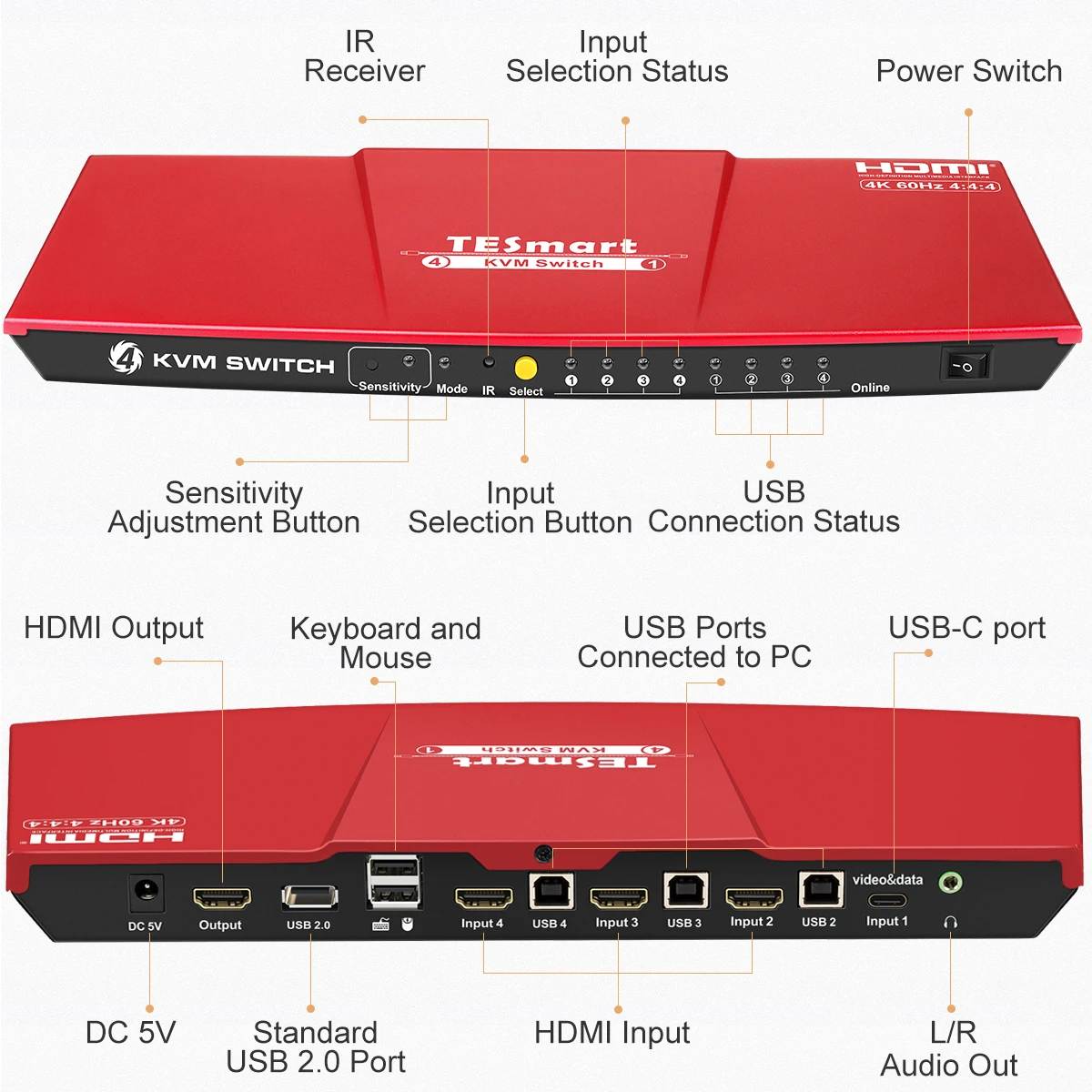

Panel Description
Detailed Images
Application
