Кабель инвертора системы энергохранения

Описание и отзывы

Характеристики

UL10269 16AWG low halogen tinned copper electrical wire

Rated temperature: 150 centigrade

Rated voltage: 1000V DC

Reference Standard: UL758, UL1581,C22.2NO.210.2

Conductor: stranded  tinned   copper

Insulation: FR-XLPE insulation, comply with ROHS environmental standard

Flame Retardant Test: UL Horizontal, FT2 flame Test

Uniform thickness to ensure stripping and cutting easily

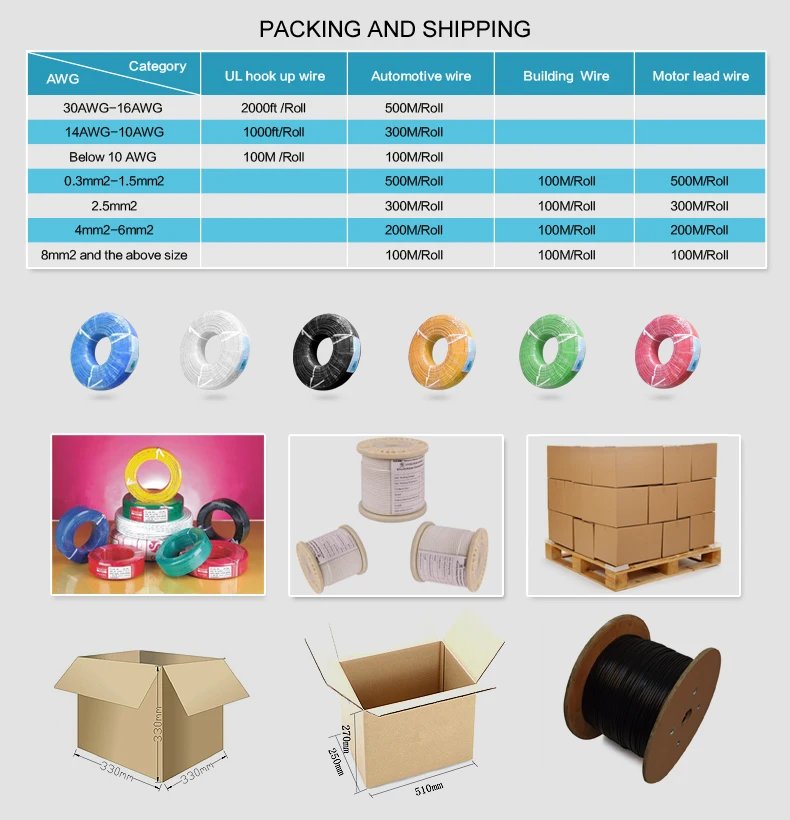

Generally applied into the electrical equipPacking: packed in plastic foam and carton

Delivery:within one month after received the down payment

MARKING:

E330446   AWM STYLE 3321 AWG NO. XLPE 150°C 600V FT2 ---  AWM I A 150°C 600V FT2 RoHS COMPLIANT DANYANG WINPOWER

 CABLE CONSTRUCTION:

CONDUCTOR			INSULATION		MAX.COND. RESISTANCE (Ω/km,20°C,DC)	DIELECTRIC STRENGTH (VAC,1min)
AWG	CONSTRUCTION (No./mm)	DIA. (mm)	THICKNESS (mm)	O.D. (mm)
30	7/0.10	0.30	0.80	1.90	381	2,000
28	1/0.32 7/0.127	0.32 0.38	0.79 0.81	1.90 2.00	227 239	2,000
26	1/0.404 7/0.16	0.40 0.48	0.80 0.81	2.00 2.10	143 150	2,000
24	1/0.511 11/0.16	0.51 0.61	0.80 0.82	2.10 2.25	89.3 94.2	2,000
22	1/0.643 17/0.16	0.64 0.76	0.80 0.82	2.25 2.40	56.4 59.4	2,000
20	1/0.813 26/0.16	0.81 0.94	0.80 0.81	2.40 2.55	35.2 36.7	2,000
18	1/1.024 16/0.254 41/0.16	1.02 1.17 1.18	0.82 0.82 0.81	2.65 2.80 2.80	22.2 23.2 23.2	2,000
16	1/1.29 26/0.254	1.29 1.49	0.81 0.81	2.90 3.10	14.0 14.6	2,000
14	1/1.60 41/0.254	1.60 1.88	0.80 0.81	3.20 3.50	8.78 8.96	2,000
12	65/0.254	2.36	0.82	4.00	5.64	2,000
10	7/15/0.254	3.40	0.83	5.05	3.54	2,000



     Q: Are you manufacturer or trading company?

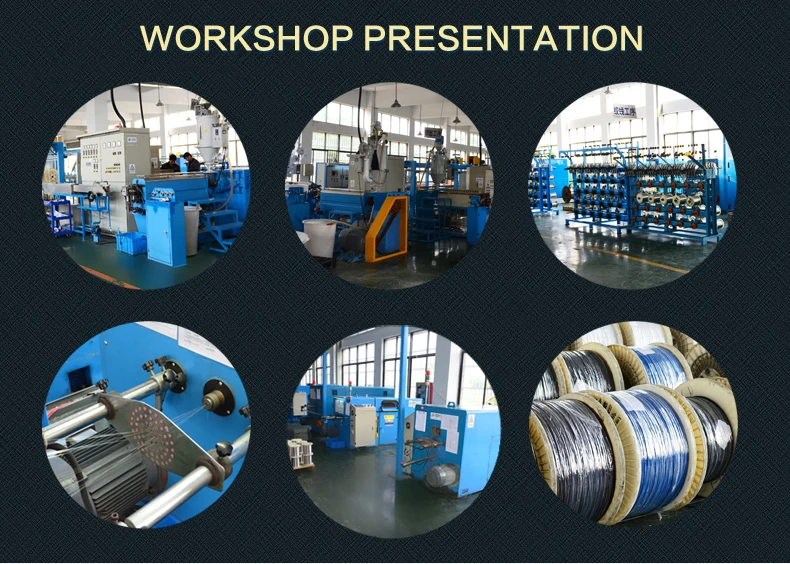

     A: We are the factory who specialize in the production of ul electrical wire,automotive wire

          building wire , motor lead wire and solar cable since 2009.



     Q: How can I go to your factory?

     A: We are located in Lingkou Industrial Park , Danyang City , Jiangsu Province , China.

          There’re tow kind transportation methods.

          1) Flight to Shanghai , and aboard one-hour Harmony train from Shanghai Station to

          Danyang  Station.

          2)Flight to Changzhou , and aboard 20-minute Harmony train from Changzhou Station to

          Danyang Station.

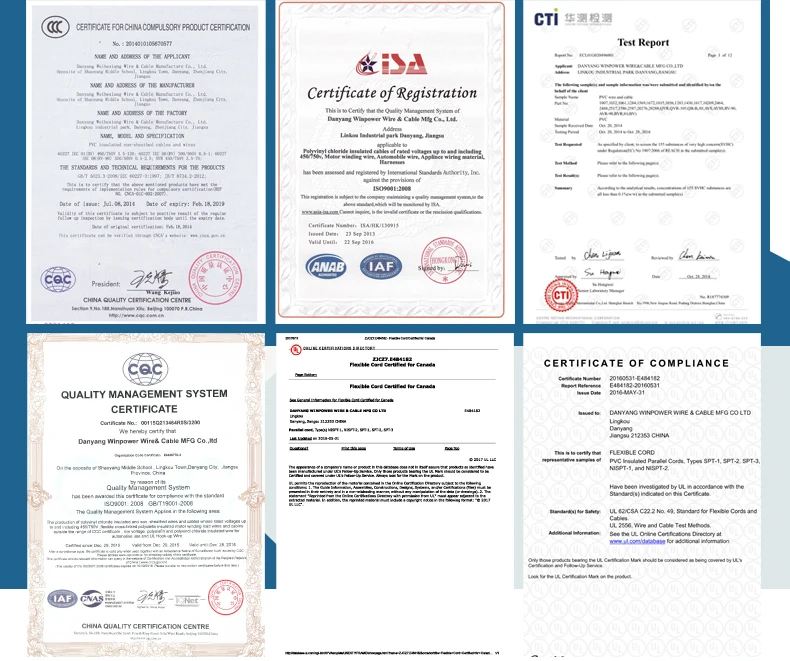

     Q: Can you show us your products test report?

     A: Of course . I can e-mail the copy one to you.

         Our products have passed RoHS & REACH test.



     Q: Can I have the sample?

     A:  Yes . The free samples are available . You just need to afford the freight cost.



     Q: How long can I expect to get the samples?

     A:  If there’ stock , it can be delivered within 1 day . If not , it will be 3-5 days.



     Q: OEM can be accepted?

     A:  Yes , it can be accepted.



     Q: Some special wire can be producted?

     A:  Yes , we can do the customer wire according to your drawings or specifications.



     Q: What’s your delivery time?

     A:  It depends on your quantity.
