[EU] 4th ось вращения A-осьный роторный стол K12 100 мм 4 нижними зажимами делительная головка + 65 Задняя бабка для фрезерного станка с


Поделиться:

Цена:243,00 $ - 254,00 $*
Стоимость в USD (на сегодня):Узнать

Количество:

Описание и отзывы

Характеристики








Germany Warehouse









Good News:
We have Warehouse in Germany,so we can ship from Germany fast delivery and no VAT to EU Countries!!!


we will ship you order by DHL within one day handling time.



















































Free Custom Duty & Free VAT to Below Europe Countries


AustriaBelgiumBulgaria

Czech Republic



Croatia


DenmarkEstonia
FinlandFranceGermanyGreeceHungaryIrelandItaly
LatviaLithuaniaLuxembourgNetherlandsPolandPortugalRomania
SlovakiaSloveniaSpainSwedenUKMalta






  1-2 working days to: Germany
2-4 working days to: Austria,France,Spain and Italy
3-5 working days to: UK
4-5 working days to: Other Europe Countries












Packaging & Shipping

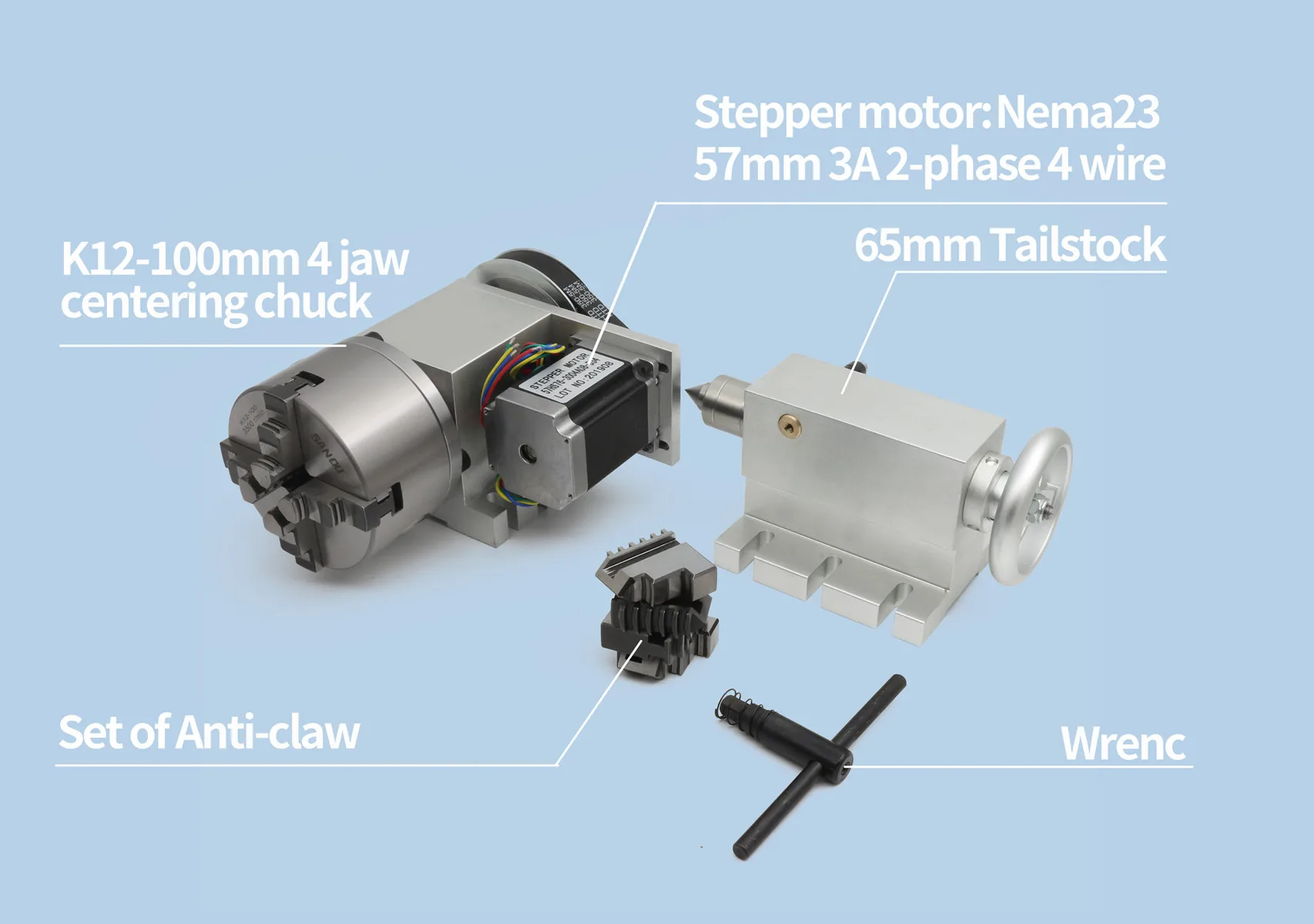

Package include:



  • 1Set 4th Axis K12-100mm ( with Nema23 stepper motor and 4 jaw chuck) Reduce Ratio 6:1

  • 1Pcs 65mm Tailstock

  • 1Set of Anti-claw






Product Description

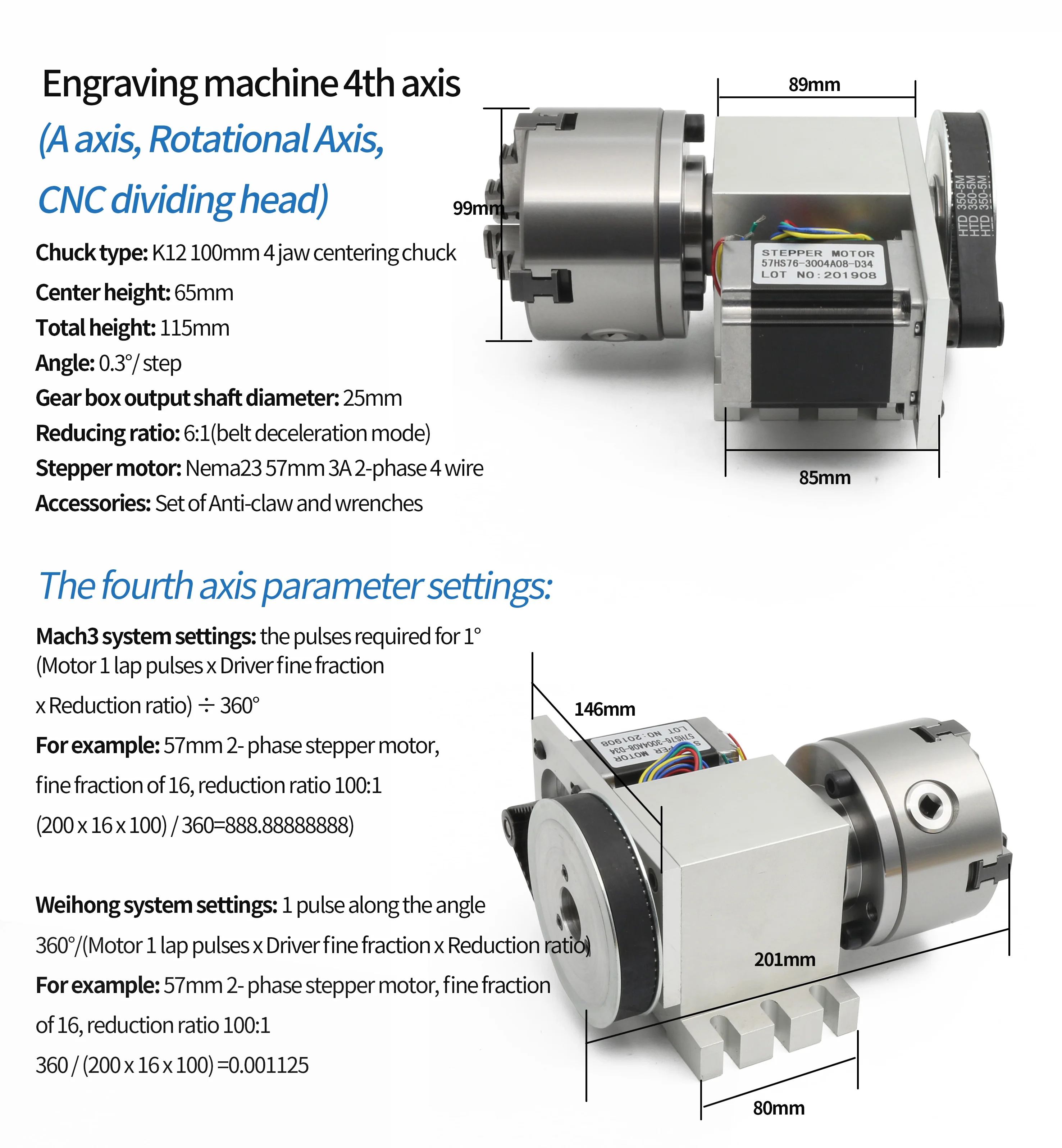

Engraving Machine 4th Axis A Axis



  • Chuck type: K12-100mm 4 jaw centering chuck

  • Center height: 65mm

  • Total height: 115mm

  • Angle: 0.3°/ step

  • Gear box output shaft diameter: 25mm

  • Reducing ratio: 6:1(belt deceleration mode)

  • Accessories: Set of Anti-claw and wrenches














The fourth axis parameter settings:


Mach3 system settings:


the pulses required for 1°


(Motor 1 lap pulses x Driver fine fraction x Reduction ratio) ÷ 360°


For example: 57mm 2- phase stepper motor, fine fraction of 16, reduction ratio 100:1


(200 x 16 x 100) / 360=888.88888888)


Weihong system settings:


1 pulse along the angle


360°/(Motor 1 lap pulses x Driver fine fraction x Reduction ratio)


For example: 57mm 2- phase stepper motor, fine fraction of 16, reduction ratio 100:1


360 / (200 x 16 x 100) =0.001125

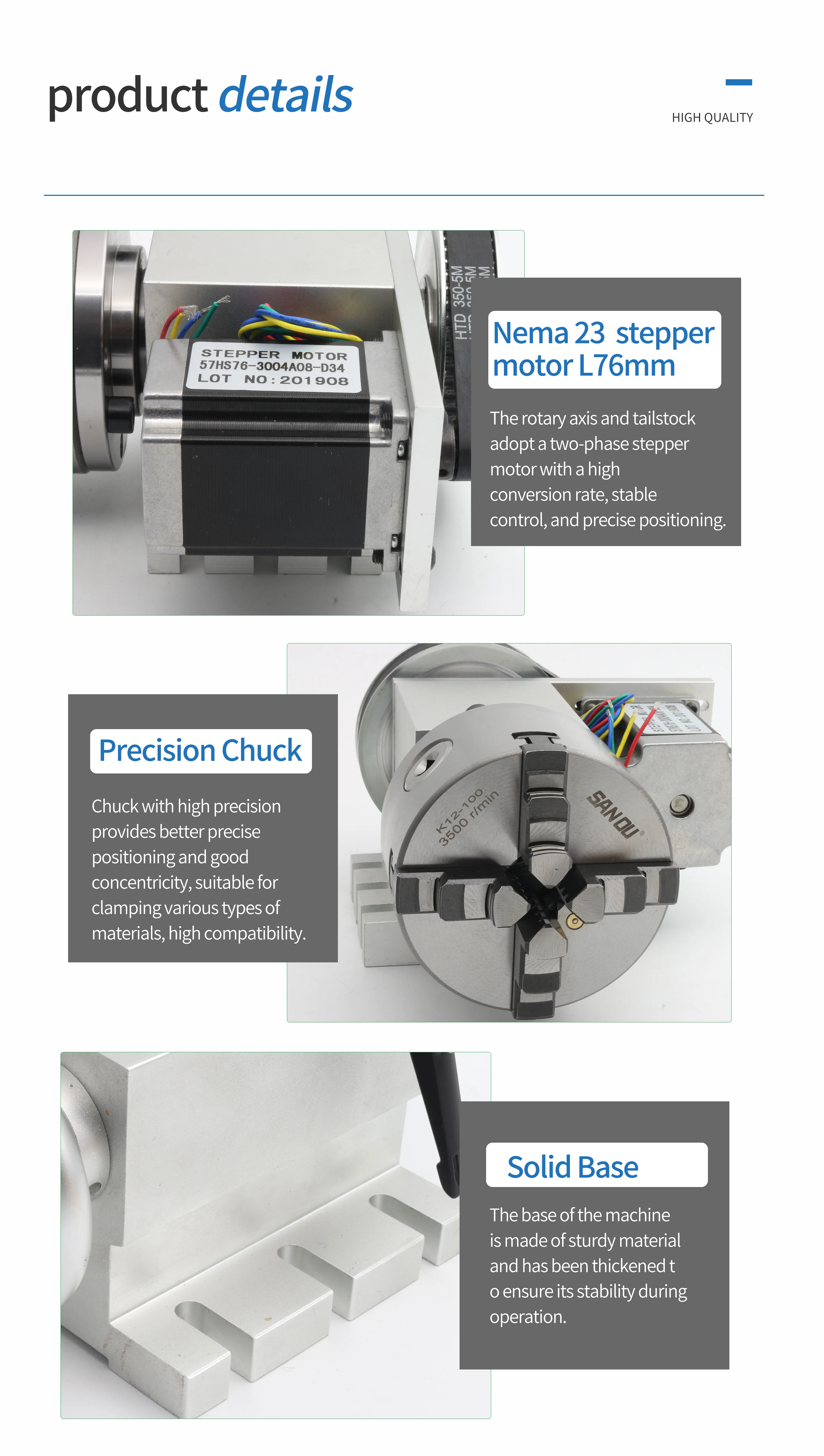

4 jaw centering chuck


Suitable for clamping various types of materials

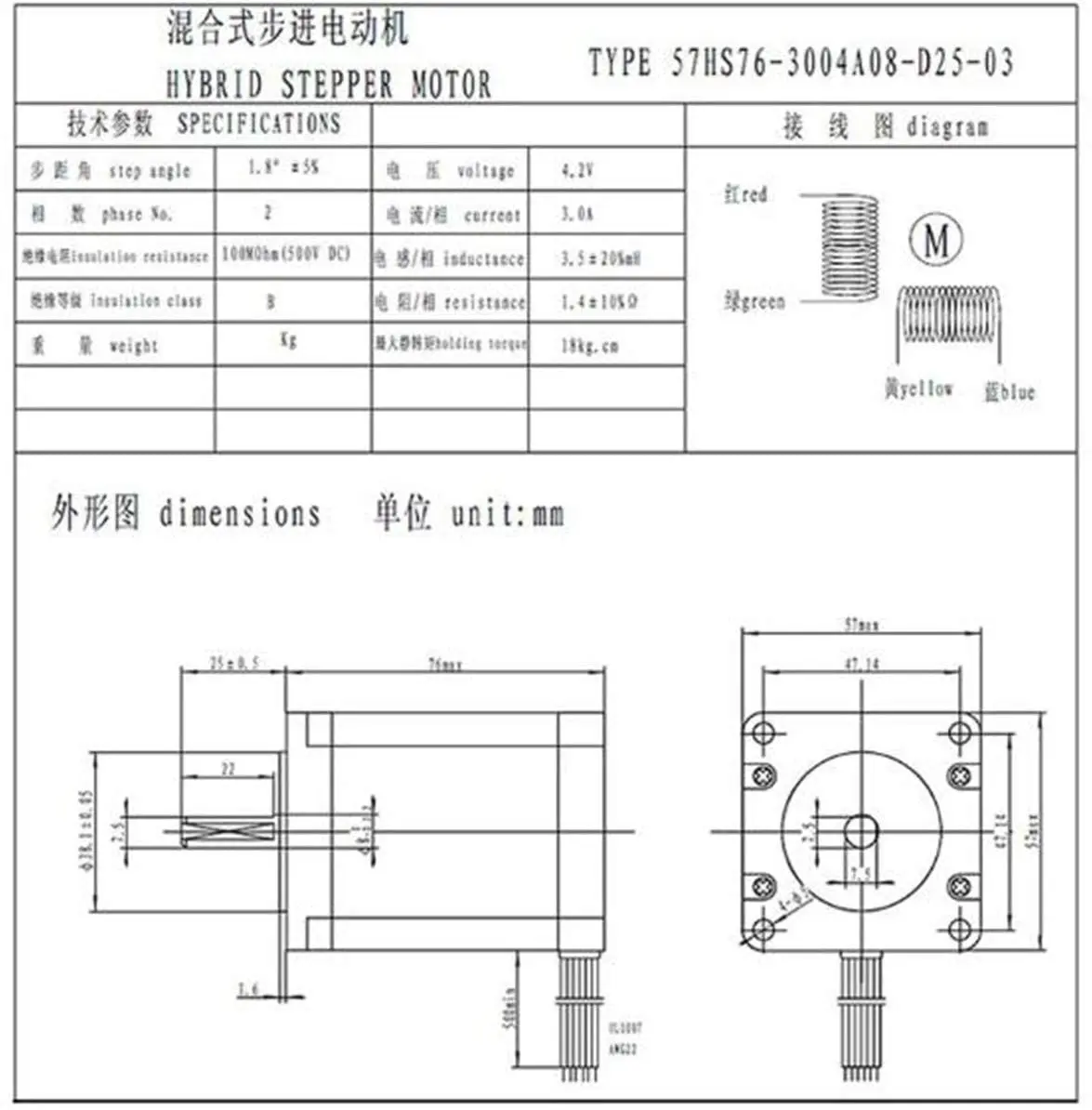

Stepper Motor



  • Nema23 stepper motor 57x57x76mm

  • Shaft Diameter: 8 mm

  • Shaft length: 25.5mm

  • Step Angle:1.8

  • Current: 3A

  • Voltage: 4.2V

  • Temperature Rise: 80 c max

  • Insulation Resistance: 100MOhm(500V DC)

  • Holding Torque: 18kg.cm

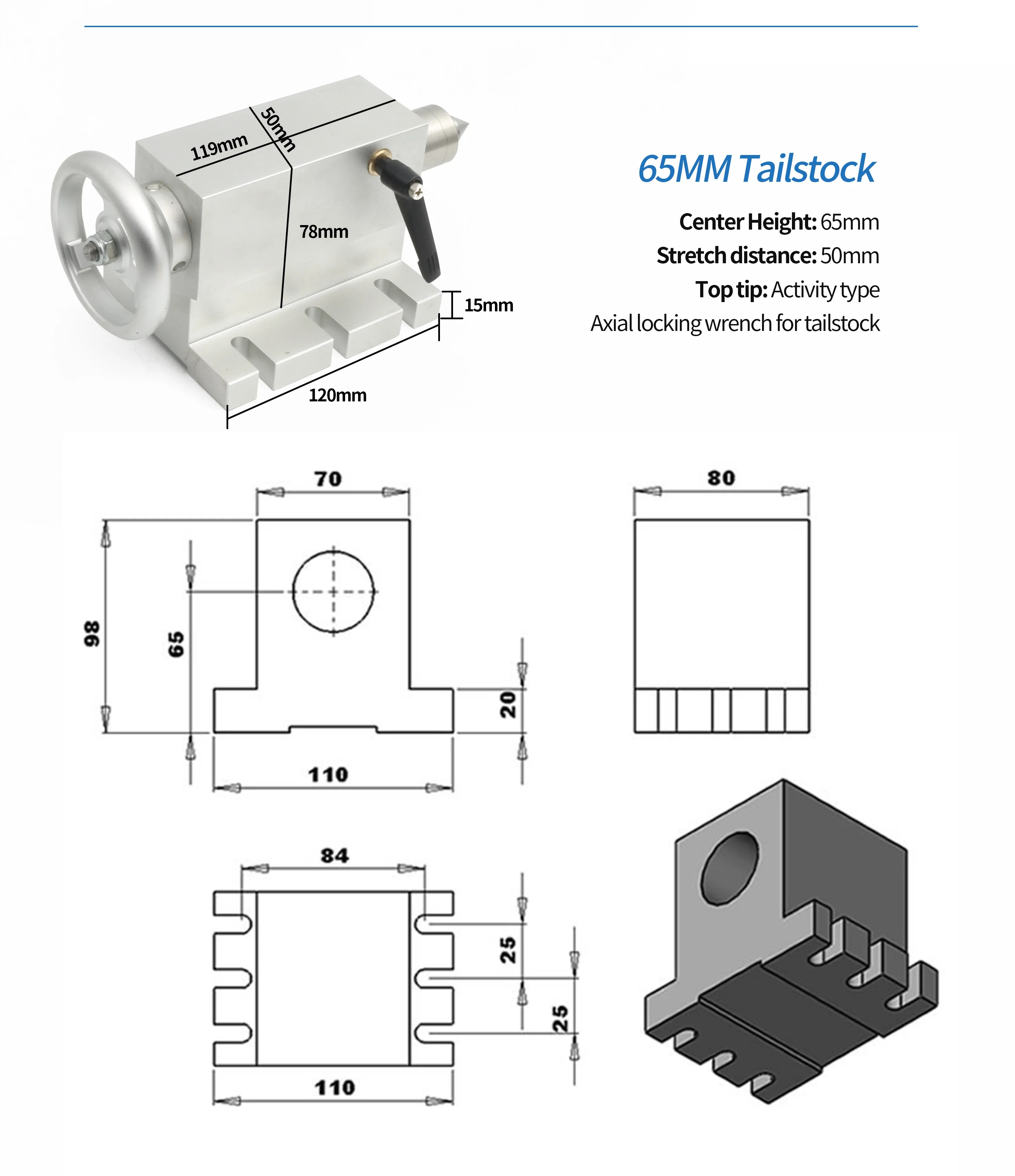

65mm tailstock


Center Height: 65mm


Stretch distance: 50mm


Top tip: Activity type


Axial locking wrench for tailstock
