Products Description


Rectangular & square end lining machine





Combined machine for end edge curling, compound lining and curing
Its automatic temperature control can adjust oven with best temperature
Oven adopts electric heating system
End lift-up is driven by screw


End type
End size(mm)
Speed (EPM)
Machine power
Square end
Min.180x180 Max.250x250
35-60(Single channel)
14-35Kw
Rectangular end
Min.70x58 Max.206x142
60(Single channel)
14Kw

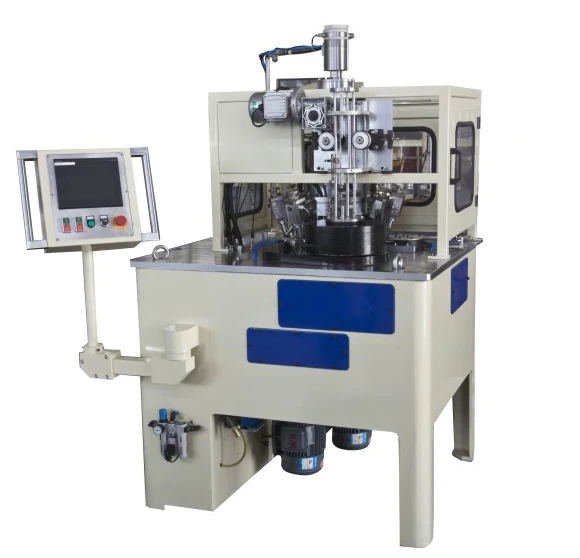

Rotary compound lining machine
This rotary lining machine is mainly used for lining normal ends or EOE shell.
It is characteristic with high speed , high-level automation , speed stepless adjustment, quick change-over. The sensors equipped on this machine can assure no-compound-lining , when no end comes to lining station


Type
Heads
End diameter(mm)
Max. capacity(EPM)
OLN-3
3
99-153
300-500
OLN-4
4
73-153
500-1000
OLN-6
6
47-83
700-1500
OLN-8
8
47-65
1500-2000
OLN-10
10
47-62
2000-2500

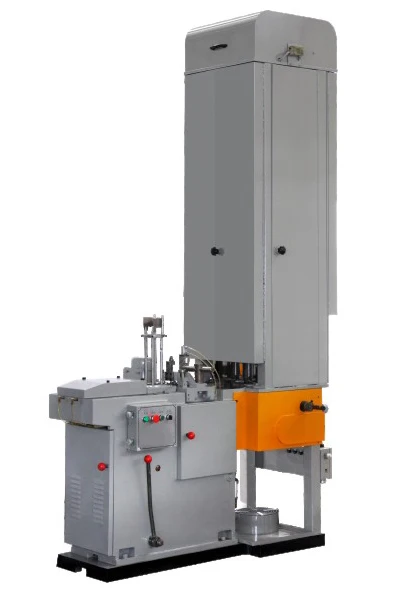

End Lining machine with oven






Compound liner and oven can be used independently.
Its automatic temperature control can adjust oven with best temperature
Oven adopts electric heating system
End lift-up is driven by screw.


Model
Channel
End diameter(mm)
Max. Speed(EPM)
GT10B1
1
52-99
320
GT10B1-J
1
52-99
250
GT10B1-A
1
52-153
180
GT10B1-B(Aerosol)
1
45-73
120
GT10B1-2
2
52-99
600
GT10B1-2(Aerosol)
2
45-73
240
GT10B1-2A
2
52-153
350


Induction curing oven


Automatic end-feed and temperature control system ensure uniform drying and heating
Machine rely on induction heating to reduce energy consumption.
Safety protection design to prevent electromagnetic pollution.


Name
End size(mm)
Max. Speed(EPM)
End Induction curing oven
47-153
3500
End collect and count system
47-153
3500
