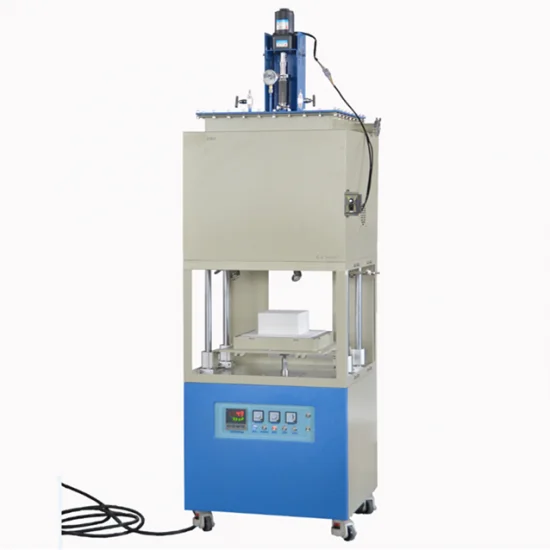

Lab 1400C Vacuum Amosphere Elevator Furnace with Different Chamber

Item No.

VSF1400-I

VSF1400-II

VSF1400-III

Power

5.2KW

9KW

12KW

Chamber size(mm)

200X200X200

250X250X250

300X300X300

Overall meas.(mm)

660X675X 1380

660X 675X1430

710X725X1480

Voltage

220V

220v

380V

N.W.(KG)

265

280

310

Phase

Single

Single

Single

Heating element

silicon carbide rod

Temperature controller

40 programmable segments (Shimaden fp93 made in Japan),

It can separate into 4,2,1 programs, ie. 4x10 segments.

FP93 have 6 PID controls, different PID are used for low,middle,

high temperature for precise control.

Over-temperature and over-current protection, shutdown automatically when thermocouple is broken

( it will shut down power when temperature is higher than 1620Cor thermocouples is broken,

 "ON" on the board is off and "OFF" is on)

There is Fahrenheit (F) and Celsius (C) for option.

With 485 communication interface: which can stop the furnace automatically.

Chamber

1600Alumina polycrystalline fiber. Imported from Japan

Temperature Accuracy

+/- 1C

Trigger

Phase-shift trigger

Power control

Chint

Controlled silicon

Germany Semikron 106/16E

Max. Temperature

1700C

Constant temperature

1650C

Max. Vacuum Temperature

1500C

     Vacuum level in cold

≤10Pa

Heating Rate

≤20C/ Min

Recommended Heating Rate

≤10C/ Min

Thermocouple

Type B

Surface temperature

≤45C

Safe protection system

The furnace door is equipped with a travel switch, and when the furnace door is lowered, the power supply will be automatically cut off to prevent the electric shock from touching the heating element.

Certificate

CE

Electric push rod power

150W

Electric push rod lifting speed

420mm/ Min

Position limit switch

When the lifting rod is at its highest or lowest point, the position limit switch will automatically cut off the lift bar, so that it will not rise or fall
