2021 Пряжка ювелирные изделия Вибрирующая обработка металла машина для удаления заусенцев polissage 100L

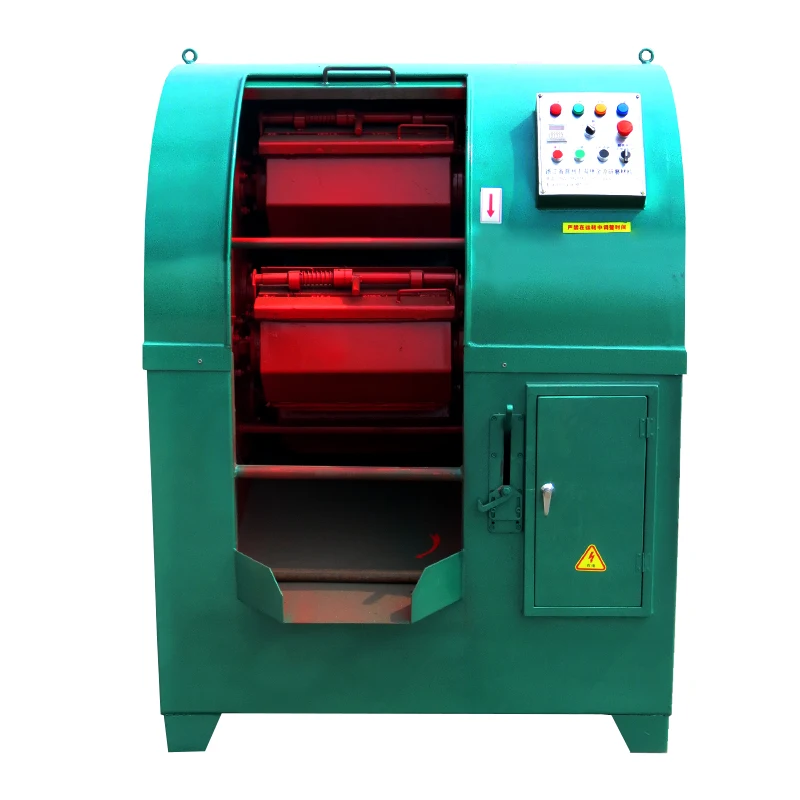

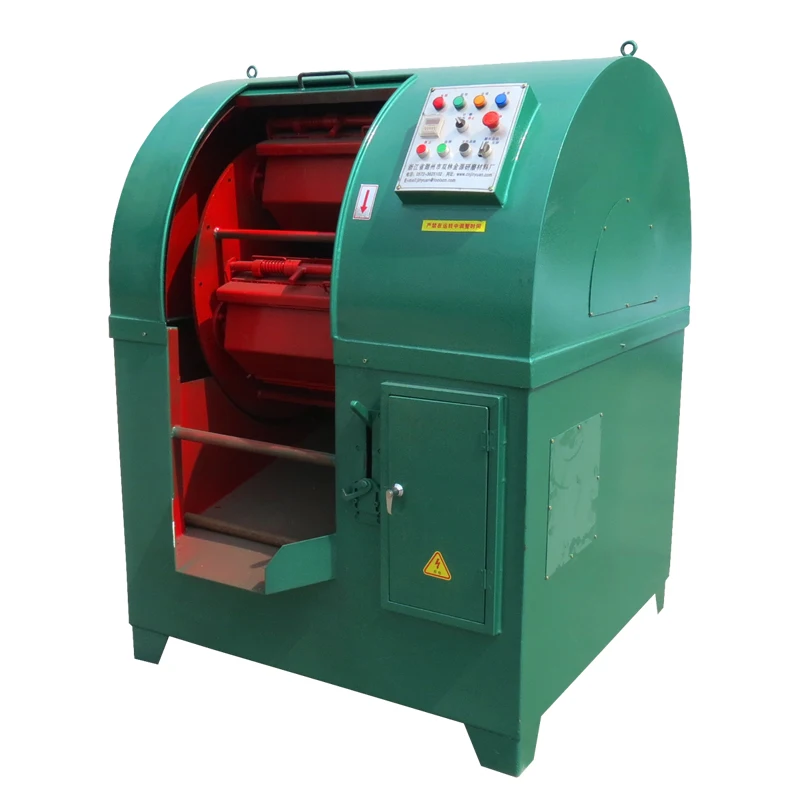

Powerful high-speed centrifugal mill:

     Machine structure: drum turntable assembly, drum automatic feeding mechanism, machine base and electronic control system.

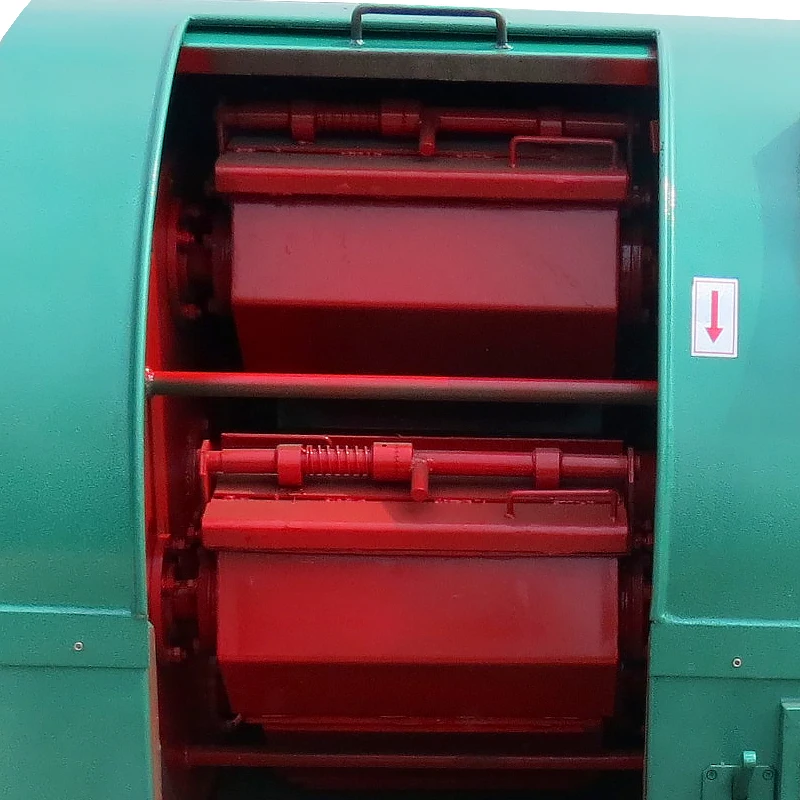

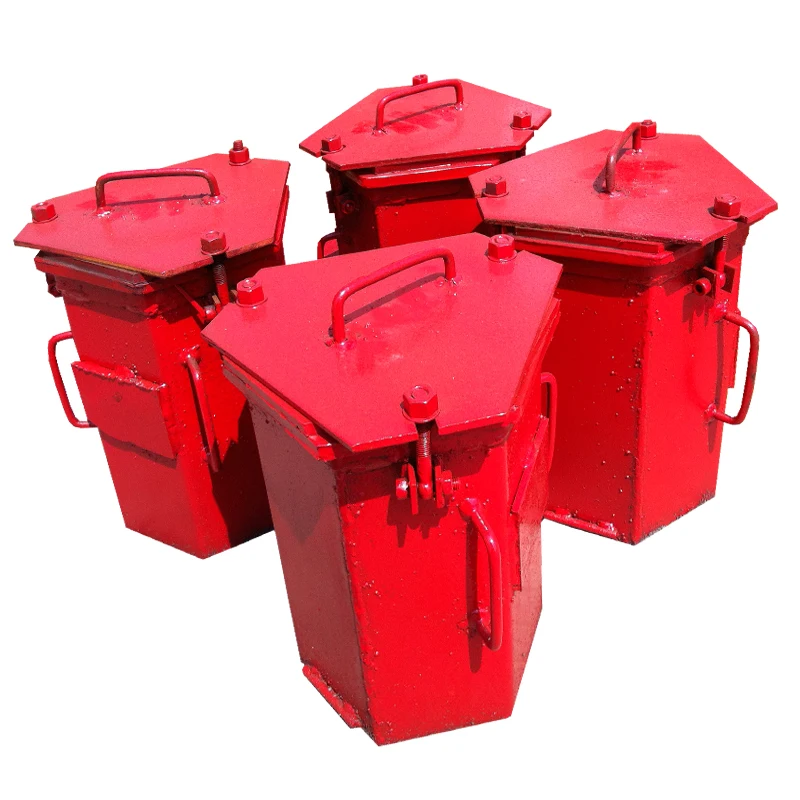

I. Roller turntable assembly: Four 10L hexagonal rollers are installed on a large turntable driven by a V-belt, and the planetary synchronous belt wheel sets drive the roller to form a reverse rotation on the large turntable, so that the Abrasive and workpiece produce strong friction under the action of double centrifugal force, which can efficiently finish the finishing of the workpiece. The large turntable brake motor is driven by the inverter to control the large turntable to achieve infinitely variable speed from 0 to 180.

Second, the drum automatic rewinding mechanism: using a 0.55KW motor through the reducer sprocket drive system, the drum can be automatically turned 360 °, when the material can be discharged, the drum cover can be opened first, and the drum can be rotated down by 180 °, pour the workpiece and abrasive into the lower receiving tank.

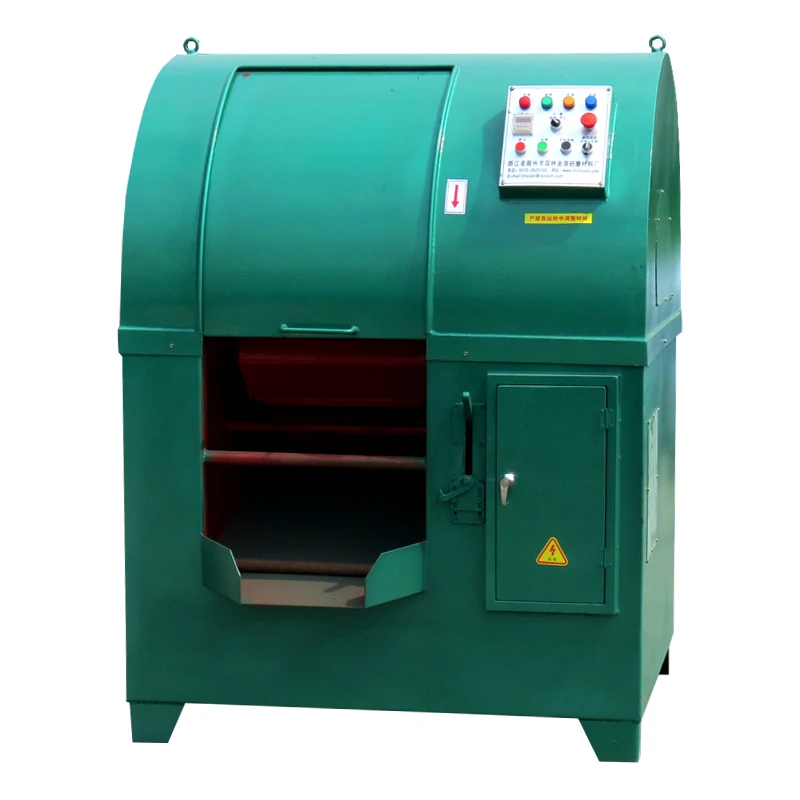

Machine base: It is welded by steel plate and channel steel. The drum turntable assembly is fixed on the upper part of the machine base. The upper part of the machine base is equipped with an arc-shaped upper cover. The front part of the upper cover is equipped with a movable sliding door. Close the sliding door. Then the machine can start.

4. Electric control system: The electric box installed inside the closed electric box on the side of the machine can be turned to the outside by 20 ° to facilitate the loading and unloading of the upper cover of the machine. The buttons of the control panel are used to control the operation of the host. Can be adjusted arbitrarily. With high-quality brake motor, the four kegs can be stopped at any desired position.

Fifth, the polyurethane (PU) imported from Japan is used for wear resistance, high temperature resistance, acid and alkali resistance, long service life and easy replacement.

Sixth, the machine has the characteristics of small size and reasonable design. Without reducing the volume, it greatly reduces the volume, which is one-third smaller than domestic and foreign machines with the same volume, which saves space reasonably.

7. The processed parts have high precision, high brightness, no bumps, and high efficiency, which can save about 50% of processing time compared with similar products.

Main technical parameters of high-speed centrifugal mill:

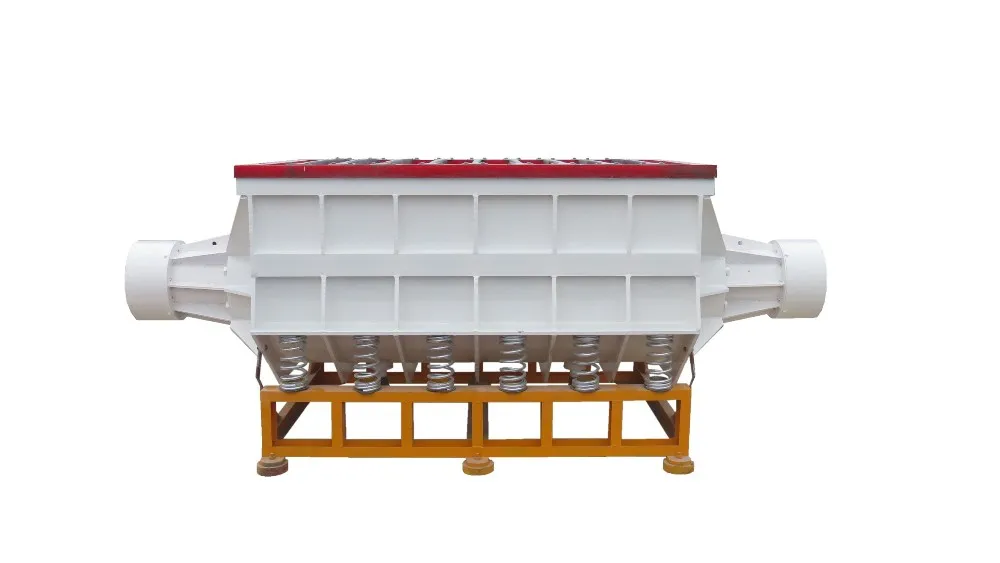

Three yuan vibration grinding polisher
1. Can be applied to mass production of medium and small structure of the size of metal and non-metallic materials, light finishing light.

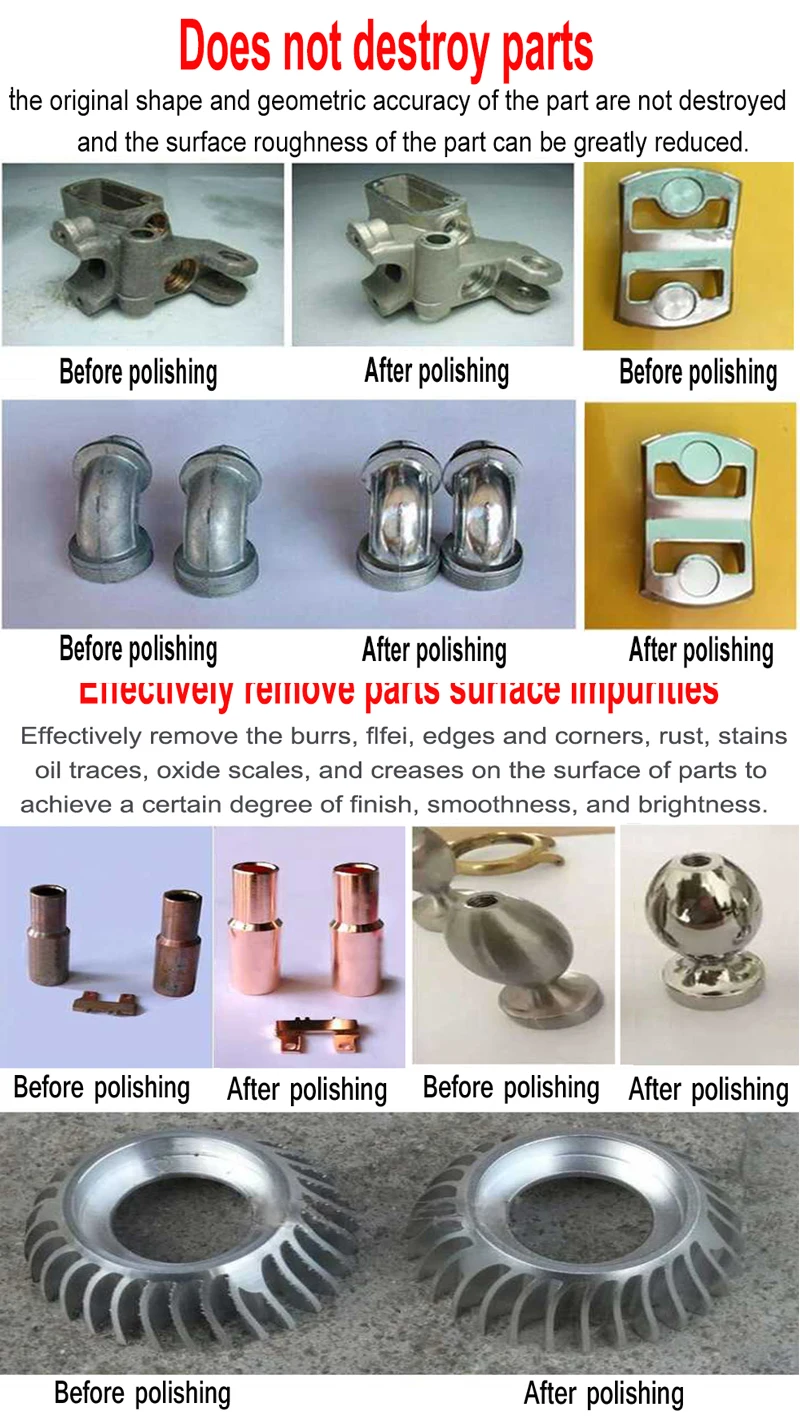

2. To effectively remove the parts of the surface of the burr, burr, flash, Phi Feng, edges and corners, rust, stains, oil traces, scale and marks, etc., so that parts of the surface to achieve a certain degree of finish, light and brightness.
3. In the process of finishing light will not damage the original parts of the shape and geometric accuracy and geometric accuracy, can greatly improve the roughness of the surface parts.
4. Can realize the automatic operation, may at any time check the surface processing part.

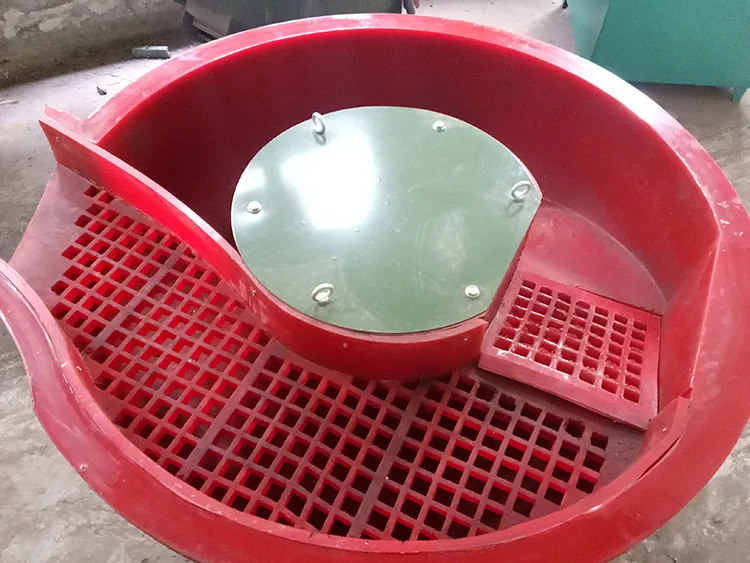

5. Vibrating containers do not use the previous non-wearable black rubber material, and the use of disposable casting high wear-resistant PU plastic material to improve the life of the liner more than 5 times, while avoiding the collision between parts and reduce Noise generation.
6. Built-in high-performance vibration source three-phase motor, adjustable amplitude range of 0.3-8mm.
7. Free of charge to provide customers with product parts of the process samples to determine the choice of reasonable cost-effective grinding and polishing process (including: equipment selection, grinding aided selection of decorative materials, etc.), to provide equipment for life-long maintenance and Technical Support

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine with video

* if  need Engineers available to service machinery overseas.
