Product Show

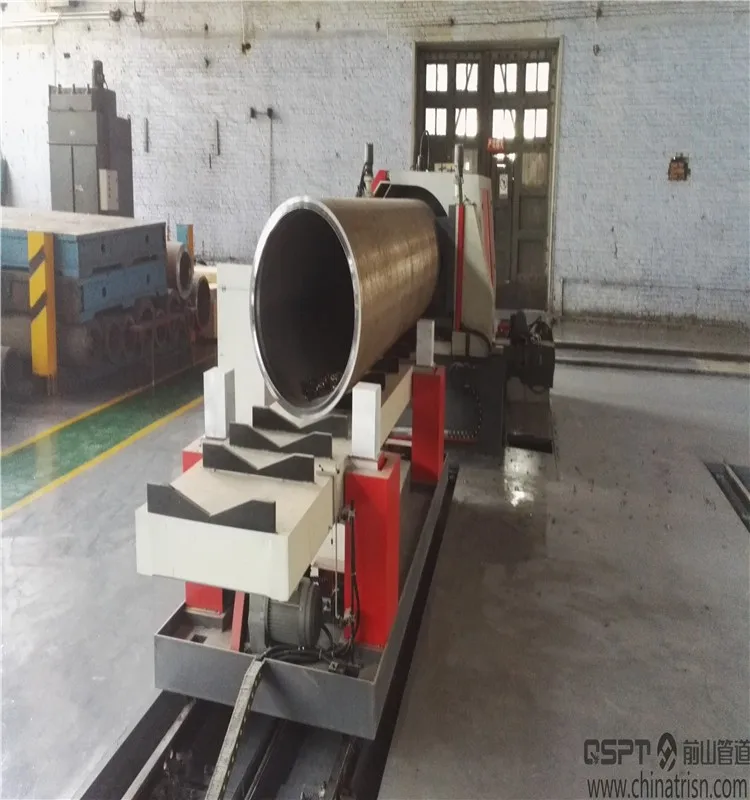

                                          Fixed-type High Speed Radial Pipe End Beveling Machine

                                                                  Model: FPEBM-16Aa/24Aa/32Aa

Product Description
\t
                                                                                       Performance features
\t
On-line Performance
\t
Good(Designed as per the on-line equipment of the production line)
\t
Beveling Capacity
\t
≤5Min /pipe bevel (DN200 SCH40)
\t
Cutting  quality
\t
Good
\t
Application
\t
for machining the U or V shape bevels for numbers of pipes with heavy wall thickness

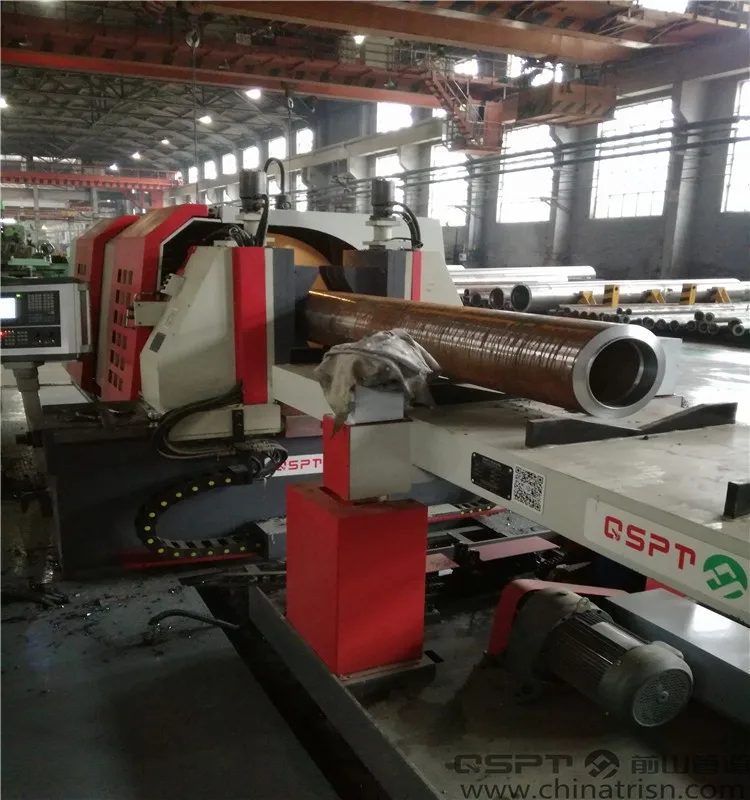

Product Close-up
Technichal Parameter
\t
Pipe diameter applicable
\t
DN50-400(φ57-426)/DN100-600(φ114-610)/ DN200-800 (φ219-813)
\t
Materials applicable
\t
carbon steel, alloy steel, stainless steel and cryogenic steel, ect.
\t
Pipe wall thickness applicable
\t
4-90mm/ 6-180MM
\t
Feeding Speed
\t
stepless smooth speed adjustment
\t
Other details
\t
Bevel shape: Ｕ, Ｘ, Ｖ and Double V

Cutting direction: radial automatic differential cutting feed

Retracting direction: radial automatic motor retracting

Driven by: motor

Clamping system: work piece is clamped by (screw rod) hydraulic cylinder

Bracket system: screw lifting adjustable

Rev of the principal axis: 3shifts（67-123rpm）/ 9 shifts（34-304rpm）

Axial displacement: 80mm(principle axis) 100mm(machine head); 150mm (principal axis), 300mm (machine head)

Bevel angle of tool rest: 0°～37.5°

Widthwise displacement: ±50mm；±100mm

Control system: gear shift for main shaft, VF speed change for axial direction movement and manual control

Mechenical aligning: At the end of beveling machine conveying system equipped with lifting device could be provided if necessary to adjust automatically the center elevation of the pipe, so as to bevel the pipes with different diameters.

Conveying system: can be equip for roller conveying system if necessary.


Beveling Quality
Our Certifications
FAQ

Q: Are you trading company or manufacturer ?

A: We are factory-based trading company


Q:What's the quotation for this machining tool ?

A:It's highly customized machining tool,tailored to your requirements,which makes initial quoting rather indecisive.


Q:How long will it take to complete delivery ?

A:For single machine,it takes around a month in manufacturing if there's no stock which matches your requirements,after that the door to door delivery depends on the distance.
