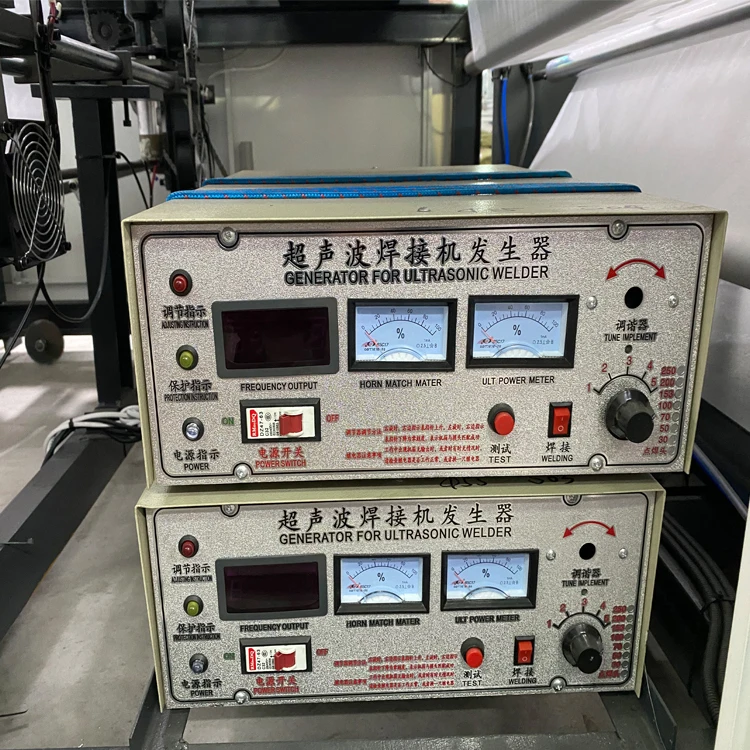

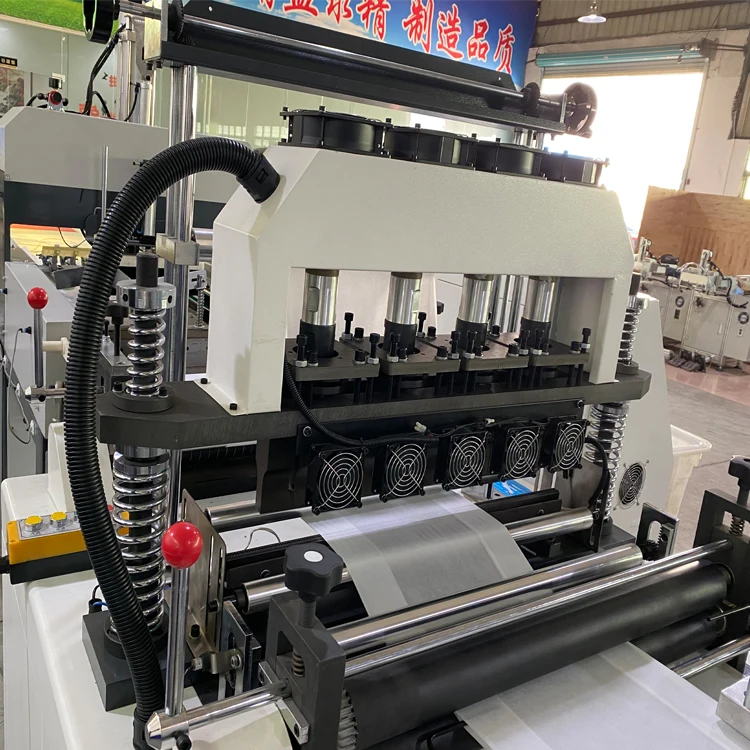

PROS: 1. The ultrasonic embossing part is rotating.

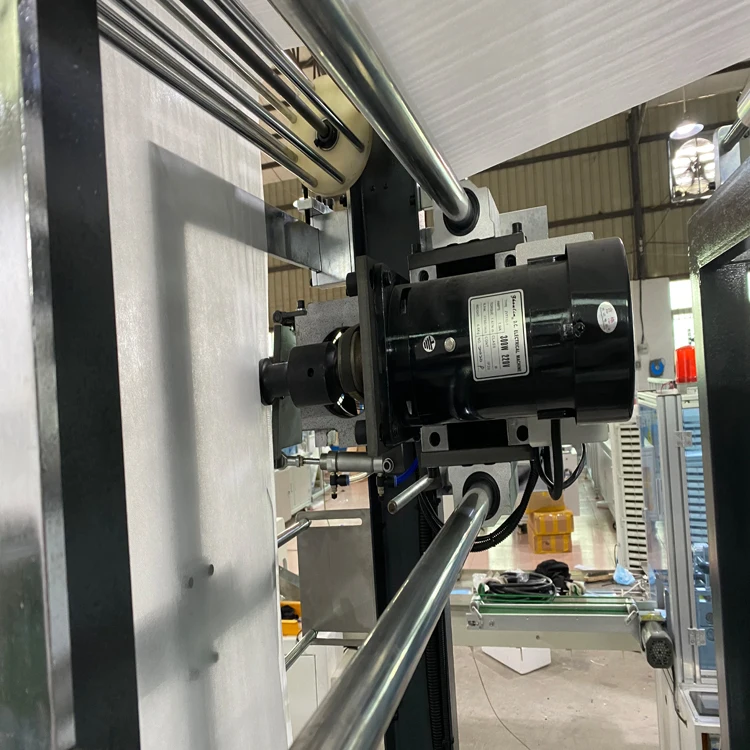

2. Discharging tension is controlled by surface tension (no manual intervention is needed to adjust the coil material from large to small)

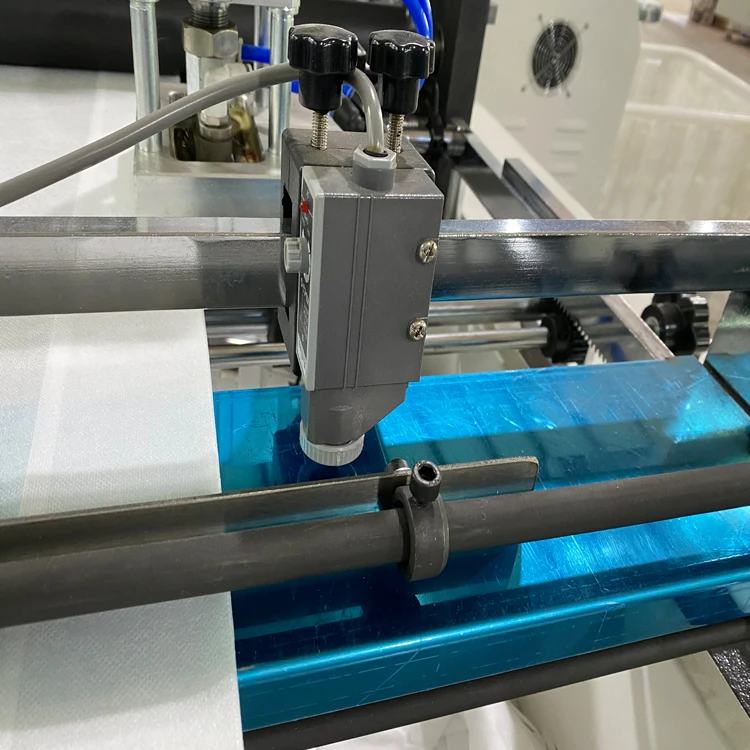

3.Photoelectric eye is an intelligent three-color self-learning photoelectric, easy to set, suitable for tracking different colors of fabric.
4. The latest use of LPC back feed synchronization, to solve feed length (400-1000mm) speed fluctuation.
5. PLC CONTROL PNEUMATIC 8 tons hydraulic press, ensure the impact effect.
Type |
| B700 | B800 |
Production Speed |
| 40-100pcs/min | 40-100pcs/min |
Roller Width |
| 1.25m | 1.45m |
Size Range
| Gusset | 0-18cm | 0-18cm |
| Width | 10-80cm | 10-80cm |
| Height | 20-58cm | 20-68cm |
Power Request | Bag Gram Weight | 30-100 G.S.M | 30-100 G.S.M |
Total Power Required Power Voitage | Voitage | 220v 50HZ | 220V 50HZ |
| Total Power | 15KW | 18KW |
Gross Weight | Overall Size | 9500x2100x2000mm | 9500x2200x2000mm |
| Gross Weight | 2300KG | 2500KG |
