Цена:6,80 $ - 11,90 $*
Стоимость в USD (на сегодня):Узнать

Количество:

Описание и отзывы

Характеристики



Product Images










Product Description











































Feature and advantage


1. Support 2D/1D barcode and support screen and paper barcode


2. 32 bits CPU,high speed for data processing.


3. Small size, powerful and easy to integrate in industrial equipment.


4. It supports 2nd development,multiple development language,also SDK.


5. Highly cost-effective,highly sales volume.

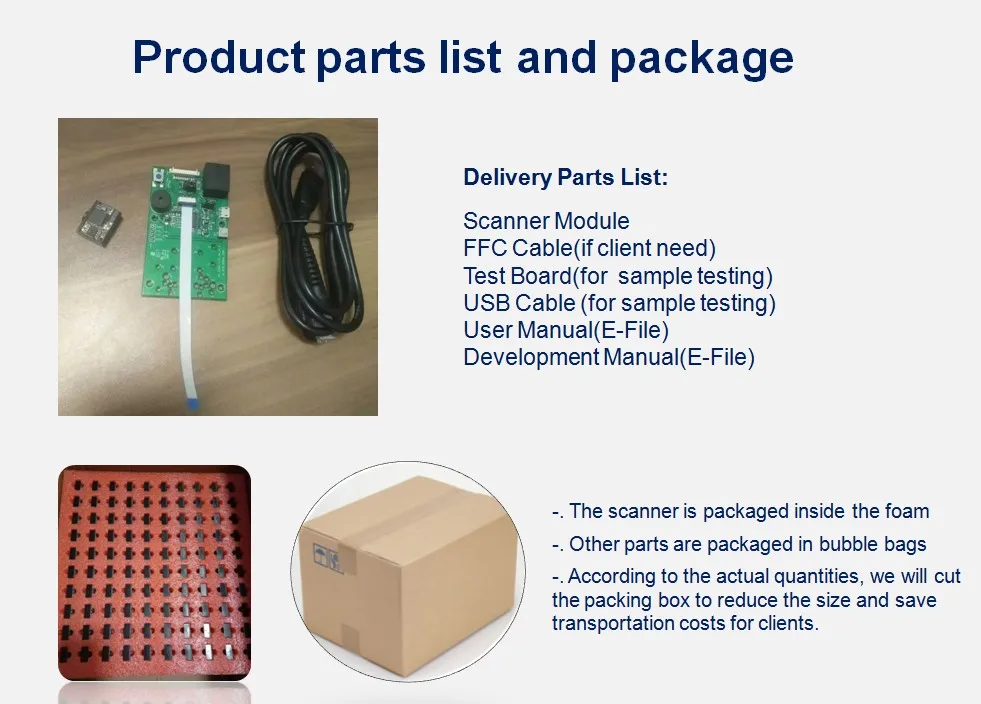

6. We can offer the FFC flat cable for free and 12pin connector if client needed.


7. We can offer test board and USB cable for sample testing.





Detail Parameters



























































































Image Sensor



CMOS



Resolution



300,000 pixels,640*480pixels,30fps

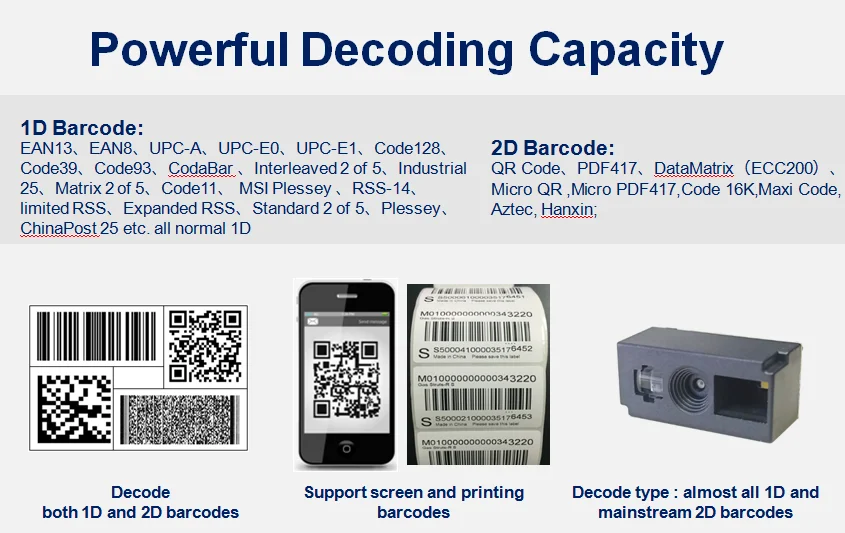

Decoding capacity



Support paper and screen barcodes



2D: QR Code,PDF417,DataMatrix(ECC200),Micro QR


Micro PDF417,,Code 16K,,Maxi Code, Aztec, Hanxin;



1D:  EAN13,EAN8,UPC-A,UPC-E0,UPC-E1,Code128,Code39,Code93,CodaBar ,Interleaved 2 of 5,Industrial 25,Matrix 2 of 5,Code11, MSI Plessey ,RSS-14,limited RSS,Expanded RSS,Standard 2 of 5,Plessey,ChinaPost 25 etc. all normal 1D



Precision



1D ≥5mil;  2D ≥8mil



Light Source



Visible Red Diode, White LED for illumination



View Angle



37°(H) x28°(V)



Scan Angle



Rotation360°,tilt±45°,skew±45°



Min Contrast



25%



Trigger Mode



Manual, Continuous, Auto sensing, Host etc.



Typical DOF



EAN13 (13mil) 40-200mm     Code 128(15mil)45-250mm


QR code(15mil)40-200mm     PDF417(6.67mil)30-130mm


Performance may be impacted by bar code quality and environmental conditions

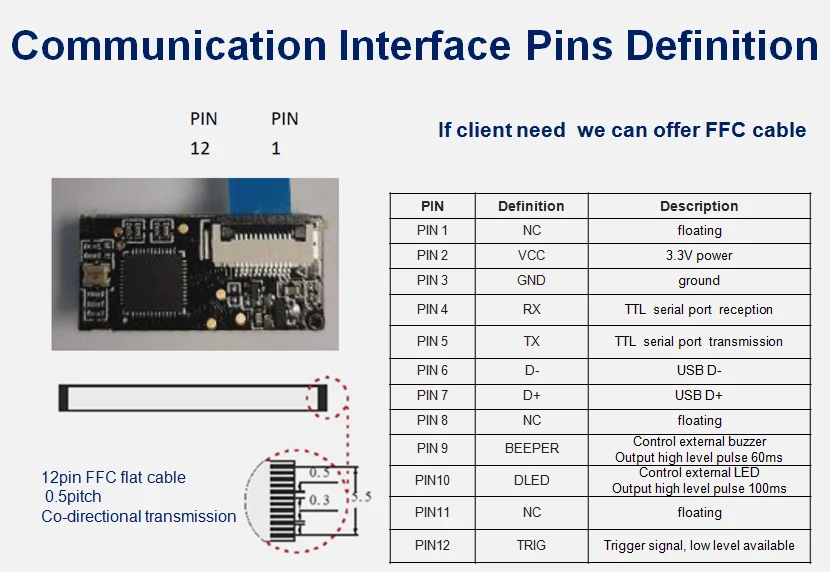

Interface



TTL232,USB(HID-KBW,virtual serial port)by 12pin FFC flat cable



Working Voltage



DC 3.3V



Current



120mA(working)   5mA(standby)

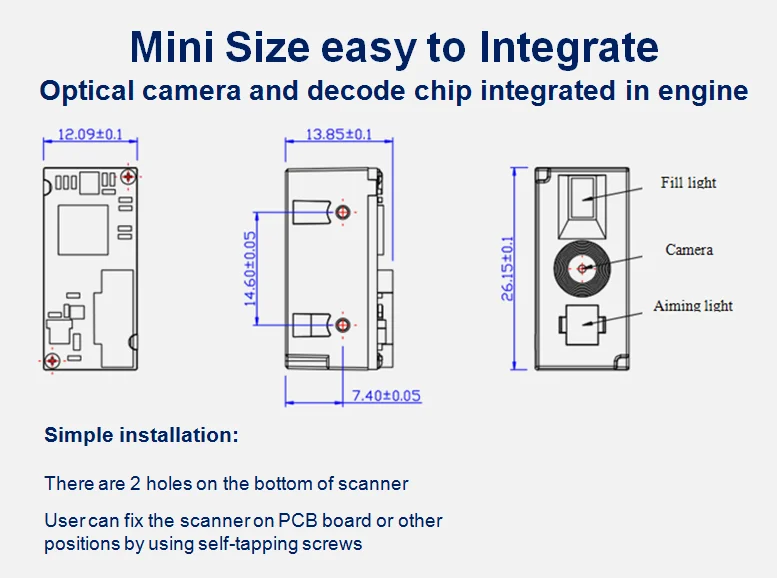

Dimensions



26.15(W)×12.1(D)×13.85(H)mm



Weight



5g



Indication



LED(fill light),can trigger external buzzer and LED indicator



Working Tem



-20~60℃



Storage Tem



-40~70℃



Humidity



5%-95%(Non-condensing)






recommended product




Company Information







Our Services




Our service and commitment


1. The MOQ can be 1pcs,customer can test it firstly.





2. Product warranty—24 months





3. Welcome customer OEM, like assembly, test, even we can help customer to find good resource in China.





4. ODM--customize hardware and appearance structure according to customer requirements





5. If you encounter any problems during the use of the product, you can directly contact us by email or telephone.



6. About the package, We will pack the smallest package for you, saving your shipping costs.





7. We have cooperated with many logistics companies so that we can choose the cheapest shipping for you.





8. How to deal with after-sales quality problems, if the product is not intentionally damaged, please send pictures


and videos that can be confirmed as product problems, we will analyze and confirm the compensation method


(for products only), we can re-send the product for free.





9. We are a legal and formal Chinese enterprise under the supervision of the China Industrial and Commercial Bureau,


the Taxation Bureau, the Customs and the Foreign Exchange Administration.We have operation rights of import and


export,and we will comply with national and international trade regulations and do legal export trade.





10. We will not arbitrarily offer high prices, deceive customers, and always hold the attitude of long-term cooperation


with customers to bring customers cost-effective products and high quality services.
