XR150D Rotary Pile Machine Drilling Rig for Sale
Products Description
* It adopts the dedicated hydraulic retractable crawler chassis and large diameter slewing bearing to provide extraordinary
stability and transport convenience.
* It adopts the imported electric control turbo-supercharged engine to provide strong power and conformity with Euro III emission standard.
* With the hydraulic pressure system adopted threshold power control and negative flow control,the system acquired high efficiency and higher energy conservation.
* Using single rope winding, effectively solve the steel wire rope wear problem, improve the life of wire rope; And drill deep
detection device is setted in main winding,single rope to make deep inspection more accurate.
* The whole machine design meet the requirements of the CE directive, safety guarantee, construction safer.
stability and transport convenience.
* It adopts the imported electric control turbo-supercharged engine to provide strong power and conformity with Euro III emission standard.
* With the hydraulic pressure system adopted threshold power control and negative flow control,the system acquired high efficiency and higher energy conservation.
* Using single rope winding, effectively solve the steel wire rope wear problem, improve the life of wire rope; And drill deep
detection device is setted in main winding,single rope to make deep inspection more accurate.
* The whole machine design meet the requirements of the CE directive, safety guarantee, construction safer.
Specification
Model | Unit | XR150D | ||
Engine | Rated power | kW | 133 | |
Power unit | Max. output torque | kN.m | 150 | |
Rotate speed | r/min | 6~28 | ||
Max. drilling diameter | mm | 800 | ||
Max. drilling depth | m | 20 | ||
Max. extraction force | kN | 400 | ||
Main winch | Max. winch speed | m/min | 75 | |
Diameter of steel rope | mm | 28 | ||
Vice winch | Max. elevation force | kN | 50 | |
Max. winch speed | m/min | 60 | ||
Drilling mast Inclination | Lateral | ° | 3 | |
Chassis | Max. walking speed | km/h | 3.2 | |
Max gradeability | % | 40 | ||
Min. ground clearance | mm | 352 | ||
Track shoe width | mm | 800 | ||
Track shoe's largest overall width | mm | 2960-4100 | ||
Hydraulic system | Working pressure | Mpa | 32 | |
Machine working quality/Transporation quality | t | 48/43 | ||
Boundary dimension | Working condition | mm | 8620*4100*22845 | |
L*W*H | Transporation condition | mm | 13610*2960*3040 | |
Details Images
Recommend Products
Our Advantages
Producing & Service

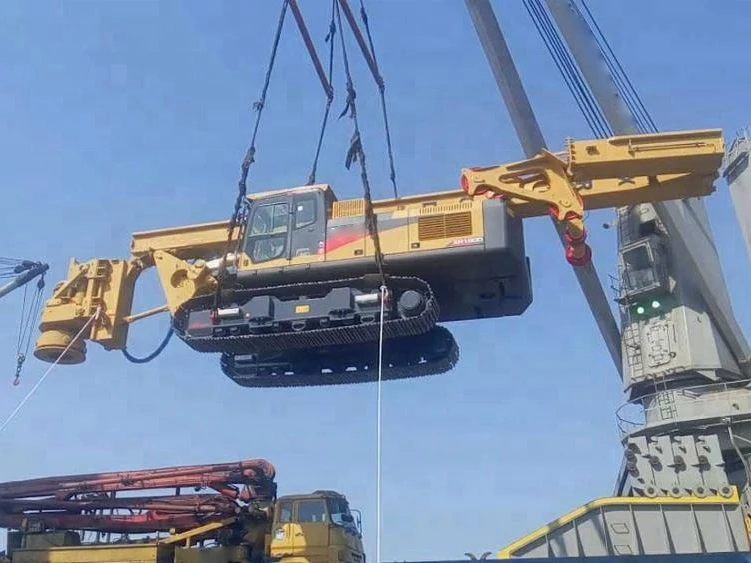

Packaging & Shipping
