Product Description
hot sale 2018 HF856A hydraulic rotary piling driver for bridge rode foundation building strong torque
Features and Advantages ------ Rotary drilling rig
It takes telescopic prop (mast) structure in domestic rotary drilling rig for the first time, and it can be transported comprehensively with front lodge without disassembly. Moreover, the shift between transportation and working situation is rapid.
It takes U-shape connecting form between props and drilling rig. The main winch is placed in U-shape groove right eyesight of the operator (the operator can observe the working condition of main winch all the time), and the structure is simple and practical.
It takes the structure of guiding support under drill pipe, which not only guarantees the verticality of the drill pipe in drilling process, but also avoids the trouble of disassembling the supports in transportation.
The design of miniaturization, lightweight and practical application, and the comprehensive transportation without assembly, decreases the usage and transportation's cost of the equipment sharply.
Under working condition, the min vertical height of the prop can be adjusted to less than 13m freely. Low altitude over-limited construction work can be performed after selecting different drill pipes.
The joint of the drill pipe and drill chuck takes cross head pin to fix, which not only guarantees the verticality of the drill pipe, also increases the safety factor of the drill chuck in construction.
It takes telescopic prop (mast) structure in domestic rotary drilling rig for the first time, and it can be transported comprehensively with front lodge without disassembly. Moreover, the shift between transportation and working situation is rapid.
It takes U-shape connecting form between props and drilling rig. The main winch is placed in U-shape groove right eyesight of the operator (the operator can observe the working condition of main winch all the time), and the structure is simple and practical.
It takes the structure of guiding support under drill pipe, which not only guarantees the verticality of the drill pipe in drilling process, but also avoids the trouble of disassembling the supports in transportation.
The design of miniaturization, lightweight and practical application, and the comprehensive transportation without assembly, decreases the usage and transportation's cost of the equipment sharply.
Under working condition, the min vertical height of the prop can be adjusted to less than 13m freely. Low altitude over-limited construction work can be performed after selecting different drill pipes.
The joint of the drill pipe and drill chuck takes cross head pin to fix, which not only guarantees the verticality of the drill pipe, also increases the safety factor of the drill chuck in construction.

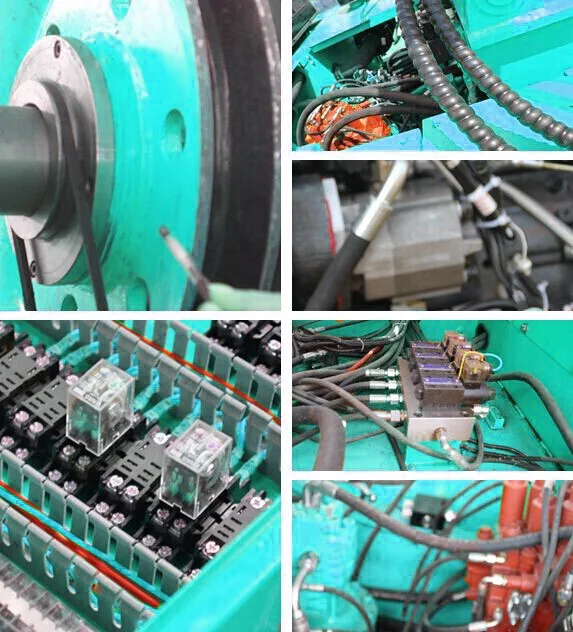

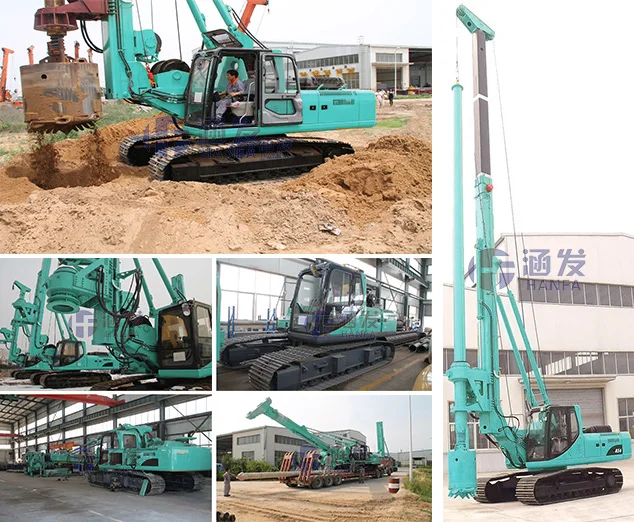

Detailed Images
Description | unit | model |
Drilling diameter | mm | 600 - 1500(mm) |
Max.drilling depth | m | 56(m) |
Chassis(Windth of track shoes) | mm | 800(mm) |
Chassis(Min.ground clearance) | mm | 430(mm) |
Chassis(Max.grade ability) | 40% | |
Chassis(Max.traveling speed) | km/h | 3(km/h) |
Hydraulic system(Motor for swing) | 2Plunger Fixed Displacement motor | |
Hydraulic system(Travel plunger motor) | 2Plunger variable Displacement motor | |
Hydraulic system(Main safety valve adjusted power) | Bar | 300Bar |
Hydraulic system(Method of power adjustment) | Gross power adjustment + Negative flow control | |
Hydraulic system(Type of hydraulic pump) | 2×plunger variable flow pump+2×Gear pump | |
Auxiliary winch(Rope diameter) | mm | 16(mm) |
Auxiliary winch(Max.line speed) | m/min | 50(m/min) |
Auxiliary winch(Max.line pull) | kN | 60(kN) |
Main winch(Rope diameter) | mm | 21.5(mm) |
Main winch(Max.line speed) | m/min | 70(m/min) |
Main winch(Max.line pull) | kN | 120(kN) |
Crowd(Max.stroke) | m | 2(m) |
Crowd(Max.pull) | kN | 80(kN) |
Crowd(Max.push) | kN | 120(kN) |
Rotary drive(Rotation speed) | r/min | 0-22(r/min) |
Rotary drive(Max.torque) | kN.m | 80(kN.m) |
Engine type | Turbocharged direct-injection | |
Engine(Rated power) | kw/rpm | 108/2100(kw/rpm) |
Engine Modek | 6bt5.9 Cummins | |
Operating weight of total machine | kg | 38000(kg) |
Overall measurment(Transport data) | mm | 13350×3200×3200(mm) |
Overall measurment(Working data) | mm | 16950×3200×6720(mm) |

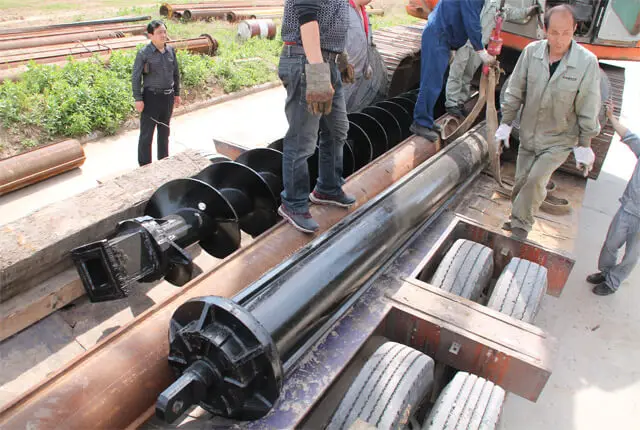

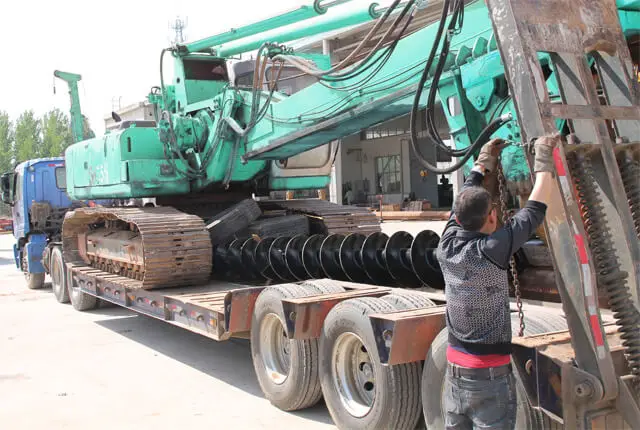

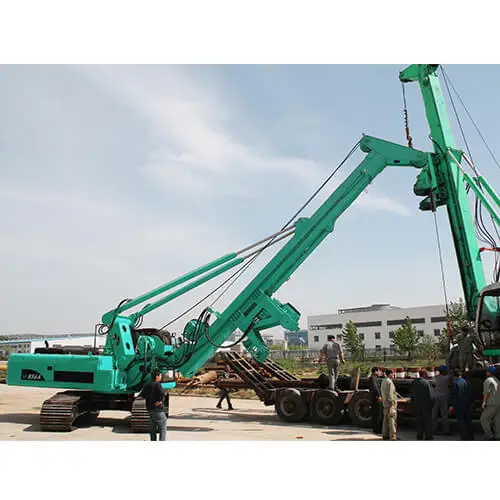

Packing&Shipping

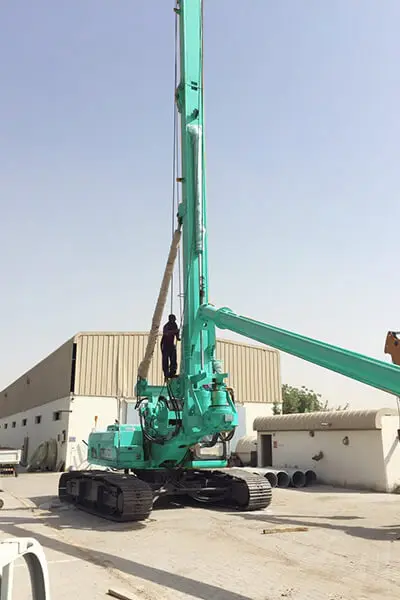

Construction Site
Company Introduction
Hanfa Group established in 1998 is a key enterprise in the industry of geological exploration and water well field, with the ability to research,manufacture and market. Now, the Group pursues high standard manufacturing and qualified products. It has more than 20 species such as water well drilling rig, core drilling rig, engineering drilling rig, DTH drilling rig,
horizontaldirectional drilling rig, etc. These machines are mainly used in geological prospecting, exploration of railway and
highway engineering, mining, SPT, water well, geothermal well etc. Some of them won the Scientific and Technical Advance Prize or the National Scientific Research Achievement Prize. All the products have passed the quality system certification of ISO9001:2000 and are national inspection-free products.
horizontaldirectional drilling rig, etc. These machines are mainly used in geological prospecting, exploration of railway and
highway engineering, mining, SPT, water well, geothermal well etc. Some of them won the Scientific and Technical Advance Prize or the National Scientific Research Achievement Prize. All the products have passed the quality system certification of ISO9001:2000 and are national inspection-free products.
1. More than 30 years of experience
The factory is located in Henan Province, China. We are very welcome to visit our factory. If
you need it, we will arrange a pick-up.
2.Top production team
The transportation and packaging will be packaged in international standards. If you have special packaging requirements, we will give you the most suitable solution.
3.Our Service
- New machine provides technical trair.
- Once anything goes wrong with the machine by normal using, our technical person must appear at the first time no matter where you are.
- When the machine should be maintained, you will receive the reminding from us.
- According to different geological conditions, we will recommend different construction plans for you
- Remind you which are wearing parts, so you can prepare enough.
- 24 hours respond to your quality problem.
you need it, we will arrange a pick-up.
2.Top production team
The transportation and packaging will be packaged in international standards. If you have special packaging requirements, we will give you the most suitable solution.
3.Our Service
- New machine provides technical trair.
- Once anything goes wrong with the machine by normal using, our technical person must appear at the first time no matter where you are.
- When the machine should be maintained, you will receive the reminding from us.
- According to different geological conditions, we will recommend different construction plans for you
- Remind you which are wearing parts, so you can prepare enough.
- 24 hours respond to your quality problem.

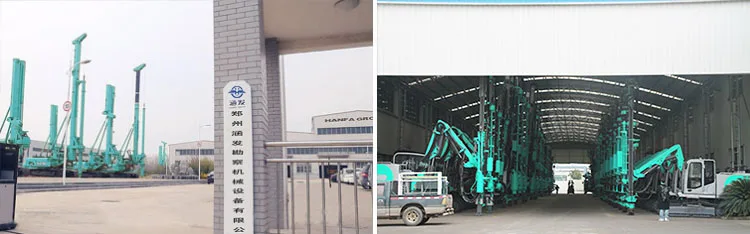

Workshop
Our Customers
Service
Service Concept:
About the machine：
1.Product quality: All machines have passed strict quality inspections to ensure that they will be shipped only after they are qualified.2. Product accessories: In order to ensure the reliability and advancement of the products, we use internationally renowned brand accessories.
3. Product price: Under the same competitive conditions, our company will sincerely provide customer with the most favorable price on the basis of not reducing product quality.
After-sales Service:
1.Respond to any questions you have within 24 hours.
2.You will receive a reminder when the machine needs maintenance
3.According to different geological conditions, we will recommend different construction plans for you.
4.Remind you of wearing parts so that you can make adequate preparations.
5.Product operation manual and operation video are attached to the machine upon delivery.
2.You will receive a reminder when the machine needs maintenance
3.According to different geological conditions, we will recommend different construction plans for you.
4.Remind you of wearing parts so that you can make adequate preparations.
5.Product operation manual and operation video are attached to the machine upon delivery.
Technical Support:
Experienced engineers and after-sales team will be ready to solve any problems you may have.
1. Provide technical training for new machine
2. If there is any problem in the normal use of the machine, no matter where you are, our technicians will show up at the first time.
3. According to the requirements of customer, to provide users with on-site installation, commissioning and other guidance technical services.
1. Provide technical training for new machine
2. If there is any problem in the normal use of the machine, no matter where you are, our technicians will show up at the first time.
3. According to the requirements of customer, to provide users with on-site installation, commissioning and other guidance technical services.
Accessories Supply:
In the long run, using the original spare parts of Culvert always brings the best value experience to the users. All the accessories in our machines are designed in strict dimensions to extend the service life of spare parts and obtain the best performance and reliability.Make the most of your investment!
Recruiting Overseas Agents:
Hanfa Group has multiple industrial bases in Jiaozuo, Quzhou, Hebei, Shandong, etc., with more than 100 sales outlets around the world, the products are exported to all over the world.
Service has become the starting point and destination of Hanfa Group's business activities. In the eyes of Hanfa people, product qualification is not the standard, but customer satisfaction is the goal. There is no perfect product, but 100% service.
Hanfa Group sincerely invites you to join us.
Service has become the starting point and destination of Hanfa Group's business activities. In the eyes of Hanfa people, product qualification is not the standard, but customer satisfaction is the goal. There is no perfect product, but 100% service.
Hanfa Group sincerely invites you to join us.
Our Honor
FAQ
1,Are you trading company or manufacturer?
We are professional manufacturer, and our factory mainly produce water well drilling rig, core drilling rig, DTH drilling rig, piling rig, etc. Our products have been exported to more than 50 countries of Asia, South America, Africa, and get a good reputation in the world.
2,Are your products qualified?
Yes, our products all have gained ISO certificate,and we have specialized quality inspection department for checking every machine before leaving our factory.
3,How about your machine quality?
All of our machines hold the ISO, QC and TUV certificate, and each set of machine must pass a great number of strict testing in order to offer the best quality to our customers.
4,Do you have after service?
Yes, we have special service team which will offer you professional guidance. If you need, we can send our engineer to your worksite and provid the training for your staff.
5,What about the qaulity warranty?
We offer one-year quality warranty for machines' main body.
6,How long can you deliver the machine?
Generally, we can deliver the machine in 7 days.
2,Are your products qualified?
Yes, our products all have gained ISO certificate,and we have specialized quality inspection department for checking every machine before leaving our factory.
3,How about your machine quality?
All of our machines hold the ISO, QC and TUV certificate, and each set of machine must pass a great number of strict testing in order to offer the best quality to our customers.
4,Do you have after service?
Yes, we have special service team which will offer you professional guidance. If you need, we can send our engineer to your worksite and provid the training for your staff.
5,What about the qaulity warranty?
We offer one-year quality warranty for machines' main body.
6,How long can you deliver the machine?
Generally, we can deliver the machine in 7 days.
