Хит продаж HDMI KVM-переключатель 4x1 с эмульитаторами EDID и автоматическим
- Категории: KVM Switches >>>
- Поставщик: Shenzhen,Tesla,Elec,Technology,Co.,Ltd
Поделиться:
Описание и отзывы
Характеристики
4x1 HDMI KVM Switch (Type-C) 4K@60Hz 4:4:4
#HCK0401A1U
This 4x1 HDMI KVM Switch provides you with great flexibility in integrating cross-platform computer equipment easily. It makes you available to switch easily and reliably between any HDMI computers using one HDMI compliant display.
This 4x1 HDMI KVM Switch provides you with great flexibility in integrating cross-platform computer equipment easily. It makes you available to switch easily and reliably between any HDMI computers using one HDMI compliant display.
Features
◪ With Type-c port, it is easy to connect with USB-C interface equipment
◪ With EDID emulators in each input port, keep PCs always having correct display information.
◪ Using only 1 set of keyboard, mouse and monitor to control 4 computer devices
◪ Support resolution up to 3840*2160@60Hz 4:4:4
◪ HDCP 2.2 compliant
◪ Support hot plug, connect or disconnect devices to the KVM at any time without turning off devices
◪ Support analog L/R audio output
◪ Support HDR10 and Dolby Vision
◪ Support resolution up to 3840*2160@60Hz 4:4:4
◪ HDCP 2.2 compliant
◪ Support hot plug, connect or disconnect devices to the KVM at any time without turning off devices
◪ Support analog L/R audio output
◪ Support HDR10 and Dolby Vision
◪ Available to use keyboard and mouse without any delay after switching input sources
◪ With USB 2.0 hub port, it is possible to connect bar code scanner, USB hard drive or other USB devices to KVM
HCK0401A1U | 4x1 HDMI KVM Switch 4K@60Hz 4:4:4 | |||
Functionality: | ||||
Auto Scan | Yes | |||
Port selection | Front panel buttons | Yes | ||
Keyboard hotkeys | Yes | |||
IR remote control | Yes | |||
Technical: | ||||
Resolution | Up to 3840x2160@60Hz 4:4:4 | |||
Auto to get EDID | Yes | |||
Data rate | 18 Gbps | |||
Auto scan interval | 1~250 Seconds | |||
Beep Sound | On/Off | |||
OSD | No | |||
Supported OS | Unix/Windows/Debian /Ubuntu /Fedora /Mac OS X/ Raspbian /Ubuntu for Raspberry Pi and other Linux based system | |||
Console ports | Keyboard emulation | 1 * USB Type A | ||
Mouse emulation | 1 * USB Type A | |||
USB 2.0 Hub ports | 1 * USB Type A | |||
Video /Audio | 1 * HDMI Type A | |||
System ports | USB Data | 4 * USB Type B | ||
L/R Audio output | 1 * AUX | |||
Video / Audio | 3 * HDMI Type A 1 * Type-C | |||
ESD protection | Human body model - ±8kV (Air-gap discharge) | |||
Mechanical: | ||||
Chasing material | Aluminum Alloy | |||
Product dimensions | 300 (L) x 117 (W) x 30w (H) mm | |||
Item weight | 800g | |||

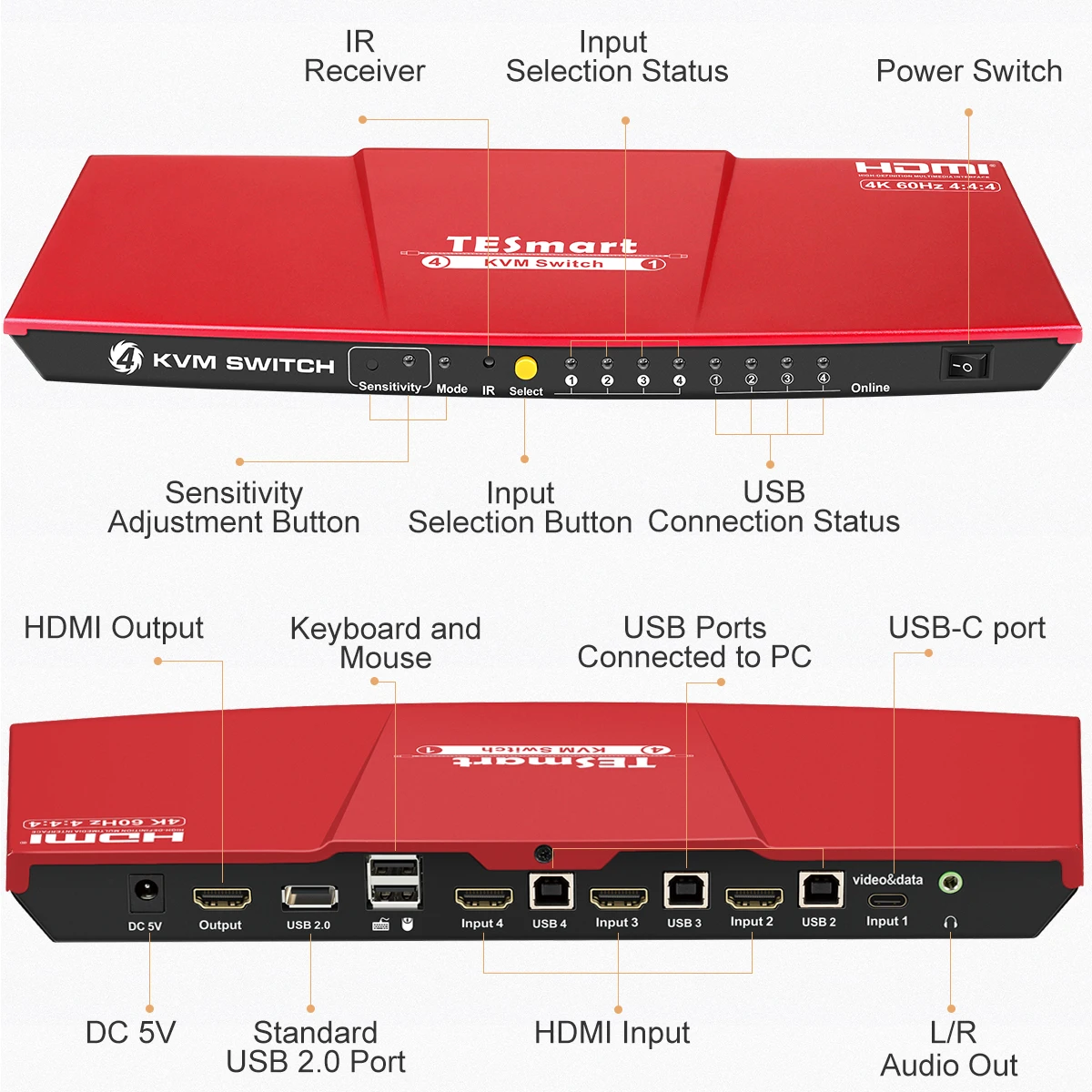

Panel Description
Details Images
Application
Company Profile
Established in 2013, Tesla Elec Technology Company limited is a professional manufacturer and exporter that is concerned with the design, development and production of audio and video matrix, splitter, switcher, KVM, extender and converter.
Our Advantages
15+Experience R&D Engineer
With 15+ years audio and video solution development experience
Product Advantage
CE/FCC/UL/KC/Rohs ... certified
10+ years experience on HDMI compatible issues
10+ years experience on HDMI compatible issues
Service Advantage
Professional technology support
Quick response to after-sales service
Quick response to after-sales service
Exhibition
Certifications
FAQ
Why choose TESmart
1.We have our own warehouse, which can ensure us of shipping out orders within 24 hours after payment (weekends and holidays excluded).
2.We have a R&D team with over ten years experience, providing ODM and OEM services in various video related products.
How to order
1.Pls send email or chat with us via Platform, Whatspp, Skype, and let us know your requirements on order details.
2.We will reply you with Proforma invoice based on your order request.
3.Kindly check the PI, and if everything is ok, the goods will be delivered to you asap after we got your payment.
4.Sample order supported.
Shipment & payment
1.T/T, PayPal, Western Union, Credit Card , Bank Transfer available.
2.DHL, UPS, EMS, FedEx, Air freight supported.
