Высококонтрастный oled-монитор FHD 1920x1080 1080P Amoled-дисплей 13 3 дюйма
- Категории: >>>
- Поставщик: Shenzhen,Duobond,Display,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Products Description

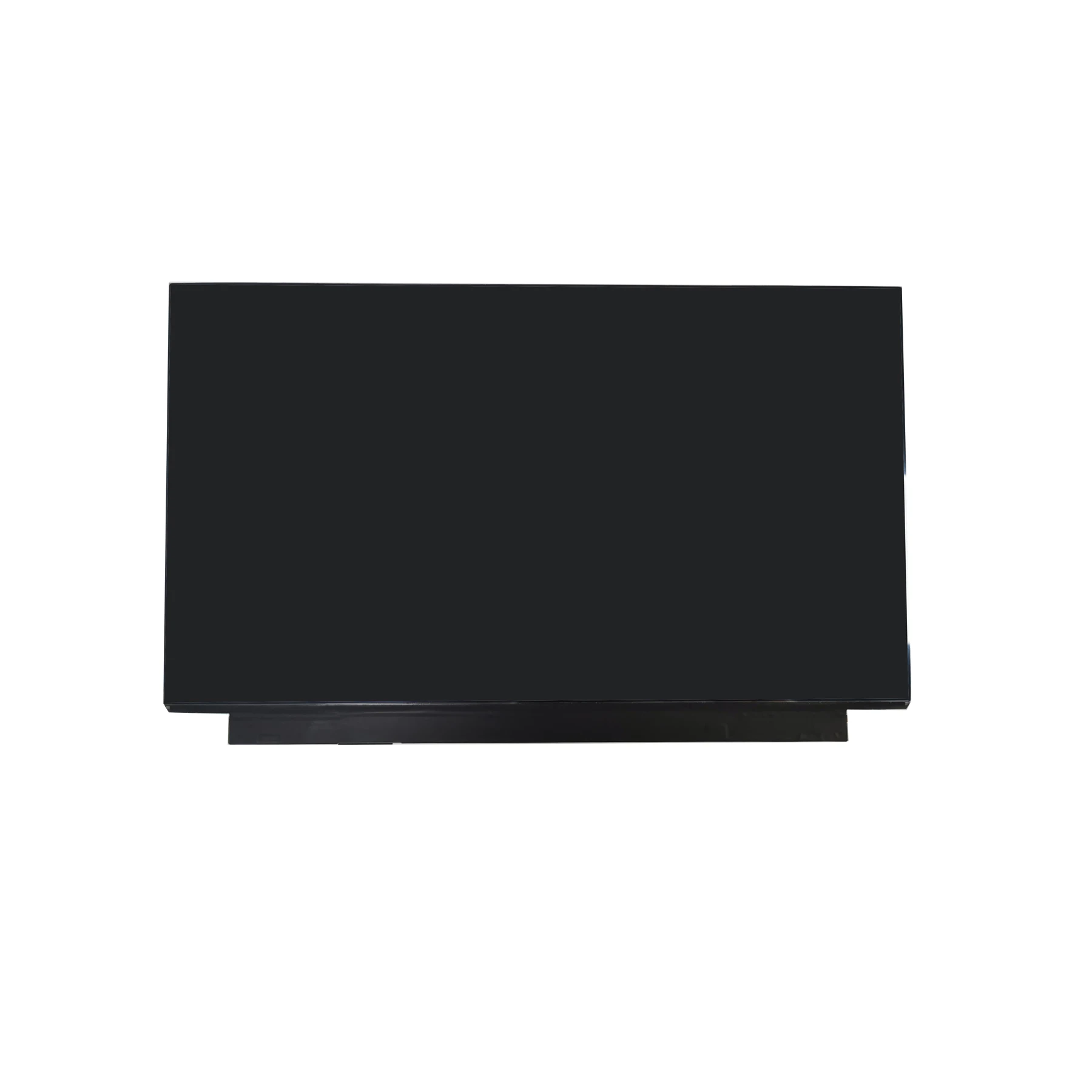

Samsung 13.3 inch 1920x1080(FHD) Amoled display
GENERAL INFORMATION
item | Specification | Unit | Note |
Active area | 293.76 (H) x 165.24 (V) (13.3”diagonal) | mm | |
Driver Element | LTPS TFT active matrix | ||
Display colors | 1,074M(RGB 8bit+2FRC) | ||
Number of pixel | 1920 * 1080 (FHD) | Pixel | 16:9 |
Pixel Arrangement | RGB Stripe Type | ||
Pixel pitch | 153 x 153, Sub Pixel : 51 x 153 | um | |
Display Mode | OLED | ||
Thickness of glass | 0.816 | mm | |
Surface treatment | Glare | ||
Environmental safe regulation | Pb Free, Halogen Free |

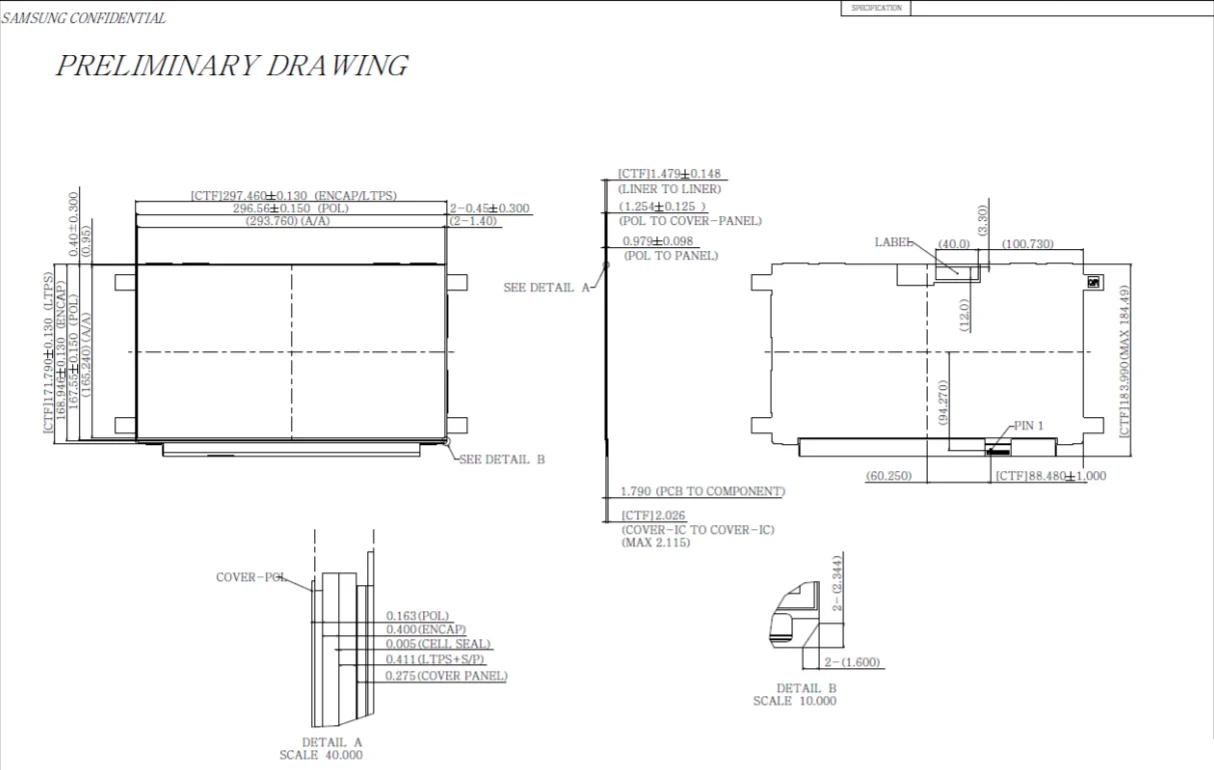

MECHANICAL INFORMATION
Item | Min. | Typ. | Max. | Unit | Note | ||
Module Size | Horizontal (H) | 297.33 | 297.46 | 297.59 | mm | - | |
Vertical (V) | 184.49 | mm | |||||
Depth (D) | - | 1.627 | mm | Panel Area (C-Panel Liner ~POL Liner) | |||
2.467 | mm | PCB Area (C-IC to C-IC) ※ Only for design spec | |||||
Weight | 140 | g | w/o Cover Panel Protective Film | ||||

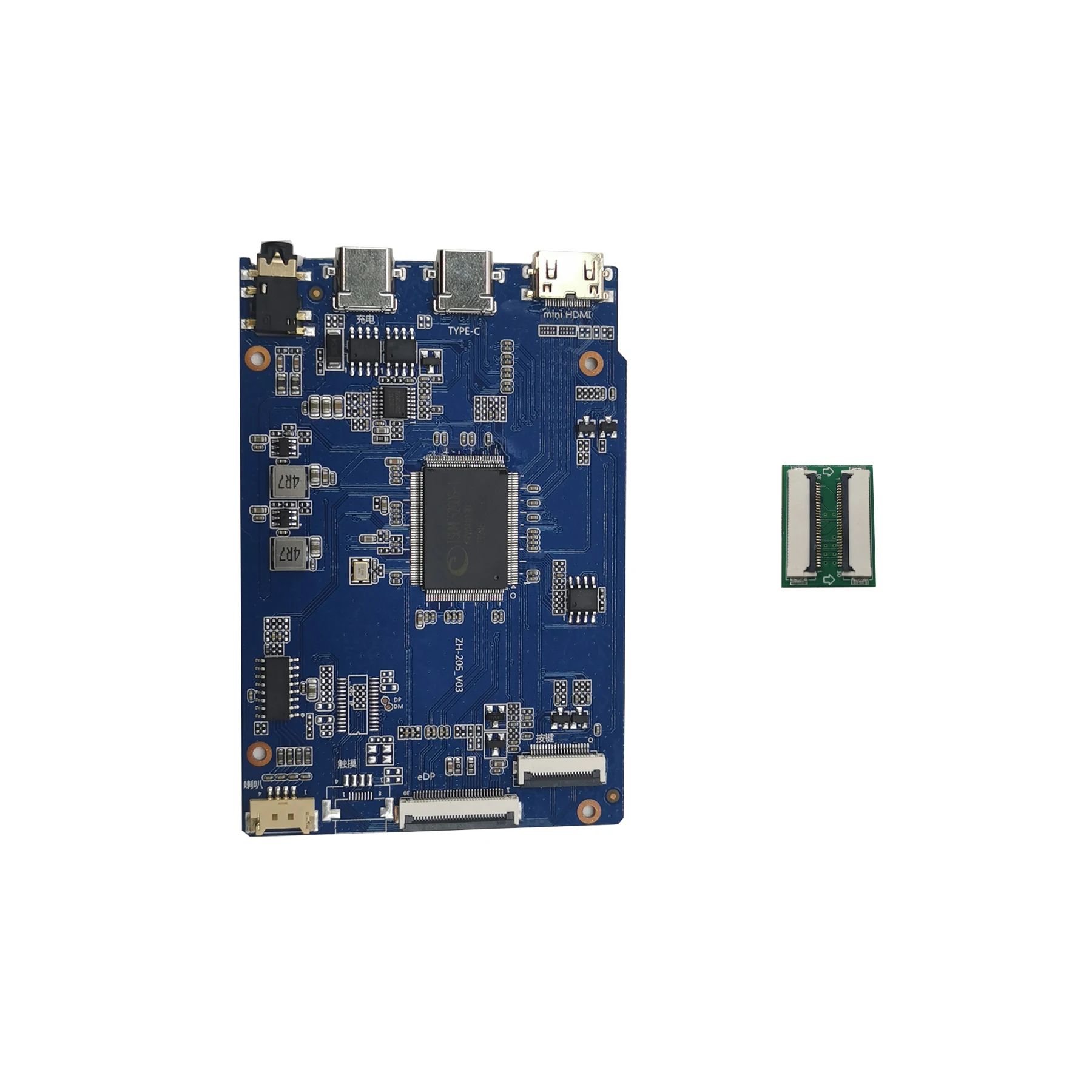

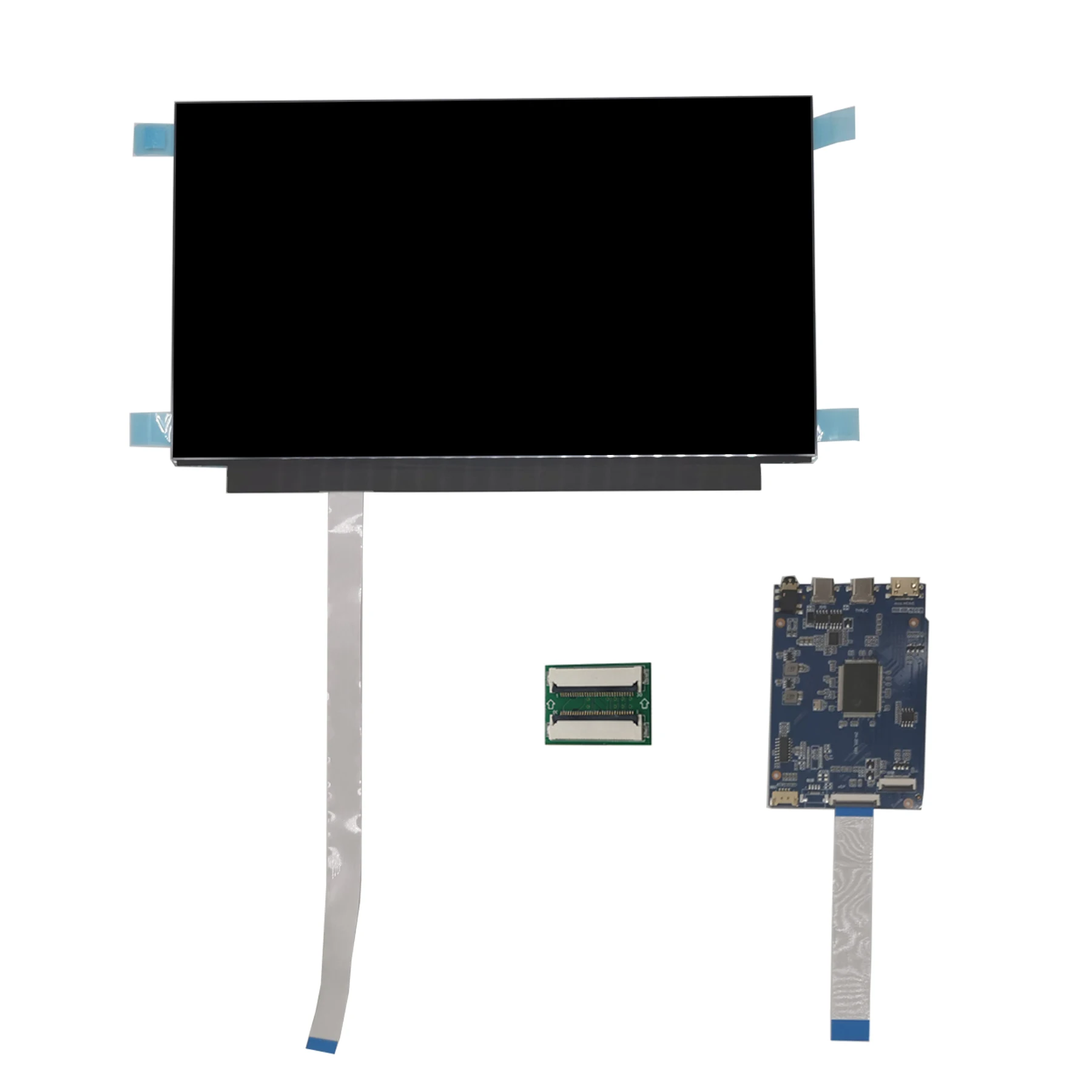

Driver board for 13.3 inch FHD AMOLED
(It includes HDMI board, LCD cable and connector)
Product packaging
Application
Customer Reviews
About Us
FAQ
Q: What is the MOQ?
A: MOQ is 1 pcs.We can do the support when the test process.
Q: What about the delivery time?
A: We have 13.3 inch FHD AMOLED in stock,can ship them within 7 working days.
Q: What's your payment method?
A: We usually accept the payment methods include T/T,Alibaba order,Paypal.
Q: What's your shipping method?
A: We provide comprehensive shipping methods.
For small quantity orders we ship by UPS Air-Express,or DHL/FEDEX/TNT/EMS Express service, it is safe and fast.
For large quantity orders we ship by buyer's cargo agent in China, we can also ship by Air transportation or sea transportation.
Q: Do you offer custom solution?
A: Yes,we can offer custom solution if standard products couldn't meet buyer' requirements.
Q: How to Contact us?
A: Send your Inquiry Details in the Below, Click "Send" Now!
