Экструдер для холодной подачи
US $40000-$80000
Машина для экструдирования резины горячей подачи/одношнековые
- Категории: Rubber Extruders >>>
- Поставщик: Qingdao,Shun,Cheong,Rubber,Machinery,Manufacturing,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description
Specification
item | value |
Place of Origin | China |
Shandong | |
Condition | New |
Output (kg/h) | 800kg/h |
Screw diameter (mm) | 150mm |
Screw Speed (rpm) | 20rpm - 60rpm |
Screw L/D Ratio | 4.4 |
Video outgoing-inspection | Provided |
Machinery Test Report | Provided |
Marketing Type | Hot Product 2019 |
Warranty of core components | 1 Year |
Core Components | PLC, Motor, Gear |
Brand Name | SFC |
Voltage | 380V |
Dimension(L*W*H) | 3411mm*814mm*1470mm |
Power (kW) | 55 |
Weight (KG) | 4800KG |
Certification | ISO9001:2008/CE/SGS |
Year | Customization |
Warranty | 1 Year |
Video technical support, Online support | |
Key Selling Points | Competitive Price |
After Warranty Service | Video technical support, Online support |
Local Service Location | None |
Showroom Location | None |
Applicable Industries | Rubber |
Diameter Of Screw (mm) | 150 |
Length diameter ratio of screw | 4.4 |
Screw Rotation Speed (RPM) | 20-60 |
Motor Power (KW) | 55 |
Capacity (KG/H) | 800 |
Feeding Dimension (mm) | 200*120 |
Hot Water Circulation Section | 3 |
Warranty Period | 1 year |
After-sales Service Provided | Video Technical Support |
Mode Of Production | Support Customization |
Product Description
1. Compared with the old process, reducing the use of a rubber mixing mill and one worker, the production cost is greatly reduced.And the feeding effect is good, the filtration ability is strong, greatly reduces the work intensity of worker, reduces the investment cost.
2. Adopt double heads with filter plate,and The filter screen is replaced by hydraulic push, and the operation is fast, not leaking, saving time and energy.
3. The rotation speed can be adjusted, which can match the speed of the equipment before and after, improve the utilization of resources, more safety and save energy.
4. Adopt Hard tooth speed reducer special used on extruder,Low noise and long service life.
5. The machine barrel and screw are made of high quality alloy steel 38CrMoALA, which is treated with nitrification and abrasion resistance.
6. Equipped with automatic cutting rubber device to reduce the labor intensity of workers.
2. Adopt double heads with filter plate,and The filter screen is replaced by hydraulic push, and the operation is fast, not leaking, saving time and energy.
3. The rotation speed can be adjusted, which can match the speed of the equipment before and after, improve the utilization of resources, more safety and save energy.
4. Adopt Hard tooth speed reducer special used on extruder,Low noise and long service life.
5. The machine barrel and screw are made of high quality alloy steel 38CrMoALA, which is treated with nitrification and abrasion resistance.
6. Equipped with automatic cutting rubber device to reduce the labor intensity of workers.
Introduction

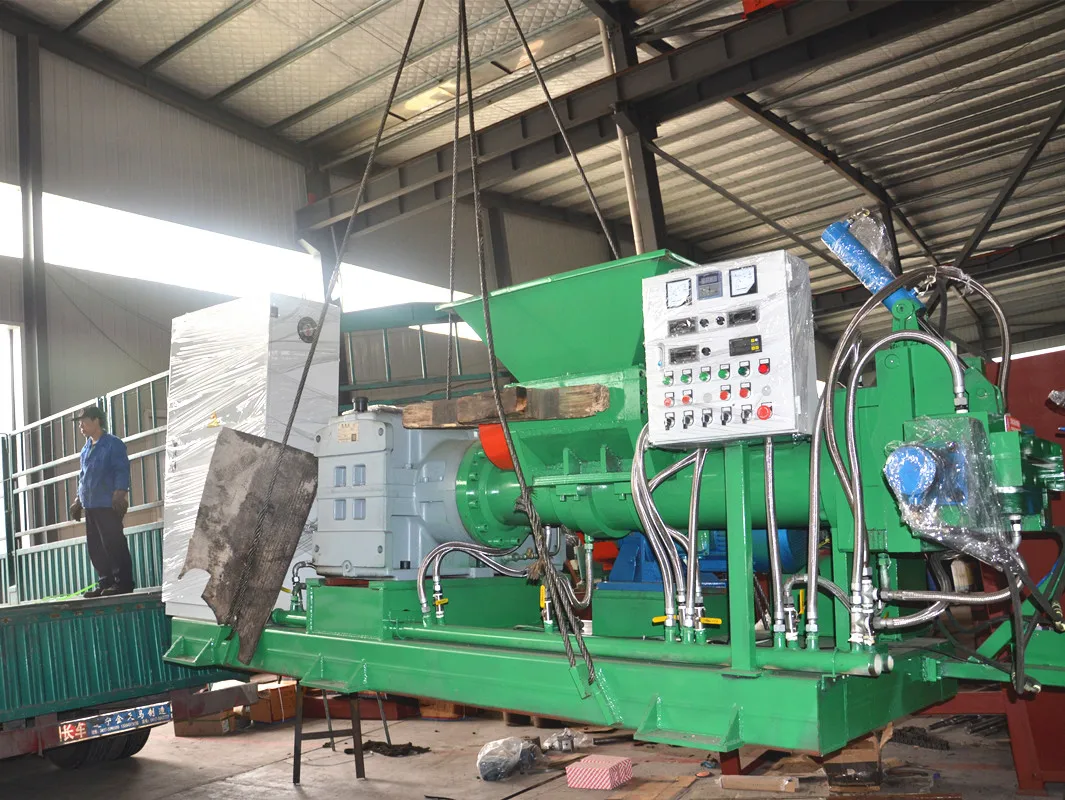

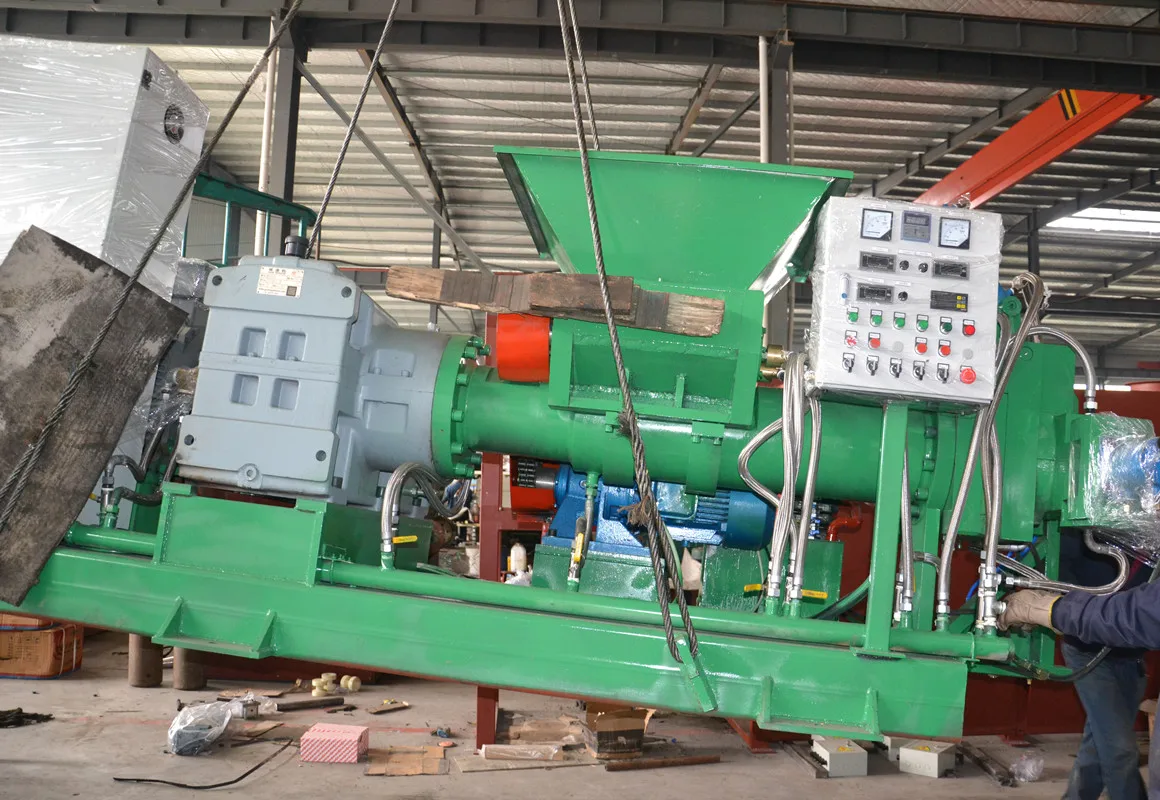

1. The Rubber Extruder Machine is used for extruding half-finished rubber products such as tire tread, rubber pipe, inner tube, cable and feeding rubber, etc.
2. The rotation speed could be changed. With the head piece changing. We can get different filtering and rubber-covering of press plate of semi-product for constant outline. So the machine has many uses.
3. Our main products includes: Rubber product equipment, reclaimed rubber equipment, bias truck tyres equipment etc. We also have rubber mixing equipments such as Banburying Machine, Rubber Mixing Machine, Rubber Crusher, Refiner, Rubber Cutting Machine; Rolling equipments such as Calenders with two/three/four high mills, Linkage line, Placemat Finisher; Vulcanizing equipments such as Vulcanizing Press, Conveyer Forming Machine, Tyre Vulcanizer, Solid Tyre Vulcanizer, Flap Curing Press, Inner Tube Curing Press.
4. We can design and manufacture all kinds of non-standard rubber machinery according to the requirements of the customers.
5. Qingdao Shun Cheong Machinery Co., Ltd. Your trusted partner.
2. The rotation speed could be changed. With the head piece changing. We can get different filtering and rubber-covering of press plate of semi-product for constant outline. So the machine has many uses.
3. Our main products includes: Rubber product equipment, reclaimed rubber equipment, bias truck tyres equipment etc. We also have rubber mixing equipments such as Banburying Machine, Rubber Mixing Machine, Rubber Crusher, Refiner, Rubber Cutting Machine; Rolling equipments such as Calenders with two/three/four high mills, Linkage line, Placemat Finisher; Vulcanizing equipments such as Vulcanizing Press, Conveyer Forming Machine, Tyre Vulcanizer, Solid Tyre Vulcanizer, Flap Curing Press, Inner Tube Curing Press.
4. We can design and manufacture all kinds of non-standard rubber machinery according to the requirements of the customers.
5. Qingdao Shun Cheong Machinery Co., Ltd. Your trusted partner.
Packing & Delivery
Wooden Case
Company Profile
Qingdao Shun Cheong Rubber Machinery Manufacturing Co., Ltd is located in Kangting Road No. 1, Huangdao New District,Qingdao City.Who is a specializing in the production of rubber machinery of high and new technology backbone enterprises, the company passed the ISO9001:2008 quality management system certification, the European Union CE certification and Switzerland SGS certification.
Company's products mainly cover the following industry: tire manufacturing, rubber conveyor belt production, all kinds of rubber products, tires refurbished manufacturing, waste tire recycling.
The main equipment are: Rubber Kneader, Rubber Mixing Machine, Rubber Vulcanizing Press, Batch Off Cooler, Rubber Calender, Waste Tire crusher, Rubber Extruder, Rubber Strainer,etc.
Company's products are exported to Britain, Switzerland, USA, Germany, Brazil, Singapore, Malaysia, India, Russia, Ukraine,Uzbekistan, Kazakhstan and so on,more than 50 countries and regions, has won the domestic and foreign customers praise and cooperation for years.Meanwhile,they also introduced new customers to cooperate.
Product quality and after-sales service is the key to survival of Qingdao Shun Cheong Machinery Co.,Ltd, and also are top priorities of management of the company, the company commitment to all customers as follows:
1. Every parts pass strict quality inspection before storage.
2. All the products overload trial running before shipment, such as Plate Vulcanizing Press,to test pressure for 24 hours under 1.25 times the rated working pressure. Rubber Mixing Mill, rubber mixing 20 minutes under 1.1 times amount of the rated mixing rubber etc.
3. The whole body of all products are with free technical support.
4. The warranty period of 3 years for main parts, wearing parts for 1 year warranty.
5. The products issues quality problems in the use process, first of all, our sales staff and engineers through the Internet or telephone guidance service, if not solve we will find a local agent or factory's engineer to door repair for the first time! In order to better serve customers, the company provides conveyor belt, waste tire recycling line and tire and other rubber products production site for customers to visit, consultation.

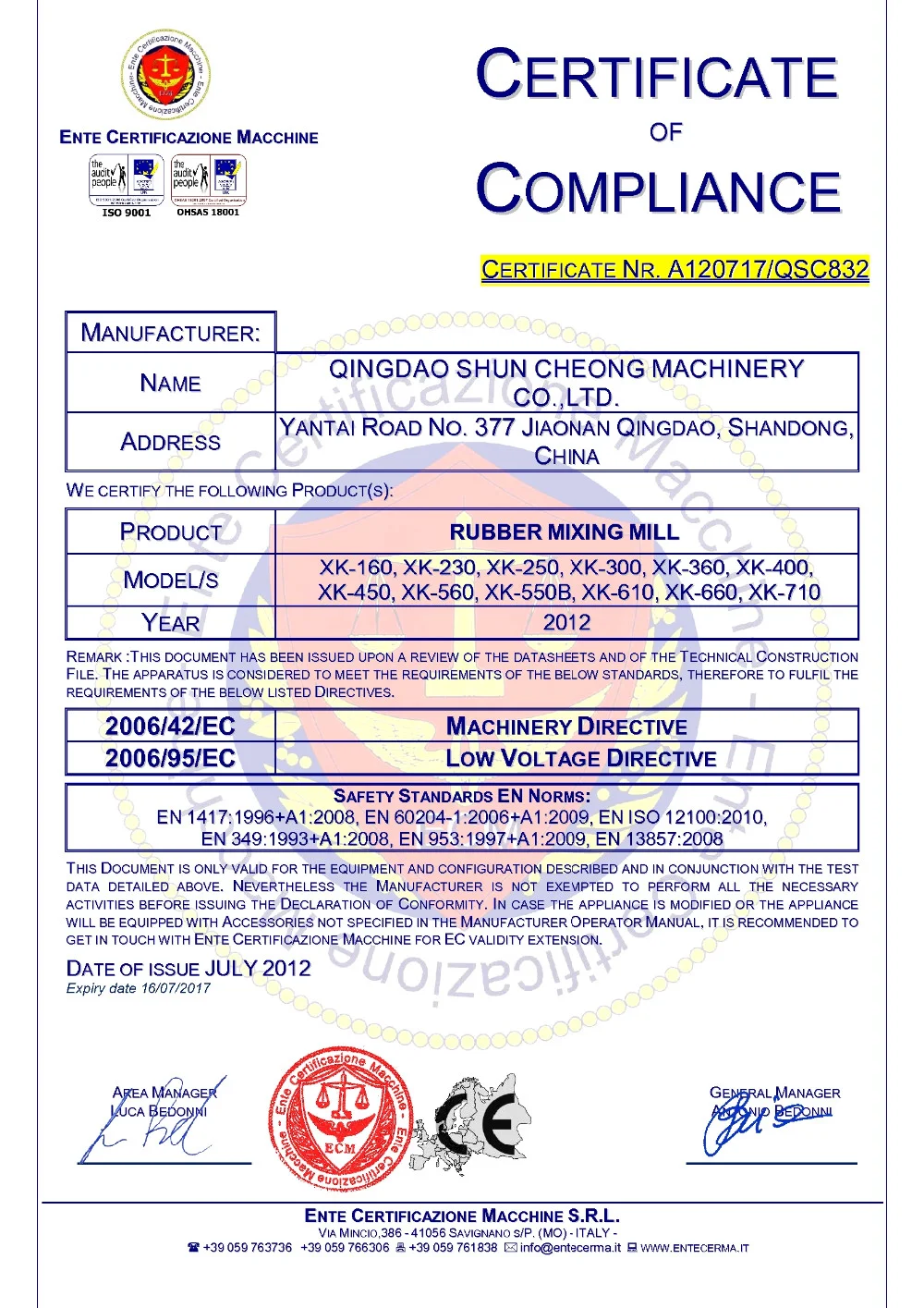

Certifications
Our Service
Customization Service
* Our engineers can design target machines for customers and send th em the drawing to confirm.
* We supply overseas engineer service and help to train your workers to operate the machine.
* We are always on the side of saving your cost.
* In the process of production, we will take photos and send to customers for their track the progress.
* We supply overseas engineer service and help to train your workers to operate the machine.
* We are always on the side of saving your cost.
* In the process of production, we will take photos and send to customers for their track the progress.
Near The Qingdao Airport & port
* Close to Qingdao port (Qianwan Port).
* Long term cooperation with world famous ship company, ensure the rubber machinery delivery on time and safety.
* Long term cooperation with world famous ship company, ensure the rubber machinery delivery on time and safety.
Part Of The Company's Products
Common Vulcanizing Press
Common Vulcanizing Press
Rubber Tiles Vulcanizing Press
Duplex Curing Press
C Type Vulcanizing Press
Tire Tread Vulcanizing Press
Rubber Extruder
Rubber Mixing Mill
Two Roller Calender
Rubber Kneader
Batch Off Cooler
Whole Tire Shredder
Rubber Bale Cutter
Strip Cutter
Bucket Elevator
1. What does your factory do regarding quality control?
We pay much more importance to quality control from the very beginning to the end of production. Every machine will be fully assembled and carefully tested before shipment.
We pay much more importance to quality control from the very beginning to the end of production. Every machine will be fully assembled and carefully tested before shipment.
2. What can you buy from us?
Rubber Mixing Mill,Vulcanizing Press,Rubber Calender,Batch Off Cooler,Kneader,New Type Waste Tire Recycling Machine.
Rubber Mixing Mill,Vulcanizing Press,Rubber Calender,Batch Off Cooler,Kneader,New Type Waste Tire Recycling Machine.
3. Are you able to give installation and commissioning overseas?How long time will it take?
Yes, we can supply overseas service and technical support but customer needs to pay for the cost of the installation. Small machine usually takes within 2~3 days. Big production line usually takes about 30 days.
Yes, we can supply overseas service and technical support but customer needs to pay for the cost of the installation. Small machine usually takes within 2~3 days. Big production line usually takes about 30 days.
4. Why should you buy from us not from other suppliers?
Our company has around 20 years experiences for manufacturing rubber machinery and have good seasoned engineers.Company's products are exported to Britain, Switzerland, USA, Germany, Brazil, Singapore, Malaysia, India, Russia, Ukraine, Uzbekistan etc.
5. What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,FCA,DDP；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Russian
Our company has around 20 years experiences for manufacturing rubber machinery and have good seasoned engineers.Company's products are exported to Britain, Switzerland, USA, Germany, Brazil, Singapore, Malaysia, India, Russia, Ukraine, Uzbekistan etc.
5. What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,FCA,DDP；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Russian
Contact Us
Bruce Xu
Qingdao Shun Cheong Rubber Machinery Manufacturing Co., Ltd.
Web: www.cn-rubbermachine.com
Add:No.1 Kangting Road, Huangdao District, Qingdao City, China
Email:sales-6@sfcjx.com
Tel: +86(0)-532-80986908
Fax: +86(0)-532-88182098
WhatsApp /WeChat/Mobile: +86 18306487221
Qingdao Shun Cheong Rubber Machinery Manufacturing Co., Ltd.
Web: www.cn-rubbermachine.com
Add:No.1 Kangting Road, Huangdao District, Qingdao City, China
Email:sales-6@sfcjx.com
Tel: +86(0)-532-80986908
Fax: +86(0)-532-88182098
WhatsApp /WeChat/Mobile: +86 18306487221
