Низкий профиль полый гидравлический Квадратный привод крутящий момент гаечный
- Категории: Other Hydraulic Tools >>>
- Поставщик: Zhengzhou,Gaode,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Aluminum titanium alloy hollow hydraulic wrench
Product Description
Features:
1.High strengthen aluminium-titanium alloy body.
2.700 bar maximum working pressure,Repeat accuracy ±3%.
3.360° multi-positional swivel quick release couplings.
4.Working with the high resistance sockets, suitable for more size of screws.
5.360°Adjustable reaction arm with safety lock feature, can be used without reaction arm.
2.700 bar maximum working pressure,Repeat accuracy ±3%.
3.360° multi-positional swivel quick release couplings.
4.Working with the high resistance sockets, suitable for more size of screws.
5.360°Adjustable reaction arm with safety lock feature, can be used without reaction arm.
Technical Parameters
Item | HKB03 | HKB05 | HKB10 | HKB20 | HKB30 | HKB40 | HKB50 |
Max. torque(Nm) | 2266 | 5188 | 9855 | 17202 | 23072 | 40639 | 50956 |
Min. torque(Nm) | 227 | 519 | 986 | 1720 | 2307 | 4064 | 5095 |
Screw Nut(mm) | 27-50 | 27-65 | 50-90 | 65-115 | 75-135 | 80-155 | 130-200 |
Square Drive | KB50 | KB65 | KB90 | KB115 | KB135 | KB155 | KB200 |
L1(mm) | 205 | 251.3 | 302.5 | 367 | 400.5 | 457.5 | 502 |
H1(mm) | 129 | 163 | 191 | 223 | 246 | 282 | 322 |
H2(mm) | 100 | 136 | 166.5 | 198 | 224 | 265 | 328 |
W1(mm) | 32 | 41 | 53 | 64 | 70 | 84 | 90 |
W2(mm) | 50 | 66 | 83 | 99 | 110 | 132 | 144 |
Weight | 2.3 | 4.9 | 9 | 16.3 | 18.1 | 30.2 | 39.5 |
If the model you need is not in the form, please contact us. We can customize according to your project!

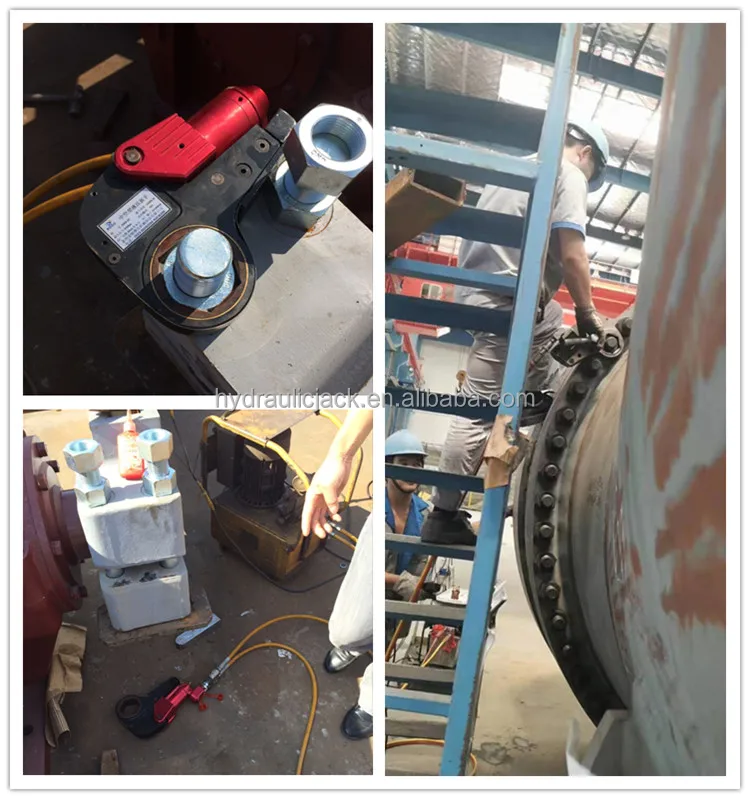

Application
Characteristics
1. It adopts aluminum-titanium alloy material and integrally molded body to comprehensively strengthen the strength and toughness of the fuselage.
2. 360°X180° rotating hose joint, can be used in a small space, using precision ratchet, output torque accuracy up to ±3%.

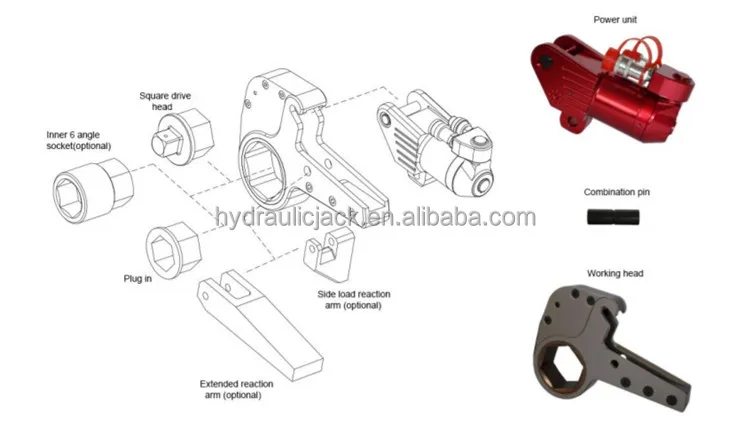

3. The hollow hydraulic wrench is composed of a power head and a working head. It can be used for multiple purposes in one machine. One power head can be equipped with multiple working heads, and the working range is wide.
4. Extendable metric and inch hexagon drive shaft and sleeve for the working head, suitable for use in tight spaces.
5. Locking drive shaft can be customized according to user requirements.
6. The movable handle is easy to move and operate.
2. 360°X180° rotating hose joint, can be used in a small space, using precision ratchet, output torque accuracy up to ±3%.
3. The hollow hydraulic wrench is composed of a power head and a working head. It can be used for multiple purposes in one machine. One power head can be equipped with multiple working heads, and the working range is wide.
4. Extendable metric and inch hexagon drive shaft and sleeve for the working head, suitable for use in tight spaces.
5. Locking drive shaft can be customized according to user requirements.
6. The movable handle is easy to move and operate.
