Sale of mining ore vibrating feeder coal vibrating hopper feeder
US $4000-$10000
GZ серия горно вибрационная машина Электромагнитный вибрационный питатель для
- Категории: Mining Feeder >>>
- Поставщик: Henan,Xingyang,Mining,Machinery,Manufactory
Поделиться:
Описание и отзывы
Характеристики
Product Description

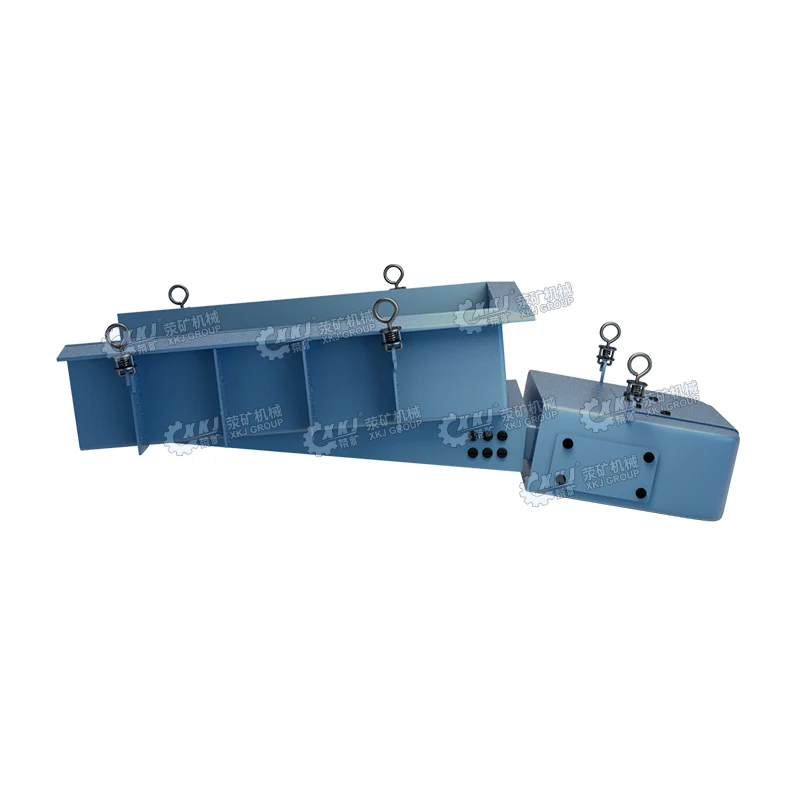

Electromagnetic Vibration Feeder — Product Description
[Introduction]:
GZ series electromagnetic vibration feeder, feeding block, grain and powder materials from the storage warehouse or funnel to the receiving device evenly continuous or quantitative, can stepless adjust the feeding amount, and realize the centralized control
and automatic control of the production process. It has small volume, light weight, easy installation, no rotating parts, no lubrication, easy maintenance, high working frequency, less energy consumption. Widely used in mining, metallurgy, coal, light industry, power, machinery, food and other industries. Method of adjusting ore quantity: adjusting current. This equipment has small amplitude and high frequency, so it is not suitable for viscous or wet powder materials.
and automatic control of the production process. It has small volume, light weight, easy installation, no rotating parts, no lubrication, easy maintenance, high working frequency, less energy consumption. Widely used in mining, metallurgy, coal, light industry, power, machinery, food and other industries. Method of adjusting ore quantity: adjusting current. This equipment has small amplitude and high frequency, so it is not suitable for viscous or wet powder materials.
Advantage
Electromagnetic Vibration Feeder—Advantage
1. Small volume, light weight, simple structure, convenient installation, convenient repair, low operation cost;
2. Adoption the principle of the mechanical vibration, and less energy consumption;
3. Change the volume of flow at any time;
4. Centralized control and automatic control of production process;
5. Small wear of feeding tank;
6. Eccentric block is the source of vibration, low noise, less power consumption, good regulation performance, no blanking phenomenon.
2. Adoption the principle of the mechanical vibration, and less energy consumption;
3. Change the volume of flow at any time;
4. Centralized control and automatic control of production process;
5. Small wear of feeding tank;
6. Eccentric block is the source of vibration, low noise, less power consumption, good regulation performance, no blanking phenomenon.
Product Details
Products Specifications
Model | Feeding capacity (t/h) | Max. feeding size (mm) | Double amplitude (mm) | Voltage (V) | Electric current (A) | Power (kw) | Weight (kg) | ||
Level angle | -10° angle | ||||||||
GZ-1 | 5 | 7 | 50 | 1.75 | 220 | 1.34 | 0.06 | 50 | |
GZ-2 | 10 | 20 | 50 | 3 | 0.15 | 95 | |||
GZ-3 | 25 | 35 | 75 | 4.6 | 0.25 | 140 | |||
GZ-4 | 35 | 50 | 85 | 6.8 | 0.35 | 220 | |||
GZ-5 | 50 | 70 | 100 | 8.4 | 0.45 | 330 | |||
GZ-6 | 100 | 140 | 150 | 12.7 | 0.65 | 560 | |||
GZ-7 | 150 | 210 | 200 | 1.5 | 380 | 16.4 | 1.5 | 1150 | |
GZ-8 | 250 | 350 | 250 | 24.6 | 3 | 1820 | |||
GZ-9 | 400 | 560 | 300 | 39.4 | 4 | 2950 | |||
GZ-10 | 600 | 840 | 350 | 47.6 | 5.5 | 3650 | |||
GZ-11 | 1000 | 1400 | 500 | 47.6×2 | 5.5×2 | 7580 | |||
Working Principle
Electromagnetic Vibration Feeder Working principle

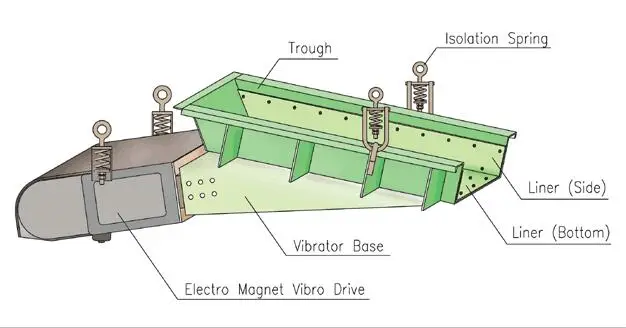

The electromagnetic vibrating feeder is consist of feeding trough, exciter, spring bearing, transmission device etc. The vibration source of feeding tank vibration is exciter. The exciter is made up of two eccentric shafts and gears. The motor drives the main
shaft through the triangle belt ,then the Good gear of the main shaft drive another shaft to rotate. The two shafts do reverse rotation at the same time and tank vibration to make the materials moving continuously. Thus they can achieve the goal of transporting materials.
shaft through the triangle belt ,then the Good gear of the main shaft drive another shaft to rotate. The two shafts do reverse rotation at the same time and tank vibration to make the materials moving continuously. Thus they can achieve the goal of transporting materials.

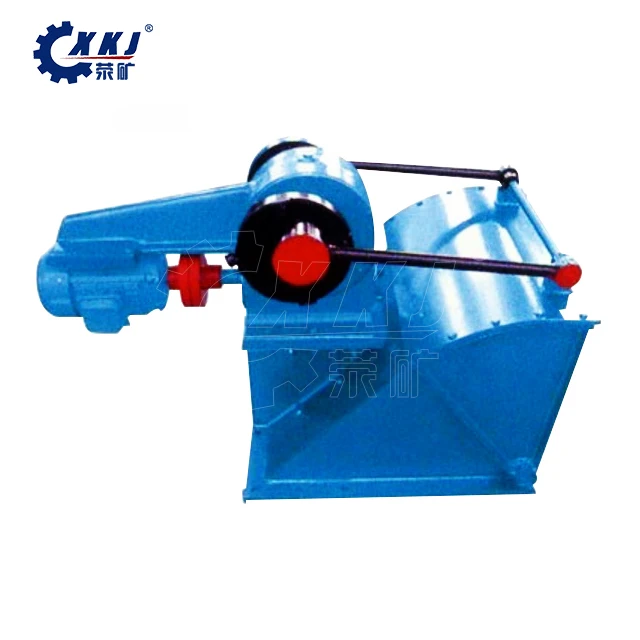

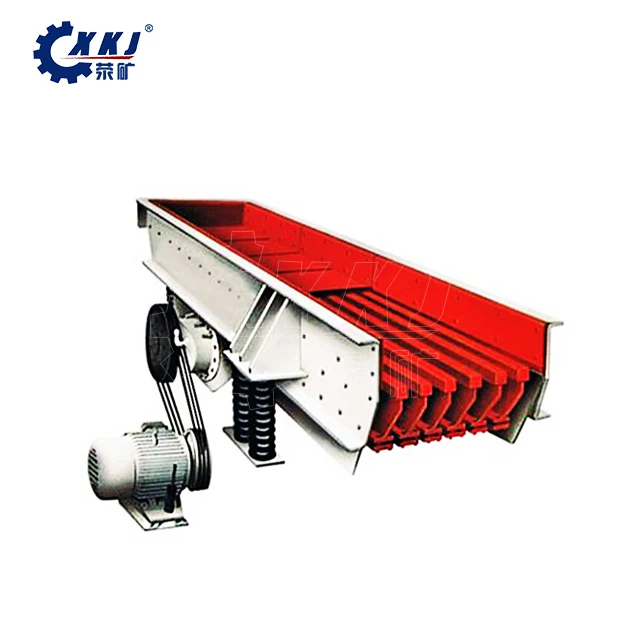

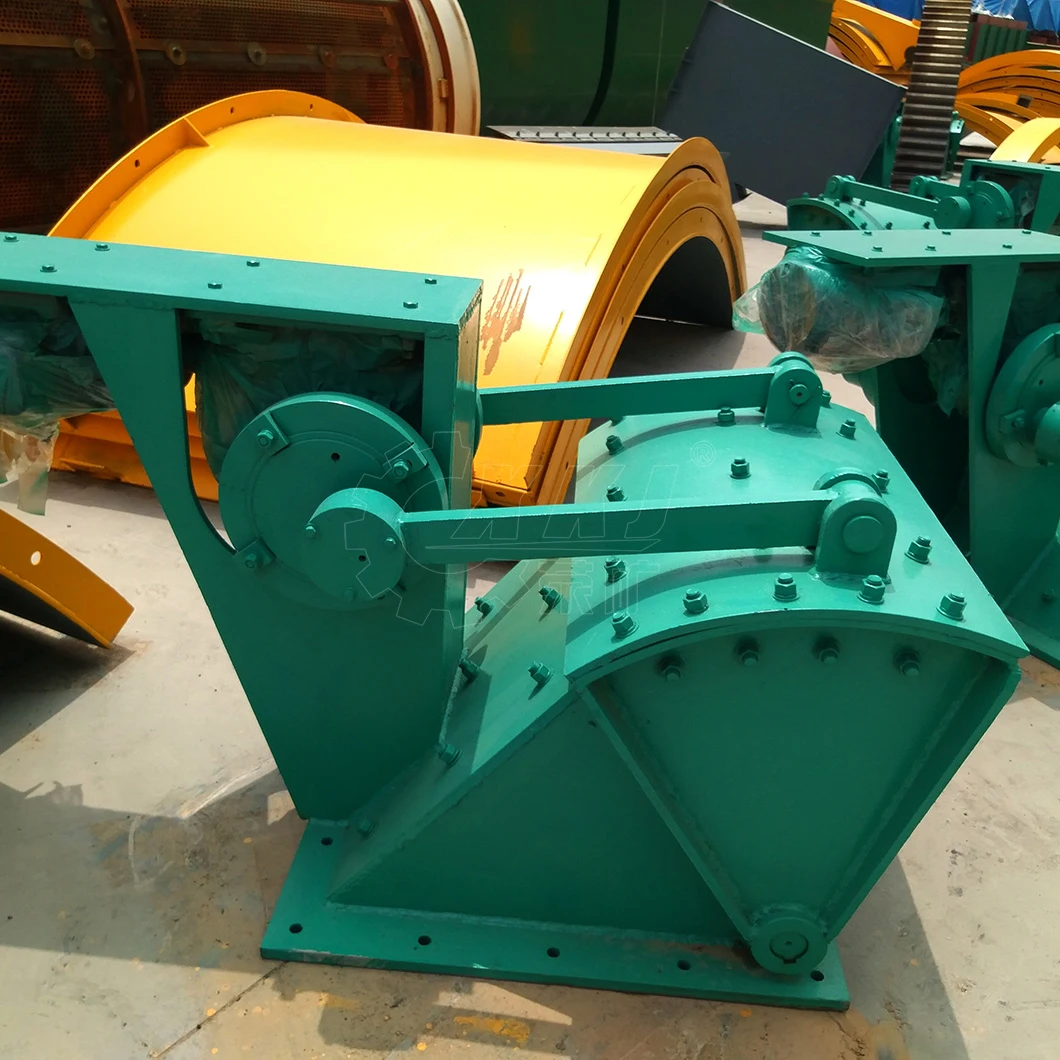

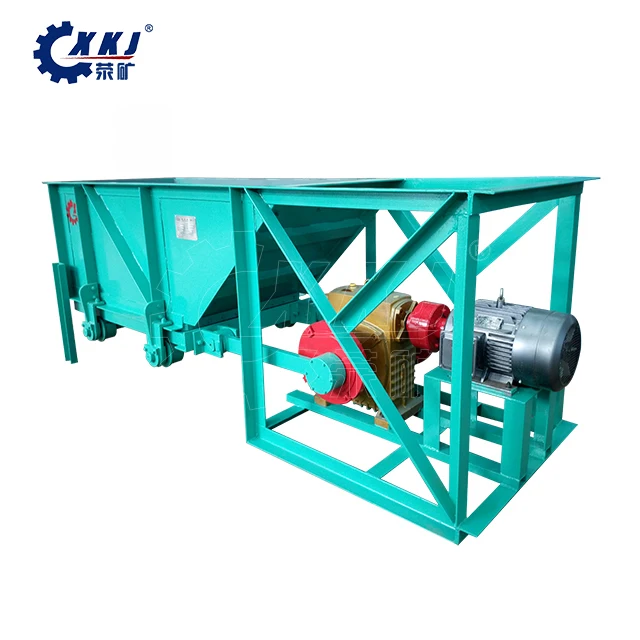

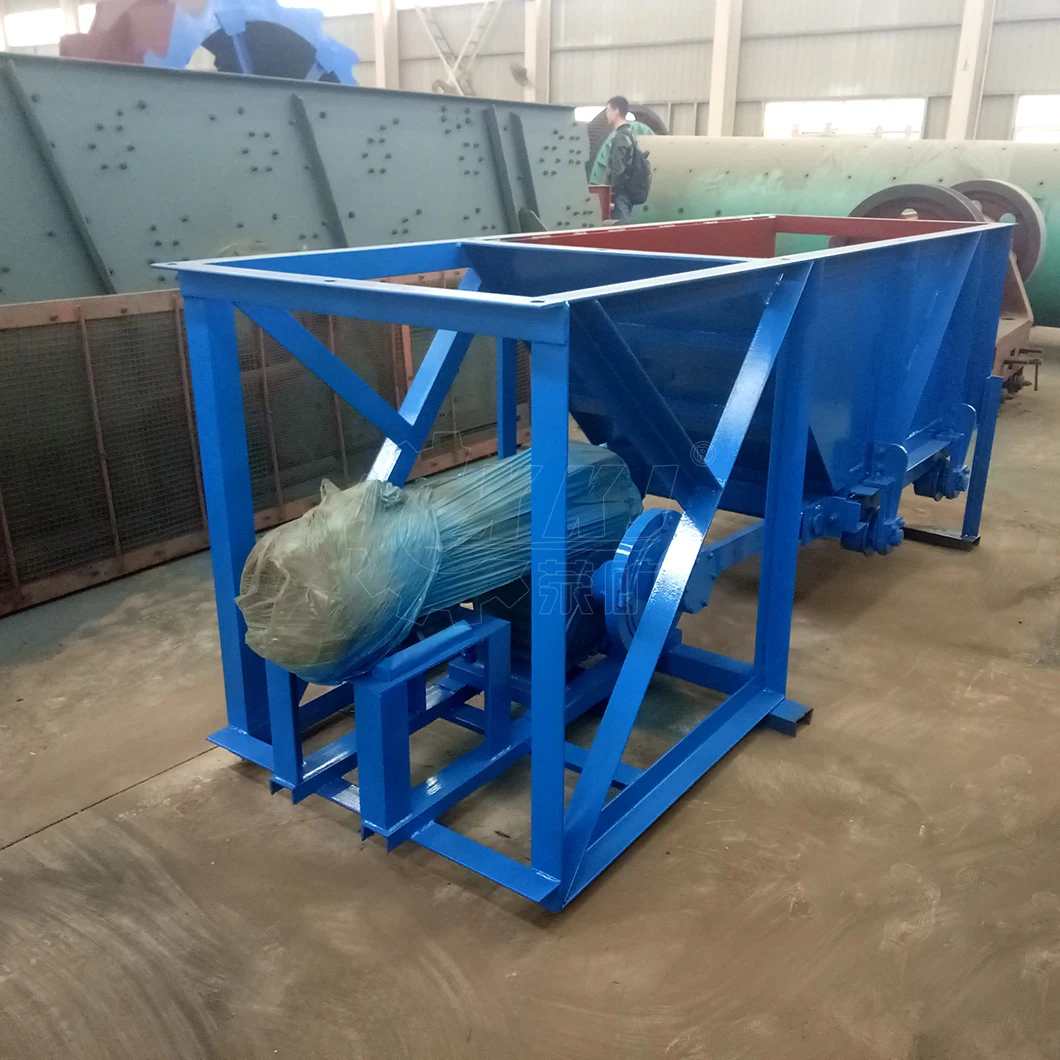

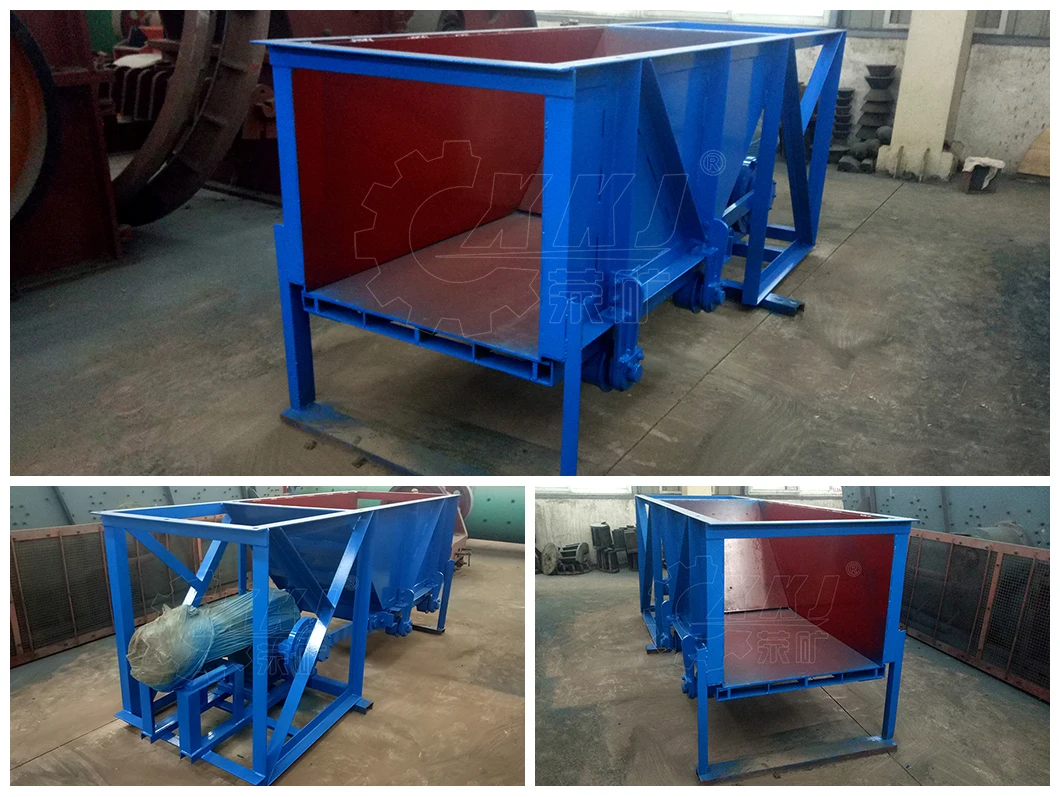

Similar Products
Click the picture to enter the product page！！！
Company Information
Company Information：
Why choose us ？
1.We are real manufacture factory ( not dealer)
All machineries from Henan Xingyang Mining Machinery Manufactory are made by ourselves, with lower price, good quality and assured full after service; So please buy machine from factory.
2. With senior engineers for research and development.
3. We’d like to recommend a suitable type for you and send you a best quotation.If you are new for this business, we will help you.
All machineries from Henan Xingyang Mining Machinery Manufactory are made by ourselves, with lower price, good quality and assured full after service; So please buy machine from factory.
2. With senior engineers for research and development.
3. We’d like to recommend a suitable type for you and send you a best quotation.If you are new for this business, we will help you.
Services
Our Services：
Before-sale services:
We guide customers to choose the best and applicable device; provide the advanced, energy-saving and practical technological processes, as well as we are responsible for the planning and design of the site.
Sale services:
Sale services:
Products must be inspected strictly before being sold; customers are invited to simulate and test machine on-the-spot and raise objections; in accordance with the agreements stipulated in the contract, we will arrange delivery.
After-sale services:
After-sale services:
Our Company will send professional engineers to guide device installation, debug and train operators until customers are fully satisfied. Moreover, we will design and produce machines according to the special requirements of customers.
Solemn Promise:
Solemn Promise:
The quality guarantee period of machines is one year except the wearing parts
Tips: The prices in the web only to be reference, according to raw material's price fluctuations; Specific price is subject to the negotiation.
Tips: The prices in the web only to be reference, according to raw material's price fluctuations; Specific price is subject to the negotiation.
Packing：

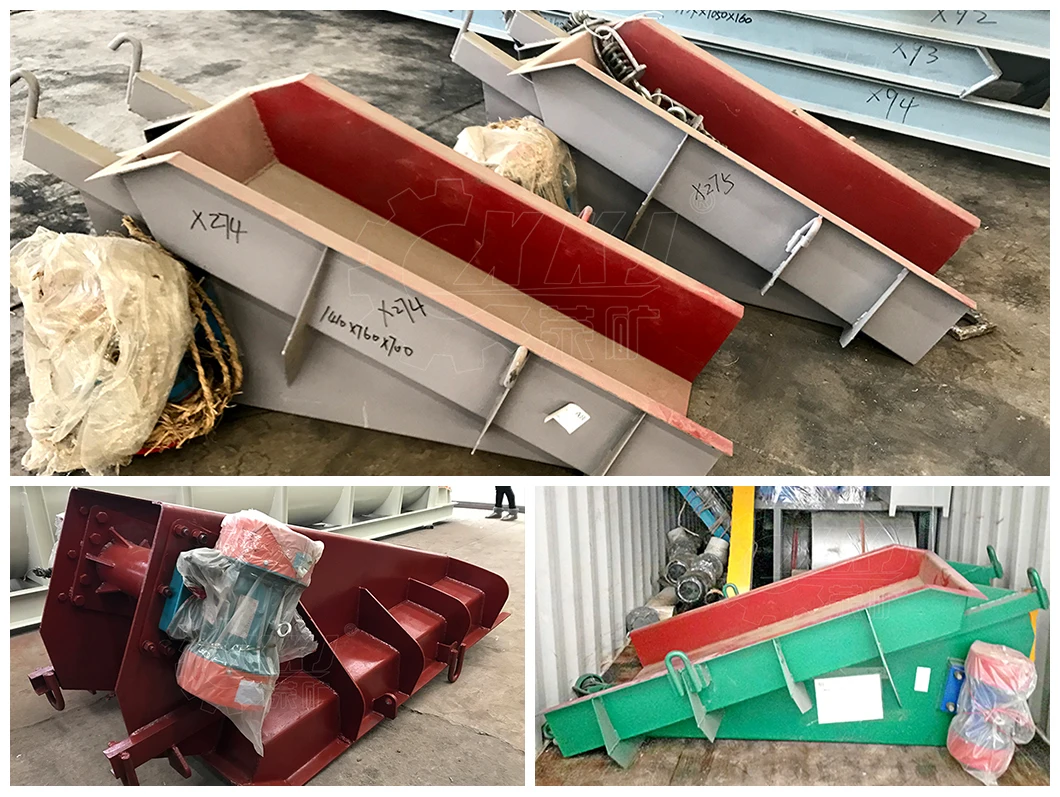

Normally the machines are taken apart before delivery and are packed by suitable packing ways, the packing ways are as below: Nude packing. Bundle packing. Grass rope packing. Water proof packing. Wooden pallets packing. Wooden box or carton box packing.
