1000 Вт 1500 2000 сварочный аппарат для металла листового алюминия лазерная сварочная машина
- Категории: Laser Welders >>>
- Поставщик: Acctek,Machinery,Co.,Ltd.(Shandong)
Поделиться:
Описание и отзывы
Характеристики
Product Description
Feature of laser welding machine
◆360 degree without dead angle micro soldering
High aspect ratio, small weld width, small heat affected zone, small deformation, fast welding speed, no need to be processed after welding or simply processed.
◆Fast, easy to operate, labor saving
Fast welding speed, 2-10 times faster than traditional welding, one machine can replace at least 2 welders a year.
◆Long life working, safer and more environmentally friendly
Laser welding is with low consumables for micro soldering.
High aspect ratio, small weld width, small heat affected zone, small deformation, fast welding speed, no need to be processed after welding or simply processed.
◆Fast, easy to operate, labor saving
Fast welding speed, 2-10 times faster than traditional welding, one machine can replace at least 2 welders a year.
◆Long life working, safer and more environmentally friendly
Laser welding is with low consumables for micro soldering.
Parameter data
Description | Parameter | ||

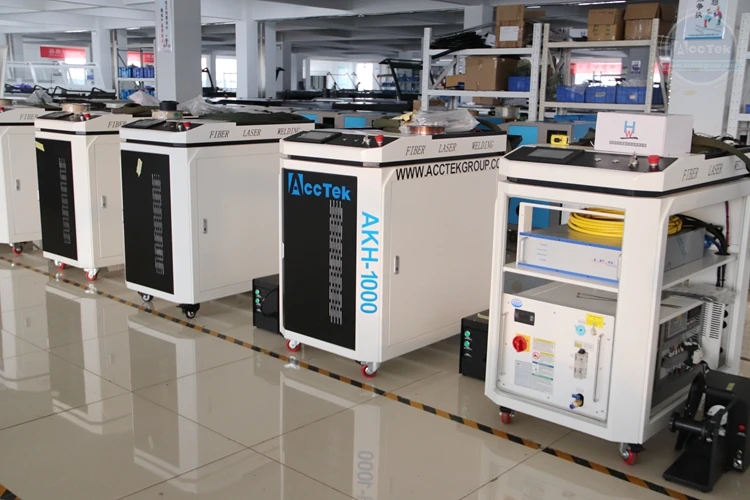

Model | AKH-1000 | ||
Range of adjustable power | 1-100% | ||
Laser wavelength | 1070nm | ||
Fiber length | standard 10M maximum support 15M | ||
Way of working | continuous/modulation | ||
Speed range | 0-120mm/s | ||
Repeat precision | ±0.01mm | ||
Cooling water | Industrial therm ostatic water tank | ||
Working temperature | 15-35℃ | ||
Working humidity | <70% no condensation | ||
Welding thickness | 0.5-3mm | ||
Welding gap requirements | ≤0.5mm | ||
Voltage | 380V | ||
Raycus laser generator
Hanwei controller
Hanwei welding gun
Hanwei auto wire feeding system
Sample & Application
Solderless
360 degree no dead seam weld
No deformation of the workpiece
Perfect weld
Our Services
1.Guarantee: 3 years guarantee of the whole machine+1.5 years warranty spindle and motor
2.Software issue: We will support technical support of lifetime free.
3.Hardware issue: Main parts(excluding the consumables) shall be replaced/
repaired free of charge if there is any problem during the warranty period.
4.Support online: our engineer give 1 hours to solve question.
5.Training in AccTek factory: We are able to train your staff after placed order in our factory for free.
6.Oversea service: We are able to send technician to your workshop to do the installation and training.
You will need bear the related costs. (flight,visa,hotel,training costs, etc.)
2.Software issue: We will support technical support of lifetime free.
3.Hardware issue: Main parts(excluding the consumables) shall be replaced/
repaired free of charge if there is any problem during the warranty period.
4.Support online: our engineer give 1 hours to solve question.
5.Training in AccTek factory: We are able to train your staff after placed order in our factory for free.
6.Oversea service: We are able to send technician to your workshop to do the installation and training.
You will need bear the related costs. (flight,visa,hotel,training costs, etc.)
Company Profile
Before you buy, please contact me.
Joy Zhao
E-mail:export41(at)acctekgroup.com
