DC-DC 10-70V постоянного тока до 5-58V постоянный ток зарядки Автоматическая Step Up/вниз регулятор 30 Вт 50 180 высокой мощности автомобильный Солнечный модуль
- Категории: DC\/DC Converters >>>
- Поставщик: Shenzhen,Qinda,Electronics,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
WELCOME TO VISIT OUR ALIBABA STORE!
About us:
As a professional trading company in shenzhen,
We specialize in supply Moduels,LED Display,Sensors,Thermoelectric Peltier,Cooler,Temperature controller etc., active components (IC, memory chip, and transistors etc.,) and Passive Components (Capacitor,Resistor and inductor etc.,) to major OEM/EMS. We have extensive industry knowledge and sufficient inventory. This enables us to provide a complete and versatile technical supports to our customers. Our philosophy: let's all make profit together.
We provide you one-stop service of electronic components.
When you need any electronic components,
Just please send the Part Numbers what you are looking for to us,
We will quote all of them as soon as possible.
Payment & Shipment
FAQ:
1-Is product originaland new?
We have our own DC who will check quality of items beforeshipping. All our products are 100% new and original.
2-How to ask otheritems?
Click "Contact Supplier" button and send an inquiry form with
completed items' part number and quantity that you need.
3-Is price showncorrect?
Sample price is normally more expensive than whole sale price. Please contact us for further information.
4-How to order?
Step 1: Click "Start Order" button and draft an orderStep 2: Waiting for supplier's confirmation
Step 3: Settle payment
Step 4: Waiting for delivery
5-Payment methods
We accept PayPal, Western Union, Credit Card, T/T and so on.
Shipping methods
6-We have long tern business-ship with China Post, DHL, UPS,
and FedEx. You can choose any shipping method mentioned
above based on your ease.
7-Lead time
Sample Order: 1-2 business days after receiving full paymentStock order: 2-3 business days after receiving full payment
8-Waranty
Our warranty is 90 days after receiving payment.
Contact Us
All messages will be answered within 30mins.
If it's out of working time, please be patient, we will reply when we come back to work.
Please feel free to contact us via trademanager or email if you have any questions.
SHENZHEN QINDA ELECTRONICS CO.,LTD
Add: Room 30f, Jinmao Lidu Building B , Lantian Rd., Futian Dist., Shenzhen, 518031, China
| Email/skype:qindamodule @163.com |
| Wechat:008613534149774 |
| QQ:1823232721 |
| Whatsapp/tel:008613534149774 |

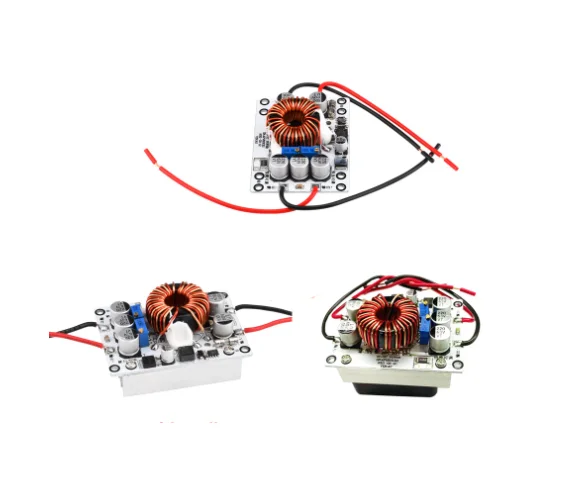

180W automatic buck-boost module
Module parameters:
Module nature: non-isolated voltage regulator
Input voltage: 10.5-70VDC Please derate when the power supply voltage is lower than 12V
Input current: 10A max, long time 8A max
Output voltage: 5-58VDC
Applications where the adaptive input voltage is higher or lower than the set output voltage
Output current: 8A max, long time 6A max, do not allow the input and output current to work at the maximum value, and the sum of input and output currents cannot exceed 12A
Constant current adjustable: 0.5-8A
Output power: 180W max when working at low voltage, the maximum current is 8A, the bare board has no auxiliary heat dissipation, the maximum output is 30W, with a heat sink and no fan, the maximum output is 50W, when the module temperature exceeds 65 degrees, heat dissipation is required.
Standby current: about 20ma
Conversion efficiency: about 90%
Input anti-reverse connection: None, please confirm the positive and negative before powering on
Dimensions: 70*52*21MM (bare board)
70*52*46MM (with heat sink and fan)
Features:
1.Use high thermal conductivity aluminum substrate to adjust the meter, convenient for external radiator.
2.Input ultra-wide range, capable of boosting, stepping down, and stabilizing
3.Achieve 0 input and output voltage difference, adjustable output voltage
Output voltage/current adjustment method:
1. Adjust the constant voltage adjustable potentiometer (decrease the voltage clockwise, increase the voltage counterclockwise), according to your load requirements, set the output voltage to the voltage value you need. For example, the voltage of 10 LED strings is adjusted to 37V.
2. Adjust the constant current adjustable potentiometer clockwise about 20 turns, set the output current to the minimum, connect the LED, and adjust the constant current adjustable potentiometer to the current you need. For battery charging, after the battery is discharged, connect to the output and adjust to the current you need. (When used for charging, you must use the discharged battery to adjust it, because the more the battery is left , The smaller the charging current.)
Please do not adjust the current in a short-circuit mode. The circuit structure of this buck-boost module cannot be adjusted in a short-circuit mode.
