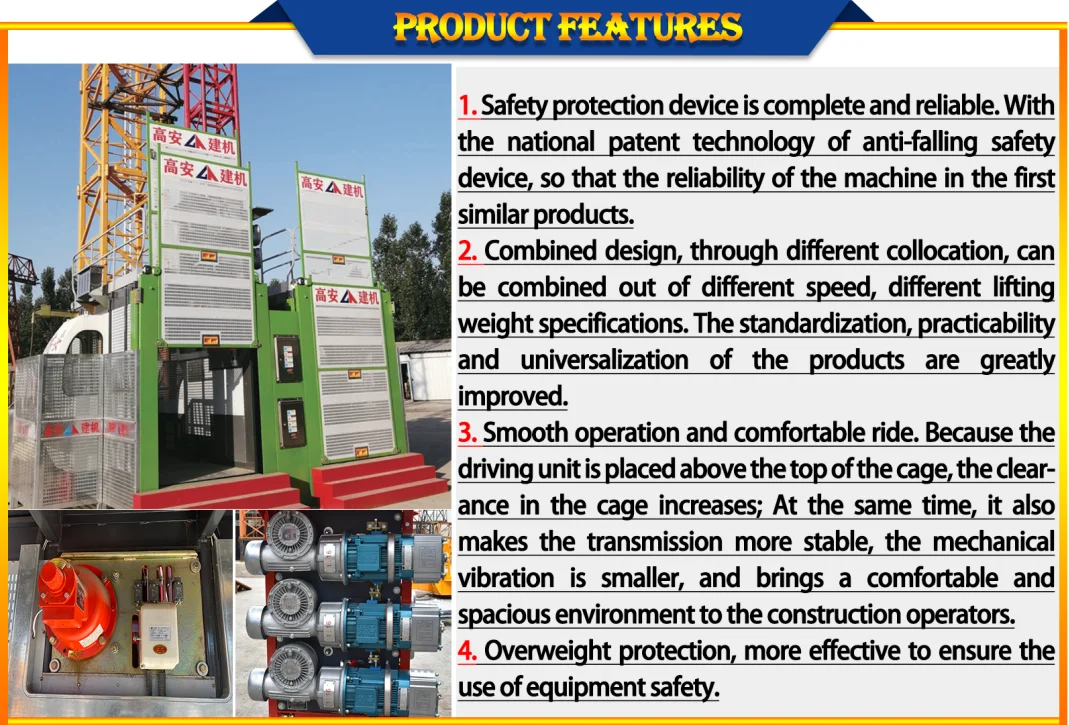

Product overview and features
SC200/200 series construction hoist
SC series construction elevator is a new generation of construction elevator products designed and launched by Shandong Gao 'an Construction Machinery Co., LTD. It has advanced technical performance, safe and reliable use, convenient maintenance and other remarkable characteristics. It is the most ideal vertical transportation equipment for modern building construction.The lifting weight is from 1000kg to 2000kg, and the running speed is from 26m/min to 33m/min. After the installation of inverter control, stepless speed regulation can be realized from 0 to 60m/min to meet the needs of different users.
Product specification
1 | Rated Load(kg) | 2 x 2000 |
2 | Lifting Speed(m/min) | 34 |
3 | Size (L*W*H m) | 3.2×1.5×2.3 |
4 | Max. Height(m) | 200 |
5 | Mast section Model (mm) | 650*650*1508 |
6 | Mast section Tube thickness | 4.5mm |
7 | Mast section Material and processing | 355B welded pipe ,CO2 welding |
8 | Motor Power(Kw) | 3X11 kw |
9 | Power supply | 50HZ 380V |
10 | Rack | 8 die 60 tooth hub steel 1508*40*60 |
11 | Power line model | Special lift cable 3X16+2 |
12 | Main components | Transformer, contactor, relay |
13 | Safety device | Form:Progressive Movement speed: MAX 60m/min Braking torque: ≥4000 n.m |
14 | Door | Safety limit manual pull type |

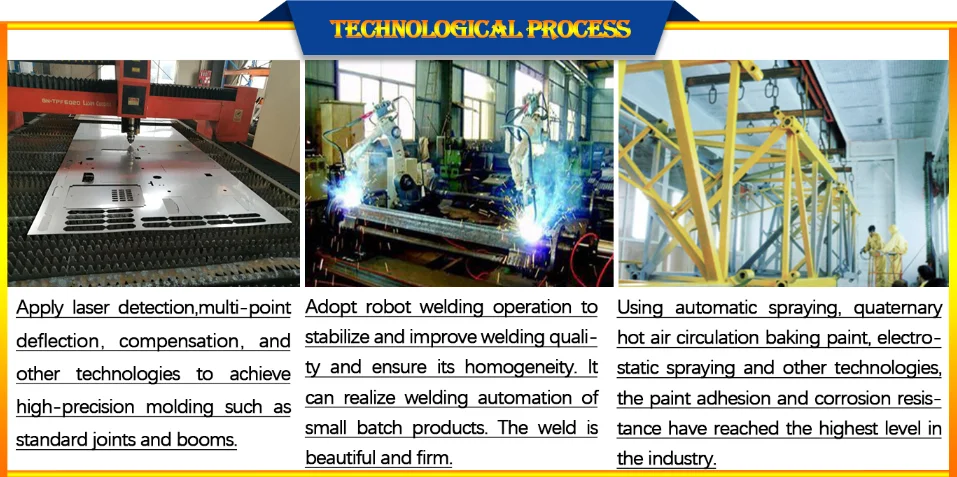

Product configuration and process

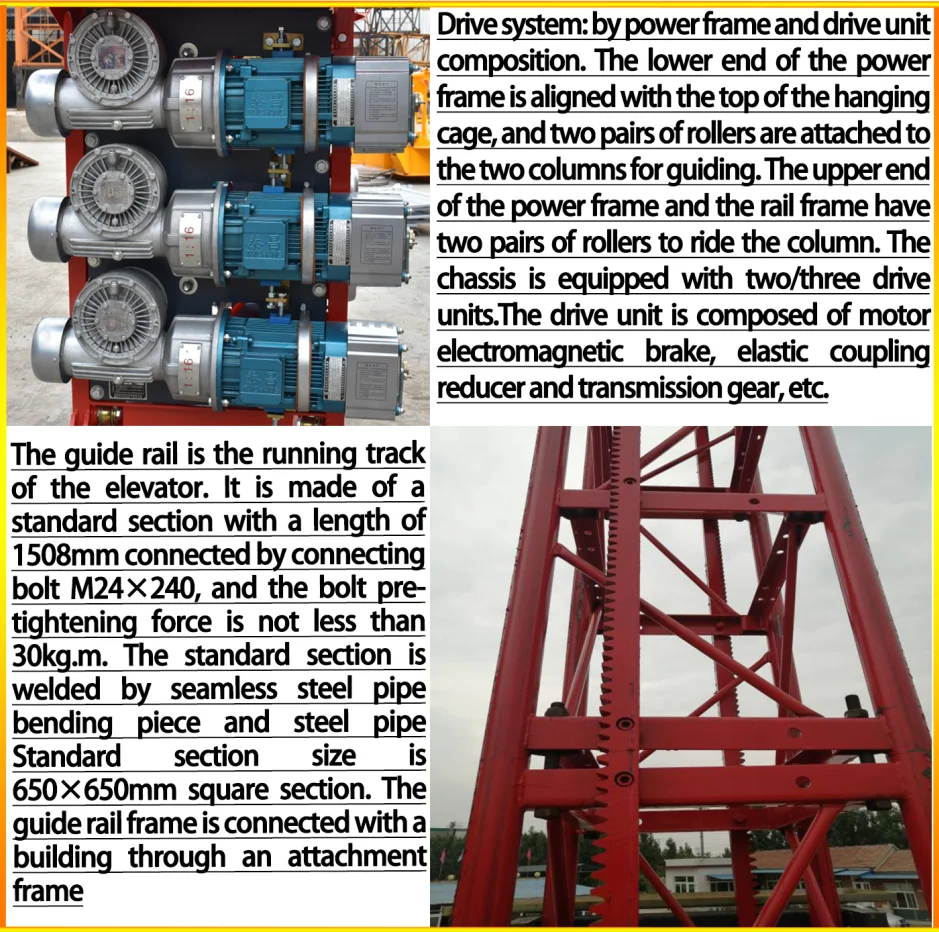

Introduction to working mechanism

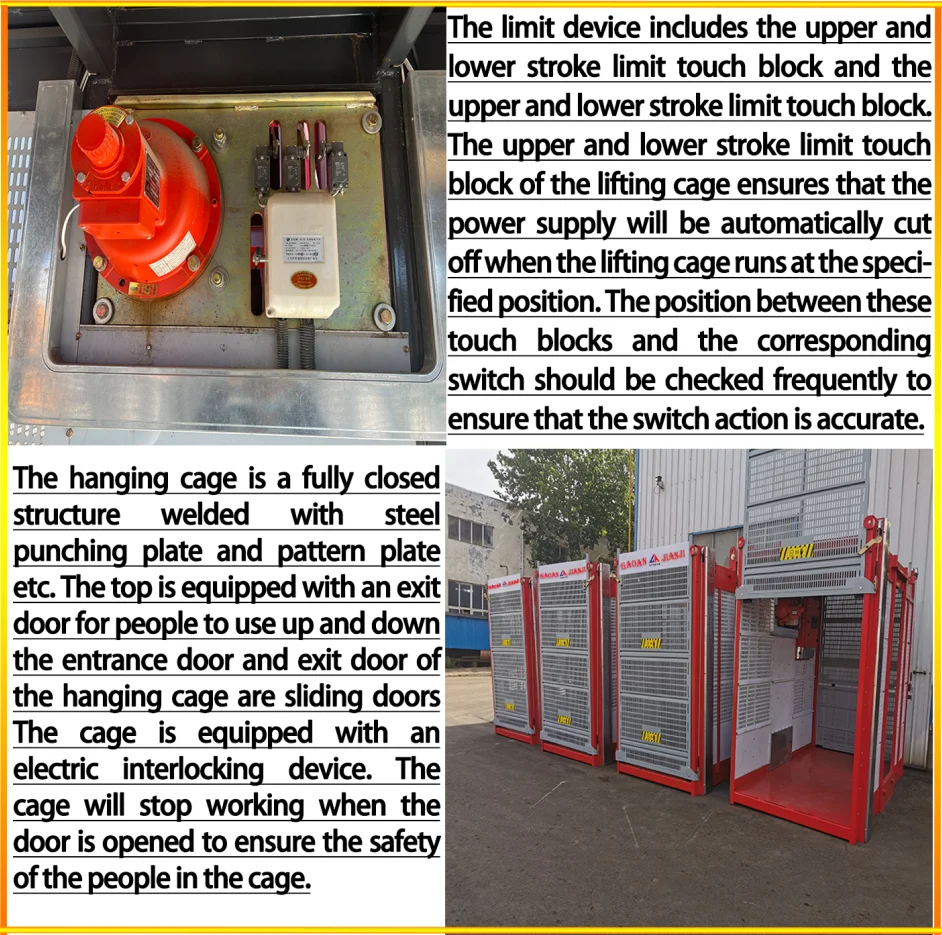

Details show

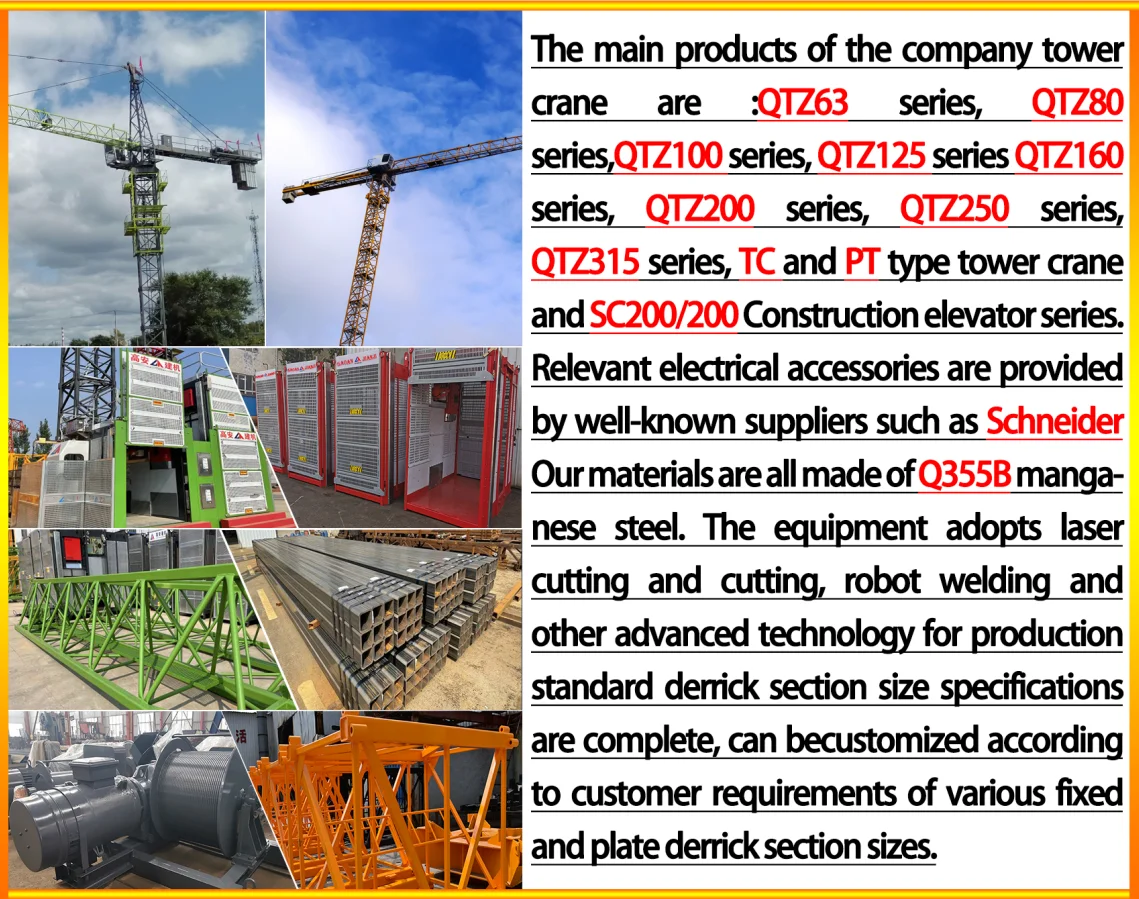

About us
To contact me
FAQ
