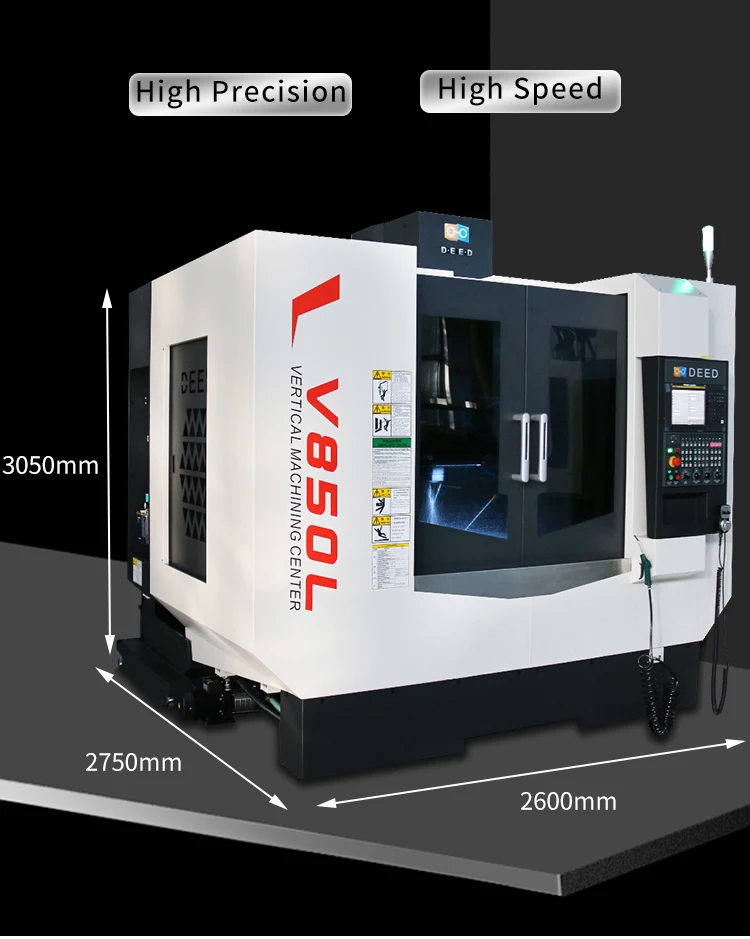

Фрезерный станок с ЧПУ V850L для вертикального обрабатывающего
- Категории: CNC Milling Machines >>>
- Поставщик: Jinan,Deed,Precision,Machine,Tool,Co.,ltd.
Поделиться:
Описание и отзывы
Характеристики
PRODUCT DETAILS
SPECIFICATION V850L
| TRAVEL | |
| X-axis travel | 850mm |
| Y-axis travel | 510mm |
| Z-axis travel | 510mm |
| Spindle nose to table surface | 150~660 mm |
| SPINDLE | |
| Drive type | Belt drive/Direct drive |
| Spindle taper | BT40 |
| Max. Speed | 8000 rpm / 10000 rpm |
| Spindle Power | 11/18.5 kW |
| Spindle Torque | 52.5/118 Nm |
| TABLE | |
| Size | 950x500mm |
| T-Slot (size * quantity * space) | 18x4x100mm |
| Max load | 500kgs |
| FEED | |
| Max.cutting speed | 1-10000 mm/min |
| Rapid traverse | 36/36/24 m/min |
| ACCURACY | |
| Positioning(half-closed loop) | 0.008mm |
| Repeatability(half-closed loop) | 0.005mm |
| ATC | |
| Type | Disc type ATC 24T |
| Maximum tool size(full/unfull/length) | Φ78/Φ150/ 300 mm |
| Maximum tool weight | 8kg |
| OTHERS | |
| Air Pressure | 0.65Mpa |
| Power Capacity | 25kVA |
| Machine Weight | 6000kgs |
| Machine Floor Space (L *W *H) | 2600x2750x3050mm |
