Product Description

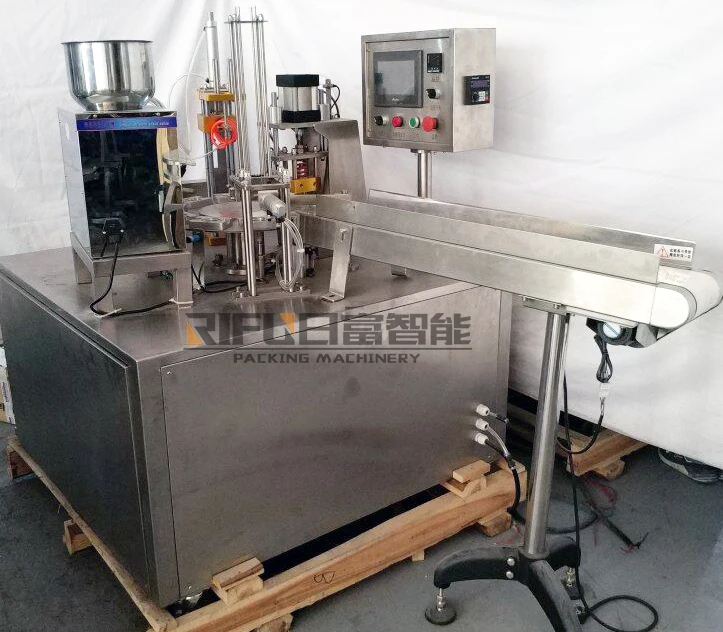

Automatic rotary type Coffee Capsule Milk tea powder filling sealing machine
The whole body of the machine is made of stainless steel.Designed for packing coffee powder, milk powder, wheat powder and so on., can automatically complete plastic (paper) cup falling, filling, lid feeding, sealing and cups output. The
machine has many advantages,such as intelligent digital temperature control system, with high seal strength, good sealing effect,low failure rate.It is the preferred business automation production product.
machine has many advantages,such as intelligent digital temperature control system, with high seal strength, good sealing effect,low failure rate.It is the preferred business automation production product.
Working flow
1.Falling cups: Cups drop down one by one automatically.
1.Falling cups: Cups drop down one by one automatically.
2.Filling coffee powder: Auger filling type
3.Press coffee: Press coffee tightly after filling step.(Optional)
4.Blow away powder: Blow away powder on the edge of cups.(Optional)
5.Nitrogen device:Charging nitrogen(Optional)
6.Sucking putting lids: Vacuum arm suck and put foils.
7.Sealing lids: 0-400 degrees, can be adjusted.
8.Finished cups-output: Push-out finished cups to a platform.
Technical Parameter
Voltage (V/Hz) | 220V/50Hz | |
Sealing range | customized according to customer products | |
Capacity | Around 1000cups/hour | |
Filling nozzle | One(Customizable) | |
Temperature Range | 0-400℃ | |
Filling Accuracy | ±1% | |
Film Material | PE PP PET/PE | |
Outline dimension | 1100*1100*1400 | |
Net weight | 300kg |

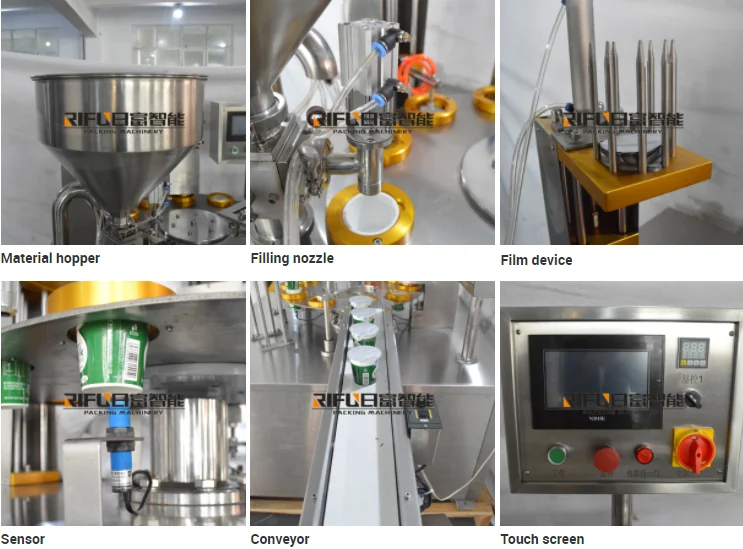

Detailed Images
Samples
Related Products
Company Introduction
Packing&Shipping
After Sales Service
