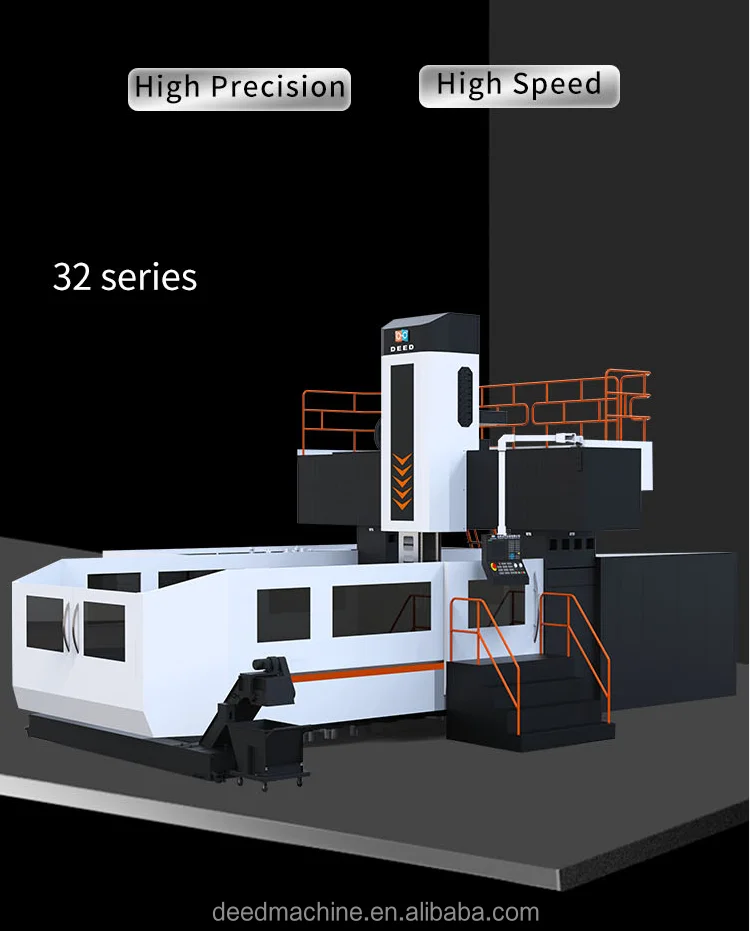

DEED CNC gantry machining center double column GMC6532L high-level milling
DEED CNC gantry machining center double column GMC6532L high-level milling
DEED CNC gantry machining center double column GMC6532L high-level milling
DEED CNC gantry machining center double column GMC6532L high-level milling
DEED CNC gantry machining center double column GMC6532L high-level milling
DEED CNC gantry machining center double column GMC6532L high-level milling
DEED CNC gantry machining center double column GMC6532L high-level milling

DEED CNC gantry machining center double column GMC6532L high-level milling


Поделиться:

Цена:*
Стоимость в USD (на сегодня):Узнать

Количество:

Описание и отзывы

Характеристики


GMC32

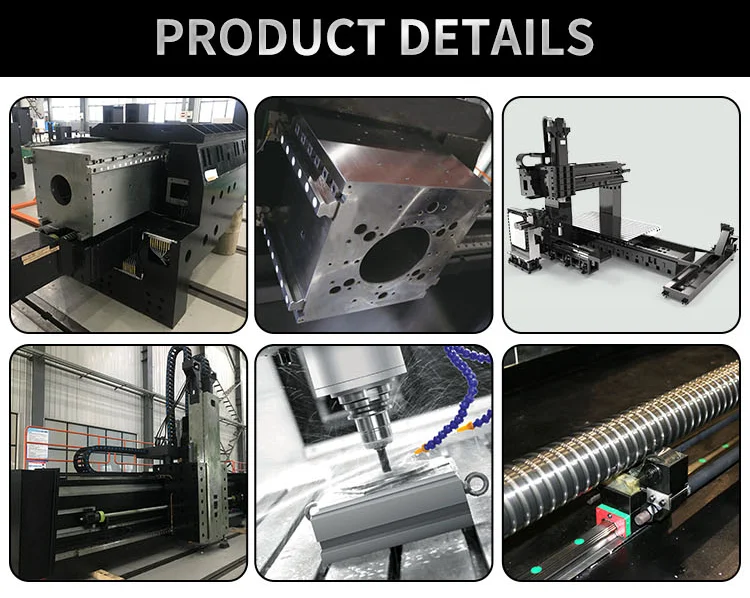

Product details


gantry





























































































































TRAVEL
X-axis travel6500mm
Y-axis travel4000mm
Z-axis travel1250mm
Spindle nose to table surface 400~1650
SPINDLE
Drive typeDirect drive + Gearbook
Spindle taperBT50
Max. Speed1-6000rpm
Spindle Power  22/26 KW
Spindle Torque770-910N.m
TABLE
Worktable width2800mm
T-Slot28mm
Max load              32000kgs
FEED
Max.cutting speed1-10000 mm/min
Rapid traverse12/12/12m/min
ACCURACY
Positioning(half-closed loop)0.031/0.021/0.014mm
Repeatability(half-closed loop)0.021/0.014/0.008mm
ATC
TypeATC-24T
ATC capacity24/32/40
Tool holder typeBT50/HSK63
OTHERS
Air Pressure 0.65Mpa
Power Capacity50KVA
Machine Weight9500kgs
Machine Floor Space (L *W *H)16100×7400×6600mm




Product application


1_03





Exhibition&customer


1_04 Exhibition & Customer





Company profile


1_05 Company Profile





Certificate


1_06 Certificate





Packing&delivery


1_07 Packing & Delivery





FAQ


 1_09 FAQ
