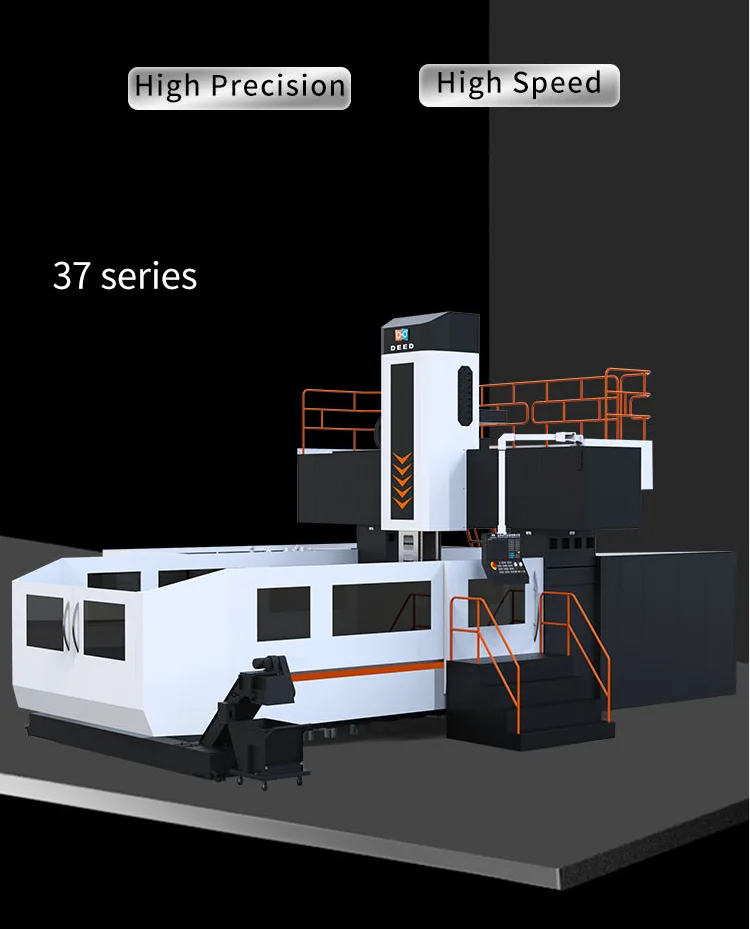

CNC Gantry machining center GMC8537L milling
CNC Gantry machining center GMC8537L milling
CNC Gantry machining center GMC8537L milling
CNC Gantry machining center GMC8537L milling
CNC Gantry machining center GMC8537L milling
CNC Gantry machining center GMC8537L milling
CNC Gantry machining center GMC8537L milling

CNC Gantry machining center GMC8537L milling


Поделиться:

Цена:*
Стоимость в USD (на сегодня):Узнать

Количество:

Описание и отзывы

Характеристики


GMC37



Product Details


G37-42





























































































































TRAVEL
X-axis travel8500mm
Y-axis travel4500mm
Z-axis travel1250MM
Spindle nose to table surface 400~1650
SPINDLE
Drive typeDirect drive + Gearbook
Spindle taperBT50
Max. Speed1-6000rpm
Spindle Power  22/26 KW
Spindle Torque770-910N.m
TABLE
Worktable width              3500mm
T-Slot28mm
Max load              36000kgs
FEED
Max.cutting speed1-8000 mm/min
Rapid traverse12/12/12m/min
ACCURACY
Positioning(half-closed loop)0.035/0.023/0.014mm
Repeatability(half-closed loop)0.023/0.016/0.008mm
ATC
TypeATC-24T
ATC capacity24/32/40
Tool holder typeBT50/HSK63
OTHERS
Air Pressure 0.65Mpa
Power Capacity50KVA
Machine Weight125000kgs
Machine Floor Space (L *W *H)22200×7900×6600mm
