Сделано в Китае заводская цена Fme Штекерный обжимной радиочастотный соединитель для кабеля Rg174 Rg316

Сделано в Китае заводская цена Fme Штекерный обжимной радиочастотный соединитель для кабеля Rg174 Rg316

Цена:0,40 $ - 0,80 $*

Стоимость в USD (на сегодня):Узнать

Количество:

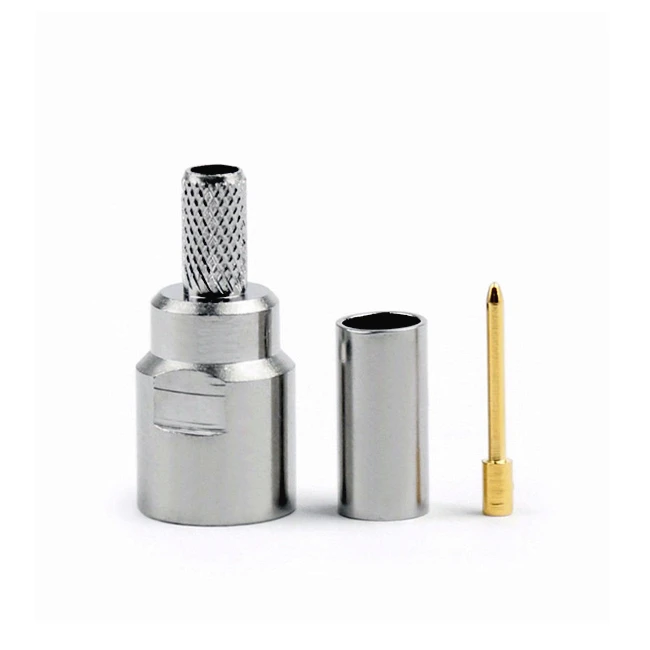

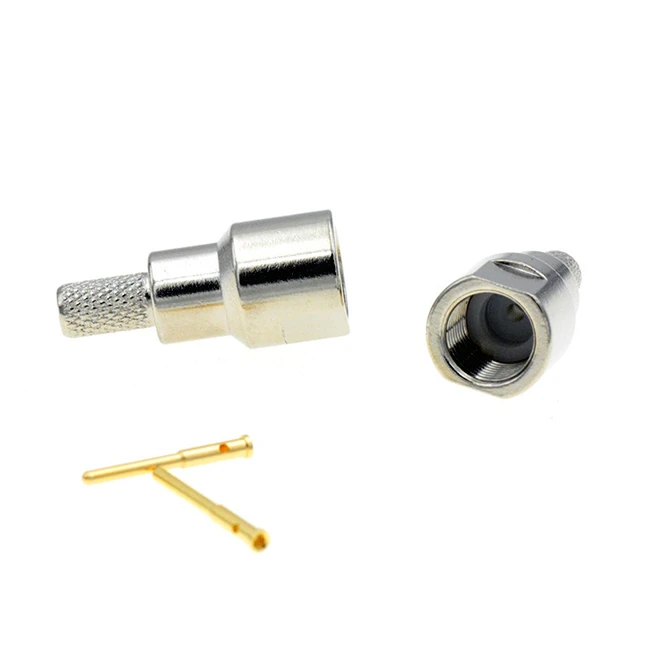

Made in China Factory Price Fme Male Crimp RF Connector For Rg174 Rg316 Rg178 Cable

Light weight, compact and vibration proof design

Low cost commercial grade (Brass FME) available in nickel or gold plating

Terminates to all standard flexible coaxial cables, low-loss (LMR/RG) type cables and industry standard semi-rigid and conformable cables.

FME-J-1 (6).jpg FME-J-1 (3).jpg FME-J-1 (19).jpg

Specifications
Major Technical Characteristics
Temperature Range	-55 degree to +150dregree
Vibration	100m/S2 (10 to 500 Hz), 10G
Impendance	50ohm/75ohm
Frenquency Range	DC-4GHZ
Working Voltage	500V r.m.s at sea level
Workstandinging Voltage	1500V r.m.s at sea level
Center Contact Resistance	≤1.5Mohm
Outer Contact Resistance	≤1Mohm
Insulation Resistance	≥5000Mohm
Center conductor Retention Force	≤0.57N
Insertion Loss	≤0.2dB/3Ghz
VoltaggeStanding Wave Ratio :
Straight	≤1.10+0.02f
Right Angle	≤1.20+0.03f
Dutability (Mating)	≤500(cycles)
Body	Brass/Gold Plated
Contact	Brass/Gold Plated
Insulator	PTFE
Nut	Brass
Washer	Brass
