Высокое качество прямые поставки с фабрики RG6 сжатия F коаксиальный

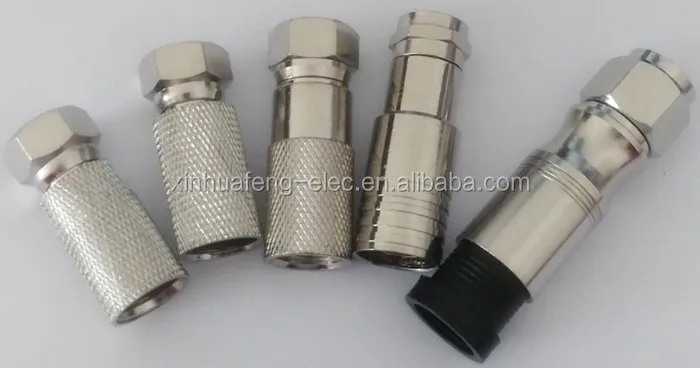

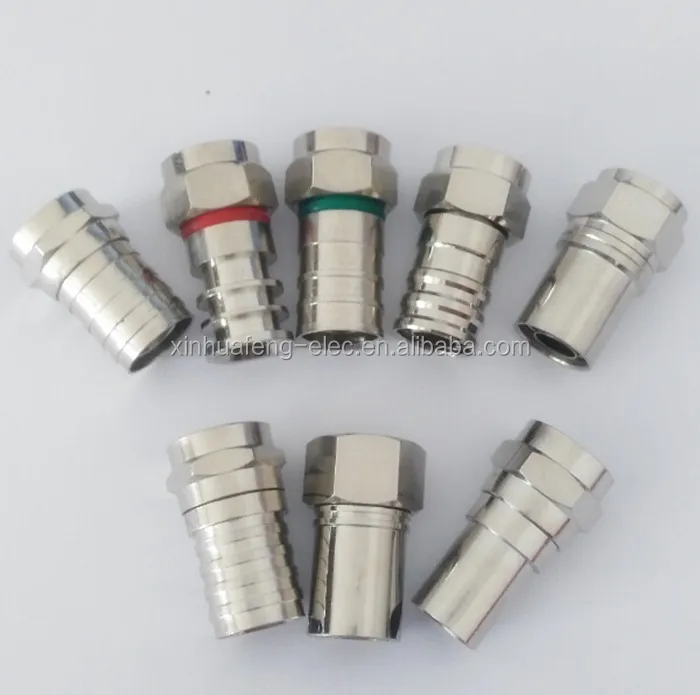

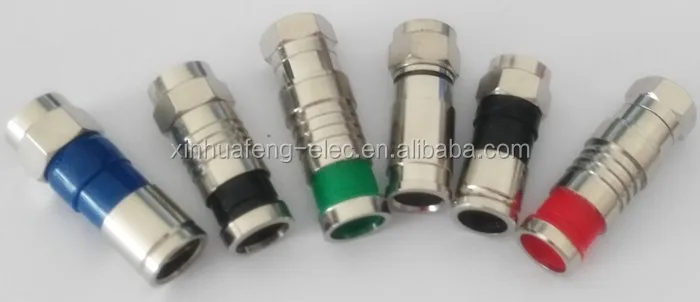

F male RG6/RG59 compression RF connector use for 75Ω cable assign system,especially CATV,broadcast television netword.It can already be used for having impedance to mate the occasion required,can be used in not mating the occasion too.It is joined,inserts helping jointly that its charac-teristic is whorl,the price is suitable.

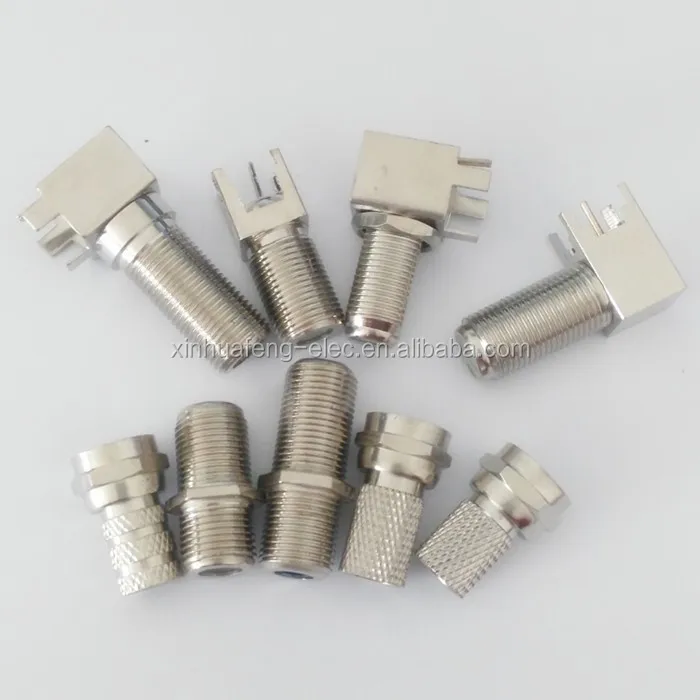

F type joining devices can exchange and use with the similar products in the world.

Temp.range : -40~+60°C

Impedance : 75Ω

Frequency range: 0~1GHz

Center conductor withdrawal force ≥0.49N

Contact resistance:  center conductor ≤6mΩ , outer conductor  ≤1mΩ

Insulation resistance  ≥ 1000 MΩ
Withstand voltage at sea level : 750V

Working voltage : 170V max

VSWR : Straight ≤1.2   Angle≤1.3

Durability : 500 cycles

1. How about your lead time?
A: it depends on order quantity. Usually 15-45 days.

2.How can we get a sample.
A: Free sample, Freight collected by your side.

3.How to contact us?
A: Just send us enquiry online via Alibaba. Our worker will reply you in 24 hours.

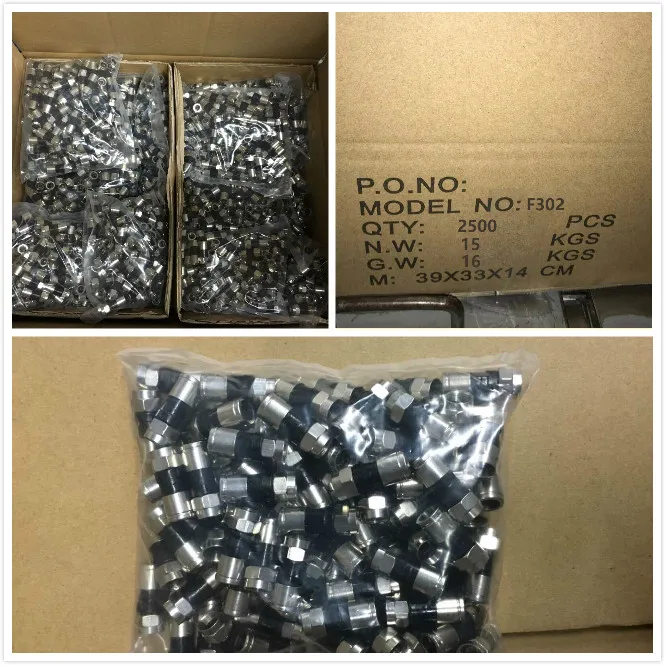

 100PCS/BAG , 2500PCS/CTN , carton size :39*33*14cm ,weight :16KGS/CTN

ZHENJIANG XINHUAFENG ELECTRONICS CO., LTD was established in 1992. We are a reliable manufacturer and exporter of various coaxial connectors and many other electronic products.
