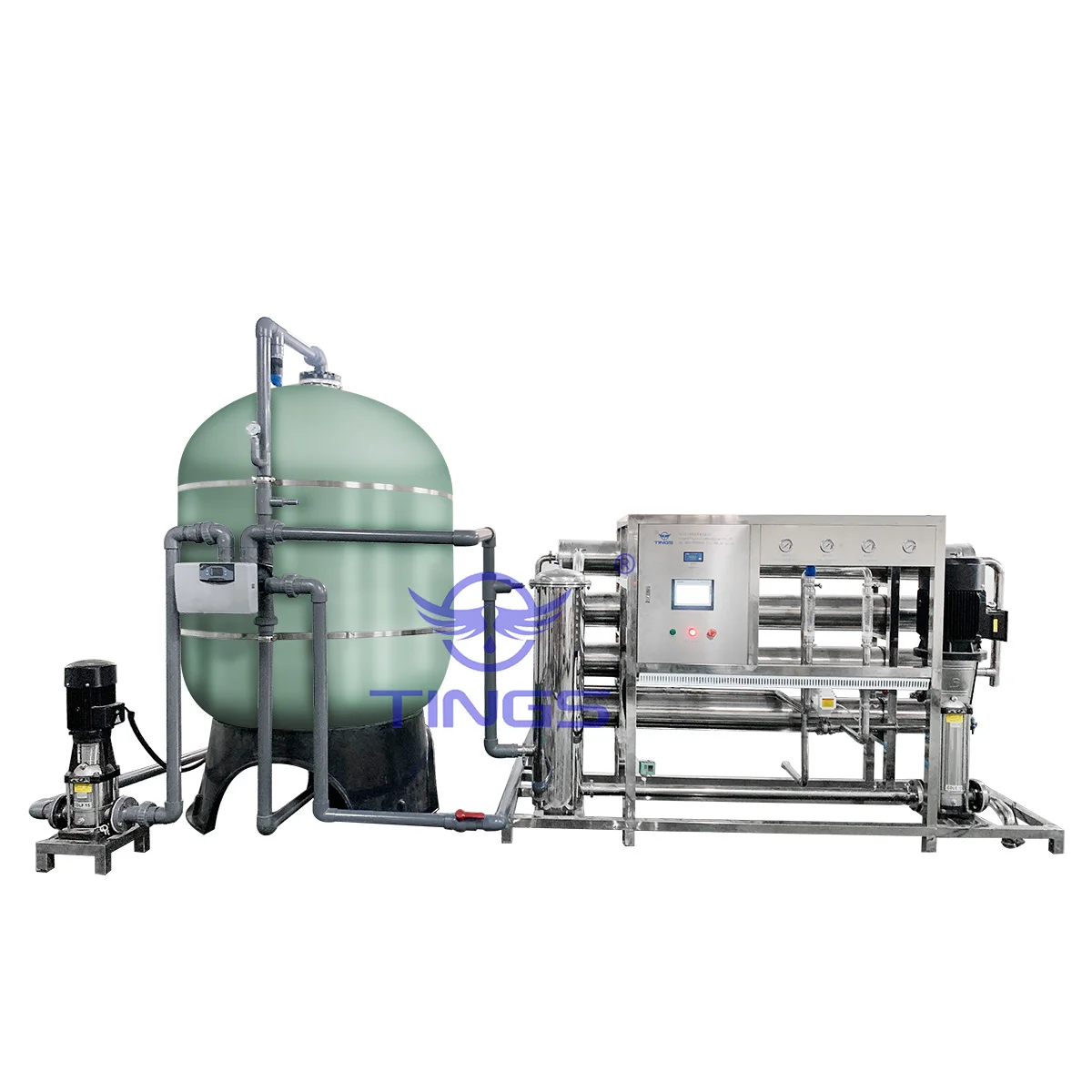

Промышленная установка для очистки воды от обратного осмоса RO орошения и разведения 8000 л в
- Категории: Farm Irrigation System >>>
- Поставщик: Jiangmen,Tings,Drinking,Water,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
FEATURES AT A GLANCE
When you are sending us an inquiry, it is important to tell us three informations:
1. Please provide us your water quality test report if available.
2. What is the capacity of the machine your need? 1000L/H or 2000L/H...?
3. What purpose will the product water be used? For daily use, beverage production, irrigation or other use?
(We will offer you a most suitable solution and price.)
Products Specification
No | Item | Parameter |
1 | Capacity | 8000L (8m³)/H (25℃) |
2 | General Power Consumption | 12.8kw |
3 | Working Voltage | 380V/50Hz (Can be customized) |
4 | Booster pump | CHL12-30 type, 1.8kw, 1set |
5 | FRP Quartz sand filter | Ф900X1800mm, 1 set, Quartz sand 1500kgs |
6 | FRP Activated carbon filter | Ф900X1800mm, 1 set, Activated carbon 500kgs |
7 | FRP Water Softener | Ф760X1800mm, 1 set, cation 450L |
8 | Precise filter | Ф400×1000mm, 1 set, stainless steel 304 |
9 | Multistage pump | CDL8-160 type, 5.5KW |
10 | RO membranes | 8040 type, 6pcs |
Process Description：

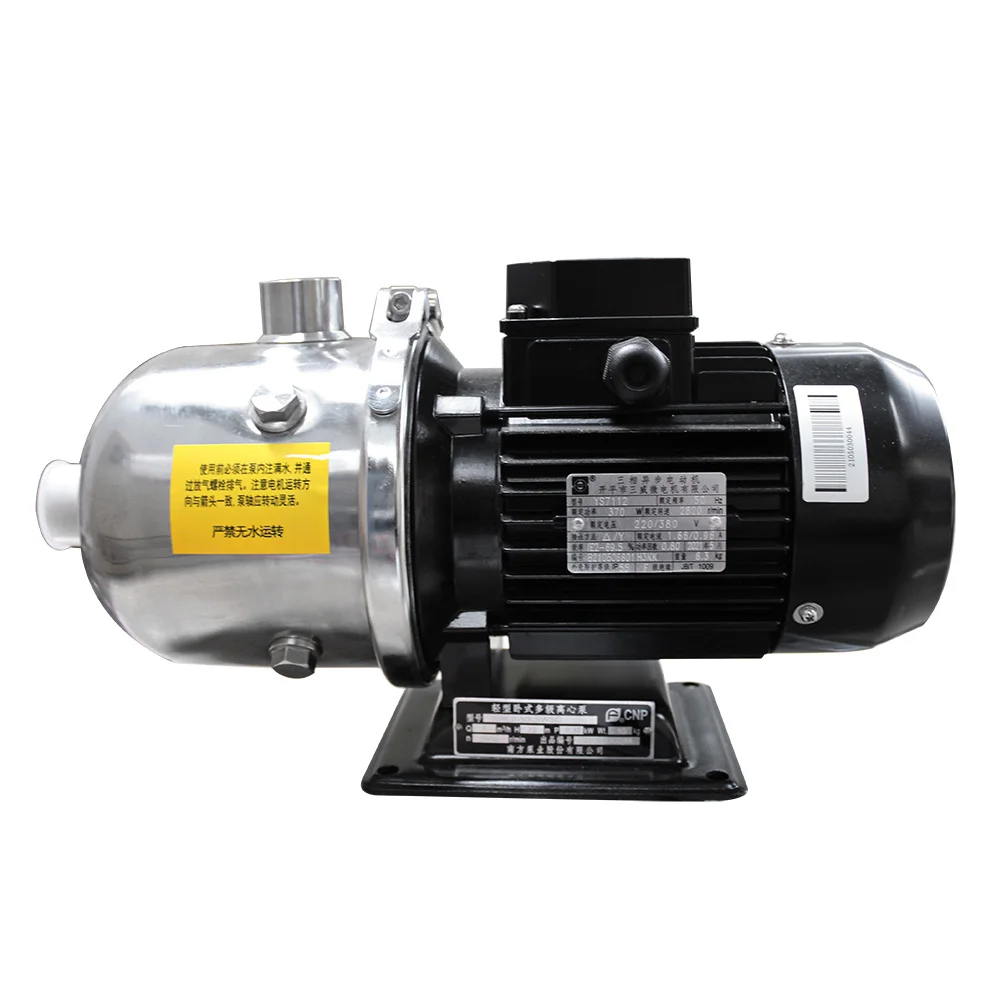

●Booster pump
The device provides stable water source and pressure to the back-end treatment system.
The device provides stable water source and pressure to the back-end treatment system.
●Sand filter
The device filters the impurity substance and disposes of the divalent iron and manganese ion in the raw water. It is equipped with automatic control valve, which can discharge the sediment by its automatic back washing function.
The device filters the impurity substance and disposes of the divalent iron and manganese ion in the raw water. It is equipped with automatic control valve, which can discharge the sediment by its automatic back washing function.
●Activated carbon filter
This filter removes the colors and smells of the raw water to improve the water’s flavor.
This filter removes the colors and smells of the raw water to improve the water’s flavor.

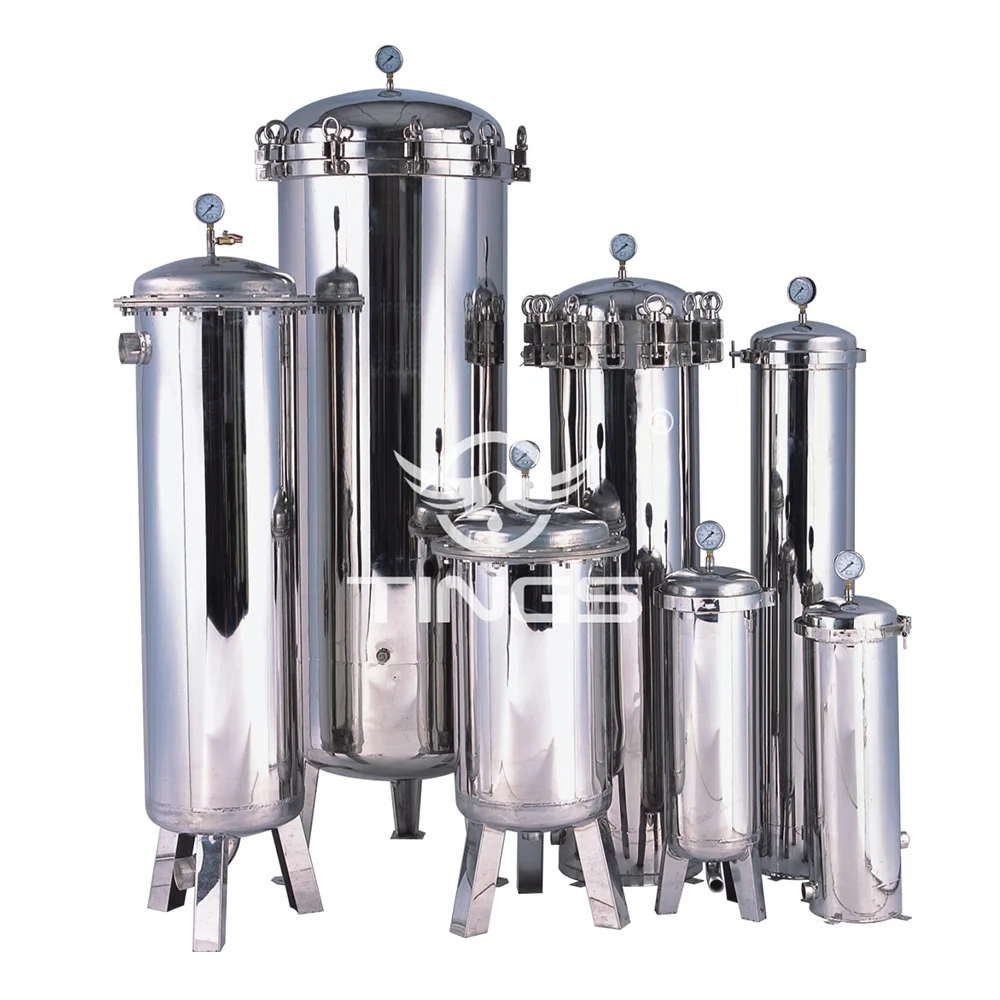

●Precise filter
With the filtering accuracy of ≤5μm, the precise filter can filter the particle impurity substance in the raw water from the front-end filters. It can prevent impurity substance from flowing into and thus blocking up the reverse osmosis membrane system, so as to decrease power consumption more effectively.
With the filtering accuracy of ≤5μm, the precise filter can filter the particle impurity substance in the raw water from the front-end filters. It can prevent impurity substance from flowing into and thus blocking up the reverse osmosis membrane system, so as to decrease power consumption more effectively.

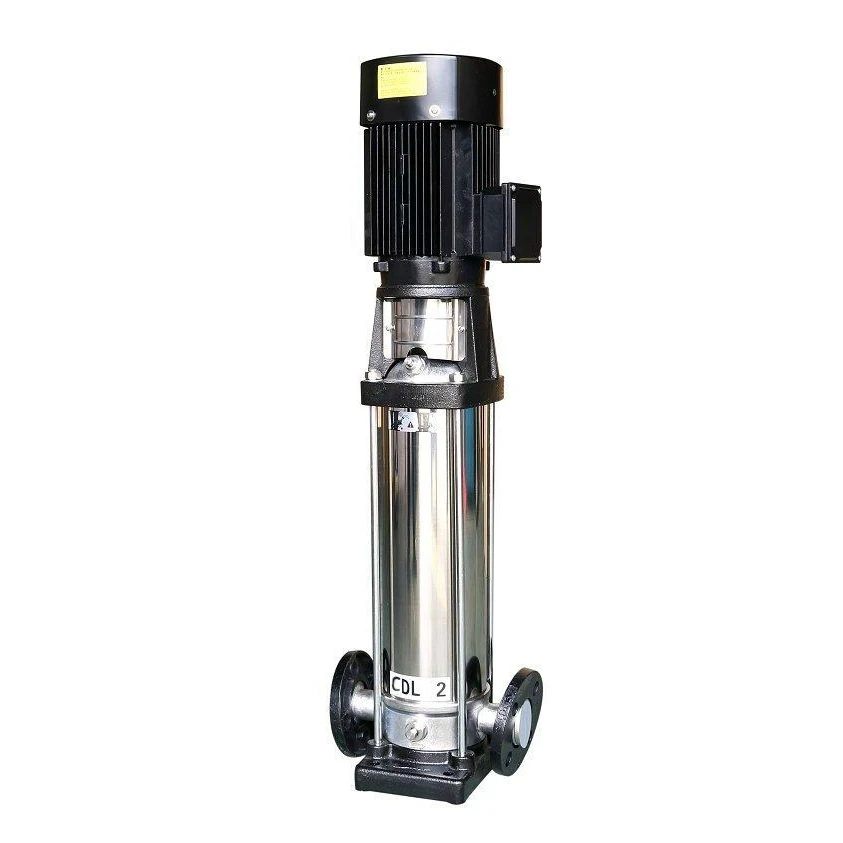

●Multistage pump
This device gives stable water supply and sufficient pressure to the reverse osmosis membrane system.
This device gives stable water supply and sufficient pressure to the reverse osmosis membrane system.

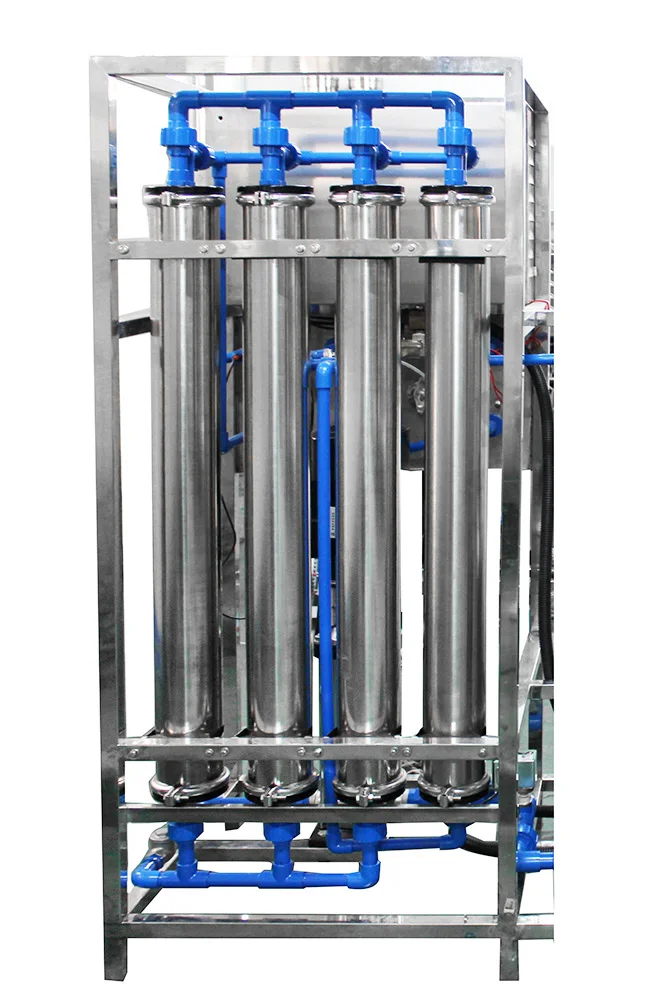

●Reverse osmosis system
This device filters the substances such as bacteria and ions in the water. And the quality of product water after filtration will be much higher than that of standard daily drinking water.
This device filters the substances such as bacteria and ions in the water. And the quality of product water after filtration will be much higher than that of standard daily drinking water.
Function：
●Water filtration
●RO membranes auto wash and manual wash
●Auto stop on high pure water level, auto start on low pure water level
●Multi-phased pump can prevent the system from water shortage
●Multi-phased pump can prevent the system from water shortage
●Protection of power-off, under voltage, excessive current, short circuit, leakage of electricity.
Details Images
Control Panel
Automatic Valve Control
Guages
Water tank
Electric Box
Models with different capacity
Model | Capacity (L/H ) | Power (kw) | Membrane | Entrance Diameter (mm) | Size(L*W*H) ( mm) | Weight (Kg) |
TS-RO-0.5 | 500L | 1.1 | 4040 | Φ32 | 1700*700*1700 | 200 |
TS-RO-1T | 1000L | 1.5 | 4040 | Φ32 | 1550*900*1800 | 200 |
TS-RO-2T | 2000L | 3 | 4040 | Φ38 | 4800*700*2000 | 300 |
TS-RO-3T | 3000L | 4 | 8040 | Φ48 | 4700*1000*2300 | 400 |
TS-RO-4T | 4000L | 5 | 8040 | Φ48 | 4700*1000*2300 | 450 |
TS-RO-5T | 5000L | 7 | 8040 | Φ60 | 5000*1200*2300 | 600 |
TS-RO-10T | 10000L | 11 | 8040 | Φ60 | 9000*2000*2000 | 800 |
TS-RO-15T | 15000L | 16 | 8040 | Φ72 | 10000*1870*3000 | 1000 |
TS-RO-20T | 20000L | 30 | 8040 | Φ60 | 10000*1800*4000 | 1550 |
Trade Fair
Company Profile
FAQ
HOW TO FIND TINGS?
● Search Jiangmen Tings Drinking Water Equipment Co., Ltd. on Alibaba, remember to choose manufacturer, not trader
● Visit exhibition in Canton Fair or trade fairs abroad
● Send Tings an inquiry through Alibaba or our website
● Tings's sales manager will reply you in short time and add instant chatting tool
● Visit exhibition in Canton Fair or trade fairs abroad
● Send Tings an inquiry through Alibaba or our website
● Tings's sales manager will reply you in short time and add instant chatting tool
CAN I VISIT YOUR FACTORY?
● Welcome to visit our factory anytime.
● Seeing is believing. Please come to out factory to know more about our R&D, sales, after sales and quality control team, as well as our production process and capacity.
● Seeing is believing. Please come to out factory to know more about our R&D, sales, after sales and quality control team, as well as our production process and capacity.
TELL ME HOW YOUR FACTORY CONTROL THE QUALITY?
● We use high accuracy processing equipment for production, and we are experienced in making our machine for over 20 years.
● Each component before assembly needs will be strictly test by our professional QC.
● Each component before assembly needs will be strictly test by our professional QC.
HOW ABOUT YOUR AFTER-SALES SERVICE?
● We will debug all machines after production. Then we will send our customer pictures or videos of the testing for all machines.
● we will pack all machines by standard export package for long-distance shipment.
● we will pack all machines by standard export package for long-distance shipment.
● According to the customer's request, we can arrange to send our engineers to customers' factory to do the installation and training.
● Our after-sales team are formed by our engineers, sales managers and after-sales service manage, who will follow our customers' project.
