Гусеничный бульдозер LD22 тонн Гусеничные бульдозеры на
- Категории: Bulldozers >>>
- Поставщик: Guangxi,Ligong,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Specification
LD22 Bulldozer Hydarulic Standard Type Bulldozer
Overall | Dimension | 5460×3725×3395 mm | ||||
Operating Weight | 23500 kg | |||||
ENGINE | Model | Cummins NT855-C280S10 | ||||
Type | Water-cooled, In-line, overhead valve direct injection, turbocharged diesel | |||||
Number of Cylinders | 6 | |||||
Bore × Stroke | Φ139.7×152.4 mm | |||||
Piston Displacement | 14.01 L | |||||
Rated Power | 175 KW (238HP) @1800 rpm | |||||
Max Torque | 1030 N·m @1300 rpm | |||||
Fuel Consumption | 205 g/kW·h | |||||
TRANSMISSION | Torque Converter | 3-element, 1 stage, 1 phase | ||||
Transmission | Planetary gear type, power-shift, forced lubrication | |||||
Central Drive Shaft | Spiral bevel gear, single-stage speed reduction, splash lubrication | |||||
Steering clutch | Wet, multi-disc, spring loaded, hydraulically separated, hydraulic control | |||||
Steering brake | Wet type,floating band structure,foot brake with hydraulic booster | |||||
Final drive | 2-stage speed reduction of spur gear, splash lubrication | |||||
TRAVEL SPEED | Gear | 1st | 2nd | 3rd | ||
Forward | 0~3.6 km/h | 0~6.5 km/h | 0~11.2 km/h | |||
Reverse | 0~4.3 km/h | 0~7.7 km/h | 0~13.2 km/h | |||
UNDERCARRIAGE SYSTEM | Type | Sprayed beam, suspended structure of equalizer | ||||
No. of Carrier Rollers | 2 each side | |||||
No. of Track Rollers | 6 each side | |||||
No. of Track Shoes | 38 each side | |||||
Track Shoe type | Single Grouser | |||||
Width of Track shoe | 560 mm | |||||
Pitch | 216 mm | |||||
Track Gauge | 2000 mm | |||||
Ground Pressure | 0.077 Mpa | |||||
HYDRAULIC SYSTEM | Max Pressure | 14 Mpa | ||||
Pump Type | Gear Pump | |||||
Displacement | 262 L/Min | |||||
Bore of Working Cylinder | 120 mm × 2 | |||||
BLADE | Blade Type | Straight-tilt Blade | Angle Blade | Semi-U-blade | ||
Blade Capacity | 6.4 m³ | 4.7 m³ | 7.5 m³ | |||
Blade Width | 3725mm | 4365 mm | 3725 mm | |||
Blade Height | 1315 mm | 1055 mm | 1374 mm | |||
Max Drop Below Ground | 538 mm | 535 mm | 540 mm | |||
MaxTilt Adjustment | >735 mm | >500 mm | >755 mm | |||
THREE SHANK RIPPER | Max digging depth | 666 mm | ||||
Max lift above ground | 555 mm | |||||
Weight of 3-shank ripper | 2495 kg | |||||
SINGLE SHANK RIPPER | Max digging depth | 695 mm | ||||
Max lift above ground | 515 mm | |||||
Weight of 1-shank ripper | 2453 kg | |||||
Product Description
Company Profile
We are specialized in the spare parts for loader, excavator, grader, road roller , forklift truck and paving machinery research and development, manufacturing and sales.
The company focuses on providing the genuine parts of high quality and low price to satisfy the requirements of different customers. Through the development, the company has established firm cooperation relation ship with the construction machinery part dealers home and abroad. Our products are exported to Sout Asia markts,Russia, Brazil,Peru, Nigeria and other countries and regions.With the fast supply, perfect quoting system, and rapid delivery method, the company can settle the problem in time to reduce the cost for machinery stand-down. With the foundation of honest operation, and responsibility of helping the customer settle the problem in time, the company gains great honor in the customers of construction machinery industry. we hope to built a win-win situation with you .
The company focuses on providing the genuine parts of high quality and low price to satisfy the requirements of different customers. Through the development, the company has established firm cooperation relation ship with the construction machinery part dealers home and abroad. Our products are exported to Sout Asia markts,Russia, Brazil,Peru, Nigeria and other countries and regions.With the fast supply, perfect quoting system, and rapid delivery method, the company can settle the problem in time to reduce the cost for machinery stand-down. With the foundation of honest operation, and responsibility of helping the customer settle the problem in time, the company gains great honor in the customers of construction machinery industry. we hope to built a win-win situation with you .
Why choose us
Our company has become a modern enterprise with independent research and design ability and outstanding market competitiveness.
Since it was established in 2007, there have been more than 120 countries and regions that have exported so far. Our company has professional technical team, complete part number system, and powerful picture system library to provide customers with accurate and high-end products. To help customers solve problems, our company serve each customer with the purpose of "create win-win situation." And we have a comprehensive after-sales service.
For spare parts : We will try our best to meet customer's delivery time. Before delivery, we must verify the part number and pictures of the products one by one to make sure that customers can receive high-quality and right-quantity goods.
Our Team
LGMC has a high-quality core management team and an experienced technical team. Since establishment, our company takes developing international talents as the standard, and has excellent platform advantages to unite a group of business elites. Their efforts have made the company develop rapidly and continuously level improvement of international professional mechanical parts let customers trust and choose our excellent team.
Since it was established in 2007, there have been more than 120 countries and regions that have exported so far. Our company has professional technical team, complete part number system, and powerful picture system library to provide customers with accurate and high-end products. To help customers solve problems, our company serve each customer with the purpose of "create win-win situation." And we have a comprehensive after-sales service.
For spare parts : We will try our best to meet customer's delivery time. Before delivery, we must verify the part number and pictures of the products one by one to make sure that customers can receive high-quality and right-quantity goods.
Our Team
LGMC has a high-quality core management team and an experienced technical team. Since establishment, our company takes developing international talents as the standard, and has excellent platform advantages to unite a group of business elites. Their efforts have made the company develop rapidly and continuously level improvement of international professional mechanical parts let customers trust and choose our excellent team.

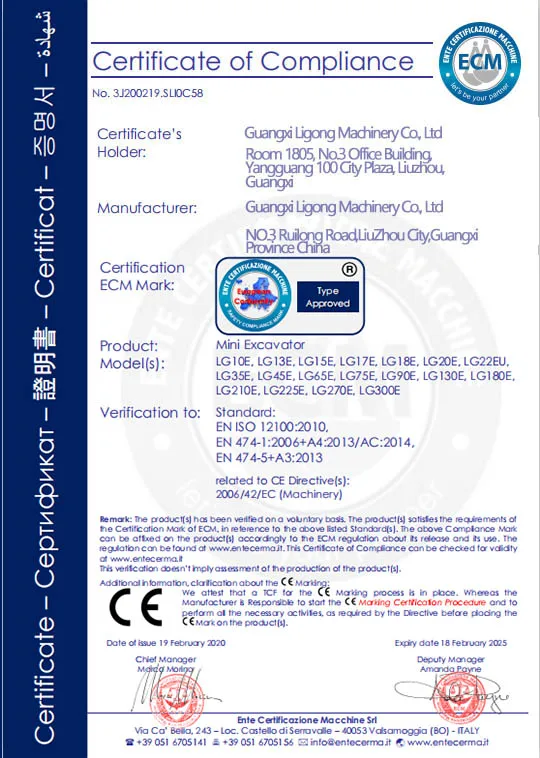

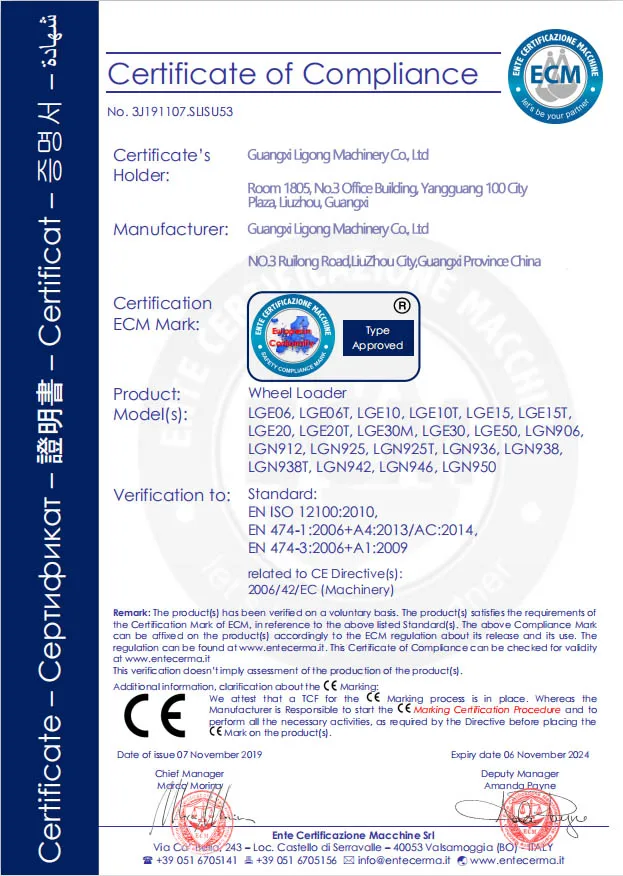

Certifications

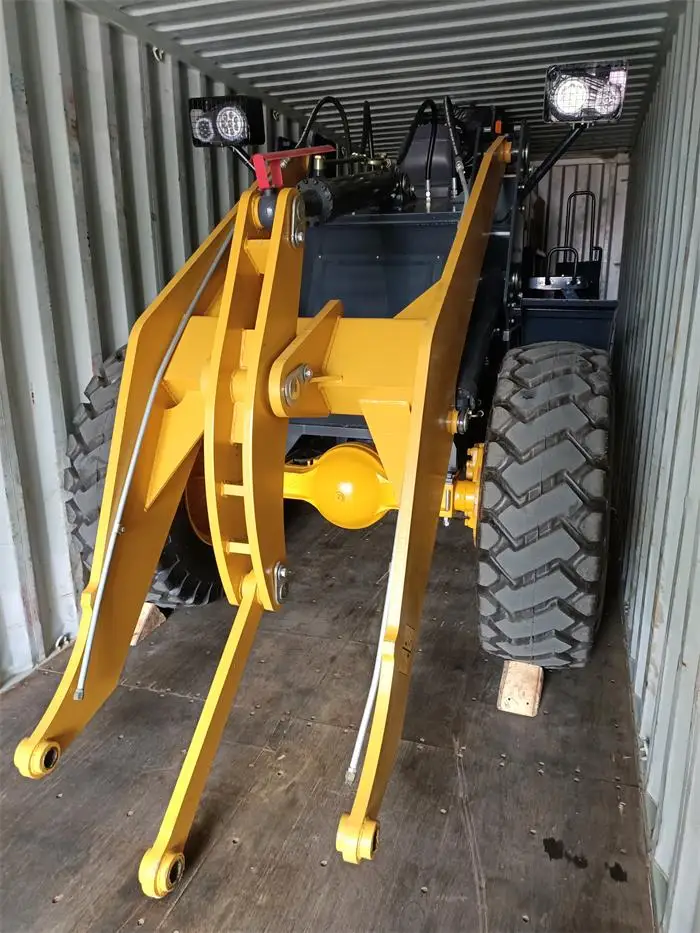

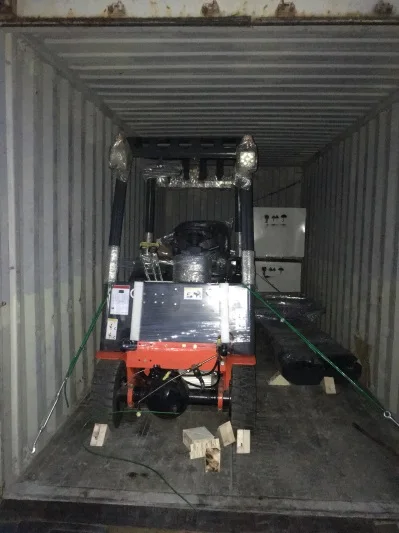

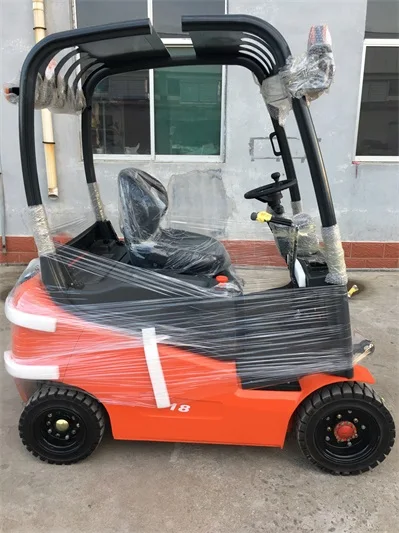

Packing & Delivery
FAQ
Our advantages :
1. We can help buyers design specific products or produce products according to buyers' design.
2. Small order acceptable.
3. Competitive price be offered.
4. Inquiry or question be answered within 12 hours.
5. Best possible after-sales service.
6. We can print logo according to buyers' requirement.
7. Stock an extensive range of spare parts.
8. Favourable geographical location.
9. Flexible pricing, offers discount and deferred payment for wholesale buyers.
10. Timely delivery.
FAQ:
Q1. Could you custom products?
A: We can manufacture it according to your drawings or samples.
Q2. What's your payment terms.
A: By T/T or Western Union, 100% in advance. ( large orders can be negociated)
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q4. How about your delivery time?
A: 1-3 working days in general, and 7-10 days for large orders.
Q5. How can you guarantee the quality?
A: One year's warranty against B/L date.If You meet with quality problem, we promise to responsible for it.
1. We can help buyers design specific products or produce products according to buyers' design.
2. Small order acceptable.
3. Competitive price be offered.
4. Inquiry or question be answered within 12 hours.
5. Best possible after-sales service.
6. We can print logo according to buyers' requirement.
7. Stock an extensive range of spare parts.
8. Favourable geographical location.
9. Flexible pricing, offers discount and deferred payment for wholesale buyers.
10. Timely delivery.
FAQ:
Q1. Could you custom products?
A: We can manufacture it according to your drawings or samples.
Q2. What's your payment terms.
A: By T/T or Western Union, 100% in advance. ( large orders can be negociated)
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q4. How about your delivery time?
A: 1-3 working days in general, and 7-10 days for large orders.
Q5. How can you guarantee the quality?
A: One year's warranty against B/L date.If You meet with quality problem, we promise to responsible for it.
Q6: Can we buy 1 pc of each item for quality testing?
A: Yes, we understand quality test is important and we are glad to send 1pc for quality testing.
A: Yes, we understand quality test is important and we are glad to send 1pc for quality testing.
