Product Description

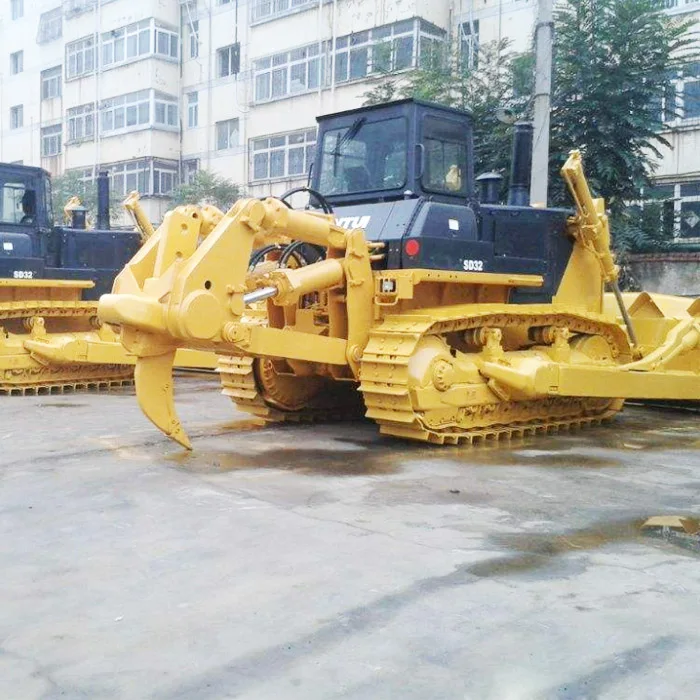

The SD32 provides a showcase for Shantui’s prowess with high-efficiency push factors. These medium-sized, but heavy-duty machines designed for earth-moving projects get the biggest, toughest jobs done quickly and efficiently. SD32 are equipped with a hydraulic drive system with hydraulic control technology and an advanced structure, which provide reliable performance and convenient and flexible operation.
Main Parameter
| PRODUCT | SD32 | ||
| PERFORMANCE PARAMETERS | Operatiing Weight (kg) | 33600 | |
| Rated horsepower (kw/hp) | 257/345 | ||
| Minimum turning radius (mm) | 3800 | ||
| Ground pressure (kpa) | 81.7 | ||
| ENGINE | Model | NTA855-C360S10 | |
| Emission | China I | ||
| Type | In-line,direct injection,water cooled,4-cycles,turbocharged | ||
| No.of cylinders×Bore×stroke (mm×mm) | 6×140×152 | ||
| Piston displacement (L) | 14 | ||
| Horsepower/rpm (kw/rpm) | 257/2000 | ||
| Maximum torque (N.m/r/min) | 1440/1400 | ||
| DIMENSIONS | Length(mm) | 8650 | |
| Width(mm) | 4130 | ||
| Height(mm) | 3760 | ||
| TRAVELING PERFORMANCE | Forward/Reverse(km/h) | F1:0-3.6 | |
| F2: 0-6.6 | |||
| F3: 0-11.5 | |||
| R1:0-4.4 | |||
| R2: 0-7.8 | |||
| R3: 0-13.5 | |||
| Gradeability(deg) | 30 | ||
| Clearance(mm) | 500 | ||
| TRANSMISSION | Torque convertor | 3-element, single stage, 1-phase | |
| Gear box | Planetary gear and powershift transmission, hydraulically actuated, forced lubrication | ||
| Main drive | Spiral bevel gear, single-stage speed reduction, splash lubrication | ||
| Steering clutch | Wet multiple disc,coned disc spring loaded, hydraulically actuated, hand operated,interconnected with steering brake | ||
| Brake | Wet, contracting band,foot operated with hydraulic booster | ||
| Final driver | spur gear,double reduction ,splash lubrication | ||
| UNDERCARRIAGE | Suspension | Swing type of sprayed beam,suspended structure of equalizer bar | |
| Track gauge (mm) | 2140 | ||
| Shoe width (mm) | 560 | ||
| Track length on ground (mm) | 3150 | ||
| Number of shoes (each side) | 41 | ||
| Pitch (mm) | 228.6 | ||
| Carrier rollers (each side) | 2 | ||
| Track rollers (each side) | 7 | ||
| WORKING HYDRAULIC SYSTEM | Pressure (MPa) | 14 | |
| Working pump | Gear pump | ||
| Valve | Multi-way valve | ||
| Bore of blade lift cylinder (mm) | 140 | ||
| Bore of blade tilt cylinder (mm) | 225 | ||
| TANK CAPACITY | Fuel tank capacity (L) | 640 | |
| Working hydraulic tank capacity (L) | 97 | ||
| WORKING EQUIPMENT | Blade width (mm) | 4130 | |
| Blade height (mm) | 1710 | ||
| Blade capacity (m³) | 10.5(Semi-U) | ||
| Max.Drop below ground of blade | 1560 | ||
| Lift height of blade | 560 | ||
| Type of ripper | Single shank/Three shanks | ||
| Maximum digging depth of ripper (mm) | 1250/842 | ||
| Maximum lifting height of ripper (mm) | 1590 | ||
Our Factory
RISEN ConstructionMachinery (Shanghai) Co., Ltd is engaged in developing, manufacturing andexporting construction machines in the areas of building, mining, energy andlogistic engineering. Offering 8 major categories, 38 product line and morethan 1000 models, RISEN is able to provide complete equipment package to theclients from all walks of life.We are a wholesaler of many brands in China, a professional exporter of construction machinery and a one-stop solution provider. Our team has over 15 years of experience in this field.
From the factory to our customer's destination, we will conduct all-round supervision.We can also helpto sign purchase ordercontracts, test product quality, guarantee timelydelivery, and accomodate special orders.
What is the proportion of your products exported?
75% of our products are exported to all over the world.
What is the payment term?
Payment term is negotiable and there will be favorable payment terms for long-term customers. TT, L/C, D/P, depending on the cooperation time, country and contract value.
What kind of logistic service do you supply?
A. Transportation: railway transportation, international through transport, including (international railway through transportation, Sea-rail intermodal through transportation, sea-land multimodal transportation. Means of transport : Container, LCL, FRC, ro-ro, bulk cargo, train carriage, truck, air plane.
B. Term: FOB,CIF, DAP, to door service, etc.
