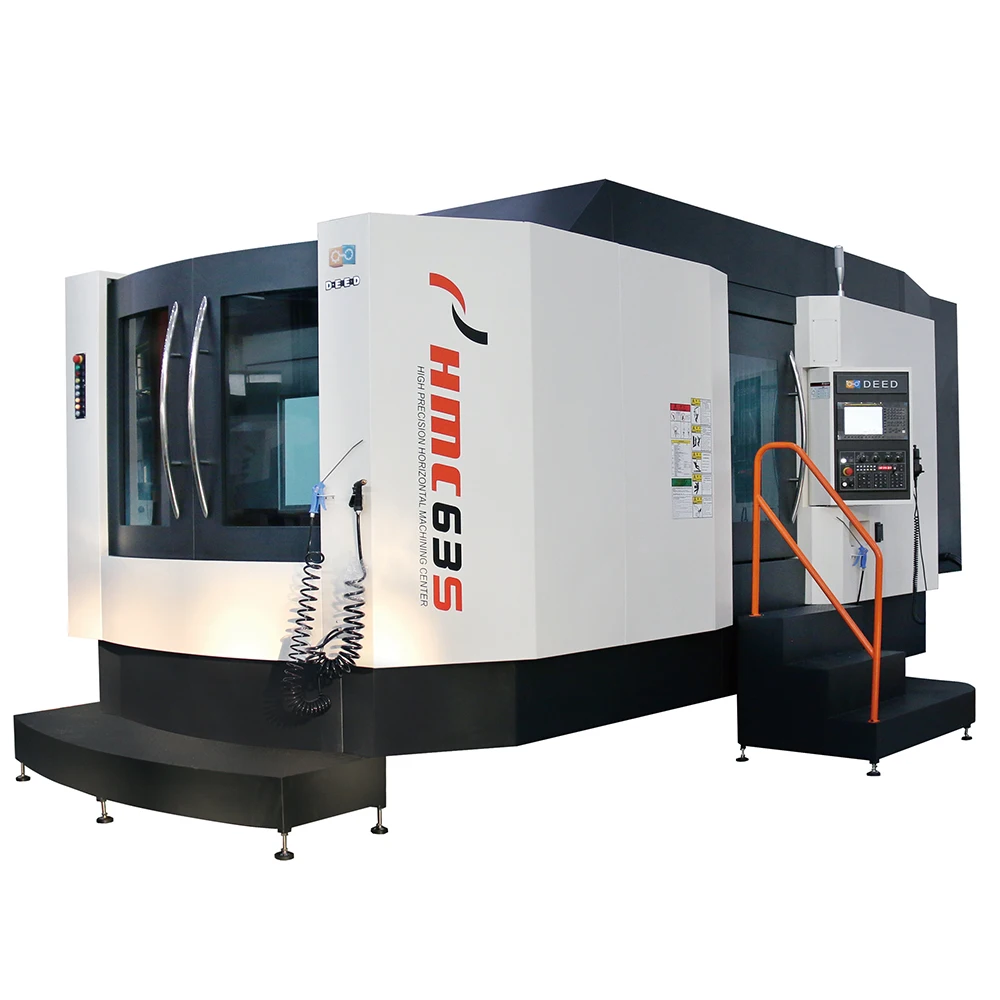

Прямая поставка с завода фрезерный станок ЧПУ центр обработки горизонтальный обрабатывающий
- Категории: CNC Milling Machines >>>
- Поставщик: Jinan,Deed,Precision,Machine,Tool,Co.,ltd.
Поделиться:
Описание и отзывы
Характеристики
| TRAVEL | |
| X-axis travel | 1050mm |
| Y-axis travel | 800mm |
| Z-axis travel | 950mm |
| Spindle center to table surface | 120~920 mm |
| Spindle nose to table surface center | 200~1150 mm |
| Maximum workpiece height | 1050mm |
| Maximum workpiece diameter | 1000mm |
| SPINDLE | |
| Drive type | Belt drive |
| Spindle taper | BT50 |
| Max. Speed | 6000 rpm |
| Spindle Power | 15/18.5 kW |
| Spindle Torque | 143/236 Nm |
| TABLE | |
| Size | 630x630mm |
| Max load | 1200kgs |
| No. of table | 1 |
| Minimum scale degree | 1° |
| FEED | |
| Max.cutting speed | 0-10000 mm/min |
| Rapid traverse | 24/24/24 m/min |
| ACCURACY | |
| X/Y/Z Axis Positioning | 0.01mm |
| X/Y/Z Axis Repeatability | 0.006mm |
| B Axis Positioning | 10″ |
| B Axis Repeatability | 3″ |
| ATC | |
| Type | Disc type ATC 24T |
| Maximum tool size(full/unfull/length) | Φ112/Φ200/350 |
| Maximum tool weight | 15kg |
| Min. Time of Tool Change | 7s |
| OTHERS | |
| Air Pressure | 0.65Mpa |
| Power supply | 380V/50Hz |
| Machine weight | 11500kgs |
| Machine Floor Space (L *W *H) | 5200x4500×3200mm |
