Products Description

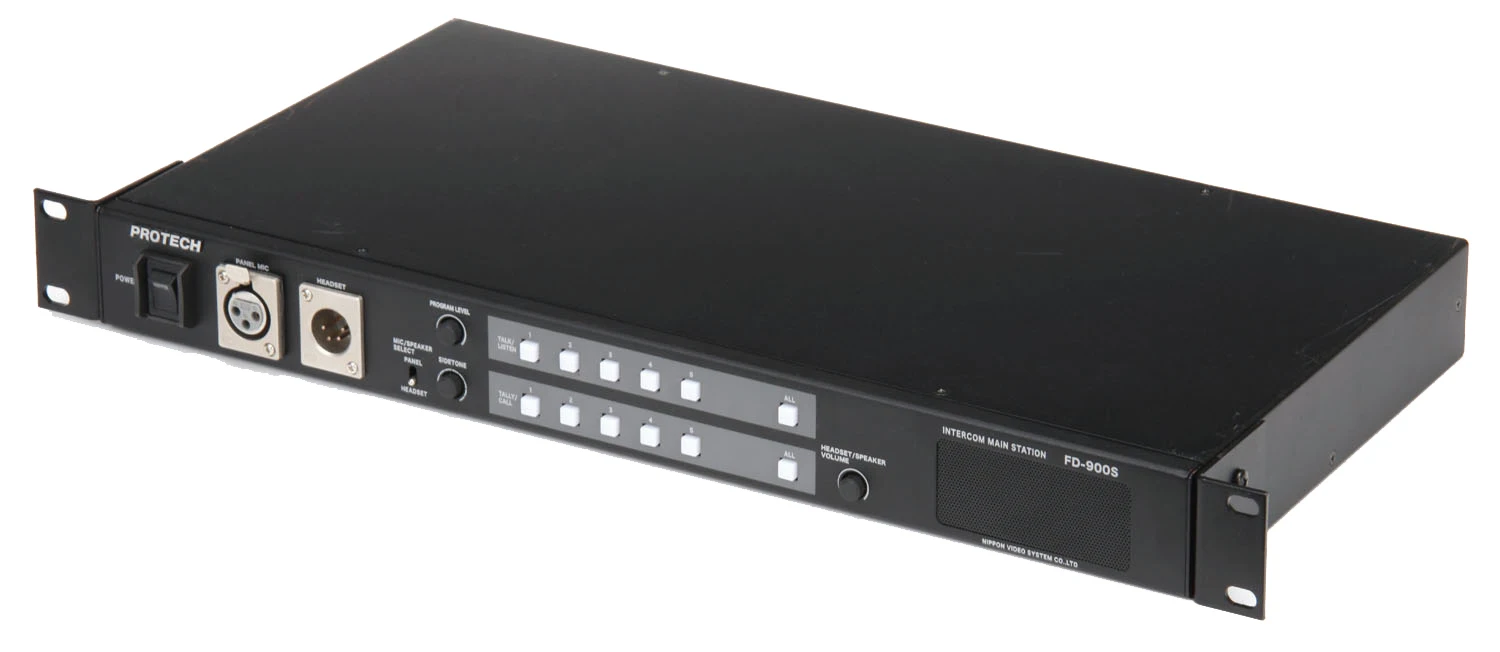

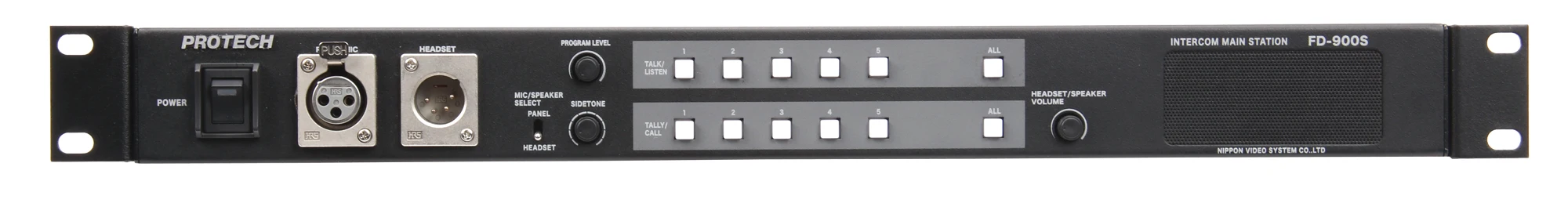

PROTECH NIPROS BNC wired Intercom Base Station FD-900S
The FD-900S has five channels for individual talk or simultaneously talk.
Up to eight units of FD-400A can be connected to each channel (40 units of FD-400A can be connected in total) and DC power can be supplied from this intercom base station to the FD-400A beltpacks.
Up to eight units of FD-400A can be connected to each channel (40 units of FD-400A can be connected in total) and DC power can be supplied from this intercom base station to the FD-400A beltpacks.

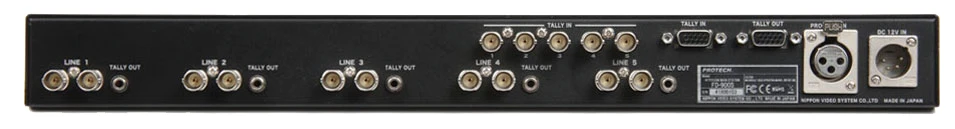

FD-900S | |||||
Intercom Line Input/Output | BNC x2 x5 chennels | ||||

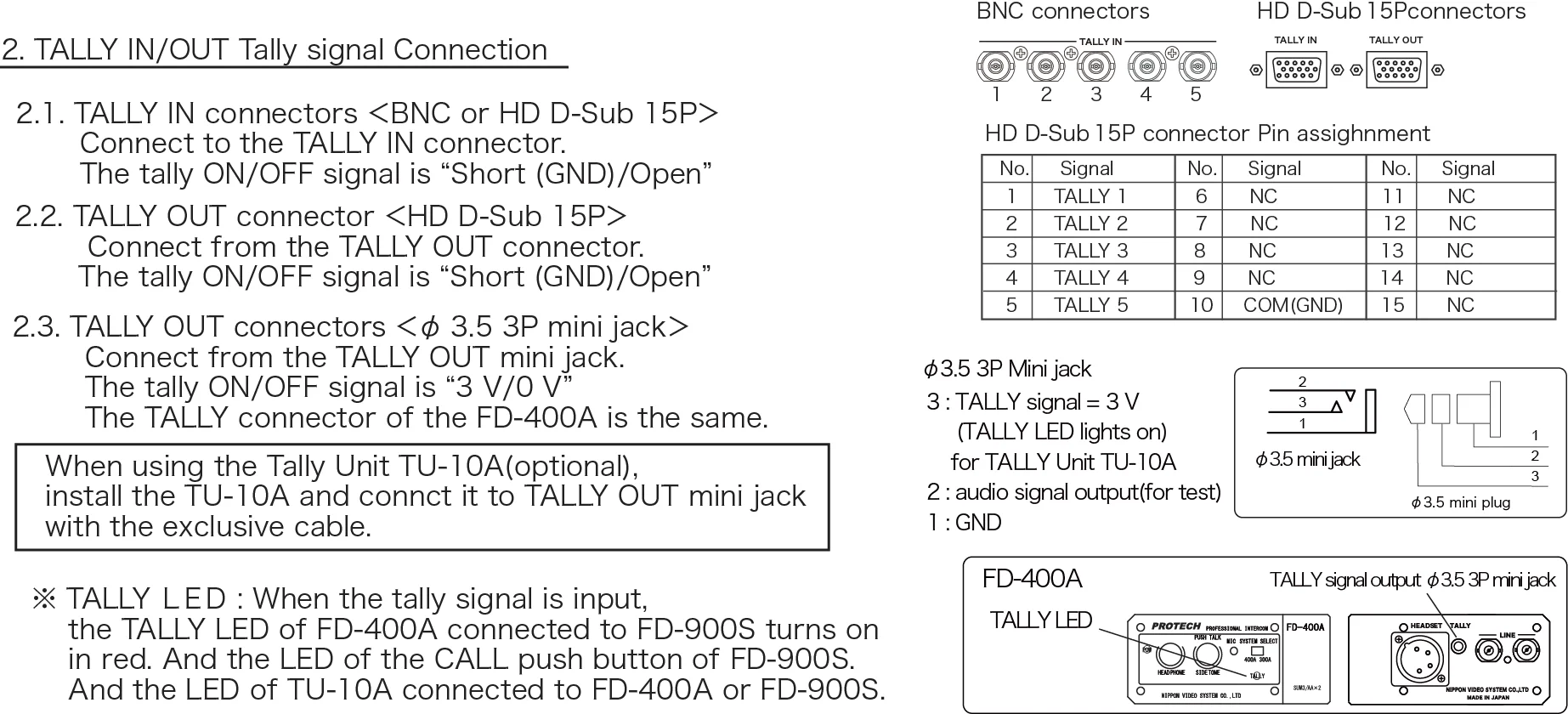

Tally In | BNC x5, D-sub 15-pin female x1 | ||||
Tally Out | φ3.5 mini jack x5, D-sub 15-pin female x1 | ||||
MIC | XLR 3-pin female x1 | ||||
Headset | XLR 4-pin male x1 | ||||
Speaker | Dynamic | ||||
Program In | XLR 3-pin female x1 | ||||
DC IN | 12V XLR 4-pin male x1 | ||||
Dimention | 430x44x220mm (1U) | ||||
Weight | 3.5kg | ||||
Accessory | AC adapter, Rack mount bracket, Instruction manual | ||||

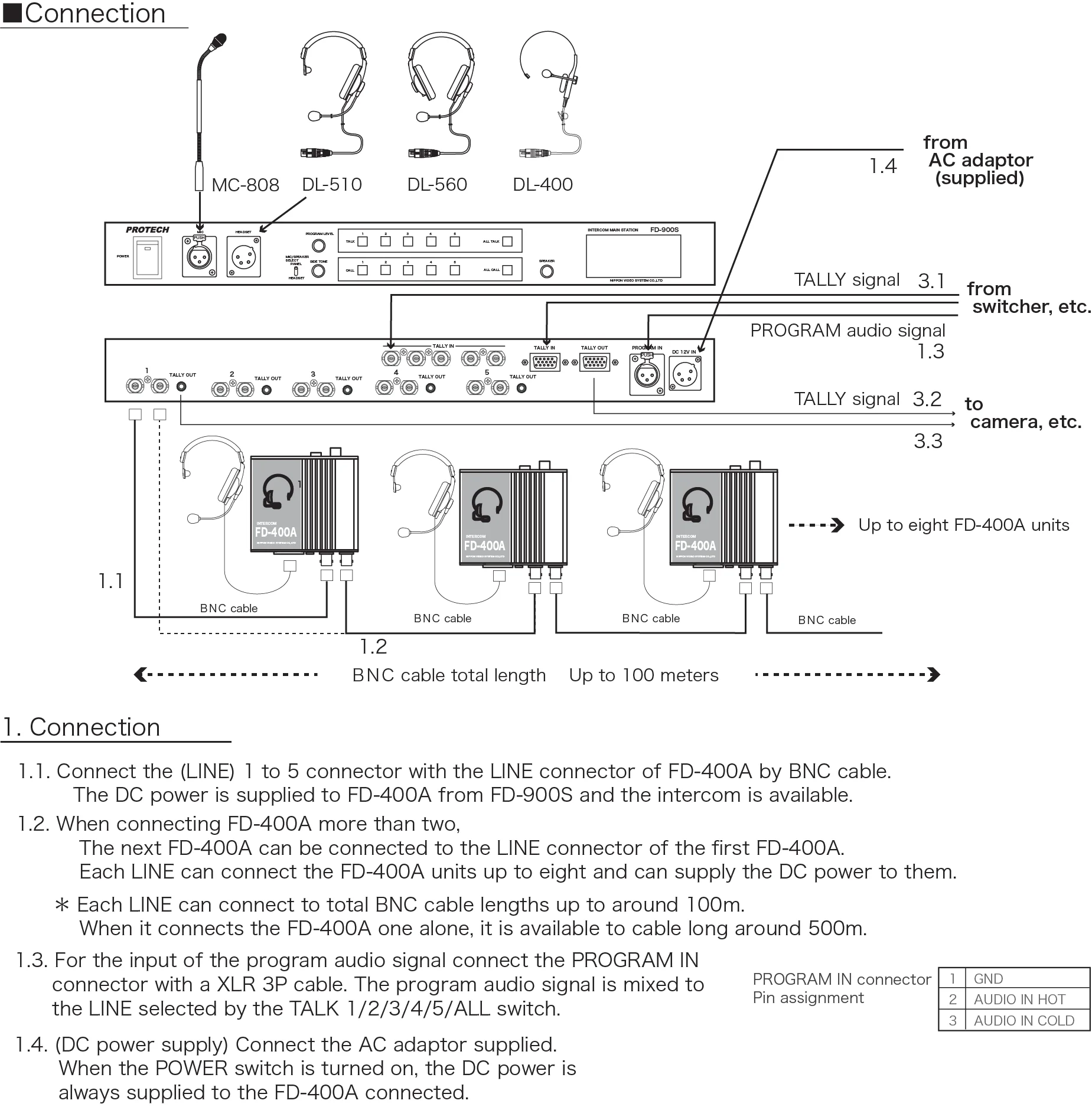

BNC cable connection between FD-400A or between intercom base station and FD-400A.

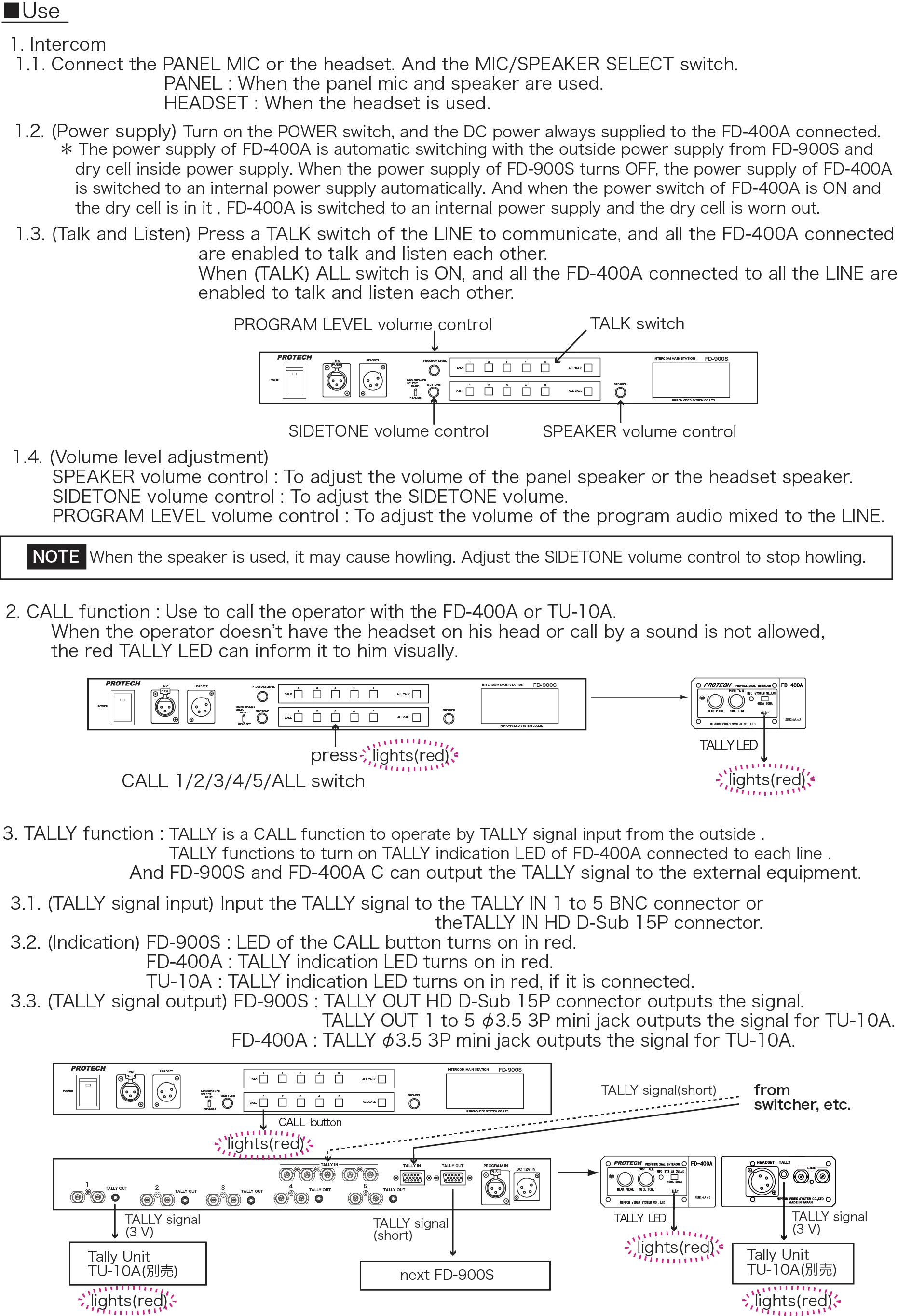

In addition to the headset XLR 4-pin connector, the FD-900S is equipped with a 3-pin XLR connector for general microphones and built in speaker for convenient use when the FD-900S is deployed in an operation room, etc., without the need for a headset.
The FD-900S is equipped with a function to input the main program audio (line audio) at an event venue, a concert, etc., and then mix and distribute it to each intercom line.
*Note
Features, design and specifications are subject to change without notice.
Please contact us for more information or inquiry.
*Note
Features, design and specifications are subject to change without notice.
Please contact us for more information or inquiry.
