Простая партия Для водительских прав 2D сканер штрих-кодов встроенный в мобильные устройства с красным

Acquisition Performance

Sensor

Image Type, CMOS Sensor,0.3M pixel, 640*480 Pixels

Acquisition Speed

1/120 sec

 FOV

Diagonal 54°, Level 45°, Vertical 36°

Reading Performance

Precision

2D≥5mil, 1D≥4mil

Depth of Field

Test Condition

Depth of Field

Code39 4mil

 40~120mm

Code128 5mil

30~170mm

Code39 20mil

60~320mm

PDF417  5mil

30~120mm

QR Code 20mil

30~210mm

Scan Angle

Roll 360°, Elevation ± 55°, Deflection ± 55°

Symbologies

2D: QR Code, Data Matrix, PDF417, Chinese sensible code etc.

1D: UPC-A, UPC-E, EAN-8, EAN-13, ISBN, Code 128, GS1 128, ISBT 128, Code 39, Code93,Code 11, Interleaved 2 of 5, Industrial 2 of 5,Matrix 25, Standard 25, Code bar, MSI/MSI PLESSEY, GS1 Data Bar ,etc.

Print Contrast

20% minimum reflectance

LED

Illumination

White LED

Positioning

Red LED, Laser Aimer

Physical Parameter

Size

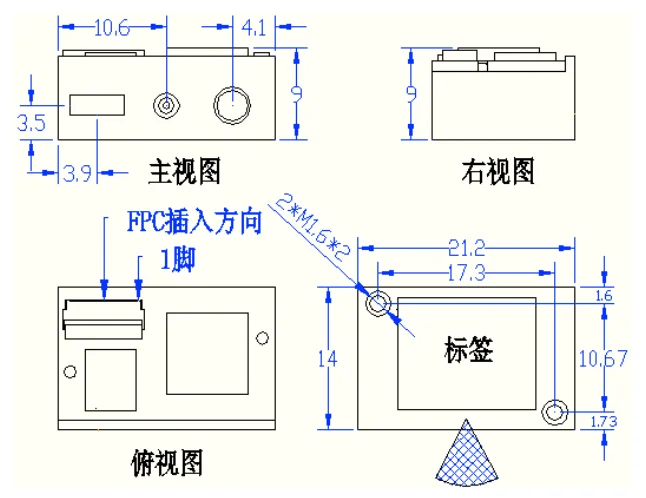

Length×Width×Height:21.2mm×14mm×10.2mm

Weight

3.5g

Interface

Interface

UART, USB serial port, USB KBW

Socket

12pin,0.5Pitch, up and down are compatible

Scanning Mode

Trigger Mode/Command Mode/Sense Mode

Install Hole

Two M1.6mm threaded screws, locked depth is not more than 2mm

Environmental Parameter

Operating Temperature

-30℃ ~ 70℃

Storage Temperature

-40℃ ~ 80℃

Humidity

5% ~ 95%RH(non-condensing)

Ambient Light

Max.100,000 Lux

Electrical Parameter

Input Voltage

3.3V±0.3V

Operating Current

<190mA

 Low Power Current

 <1mA
