Высококачественный преобразователь постоянного тока VOITA от 12 В до 48 повышающий для
- Категории: DC\/DC Converters >>>
- Поставщик: Guangzhou,Moli,E-Commerce,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Feature

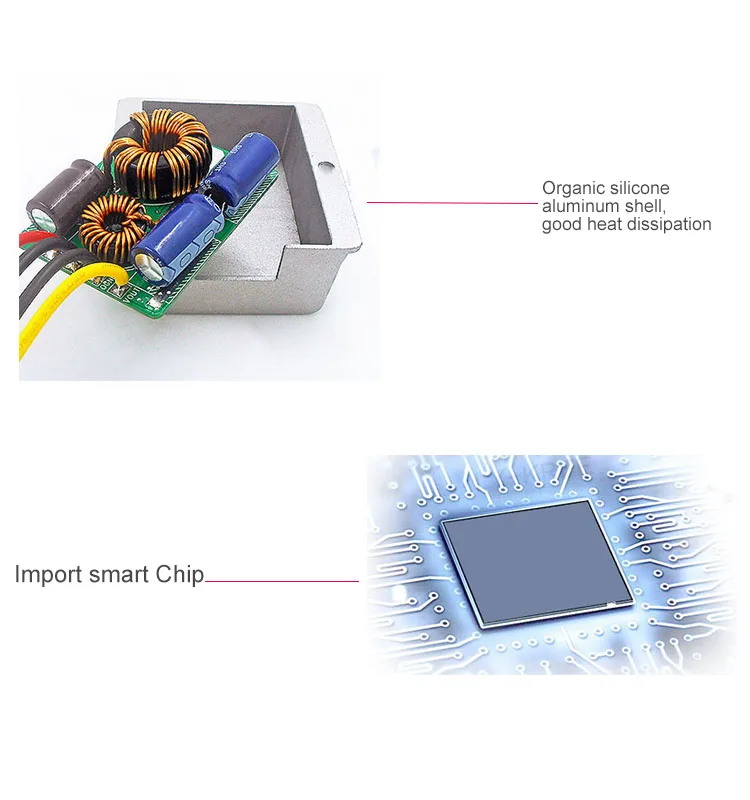

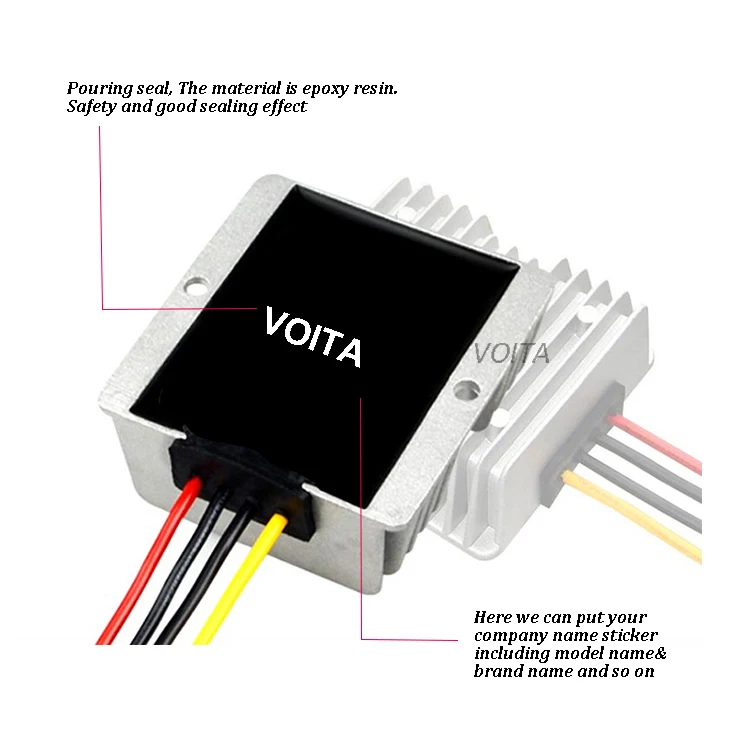

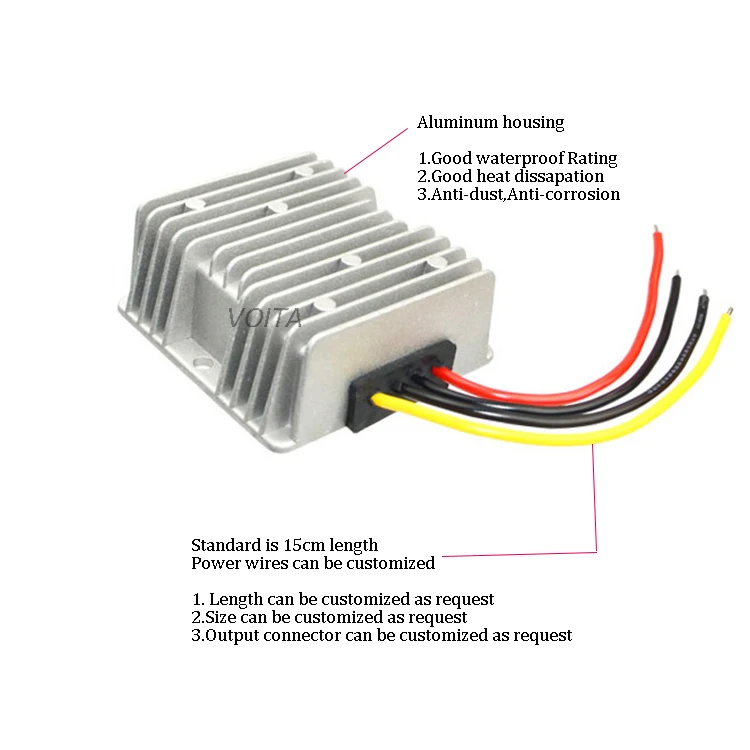

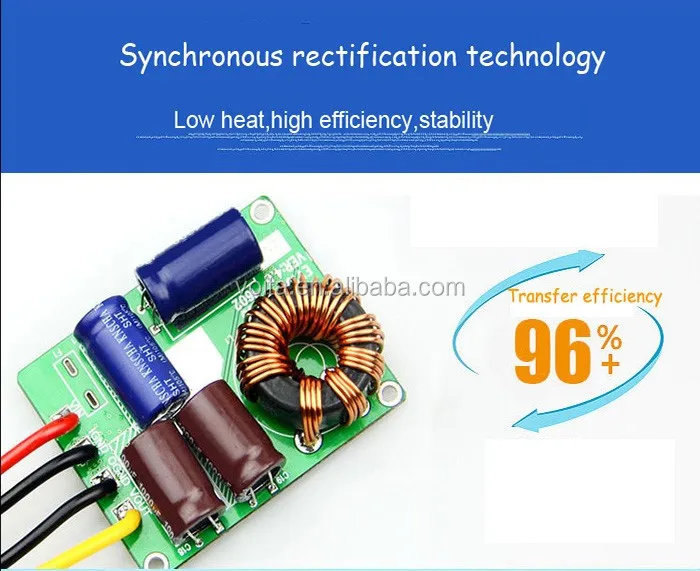

1. Synchronous rectification technology, imported components, conversion efficiency more than 96%. 2. Imported internal resistance capacitor filter, withstand high temperature. 3.Organic silicone packaging technology, can work directly soaked in water. 4. Chip smart protection, anti-overheating, over-current protection. 5. Aluminum alloy shell, anti-shock, anti-drop, anti-moisture, anti-dust and so on.
Specification
\t\t\t Model \t\t\t | \t\t\t VT-DD12486 \t\t\t | \t\t\t \t\t\t | |
\t\t\t Input \t\t\t | \t\t\t Rated voltage \t\t\t | \t\t\t DC 12V \t\t\t | |
\t\t\t \t\t\t | \t\t\t Voltage range \t\t\t | \t\t\t 9-30V \t\t\t | |
\t\t\t \t\t\t | \t\t\t Efficiency \t\t\t | \t\t\t 96% @ 12V input \t\t\t | |

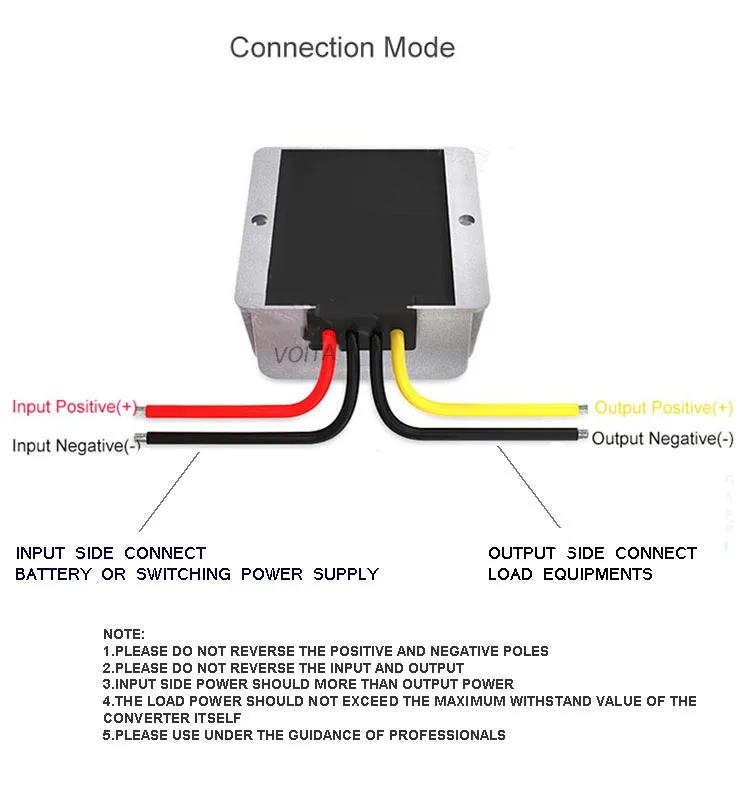

\t\t\t \t\t\t | \t\t\t Positive cable (red) \t\t\t | \t\t\t 18 AWG @ 15cm length \t\t\t | |
\t\t\t \t\t\t | \t\t\t Negative cable (black) \t\t\t | \t\t\t 18 AWG @ 15cm length \t\t\t | |
\t\t\t Output \t\t\t | \t\t\t Voltage \t\t\t | \t\t\t 48V \t\t\t | |
\t\t\t \t\t\t | \t\t\t Max. rated current \t\t\t | \t\t\t 6A \t\t\t | |
\t\t\t \t\t\t | \t\t\t Max. rated power \t\t\t | \t\t\t 288W \t\t\t | |
\t\t\t \t\t\t | \t\t\t Voltage regulation \t\t\t | \t\t\t ±1% \t\t\t | |
\t\t\t \t\t\t | \t\t\t Load regulation \t\t\t | \t\t\t 2% \t\t\t | |
\t\t\t \t\t\t | \t\t\t Positive cable (yellow) \t\t\t | \t\t\t 18 AWG @ 15cm length \t\t\t | |
\t\t\t \t\t\t | \t\t\t Negative cable (black) \t\t\t | \t\t\t 18 AWG @ 15cm length \t\t\t | |
\t\t\t Environment \t\t\t | \t\t\t Working temperature \t\t\t | \t\t\t -20℃ ~ 85℃ \t\t\t | |
\t\t\t \t\t\t | \t\t\t Working humidity \t\t\t | \t\t\t 10% ~ 90%RH \t\t\t | |
\t\t\t \t\t\t | \t\t\t Storage temperature \t\t\t | \t\t\t -20℃ ~ 85℃ \t\t\t | |

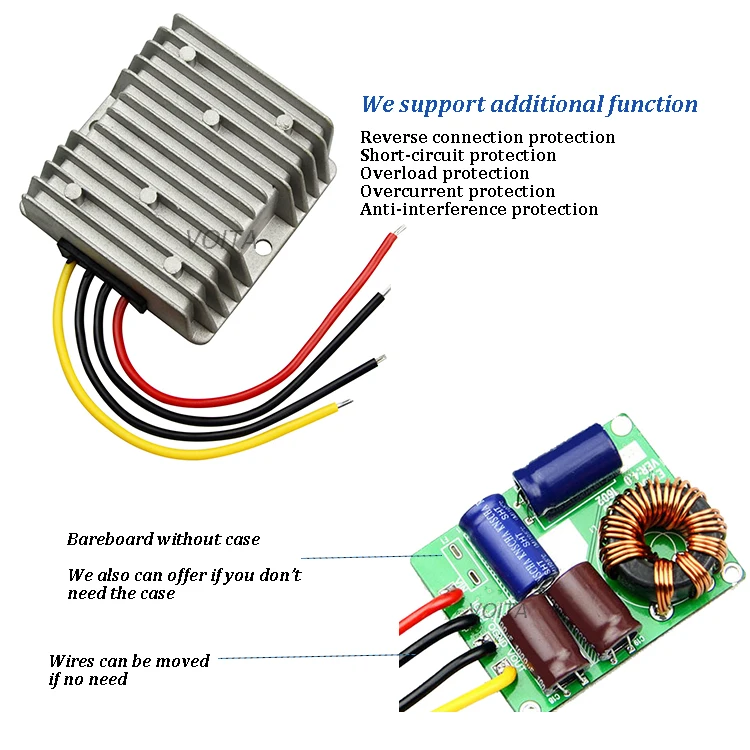

\t\t\t Function \t\t\t | \t\t\t Short circuit protection \t\t\t | \t\t\t YES \t\t\t | |
\t\t\t \t\t\t | \t\t\t Over current protection \t\t\t | \t\t\t YES \t\t\t | |
\t\t\t \t\t\t | \t\t\t Waterproof \t\t\t | \t\t\t IP67 \t\t\t | |
\t\t\t \t\t\t | \t\t\t Over temperature protection \t\t\t | \t\t\t YES \t\t\t | |
\t\t\t \t\t\t | \t\t\t Over voltage protection \t\t\t | \t\t\t YES \t\t\t | |
\t\t\t Mechanical \t\t\t | \t\t\t Weight \t\t\t | \t\t\t 260g \t\t\t | |

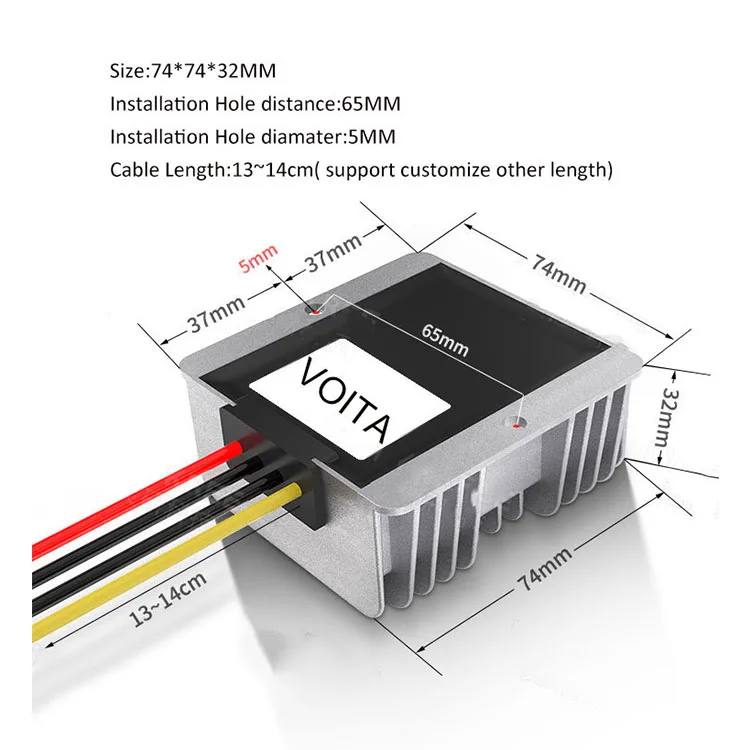

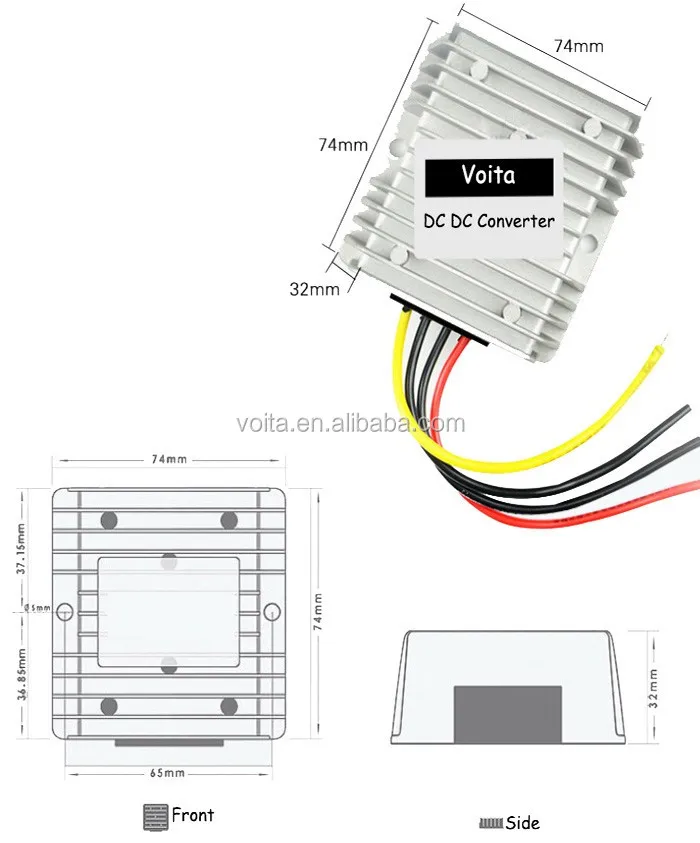

\t\t\t \t\t\t | \t\t\t Size \t\t\t | \t\t\t 74*74*32mm \t\t\t | |
