Products Description

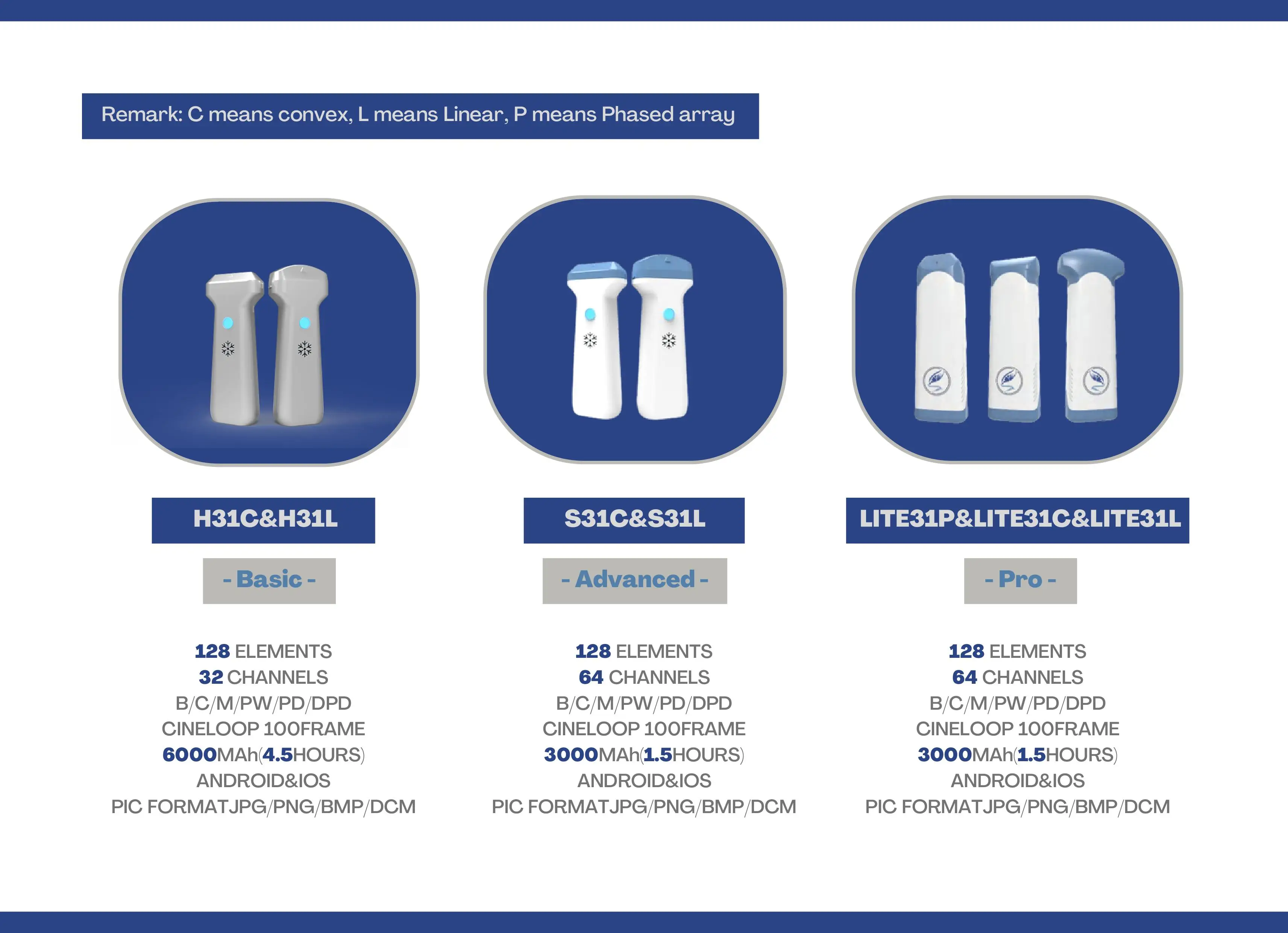

Model | MTH31(Basic) | MTS31(Advanced) | MTL31(Pro) | |||||||||||
Model | MTH31L | MTH31C | MTS31L | MTS31C | MTL31L | MTL31C | MTL31P | |||||||
Specs | ||||||||||||||

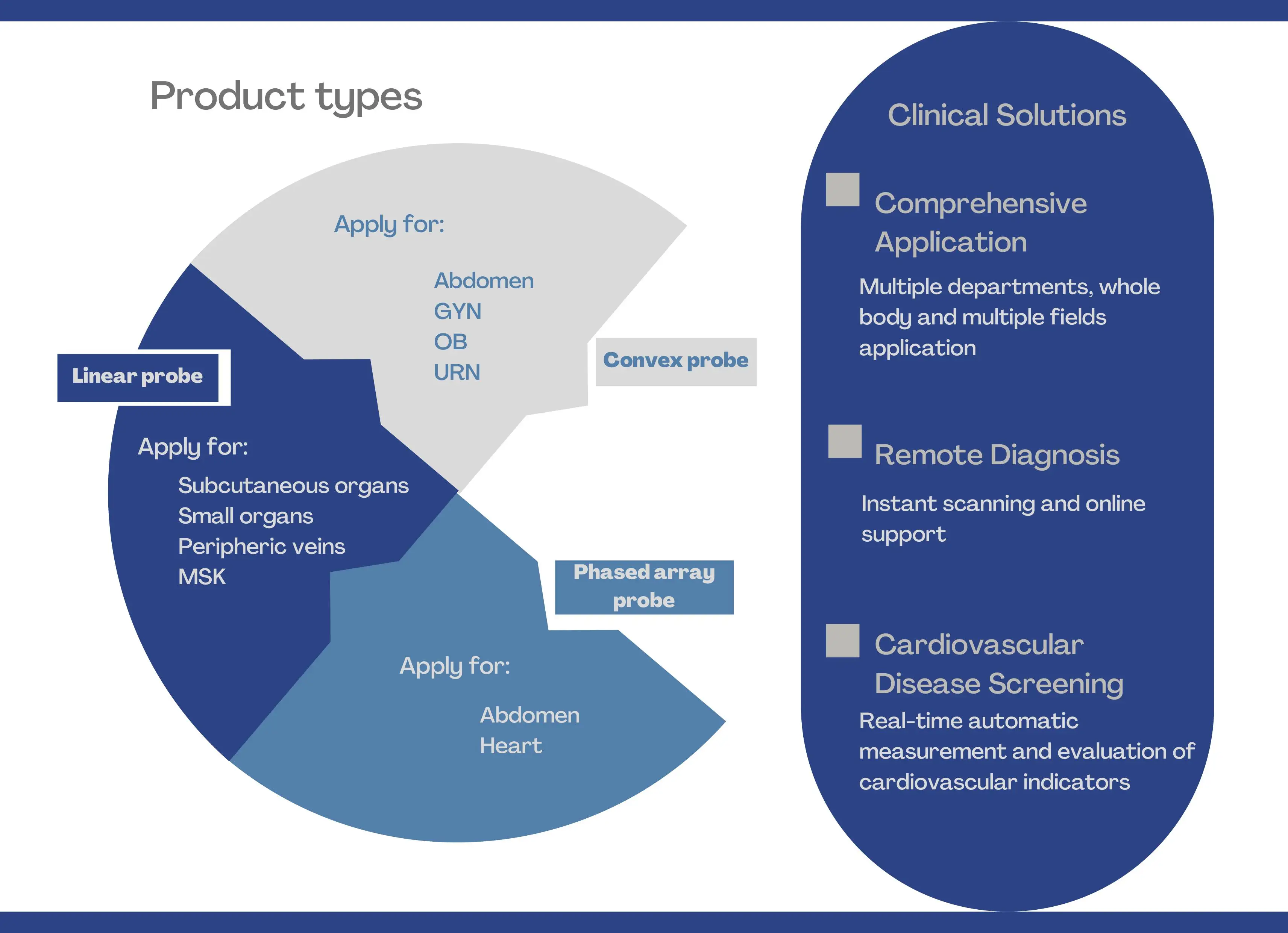

Application | subcutaneous organs small organs peripheric veins MSK | Abdomen GYN OB URN | subcutaneous organs small organs peripheric veins MSK | Abdomen GYN OB URN | subcutaneous organs small organs peripheric veins MSK | Abdomen GYN OB URN | Heart Abdomen | |||||||
Host | Android and IOS | |||||||||||||
Frequency | 4-12MHz | 2-5MHz | 4-12MHz | 2-5MHz | 4-12MHz | 2-5MHz | 2-5MHz | |||||||
Max Depth | 12cm | 37.8cm | 12cm | 37.8cm | 12cm | 37.8cm | 18.9cm | |||||||
Emission channels | 32 | 32 | 32 | 32 | 32 | 32 | 32 | |||||||
Recepetion channels | 32 | 32 | 64 | 64 | 64 | 64 | 64 | |||||||
Elements | 128 | 128 | 128 | 128 | 64 | |||||||||
Size | 17.9x7.5x3.4cm | 18.8x7.5x3.4cm | 17.9x7.5x3.4cm | 18.8x7.5x3.4cm | 16.1x5x3.2cm | 17.1x6.8x3.2cm | 16.4x5x3.2cm | |||||||
Weight | 300g | 250g | 200g | |||||||||||
Battery capacity | 6000mhA | 3000mhA | 3000mhA | |||||||||||
Scan time | 4h | 1.5h | 1.5h | |||||||||||
Image quality | 4 | 4 | 4 | 5 | 5 | 5 | 5 | |||||||
Modes | B/C/M/PW | |||||||||||||
Performance Details
More Detailed Info/Technical Specs
Wireless Probe Ultrasound
Technical Specification
Features:
·Workable with Tablet PC or Smart Phone (iOS, Android)
·Built-in and rechargeable battery
·Advanced digital imaging technology, clear image
·High cost-effective
·Wireless connectivity, easy to operate
·Small and light , easy to carry
·Applicable in emergency, clinic and outdoor
·Intelligent terminal platform, powerful expansion functions on application, storage, communication, printing

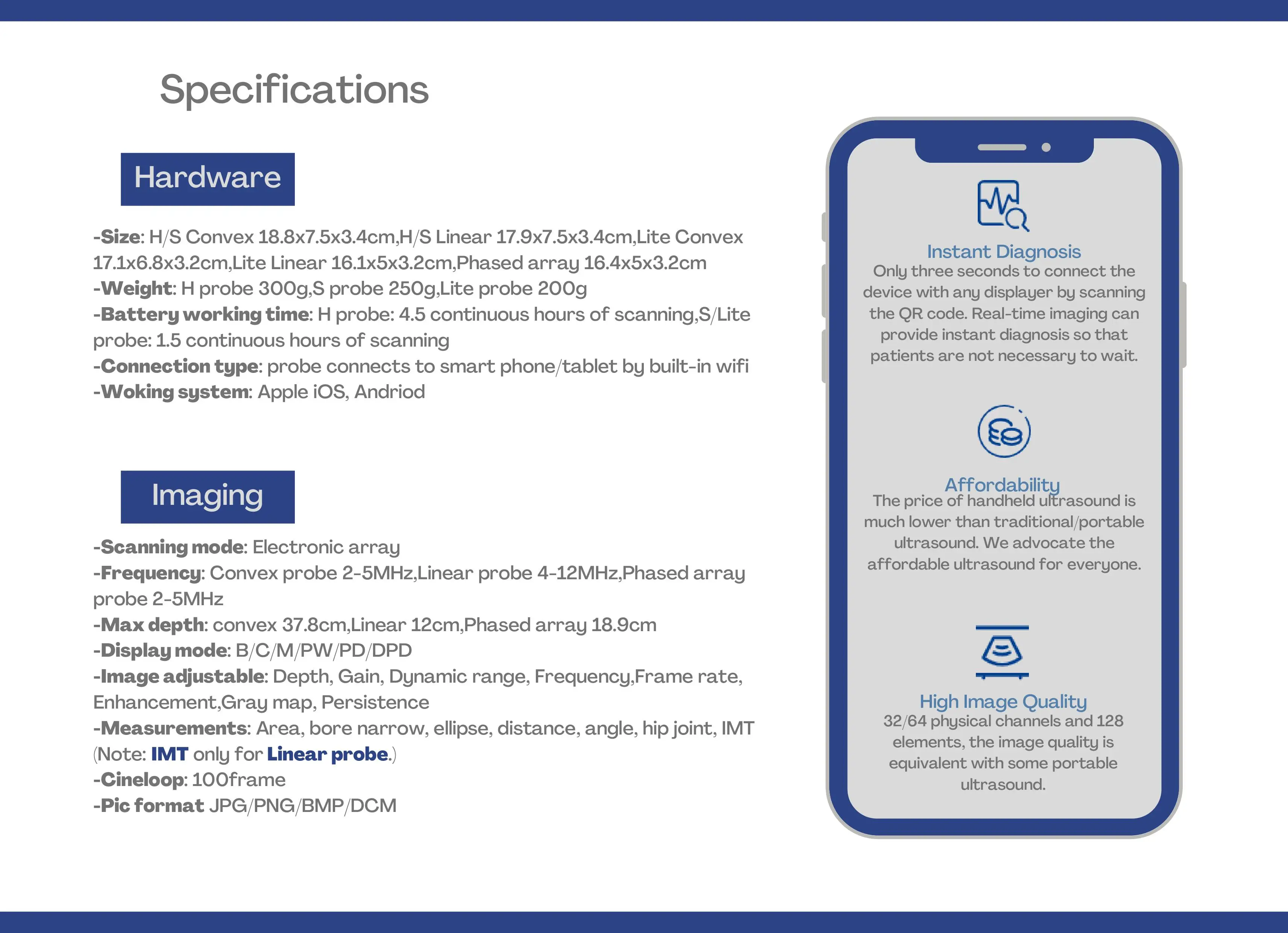

Specifications:
-Scan mode: Mechanical sector scanning,
Electronic Convex or linear array scanning;
-Frequency:
based on 128 probe elements
Linear probe (4.0-12.0MHz),Convex probe(2.0-5.0MHz)

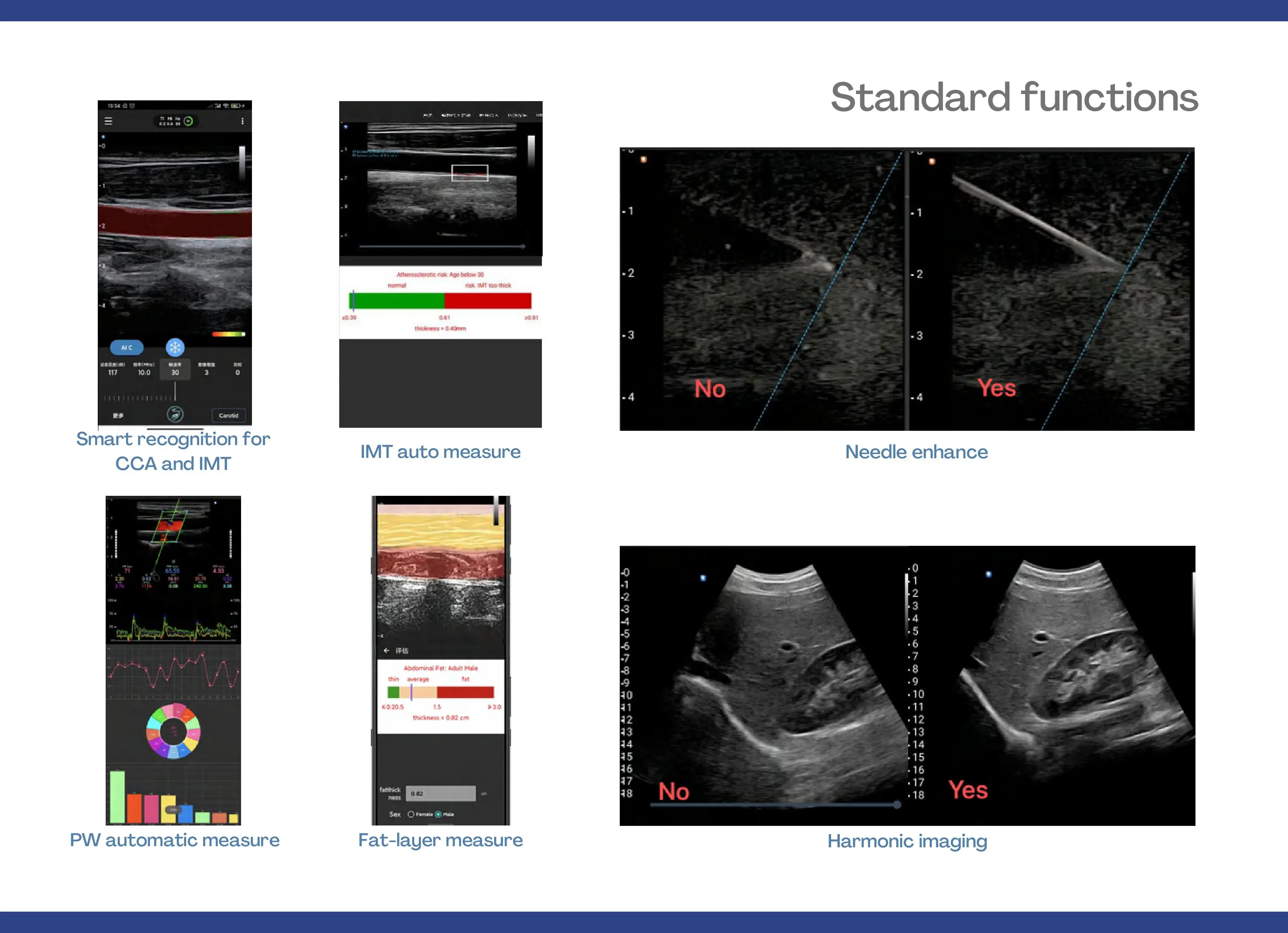

Support Imaging processing: Depth, Gain, Dynamic range, Frequency, Frame rate, Enhancement, Gray map, Persistence.
-Elements:
128 elements for H31C/L
-Scanning Depth: Adjustable
linear probe:12cm , Convex probe:37.8cm
-Screen: Smart phone or tablet screen
-Supporting system: iOS, Android.

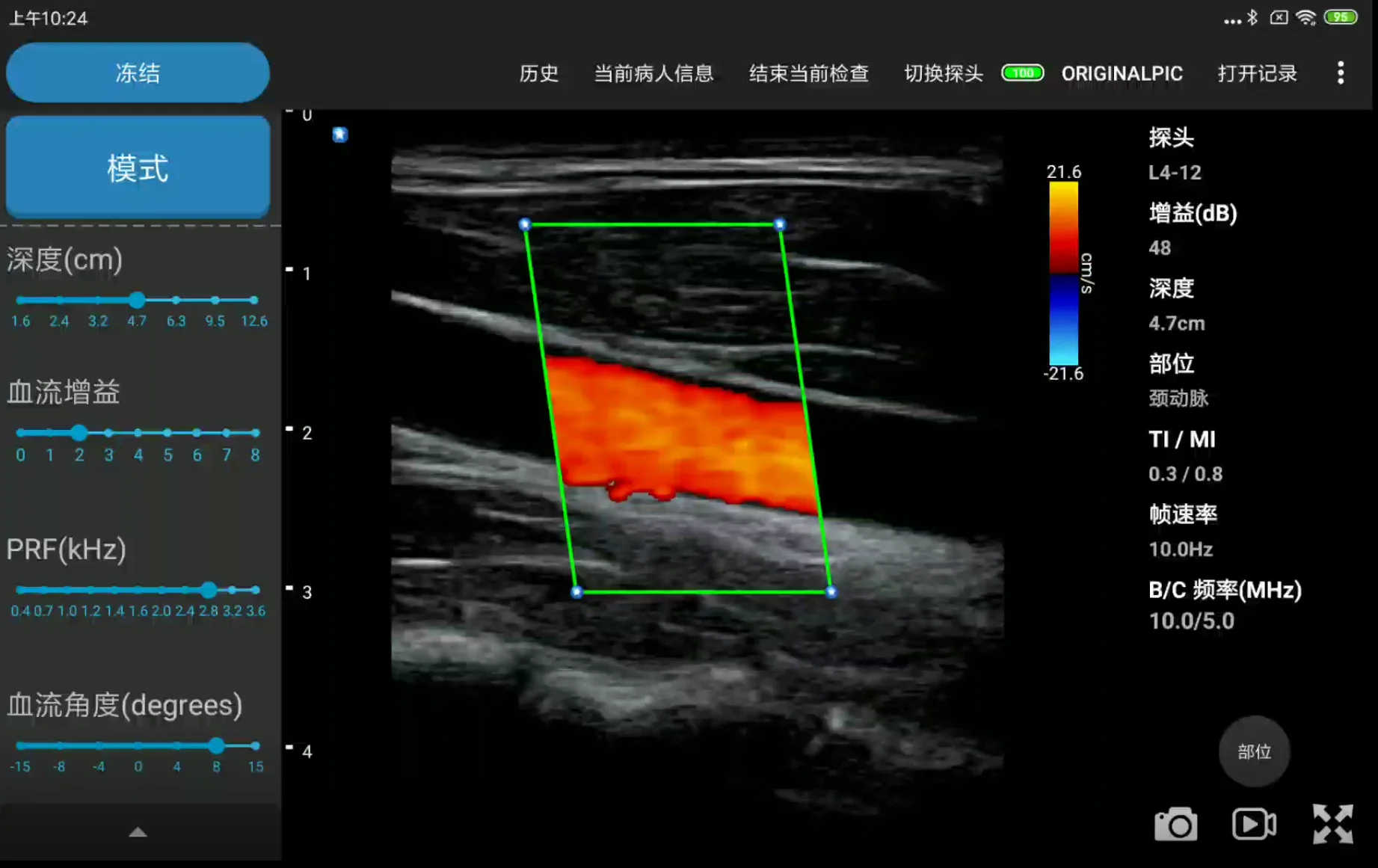

-Display mode: B, C, M, PW, PD DPD
-frame rate: ≥15f/s
-Image gray scale: 256 level
-Image/video Storage: Store on mobile phones,Tablet PC
-Measure: Area, Bore Narrow, Ellipse, Distance, Angle, IMT and other；
-Power: by built-in Lithium-Ion Battery, 6000mAh
-Power consumption: 10W (unfreeze) /4W (freeze)
-Battery working time:4 continuous hours of scanning
-Size:
Linear probe 180mm×70mm×35mm
Convex probe 190mm×70mm×35mm
-Net Weight: 300 gram
Standard Configuration:
-Wireless probe device 1 Unit
-Built-in rechargeable battery and charge cable 1 Set
-User Manual
Wireless Probe Ultrasound
Technical Specification
Features:
·Workable with Tablet PC or Smart Phone (iOS, Android)
·Built-in and rechargeable battery
·Advanced digital imaging technology, clear image
·High cost-effective
·Wireless connectivity, easy to operate
·Small and light , easy to carry
·Applicable in emergency, clinic and outdoor
·Intelligent terminal platform, powerful expansion functions on application, storage, communication, printing
Specifications:
-Scan mode: Mechanical sector scanning,
Electronic Convex or linear array scanning;
-Frequency:
based on 128 probe elements
Linear probe (4.0-12.0MHz),Convex probe(2.0-5.0MHz)
Support Imaging processing: Depth, Gain, Dynamic range, Frequency, Frame rate, Enhancement, Gray map, Persistence.
-Elements:
128 elements for H31C/L
-Scanning Depth: Adjustable
linear probe:12cm , Convex probe:37.8cm
-Screen: Smart phone or tablet screen
-Supporting system: iOS, Android.
-Display mode: B, C, M, PW, PD DPD
-frame rate: ≥15f/s
-Image gray scale: 256 level
-Image/video Storage: Store on mobile phones,Tablet PC
-Measure: Area, Bore Narrow, Ellipse, Distance, Angle, IMT and other；
-Power: by built-in Lithium-Ion Battery, 6000mAh
-Power consumption: 10W (unfreeze) /4W (freeze)
-Battery working time:4 continuous hours of scanning
-Size:
Linear probe 180mm×70mm×35mm
Convex probe 190mm×70mm×35mm
-Net Weight: 300 gram
Standard Configuration:
-Wireless probe device 1 Unit
-Built-in rechargeable battery and charge cable 1 Set
-User Manual
