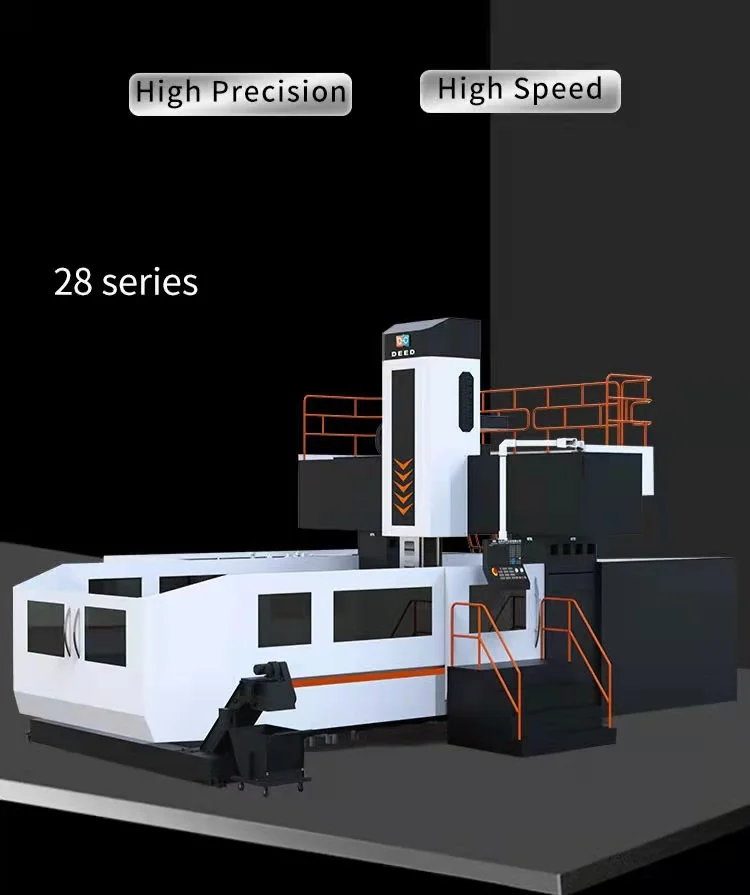

Делом 3-осевой многоцелевой портальный станок с ЧПУ высокой точностью GMC3528L фрезерный
- Категории: CNC Milling Machines >>>
- Поставщик: Jinan,Deed,Precision,Machine,Tool,Co.,ltd.
Поделиться:
Описание и отзывы
Характеристики
Product details
| TRAVEL | |
| X-axis travel | 3500mm |
| Y-axis travel | 3600mm |
| Z-axis travel | 1250mm |
| Spindle nose to table surface | 400~1650 |
| SPINDLE | |
| Drive type | Direct drive + Gearbook |
| Spindle taper | BT50 |
| Max. Speed | 1-6000rpm |
| Spindle Power | 22/26 KW |
| Spindle Torque | 770-910N.m |
| TABLE | |
| Worktable width | 2200mm |
| T-Slot | 22mm |
| Max load | 18000kgs |
| FEED | |
| Max.cutting speed | 1-10000 mm/min |
| Rapid traverse | 12/12/12m/min |
| ACCURACY | |
| Positioning(half-closed loop) | 0.02*0.02*0.014mm |
| Repeatability(half-closed loop) | 0.012*0.013*0.008mm |
| ATC | |
| Type | ATC-24T |
| ATC capacity | 24/32/40 |
| Tool holder type | BT50/HSK63 |
| OTHERS | |
| Air Pressure | 0.65Mpa |
| Power Capacity | 50KVA |
| Machine Weight | 5800kgs |
| Machine Floor Space (L *W *H) | 10250×7400×6600mm |
Product application
Exhibition&customer
Company profile
Certificate
Packing&delivery
FAQ
