Sale of mining ore vibrating feeder coal vibrating hopper feeder
US $4000-$10000
Простая конструкция Линейный Вибрационный питатель для обработки угольных
- Категории: Mining Feeder >>>
- Поставщик: Ganzhou,Gelin,Mining,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description

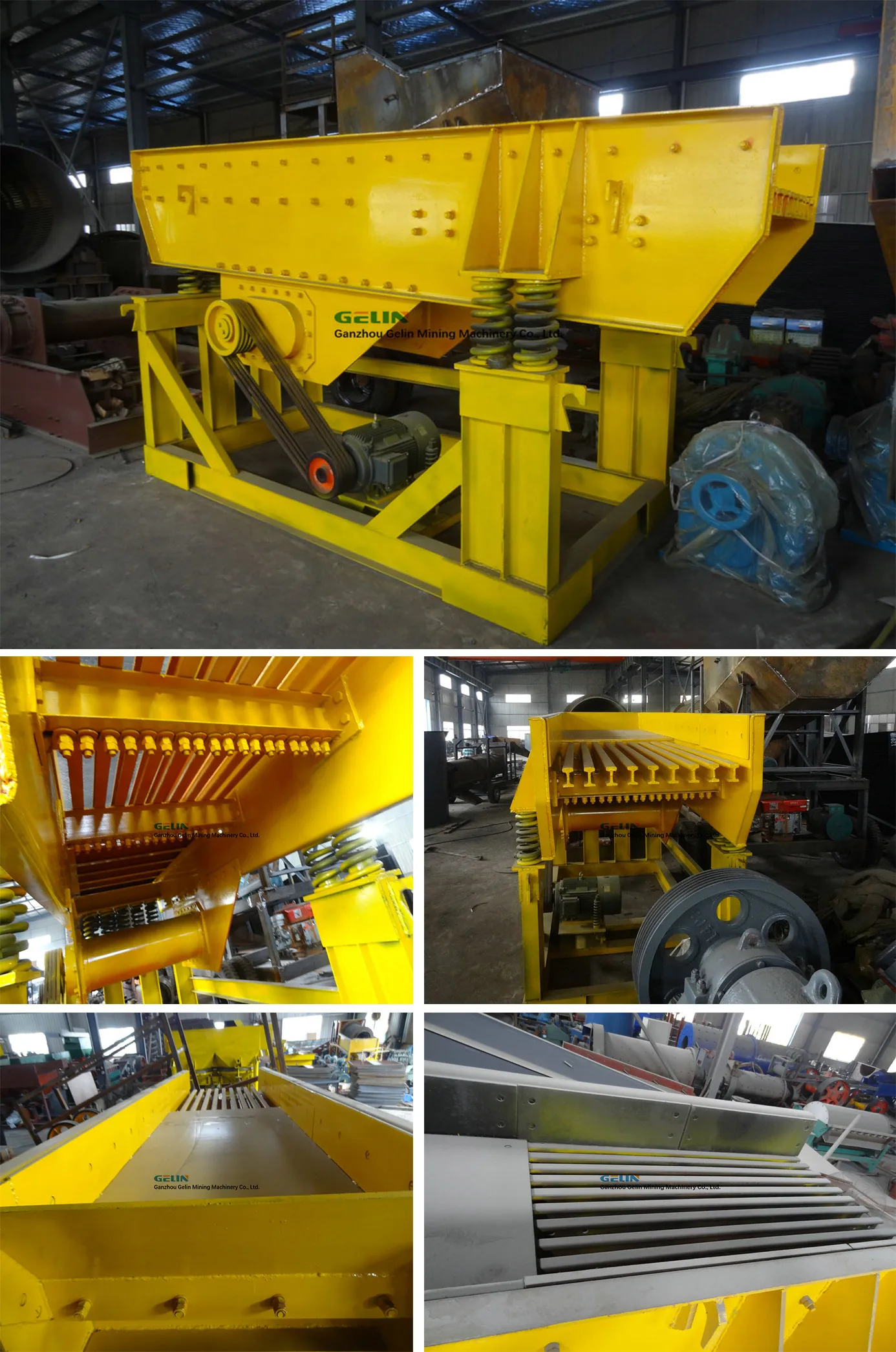

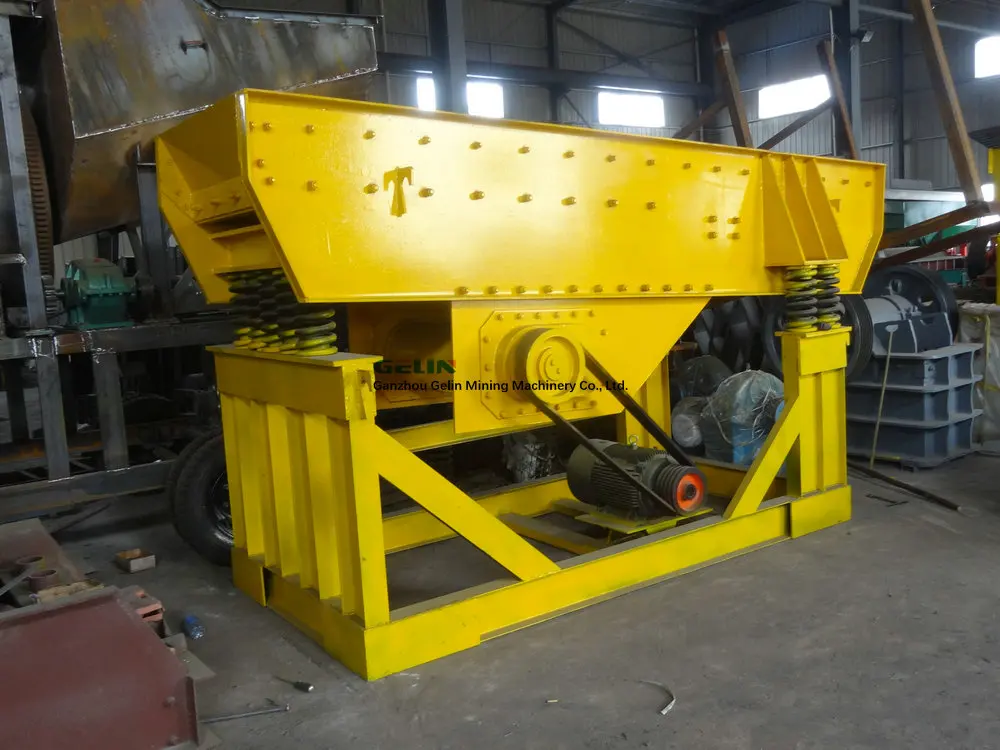

Simple Structure Linear Vibration Feeder For Coal Rock Bulk Materials Processing
Vibrating Feeder/Vibrating Grizzly Feeder/Shaker Feeder is mainly used to feed materials evenly and continuously into belt conveyor, bucket elevator, screening and crushing equipment before primary crusher, also used for screening fine materials to increase the processing capacity of crusher.The feeding amount can be adjusted flexibly to achieve centralized control and automatic control in the production process. It is applied to crushing and screening production lines on crushing site,in mining,metallurgy,building material ,chemistry,mineral processing,and coal industries.
Features
♦ Simple structure, uniform feeding, remarkable continuity, exciting force is adjustable;
♦ The flow can be changed and controlled at anytime, the eccentric block is the exciting source;
♦ Low noise and electricity consumption, good adjustability;
♦ The fully enclosed frame can avoid dust pollution;
♦ Stable vibration, reliable performance, long service life.

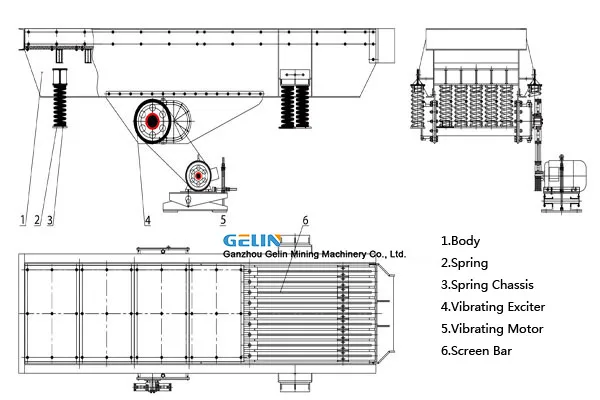

Working Principle & Structure
The vibrating feeder electromotor drives the eccentric block of the exciter to rotate with high speed through the v-shaped belt. The eccentric block can produce big eccentric force, and the exciting screen box will do circular motion with certain amplitude.The materials on the slant screen will be influenced by the impulse transmitted from the screen box and do continuous throwing motion, and the materials smaller than the screen hole will go through the screen, thus realizing classifying. the vibrating feeder is widely used for mining plant,stone crushing plant,sand making plant,etc.
Product Parameter
Model | Max. Input size (mm) | Capacity (t/h) | Eccentric shaft Speed (r/min) | Installation slope | Power (kw) | Weight (t) |
VF2400*800 | 480 | 30-80 | 400-500 | 0° | 7.5 | 2.8 |
VF3800*950 | 520 | 96-160 | 500-714 | 0° | 11 | 4 |
VF4200*1100 | 590 | 120-240 | 500-800 | 0° | 15 | 4.7 |
VF4900*960 | 550 | 120-240 | 500-800 | 0° | 15 | 5.35 |
VF4900*1100 | 620 | 120-280 | 500-800 | 0° | 15 | 5.3 |
VF5900*1100 | 650 | 220-350 | 500-800 | 0° | 22 | 6 |
VF6000*1300 | 760 | 400-550 | 500-800 | 0° | 22 | 7.5 |
Packing & Delivery
Packing
Normally the machines are taken apart before delivery and are packed by suitable packing ways, the packing ways are as below:
1. Nude packing.
2. Bundle packing.
3. Grass rope packing.
4. Water proof packing.
5. Wooden pallets packing.
6.Wooden box or carton box packing.
Delivery
Usually the equipments are delivered aboard by tracks,trains,or container(sea transportation). and some spare parts or very small goods also support to send by express, our company have built good relationships with large cargo agent and shipping companies which guarantee our products delivered safely and promptly.Sea transportation includes three delivery ways as below:
1.40HQ container: used for goods without overlength, overheight and overweight;
2.FR(Flat Rack) container:suitable for large equipments with overlength,overheight like ball mill,excavator,etc.
3.Bulk cargo shipment (LCL): used for some goods without loading in full container,normally it requires good packing with marks for safety and easy to be trackable.
Normally the machines are taken apart before delivery and are packed by suitable packing ways, the packing ways are as below:
1. Nude packing.
2. Bundle packing.
3. Grass rope packing.
4. Water proof packing.
5. Wooden pallets packing.
6.Wooden box or carton box packing.
Delivery
Usually the equipments are delivered aboard by tracks,trains,or container(sea transportation). and some spare parts or very small goods also support to send by express, our company have built good relationships with large cargo agent and shipping companies which guarantee our products delivered safely and promptly.Sea transportation includes three delivery ways as below:
1.40HQ container: used for goods without overlength, overheight and overweight;
2.FR(Flat Rack) container:suitable for large equipments with overlength,overheight like ball mill,excavator,etc.
3.Bulk cargo shipment (LCL): used for some goods without loading in full container,normally it requires good packing with marks for safety and easy to be trackable.
About Company
Ganzhou Gelin Mining Machinery Co., Ltd is an over 30 years professional manufacturer and exporter of mining machinery for crushing, screening, grinding, flotation, separation etc. in China. Gelin have a complete service system which can provide customer full service in mining field and after sales service.By now, Gelin’s equipments and services are exported to over 60 countries,include America, Russia, India, Africa, Brazil, Chile,South Africa,Zambia etc.
Sincerely welcome customers to visit our factory.
Our Services
One Stop solution for beneficiation plant service:
1.Engineering consulting available,it makes clients have a comprehensive understanding of beneficiation plant,including mine value,useful elements,mineral processing technology,plant scale,essential equipments,etc.
3.After reaching agreement with client,we start to engineering design,including planning,investigation,data collection, project evaluation etc. and then comes up with design scheme of beneficiation plant construction and working drawings.
1.Engineering consulting available,it makes clients have a comprehensive understanding of beneficiation plant,including mine value,useful elements,mineral processing technology,plant scale,essential equipments,etc.
2.Arrange mineral beneficiation experiment after received the material sample and beneficiation test report will be done after test.
3.After reaching agreement with client,we start to engineering design,including planning,investigation,data collection, project evaluation etc. and then comes up with design scheme of beneficiation plant construction and working drawings.
4.Manufacturing the necessary equipments and arrange the shipment.
5.Complete services for Installation and commissioning and technical training(operating training,common problem solving training).
After-sale Service
Regularly visit customers to provide after- sale technical supports and to solve problems of beneficiation plant. For equipments supplied,we could provide one-year warranty and provide spare parts with preferential price in the long term and be responsible for any problems with the them.
FAQ
Q: Are you a trading company or a factory?
A: We are a factory at Shicheng county with 110 workers,6 workshops covered 17,000㎡ and office covered 2,500㎡. Welcome to visit our factory at anytime.\t
A: We are a factory at Shicheng county with 110 workers,6 workshops covered 17,000㎡ and office covered 2,500㎡. Welcome to visit our factory at anytime.\t
Q: What is your payment terms?
A: By TT(Telegraphic Transfer), 100% or 40% Deposit before production and 60% balance payment will be paid off after sending product pictures and before loading from factory.
A: By TT(Telegraphic Transfer), 100% or 40% Deposit before production and 60% balance payment will be paid off after sending product pictures and before loading from factory.
Q: How long is the guarantee period of your products?
A: The guarantee period is 1-2 years, pls ask staff for more details. And we will supply lifelong technical support service and the spare parts at lowest cost.
Q: Is it possible to produce customized products ?
A: Yes, most of our products are produced as required.
A: Yes, most of our products are produced as required.
Q: Is it possible to provide sample for your factory to do ore-dressing experiment?
A: Yes, engineering consulting is available and we’d like to arrange mineral beneficiation experiment after received your sample and provide the test report.
A: Yes, engineering consulting is available and we’d like to arrange mineral beneficiation experiment after received your sample and provide the test report.
For more details, please refer to our website: www.gelinmachinery.com
