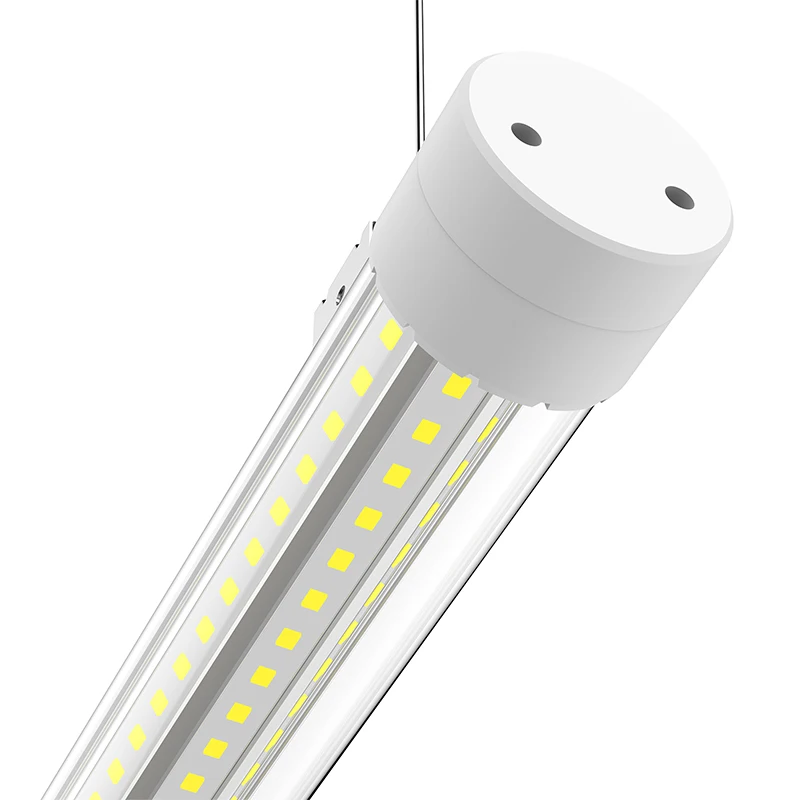

1200 мм 32 Вт затемняющий круглый алюминиевый Светодиодный линейный

Описание и отзывы

Характеристики



Specification
Input volatge	: AC100-277V/AC220-240V,50-60HZ

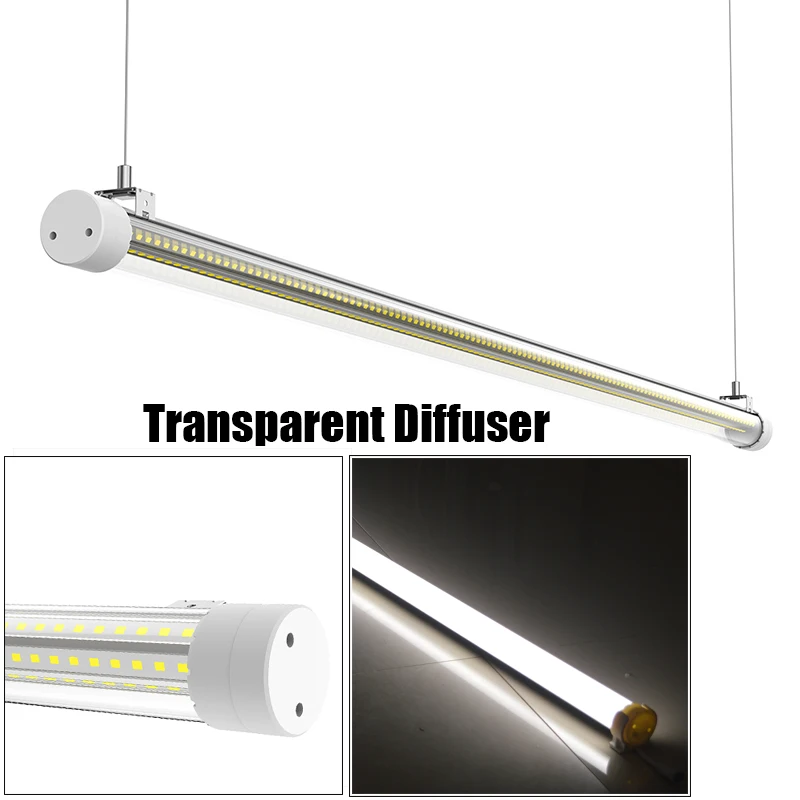

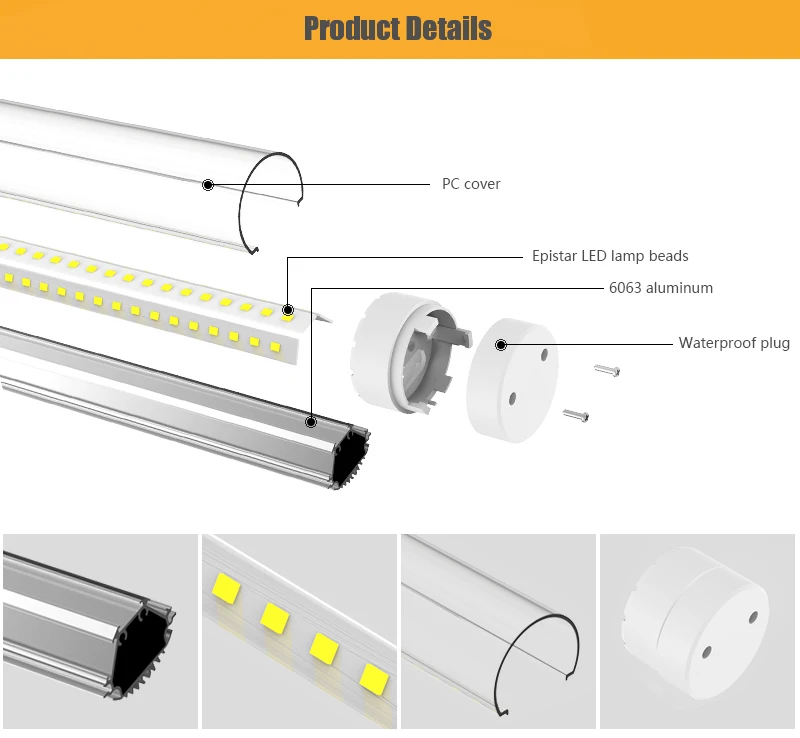

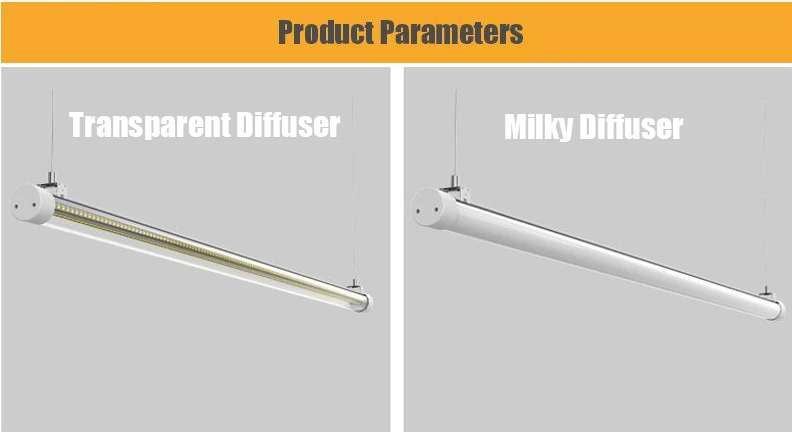

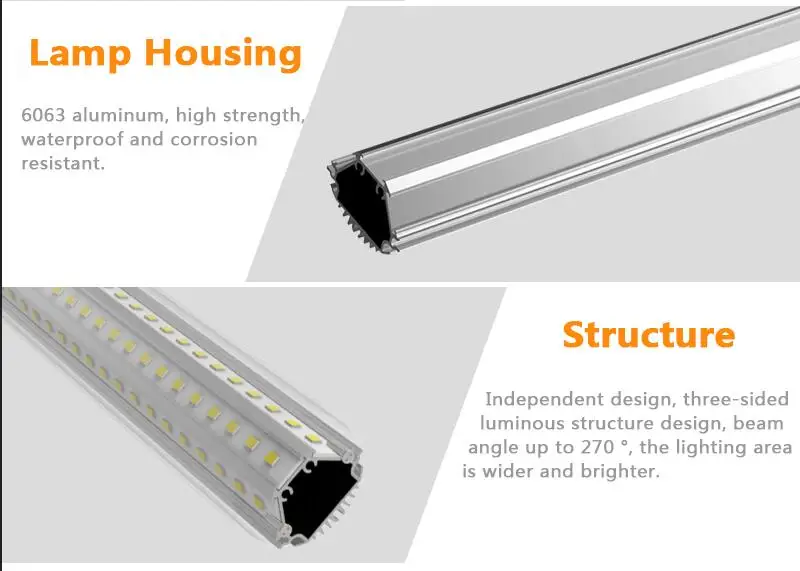

Material	: 6063Aluminium + PC diffuser

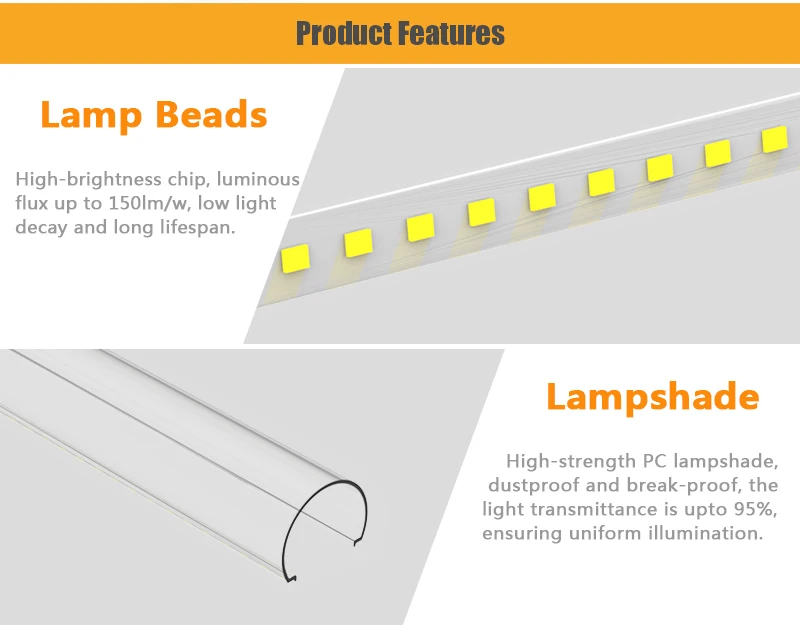

LED chip	: EPISTAR  SMD2835
Driver brand	: TPL
Color temeperature	: 3000K / 4000K / 6000K

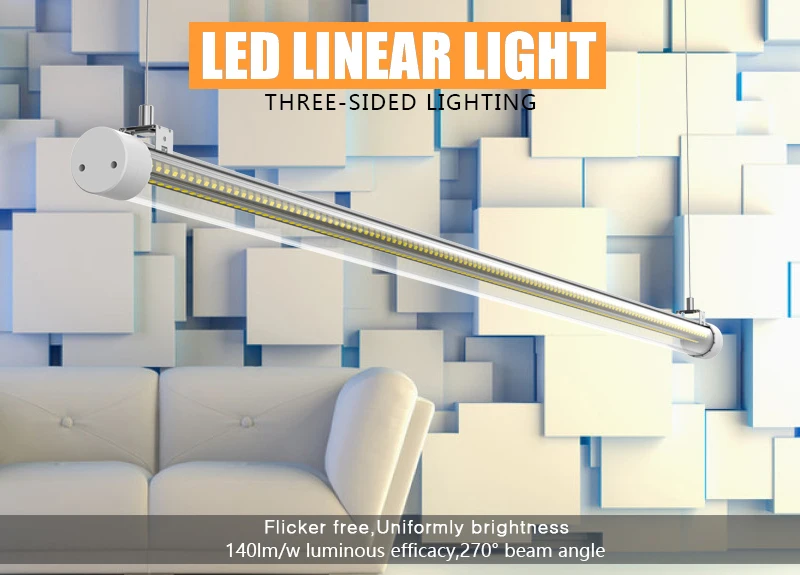

Beam angle	: 270°
PF	: >0.95,flicker free
CRI	: >80Ra
Lumens efficiency	: 135Lm/W

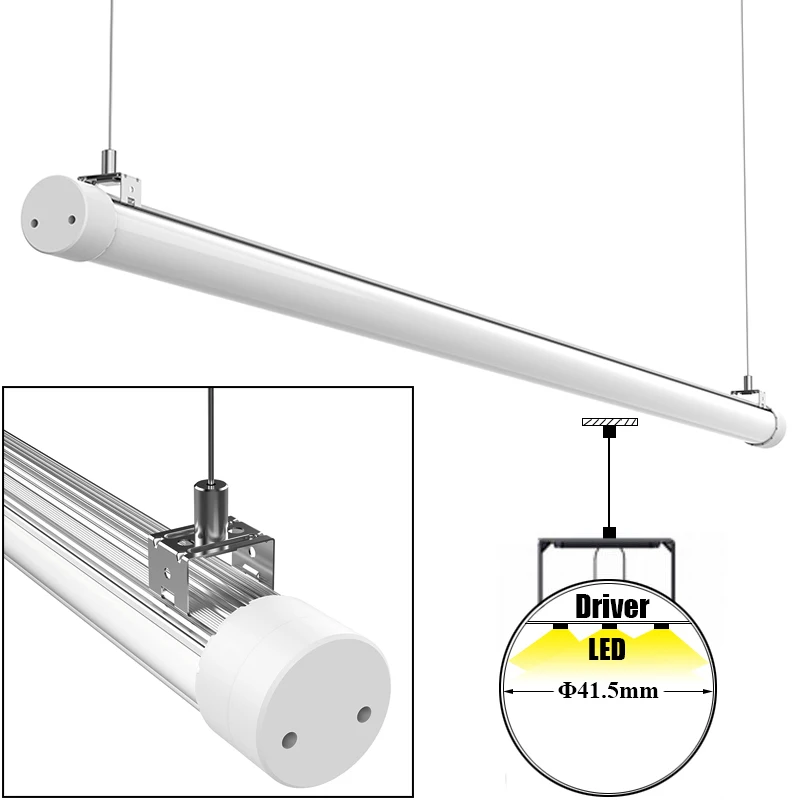

Diameter	: Φ41.5mm
Length option	: 2FT / 3FT / 4FT / 5FT / 6FT / 8FT
Shell color	: Aluminium color

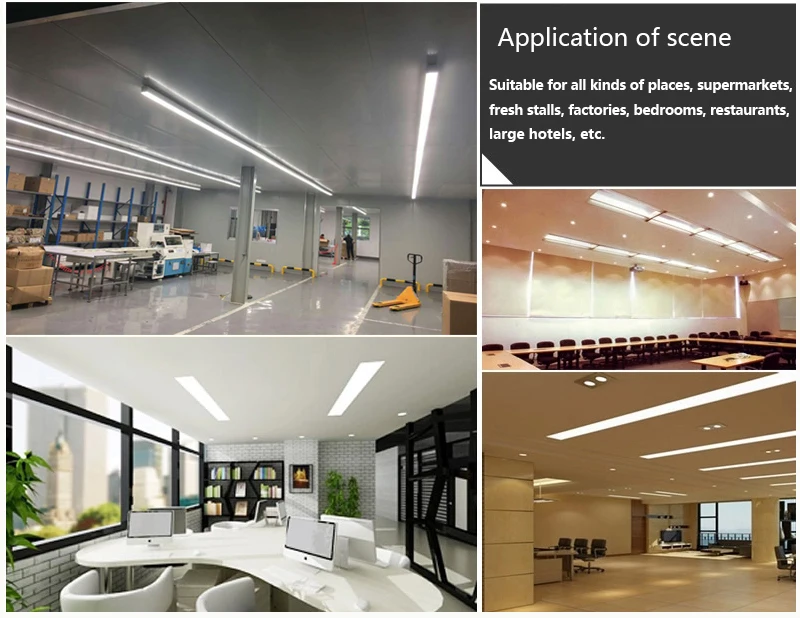

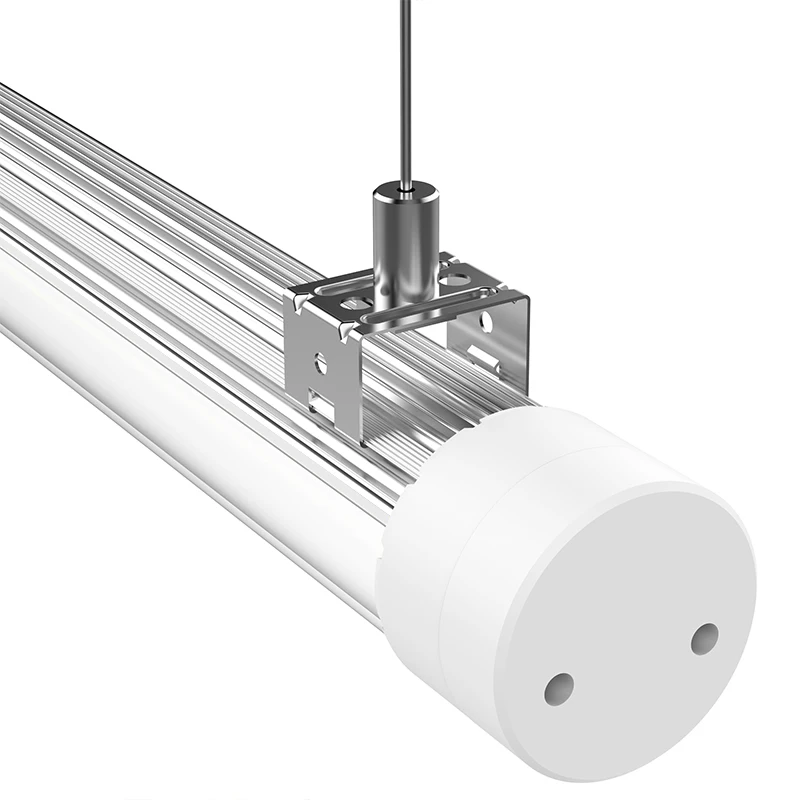

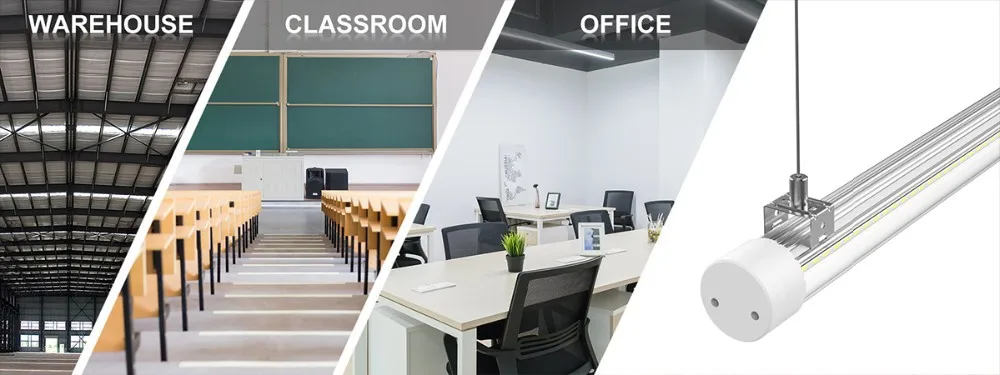

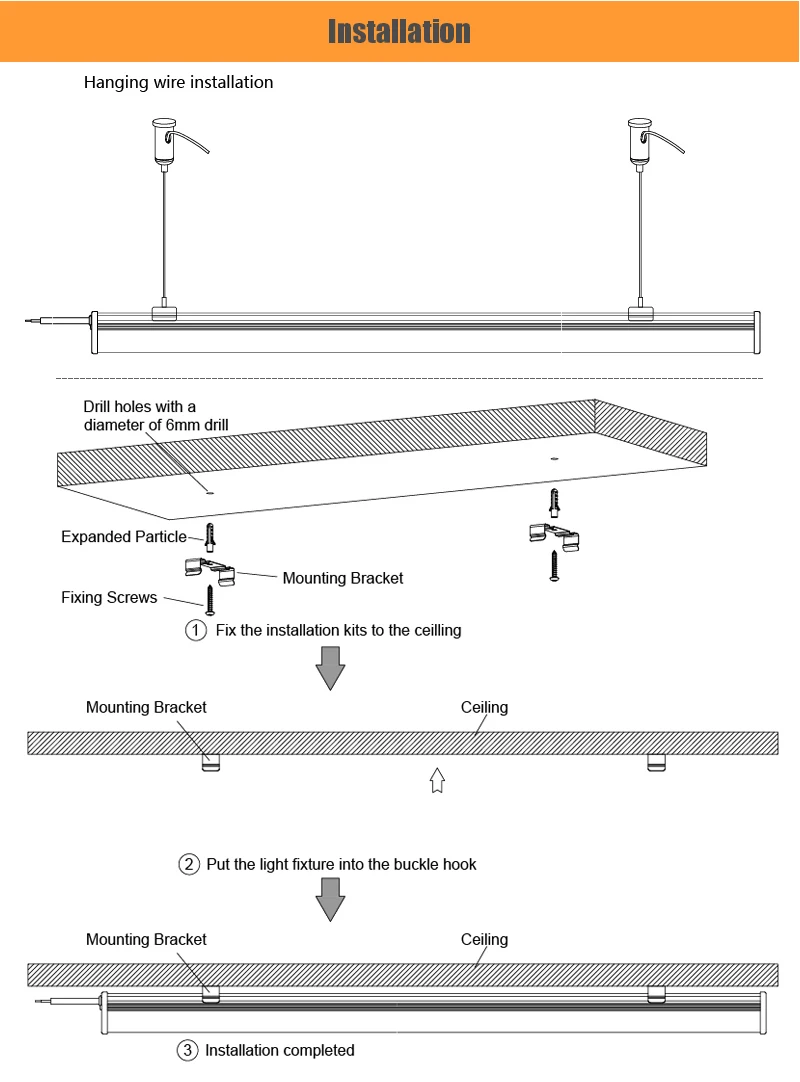

Installation	: Suspension / Ceiling surface mounted

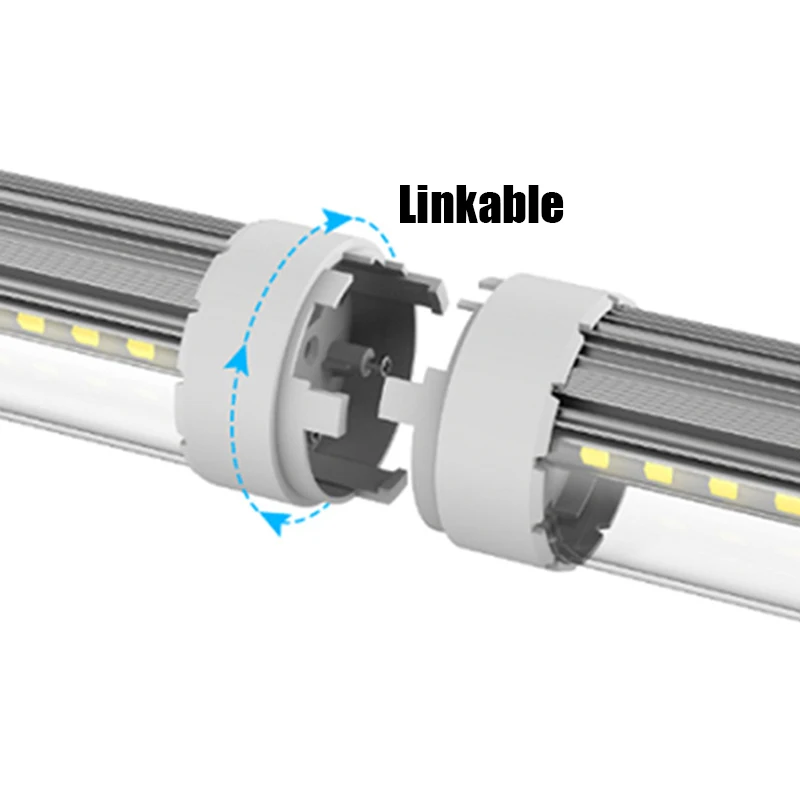

Linkable	: Yes
IP grade	: IP20



Model	Watt	Size	Lumens	LED Quantity
TP-T12L600-16W	16W	Φ41.5*L606 mm	2160 Lm	210 PCS
TP-T12L900-24W	24W	Φ41.5*L910 mm	3240 Lm	294 PCS
TP-T12L1200-32W	32W	Φ41.5*L1216 mm	4320 Lm	420 PCS
TP-T12L1500-40W	40W	Φ41.5*L1516 mm	5400 Lm	540 PCS
TP-T12L1800-48W	48W	Φ41.5*L1783 mm	6600 Lm	648 PCS
TP-T12L2400-64W	64W	Φ41.5*L2386 mm	8640 Lm	864 PCS







FAQ

Q1. Can I have a sample order for led light?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?

A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than.

Q3. Do you have any MOQ limit for led light order?

A: Low MOQ, 1pc for sample checking is available.

Q4. How do you ship the goods and how long does it take to arrive?

A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q5. How to proceed an order for led light?

A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.

Q6. Is it OK to print my logo on led light product?

A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q7: Do you offer guarantee for the products?

A: Yes, we offer 2-5 years warranty to our products.

Q8: How to deal with the faulty?

Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
