Product Overview

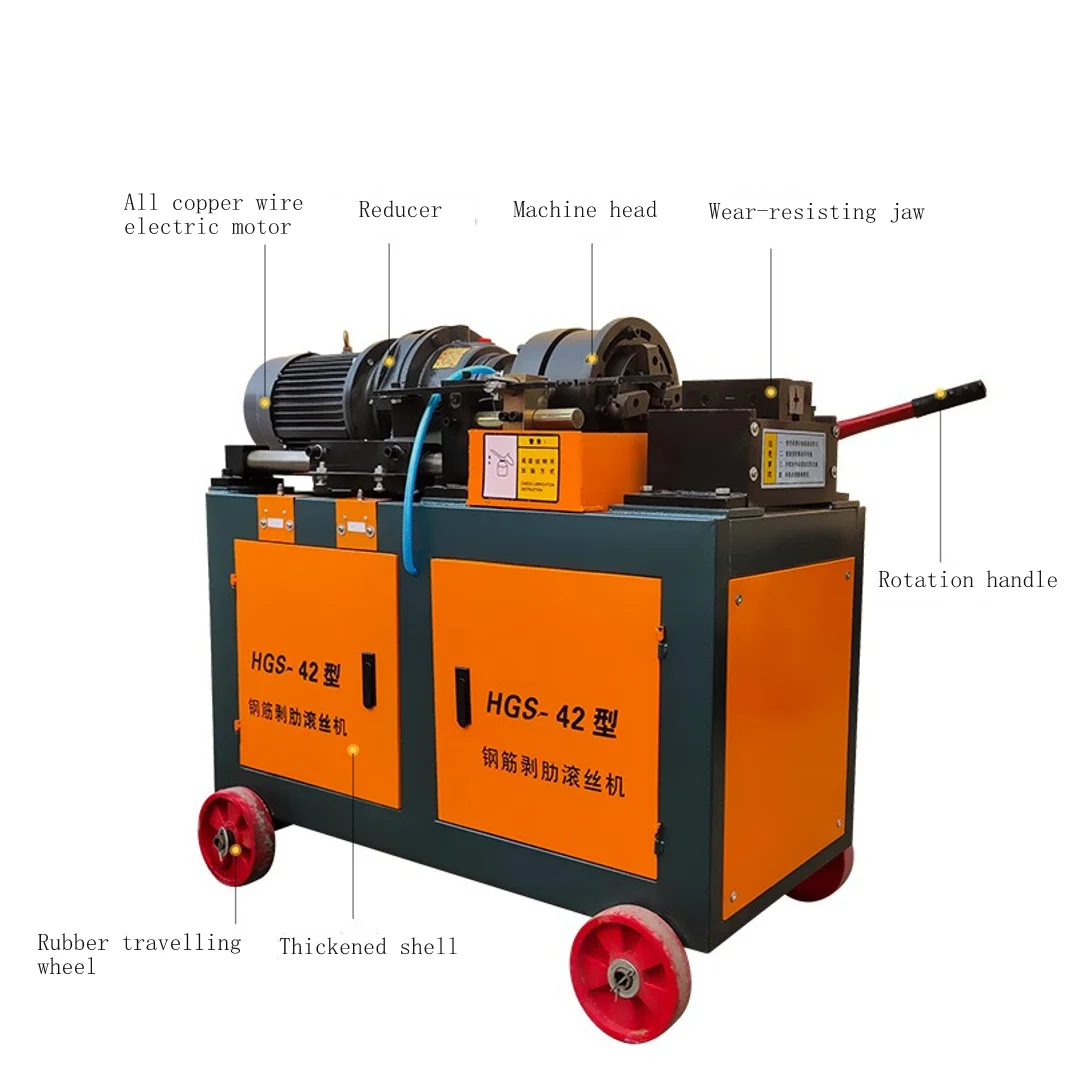

This machine is mainly used in the construction of ribbed steel bar straight screw thread processing, is to achieve reinforced straight thread connection process of key equipment. It consists of frame, clamp, guide, slide, reducer, stripping rib rolling head, feeding mechanism, automatic opening and closing mechanism, stroke limit structure, cooling system, electrical control box and control system.
PRODUCT SPECIFICATIONS
Model | HGS-40 | HGS-50 |
Power | 4Kw | 5.5Kw |
Voltage | 380v | 380v |
Frequency | 50Hz | 50Hz |
Processing Range | 16-32mm | 16-40mm |
Thread rolling length | 0-80mm | 0-100mm |
Weight | 320kg | 340kg |
Dimension | 1150*500*1060mm | 1200*600*1100mm |
FEATURES AT A GLANCE
1.It can complete rib peeling and rebar thread machine one time.
2.Good shape of thread and high precision.
3.Right thread and left thread are all available.
4.Left-handed and Right-handed thread can be processed.
5.Simple operation, good quality,realiable working,and high efficiency.
6.Rebar dia. for 12-50mm can be adjusted .
7. 600-900 heads per day.
PRODUCT CONFIGURATION

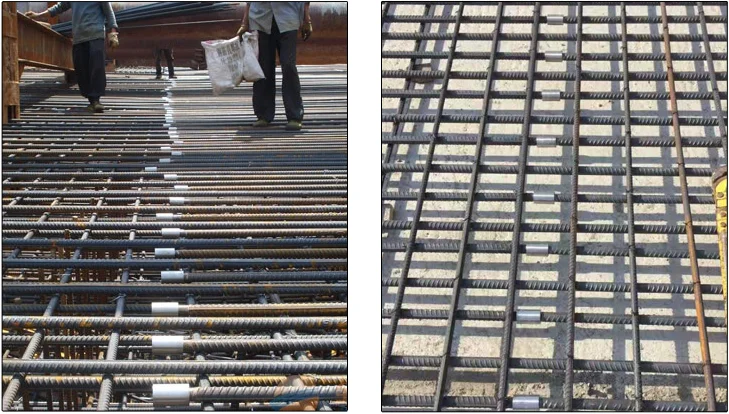

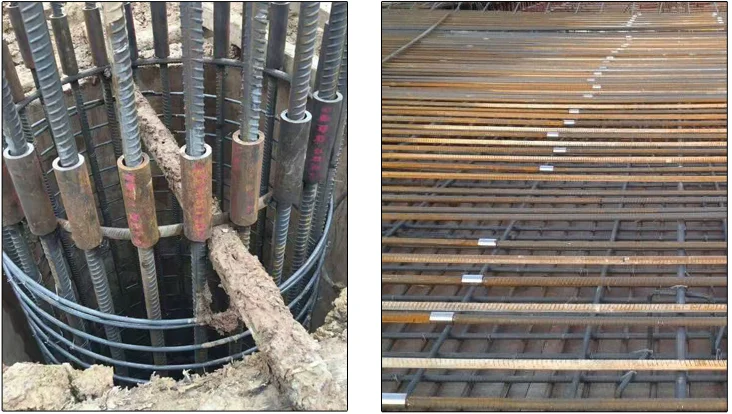

Successful Project

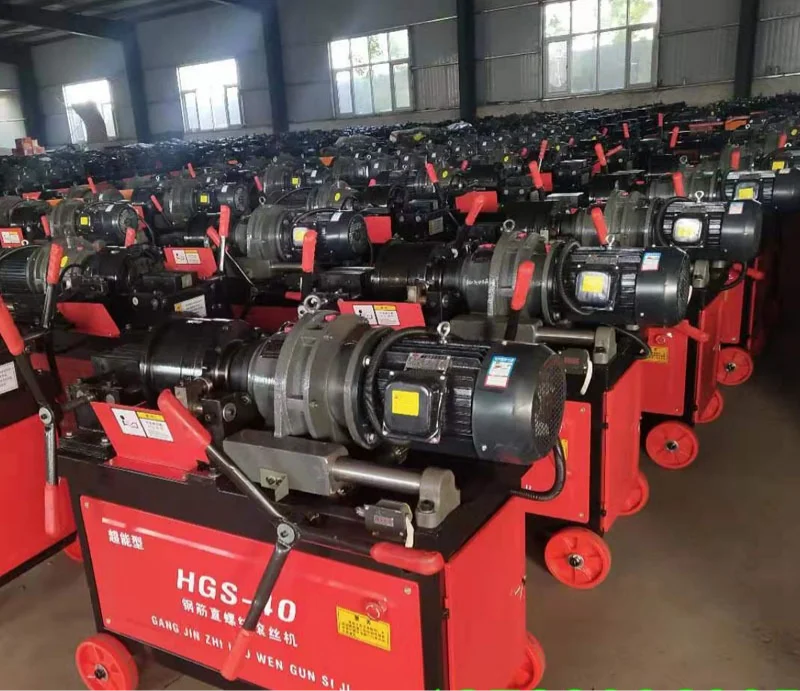

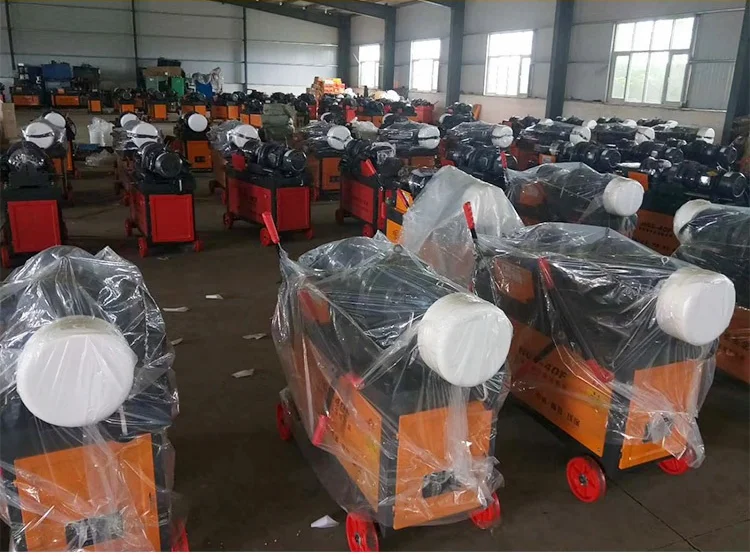

Workshop

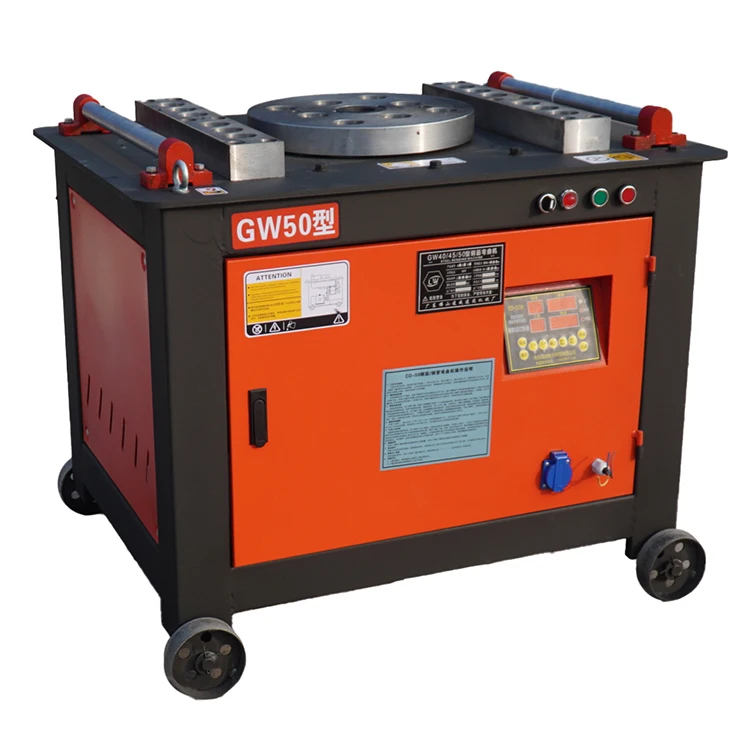

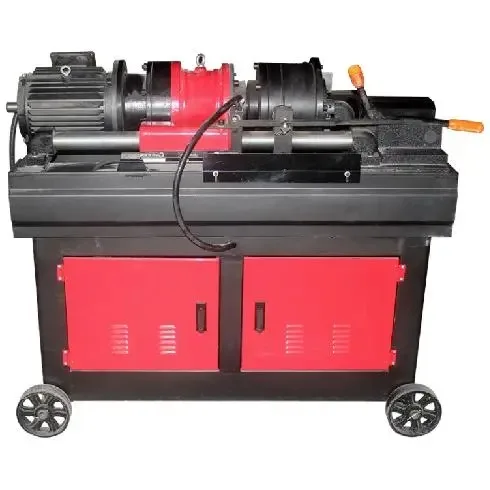

SIMILAR PRODUCTS
