Конвейерная цепь для удаления стружки
US $12.00-$80.00
Лидер продаж высокоточная Цанга ER шестигранная Зажимная гайка для станков с ЧПУ
- Категории: Other Machine Tools Accessories >>>
- Поставщик: Dezhou,Sailvin,Mechatech,Co.,Ltd
Поделиться:
Описание и отзывы
Характеристики
Product Description
Specification

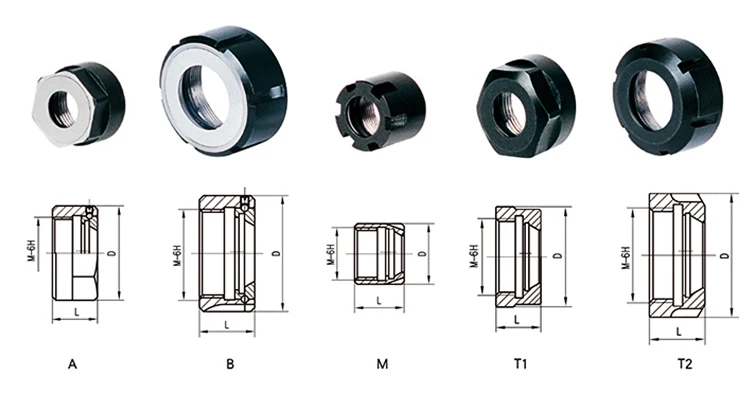

Model | Type | D | L | M | Weight(Kg) |
ER16 | A | 27 | 19 | M22 X 1.5 | 0.005 |
ER20 | A | 35 | 21 | M25 X 1.5 | 0.01 |
ER25 | A | 40 | 22 | M32 X 1.5 | 0.14 |
ER32 | A | 48 | 24 | M40 X 1.5 | 0.20 |
ER8-M | M | 12 | 12 | M10 X 0.75 | 0.005 |
ER11-M | M | 16 | 12 | M13 X 0.75 | 0.01 |
ER16-M | M | 22 | 18 | M19 X 1 | 0.05 |
ER20-M | M | 28 | 19 | M24 X 1 | 0.05 |
ER25-M | M | 35 | 20 | M30 X 1 | 0.08 |
ER11-T1 | T1 | 19 | 11.3 | M14 X 0.75 | 0.005 |
ER16-T1 | T1 | 28 | 17.5 | M22 X 1.5 | 0.01 |
ER20-T1 | T1 | 34 | 19 | M25 X 1.5 | 0.05 |
ER25-T2 | T2 | 42 | 20 | M32 X 1.5 | 0.14 |
ER32-T2 | T2 | 50 | 22.5 | M40 X 1.5 | 0.20 |
ER40-T2 | T2 | 63 | 25.5 | M50 X 1.5 | 0.30 |
ER50-T2 | T2 | 78 | 35.5 | M64 X 2 | 0.50 |
ER Clamping Nuts we produce
We produce all types of high precision ER collet clamping nut, includes hexagon A type ER clamping nut, Mini type ER collet clamping nut and UM type ER collet clamping nut, with material of 40Cr and the hardness is HRC48-52. Additionally we also produce other type machine tool accessories products, such as series collets, tool holders, precision vises, etc. Welcome to visit our website and confirm the order.
We produce all types of high precision ER collet clamping nut, includes hexagon A type ER clamping nut, Mini type ER collet clamping nut and UM type ER collet clamping nut, with material of 40Cr and the hardness is HRC48-52. Additionally we also produce other type machine tool accessories products, such as series collets, tool holders, precision vises, etc. Welcome to visit our website and confirm the order.
Packing & Delivery

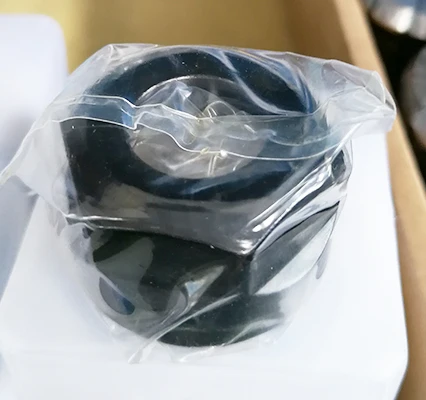

Single high precision ER collet clamping nut is packed by the plastic film, aims at protecting the ER collet clamping nut and prevent rusting when store up or shipment progress.
Each high precision ER collet clamping nut should be packed by the plastic film.
Each high precision ER collet clamping nut should be packed by the plastic film.
Independent carbon box package can protect material.
We can pack independent high precision ER collet clamping nut by carbon box. All hexagon A type ER clamping nut, Mini type ER collet clamping nu and UM type ER collet clamping nut is available to order
We can pack independent high precision ER collet clamping nut by carbon box. All hexagon A type ER clamping nut, Mini type ER collet clamping nu and UM type ER collet clamping nut is available to order

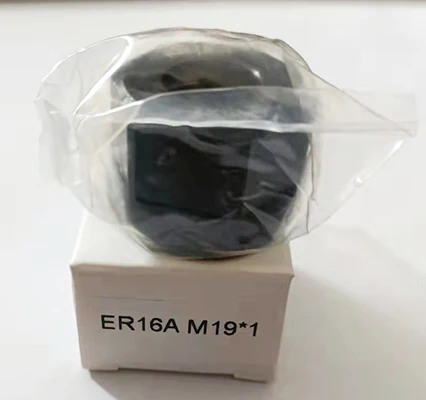

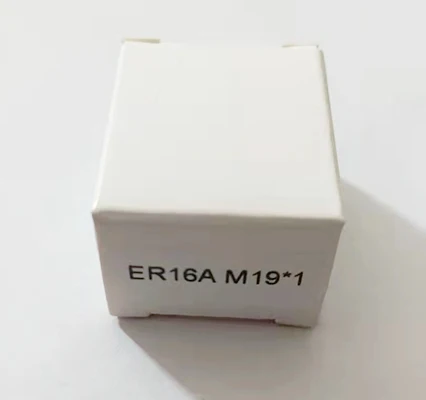

High precision ER collet clamping nut package
1, high precision ER collet clamping nut is packed by plastic film and carbon box, also will be stored before shipment.
2, High precision ER collet clamping nut batches are packed by carbon box.
3, Carbon boxes high precision ER collet clamping nut are packed by pallet, which is for shipment by sea or by air.
3, Carbon boxes high precision ER collet clamping nut are packed by pallet, which is for shipment by sea or by air.
Company Profile
DEZHOU SAILVIN MECHATECH CO., LTD. is a competitive private enterprise engages in production，sales and testing of machine tool parts, mainly in collets, tool holders and related accessories with a wide range of products and complete specification. Collets including ER collets, 5C collets, R8 collets, sealed collets, pull back collets, tapping collets, etc; Tool holders including BT type, ISO type, CAT type, DIN69871 type, DIN2080 type, NBT type and HSK series. Additionally we also make other accessories as precision vises, pull studs, clamping nuts, spanners, etc. Products are exported to Europe, America, East Asia, Southeast Asia, and have won the trust of customers.
We fully develop domestic and international business and has independent import and export licenses, which can guarantee the products quality. While ensuring high-quality service to customers, we try our best to persevere in quality control and keep improving our service standards. We will persist in innovation, promote the development of the industry, strive to enhance market value, move Made in China to Create in China
We fully develop domestic and international business and has independent import and export licenses, which can guarantee the products quality. While ensuring high-quality service to customers, we try our best to persevere in quality control and keep improving our service standards. We will persist in innovation, promote the development of the industry, strive to enhance market value, move Made in China to Create in China
Advanced workshop machines which guarantee the output quality
Advacned collets machines, lathe machines, grooving machine which with high precision, semi and fully automatic operation that ensure products quality.
Advacned testing machines to guarantee the qualification rate
We have advaced machines to measure products 3D, precision, accuracy, etc, aims at supply the highest cost performance products to all customers.
1, Trilinear coordinates measuring instrument is to measure size of tools, distance, angles, diameters, etc.
2, Precised testing machine is to guarantee the precision of tool holders, collets, etc.
3, Haimer balancing machine will guarantee the stability.
1, Trilinear coordinates measuring instrument is to measure size of tools, distance, angles, diameters, etc.
2, Precised testing machine is to guarantee the precision of tool holders, collets, etc.
3, Haimer balancing machine will guarantee the stability.

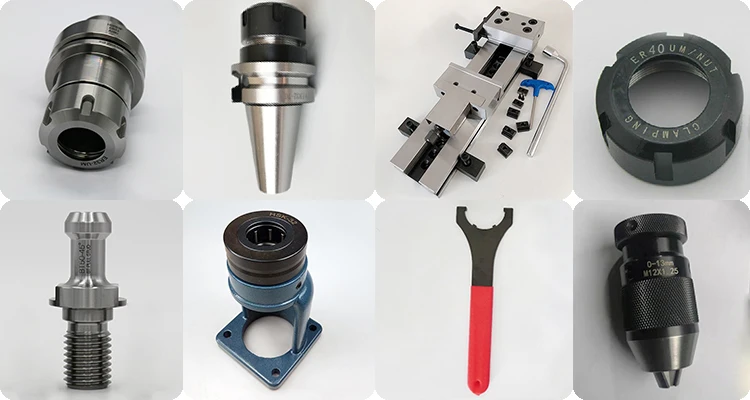

Other machine tool accessories products we also produce
We also produce tool holders, vises, clamping nuts, pull studs and other related products. We list as following, if any products, you are interested in, please click the image, that will share you the related products (items) link.
FAQ
Q: Are you manufacturer or Trader?
A: We are specialized in production of machine accessories, including collets, tool holders, vises, drill chucks and
A: We are specialized in production of machine accessories, including collets, tool holders, vises, drill chucks and
related accessories. We are authorized in exporting and importing business with international business team.
Q: How can you guarantee your products quality?
A: We have professional engineers who engaged in this industry more than 10 years. Meanwhile we produce products
by advanced machines which will guarantee the prodcution processing. Also we pay much attention in testing and
QA, aims to ensure to supply qualified products.
Q: How to execute your after sales service?
A: After checking and finalize that problems are caused with products defects, we will replace products. If for usage
problem, we can provide online training and service.
Q: What is your MOQ?
A: For better acknowledge to our products, we can supply sample for testing.
Q: What is your leadtime?
A: It depends on products model and quantity. We will try our best to ship as soon as possible.
Q: How can you guarantee your products quality?
A: We have professional engineers who engaged in this industry more than 10 years. Meanwhile we produce products
by advanced machines which will guarantee the prodcution processing. Also we pay much attention in testing and
QA, aims to ensure to supply qualified products.
Q: How to execute your after sales service?
A: After checking and finalize that problems are caused with products defects, we will replace products. If for usage
problem, we can provide online training and service.
Q: What is your MOQ?
A: For better acknowledge to our products, we can supply sample for testing.
Q: What is your leadtime?
A: It depends on products model and quantity. We will try our best to ship as soon as possible.
