Product Overview
12.5kg 6kg old LPG Gas Cylinder Refurbishment and Requalification Line
Wuxi Longterm Group -- Wuxi Hansheng Pressure Vessel Industrial Co. LTD. is professional in LPG New Cylinder Production Line, old LPG Repairing Reconditioning Line manufacture. We've been in this field for more than 30 years.
we can provide you
1.Detailed Proposal and Price List
2.Technical Specification
3.Technical Drawing Design
4.Production Flow Design
5.Production Line Layout Drawing
6.Technical Support for Factory Operation
7.Thorough Spare Parts
8.Machine Maintance and Installation, Commissioning Service
we can provide you
1.Detailed Proposal and Price List
2.Technical Specification
3.Technical Drawing Design
4.Production Flow Design
5.Production Line Layout Drawing
6.Technical Support for Factory Operation
7.Thorough Spare Parts
8.Machine Maintance and Installation, Commissioning Service
LPG cylinder Detection Flow Chart
Appearance inspection--Residual liquid and residual gas detection--Dismounting angle
valve--Incinerator incineration--Water pressure testing--Shot blasting and rust removal on steel cylinder surface--Cylinder

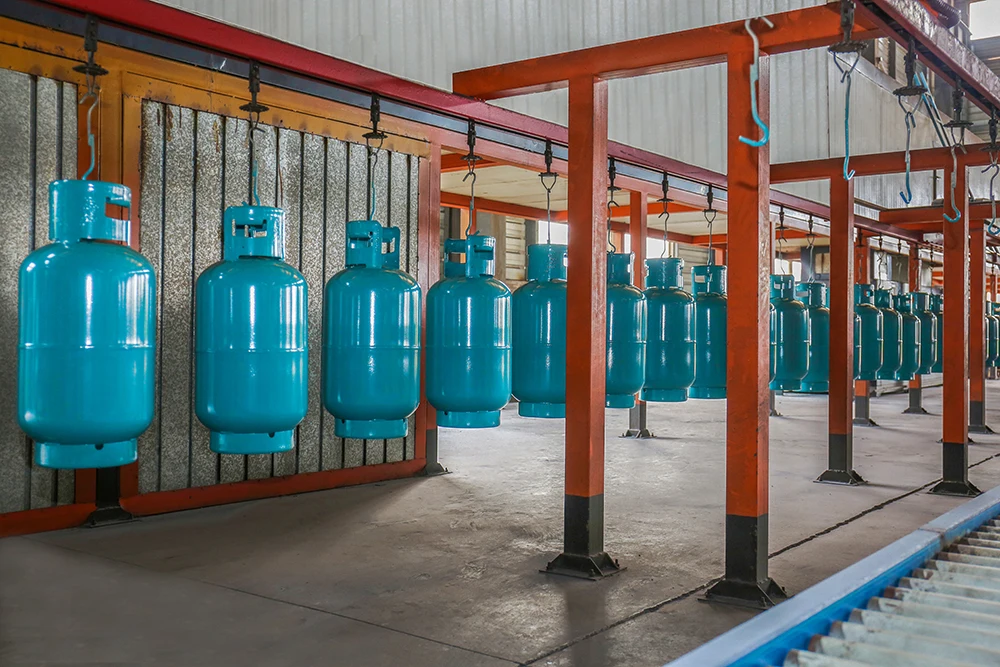

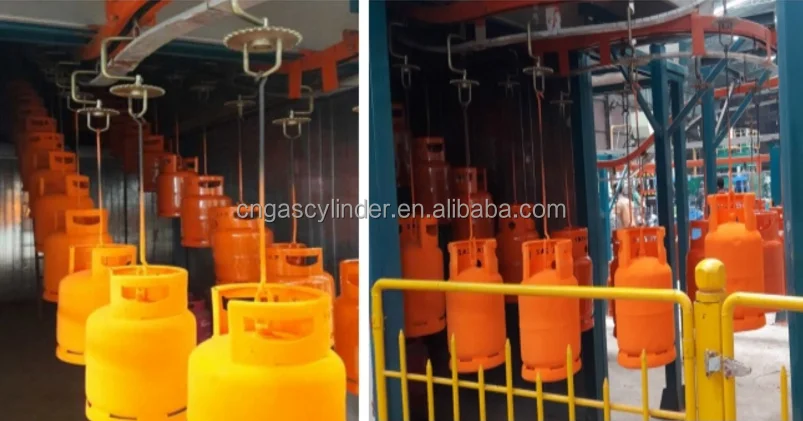

spraying and curing--Check weight--install angle valve--Air tightness test--Vacuuming--Printed word--Warehouse
valve--Incinerator incineration--Water pressure testing--Shot blasting and rust removal on steel cylinder surface--Cylinder
spraying and curing--Check weight--install angle valve--Air tightness test--Vacuuming--Printed word--Warehouse

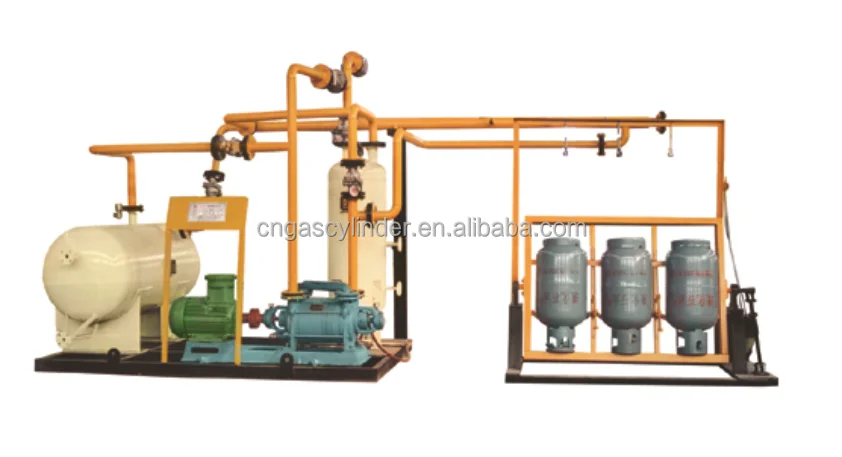

Gas Liquid Removal Machine / Residual liquid and residual gas detection
Used for the recycling of residual gas and liquid in LPG cylinder Working efficiency: 150 cylinders/hour for 12 kg 40~60 cylinders/hour for 45 kg &50 kg
Main technical parameter:
1. Power : 7.5 kw
2. Gas & liquid separator: 0.4 m³
3. Air source pressure:0.4-0.6 Mpa
4. Turnover period:＜30s/time
5. One time residual cleaning time:≥2 min
6. Overall size:4700*1500*2050 mm
7. Working efficiency: 150 cylinders/hour
Main technical parameter:
1. Power : 7.5 kw
2. Gas & liquid separator: 0.4 m³
3. Air source pressure:0.4-0.6 Mpa
4. Turnover period:＜30s/time
5. One time residual cleaning time:≥2 min
6. Overall size:4700*1500*2050 mm
7. Working efficiency: 150 cylinders/hour

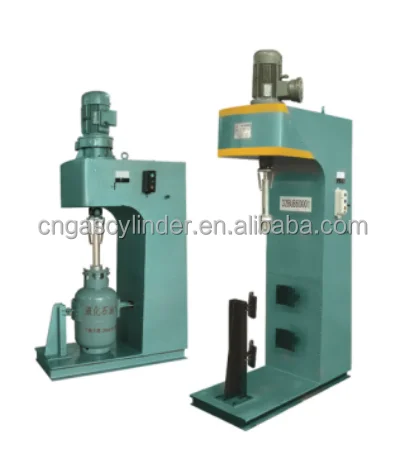

Valve Dismantling & Mounting Machine
Anti-explosion
Working efficiency: 150 cylinders/hour
40~60 cylinders/hour for 45kg&50kg
Suitable to mounting and dismantling the valves of model YSP-10, 15 and 50 LPG cylinders.
Main technical parameter:
1. Motor power:1.5kw
2. Drive speed ration:1:30
3. Main shaft speed ration:31r/min
4. Air source pressure:0.5-0.6MPa
5. Working efficiency: 150 cylinders/hour
6. Overall size:600*600*1800mm
Working efficiency: 150 cylinders/hour
40~60 cylinders/hour for 45kg&50kg
Suitable to mounting and dismantling the valves of model YSP-10, 15 and 50 LPG cylinders.
Main technical parameter:
1. Motor power:1.5kw
2. Drive speed ration:1:30
3. Main shaft speed ration:31r/min
4. Air source pressure:0.5-0.6MPa
5. Working efficiency: 150 cylinders/hour
6. Overall size:600*600*1800mm

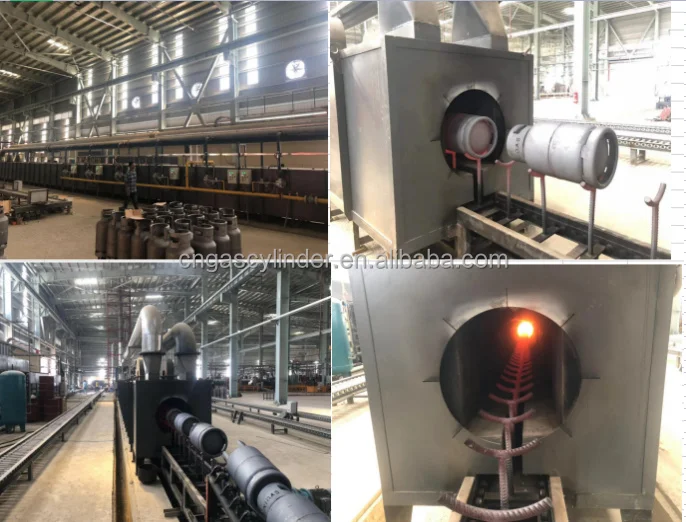

LPG Cylinder Incinerator Furnace
Used for burning off the paint on the old cylinders and liquid inside the cylinder
Main technical parameter:
1. Furnace chamber temperature setting: ＜400℃ (On the basis of meeting the requirements of burning bottles)
2. Workpiece temperature:≈400℃
3. Consumption of gas and fuel: Fuel burner type(100,000kcal), 4~5Kg/h·set
4. Power supply: 3.3Kw
5. Speed ratio: 493
6. Overall dimension: 16000 x 1500 x 1800mm
7. Working efficiency: 150 cylinders/hour
Main technical parameter:
1. Furnace chamber temperature setting: ＜400℃ (On the basis of meeting the requirements of burning bottles)
2. Workpiece temperature:≈400℃
3. Consumption of gas and fuel: Fuel burner type(100,000kcal), 4~5Kg/h·set
4. Power supply: 3.3Kw
5. Speed ratio: 493
6. Overall dimension: 16000 x 1500 x 1800mm
7. Working efficiency: 150 cylinders/hour

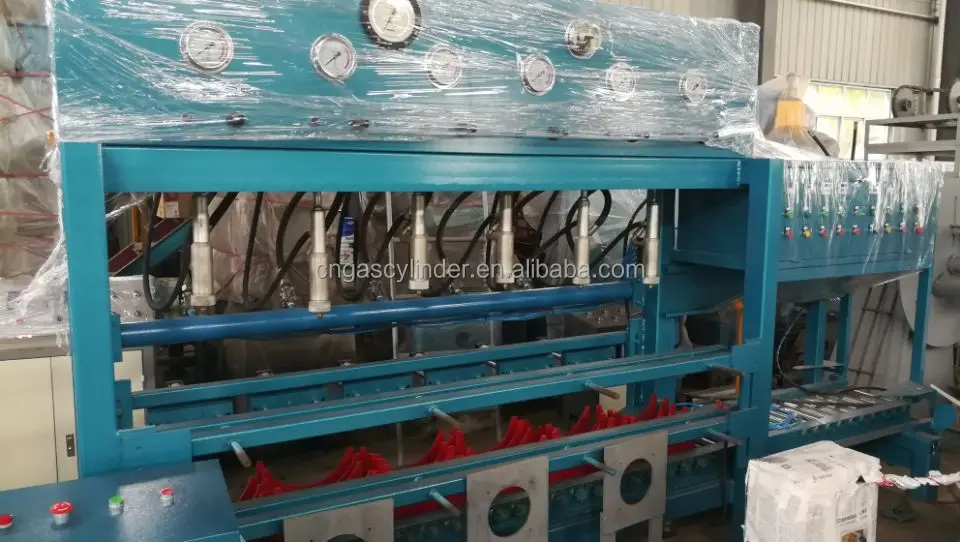

Hydro Water Pressure Testing Machine
Semi-auto Type Main parameter:
Air pressure: 0.6Mpa
Water test pressure: 3.2Mpa (adjustable)
Holding time: 60s
Irrigation time: 90s
Dewatering time: 50s
Motor power: 3KW
Weight of machine: 4ton, 6ton
No. of station: 6 station
Size of cylinder available: 320*700-420*1250mm
Air pressure: 0.6Mpa
Water test pressure: 3.2Mpa (adjustable)
Holding time: 60s
Irrigation time: 90s
Dewatering time: 50s
Motor power: 3KW
Weight of machine: 4ton, 6ton
No. of station: 6 station
Size of cylinder available: 320*700-420*1250mm
SALES AND SERVICE NETWORK
Quality After sales service
1. Timely & satisfied oversea installation service
2. We have rich experience for oversea installation and commissioning work,
3.we always send the skilled engineers for assisting our clients to run the machine smoothly and quickly.
4.Workshop layout drawing and machine layout drawing, foundation drawing design
5. Online training
Company Profile
Wuxi Hansheng Pressure Vessel Industrial Co. LTD.
Wuxi Longterm Group -- Wuxi Hansheng Pressure Vessel Industrial Co. LTD. is the professional manufacturer of auto-LPG CYLINDER MAKING MACHINE LINES, auto-manufacturing equipment and Semi -automatic welding system integration, as well as related equipment.Due to highly automatic, simple operation,welding strength and service life with the same stainless steel and plate, is widely used in aerospace, chemical industry, machinery, pressure vessels, fire extinguishers, water heater, enamel water tank, stainless steel products and other industries.
FAQ
Overseas installation LPG gas cylinder machinery for recondition line
Q: What size of LPG cylinder your machine can produce?
A: 3kg 6kg, 12kg,12.5kg 13kg 15kgs , 20kg 25kg 30kg 35kg, 40kg and 50kgs LPG cylinder for cooking and other size according customers’ requirement.
Q: Can you design machines according LPG cylinder technical drawing?
A: Sure, please send your technical drawing to us.
Q: What are the benefits to choose your machines?
A: Our machines are strong and reliable for long term industrial manufacturing
Q: What size of LPG cylinder your machine can produce?
A: 3kg 6kg, 12kg,12.5kg 13kg 15kgs , 20kg 25kg 30kg 35kg, 40kg and 50kgs LPG cylinder for cooking and other size according customers’ requirement.
Q: Can you design machines according LPG cylinder technical drawing?
A: Sure, please send your technical drawing to us.
Q: What are the benefits to choose your machines?
A: Our machines are strong and reliable for long term industrial manufacturing
In order to recommend you the proper machine, we'd like to get the below info from you:
- What's the cylinder size you want to fix?
- cylinder drawing and picture？
- how many pcs old cylinder will for repairing each shift/8h/ day?
-- Workshop size and budget for this line?
With high quality technology guarantee, our LPG cylinder quality can be guaranteed
You can get the best machine from LTM!
Looking forward to seeing you soon!
