Автоматический регулятор высоты горелки HP130 плазменной
- Категории: CNC Controller >>>
- Поставщик: Meisar,(Changzhou),Intelligent,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description

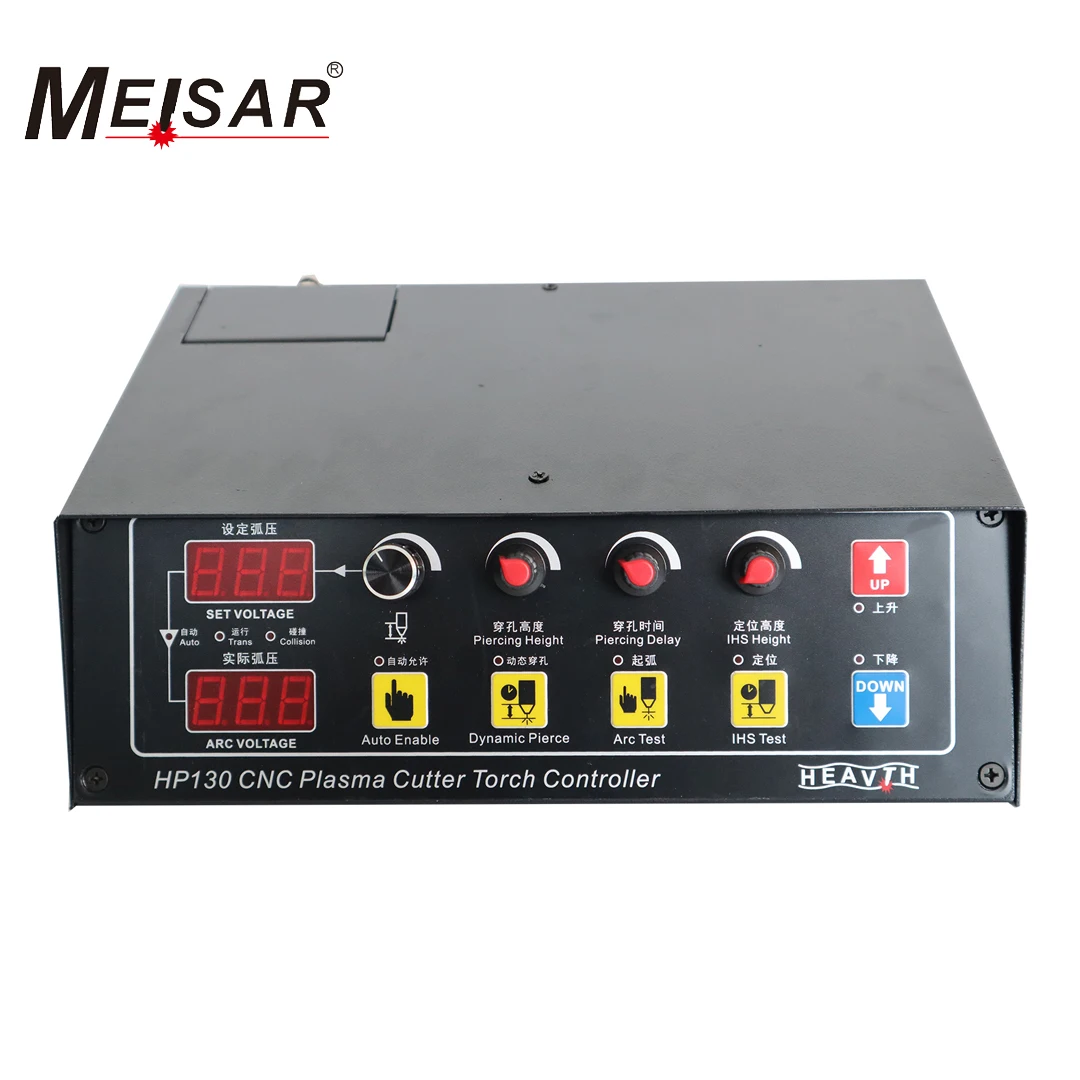

HP130 torch height controller is equipped with constant current plasma source. When the distance gets farther，the arc voltage increases; On opposite, the arc voltage will decrease. HP130 torch height controller will inspect the voltage change, then control the distance between cutting torch and material via the lift motor.
Generally, the instruction will list all the cutting parameters for some type of plasma. The user can refer to these parameters. Adjust the voltage in controller to match the selected current. The torch height will keep constant under regular speed.
Specification
Input Voltage: | DC24V±10% |
Lifter Motor: | DC24V Motor Max 40W |
Drive Motor: | PWM H-bridge |
Output Current: | 4A |
Tracking Accuracy: | ±1V~5V Adjust |
Working Temperature: | -10∽60℃ |
Size/Weight: | 278mmX225mmX80mm, 3kg |
IHS Type: | Switch inspecting IHS and Shield IHS |
Protection class: | IP64, to prevent dust entering |
Features: | AVR core, Rich function, 2EDG plug |
Isolation Type: | Inside ArcV Isolate, Power circuit, I/O port |
Function: | LCD display, Panel test, I/O Part definition |
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

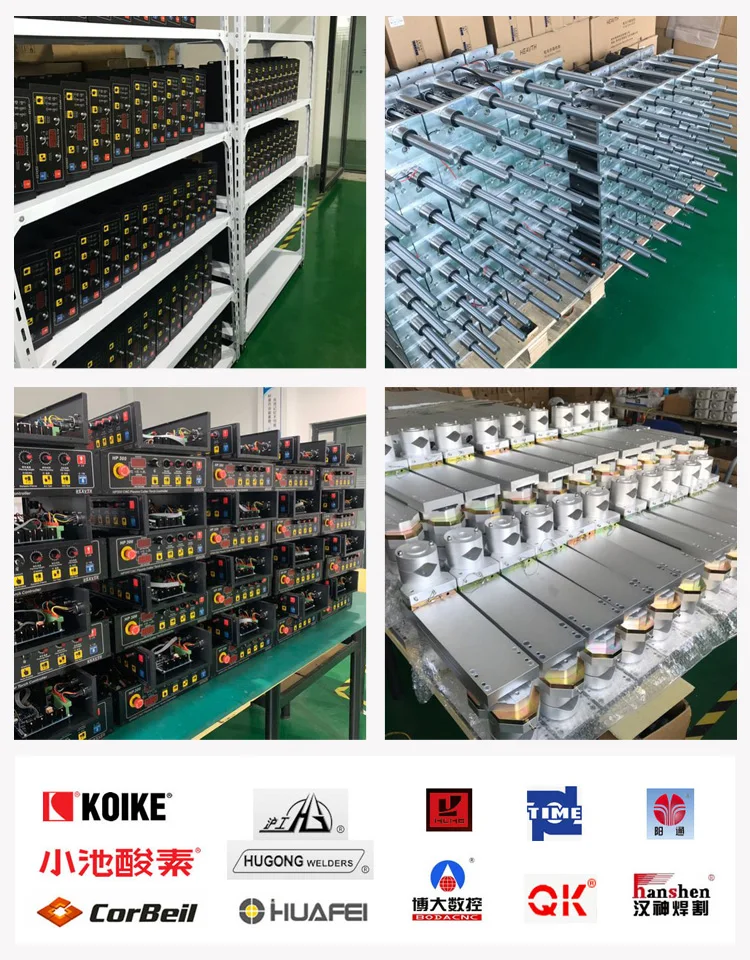

Company Profile
FAQ
Q1：Does the machine can be customized according to my requirements?A1：Sure, we have a strong technical team and have rich experience. Our goal is to make you satisfied.
Q2：Can you arrange the shipment for me ?
A2：We can arrange the shipment for our clients by sea or by air. Trading terms FOB, CIF, EXW are available.
Q3：What's your payment terms?
A3：We usually accept all kinds of payment terms. Such as T/T, L/C, Western Union, PayPal, Cash.
Q2：Can you arrange the shipment for me ?
A2：We can arrange the shipment for our clients by sea or by air. Trading terms FOB, CIF, EXW are available.
Q3：What's your payment terms?
A3：We usually accept all kinds of payment terms. Such as T/T, L/C, Western Union, PayPal, Cash.
