Product Description

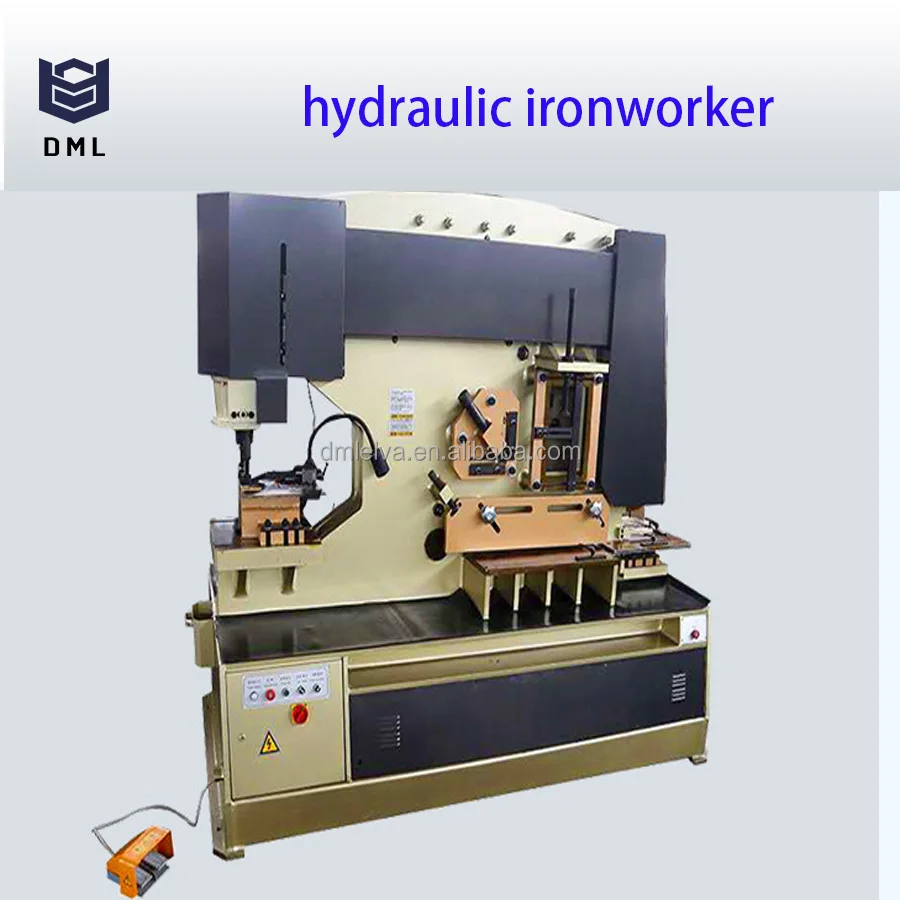

Multi Steamer High Quality Hydraulic Iron Worker Machine
Punching
Full range of universal punches and dies are available.unique style allows for large angle iron punching and large channel punching. Large viewing window on stripper swing away design for ease of operation. large two piece gauging table with rulers and stop as standard fittings. Quick change coupling nut and sleeve for rapid replacement of change
Full range of universal punches and dies are available.unique style allows for large angle iron punching and large channel punching. Large viewing window on stripper swing away design for ease of operation. large two piece gauging table with rulers and stop as standard fittings. Quick change coupling nut and sleeve for rapid replacement of change
Notching
Unique design allows for cutting of angle and flat bar. Electrical interlock safety guard and three gauging stops for precise positioning. The notching section of this hydraulic ironworker is perfect for notching out metal plate,
angle iron and much more. The notching station also has an oversized table with material stops. This section of the machine can also be outfitted with the optional vee notcher
Unique design allows for cutting of angle and flat bar. Electrical interlock safety guard and three gauging stops for precise positioning. The notching section of this hydraulic ironworker is perfect for notching out metal plate,
angle iron and much more. The notching station also has an oversized table with material stops. This section of the machine can also be outfitted with the optional vee notcher
Cutting
Round and square bar shear has multiple holes for a variety of sizes. Adjustable hold down device for round/square bar, channel/beam cutting. Large strong guarding for max safety. The angle shear has the ability to cut angle at 45°both top and bottom leg.
This gives the operator the ability to make a picture frame corner for perfect welds. Diamond shaped blade for quality cuts that is minimal
material lost and deformity. Easily adjustable hold-down device for accurate plate cutting.large 15″squaring arm with inlaid scale.Special anti-distorted blade for quality cutting.
Lower blade has four usable edges. There is screw allow for gap adjust no shim needed.
Round and square bar shear has multiple holes for a variety of sizes. Adjustable hold down device for round/square bar, channel/beam cutting. Large strong guarding for max safety. The angle shear has the ability to cut angle at 45°both top and bottom leg.
This gives the operator the ability to make a picture frame corner for perfect welds. Diamond shaped blade for quality cuts that is minimal
material lost and deformity. Easily adjustable hold-down device for accurate plate cutting.large 15″squaring arm with inlaid scale.Special anti-distorted blade for quality cutting.
Lower blade has four usable edges. There is screw allow for gap adjust no shim needed.

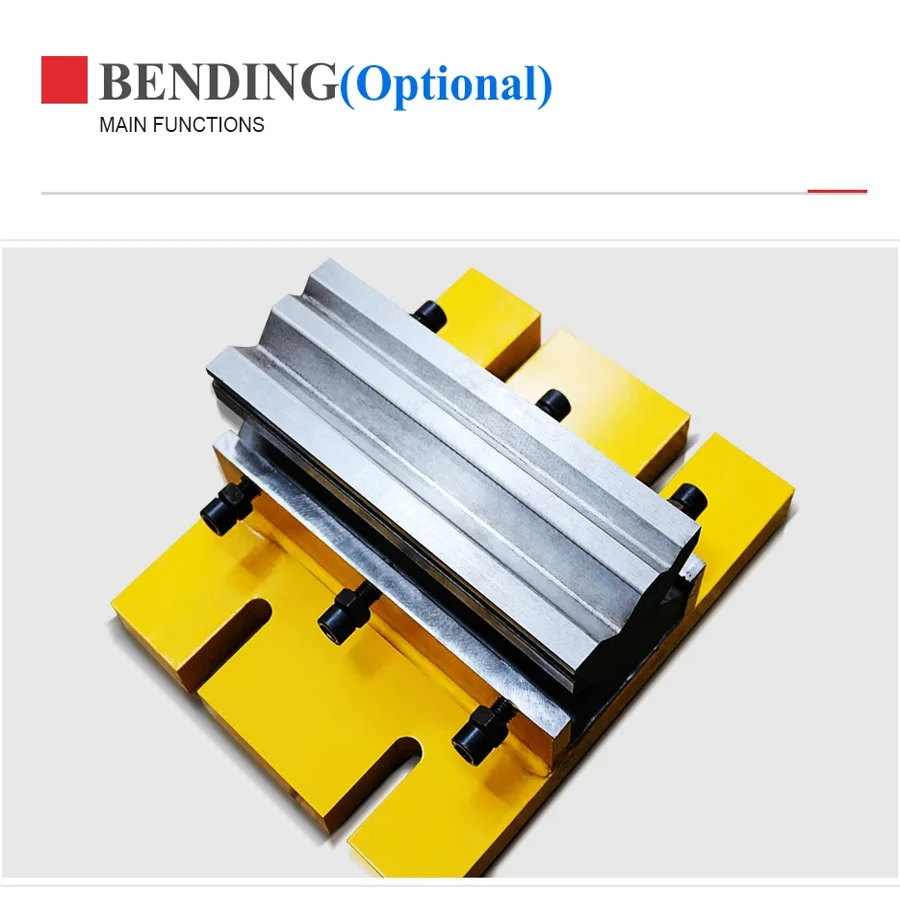

Bending
Also bend the plate below 500mm. All the components of Machine are of the highest quality in their safty, function, capability and maintenance
Also bend the plate below 500mm. All the components of Machine are of the highest quality in their safty, function, capability and maintenance
Product Application
Machine is widely uesd in steel , coal , high-speds railway , highway , automobile , shipbuilding , electric poower and other industries and so on .
Main Features
1) Punch hole
2) Cut angle bar
3) Cut round and square bar , channel bar and I-beam
4) Shearing plate
5) Notching
Machine is widely uesd in steel , coal , high-speds railway , highway , automobile , shipbuilding , electric poower and other industries and so on .
Main Features
1) Punch hole
2) Cut angle bar
3) Cut round and square bar , channel bar and I-beam
4) Shearing plate
5) Notching
Specification
item | value |
CNC or Not | Normal |
Condition | New |
Nominal Force (kN) | 1200 |
Power Source | Hydraulic |
Place of Origin | China |
Brand Name | DML |
Year | 2020 |
Voltage | 380 |
Certification | ISO |
Motor Power (kW) | 7.5 |
Weight (T) | 3.7 |
Key Selling Points | High Productivity |
Warranty | 1 Year |
Free spare parts, Online support | |
After Warranty Service | Video technical support, Online support |
Local Service Location | Australia, Uzbekistan |
Showroom Location | France, Kenya |
Applicable Industries | Manufacturing Plant, Construction works , Machinery Repair Shops, Building Material Shops |
Product name | Ironworker Machine |
Machine Type | Hydraulic Scrap Shears |
Function | Punching Shearing Bending |
Name | Ironworker Punching |
Keyword | Mechanical Metal Punching Machine |
Type | Q35Y-25 |
Application | Metal Sheet Punching |
Model | Q35Y-25 Ironworker |
Usage | Metal Sheet Punching Cutting Bending |
Color | Customizable |
Packing & Delivery
Multi Steamer High Quality Hydraulic Iron Worker Machine
protective film package,if necessary we could packed as customs*s request.
protective film package,if necessary we could packed as customs*s request.
Company Profile
FAQ
1.How about your machine quality? We are worry about the quality.
RE: Lifeng company is a mature brand in CHINA,through our many years research in technology,our design including structure and detailed security and precision has enhanced greatly,and can match all the CE standard or more strict standard.Our machines distribute worldwide to about 50 countries where there are metal plate industry ,there are Brillante machines.And where there are our machines,there are good reputation and terminal user satisfaction.
2.Whether the machine price can be more discount?
RE:1. Lifeng always provide high quality machine,as we know ,oversea market is more important and difficult than domestic market because of communication time costing after sales,So always,our machine has enough quality standard to make sure the machine can work more than the real warranty period.In this way ,we will save a lot and think in advance for the clients.
RE:2. we are sure to provide quality=price and price=quality ,the matched price and acceptable for the clients and durable for our machines.We welcome your negotiate with us and get a good satisfaction.
RE: Lifeng company is a mature brand in CHINA,through our many years research in technology,our design including structure and detailed security and precision has enhanced greatly,and can match all the CE standard or more strict standard.Our machines distribute worldwide to about 50 countries where there are metal plate industry ,there are Brillante machines.And where there are our machines,there are good reputation and terminal user satisfaction.
2.Whether the machine price can be more discount?
RE:1. Lifeng always provide high quality machine,as we know ,oversea market is more important and difficult than domestic market because of communication time costing after sales,So always,our machine has enough quality standard to make sure the machine can work more than the real warranty period.In this way ,we will save a lot and think in advance for the clients.
RE:2. we are sure to provide quality=price and price=quality ,the matched price and acceptable for the clients and durable for our machines.We welcome your negotiate with us and get a good satisfaction.
