Q35Y-16 гидравлическое подъемное оборудование/гибочный пресс машина (машина для перфорации и
- Категории: >>>
- Поставщик: Anhui,Harting,Machinery,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description

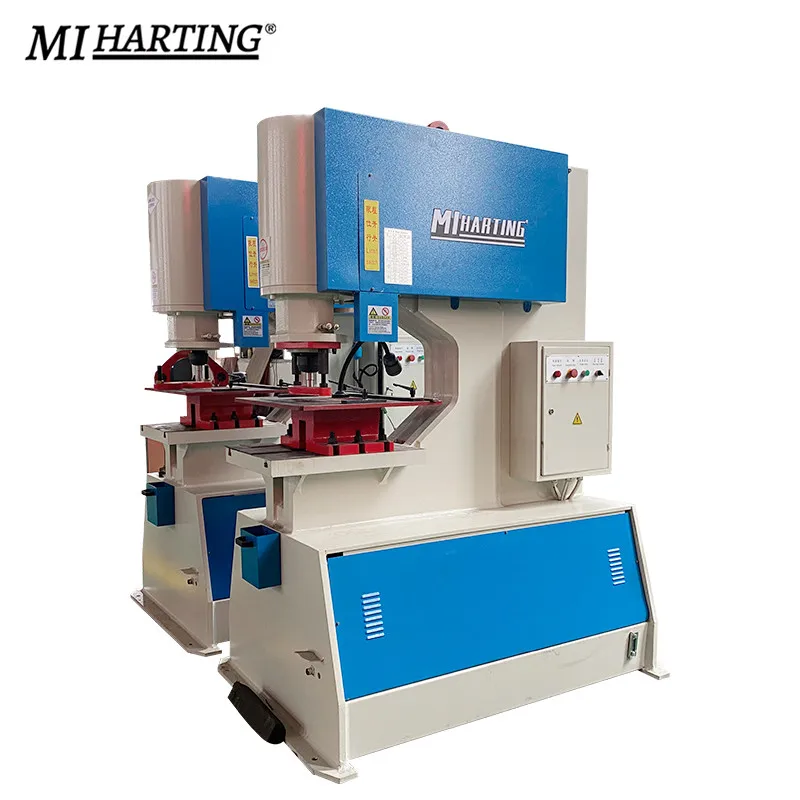

Q35Y-16 Hydraulic Iron Workers/Ironworker Machine(Punching and Shearing Machine)
Multi-function iron worker goes along with Automatic Holding System and Temperature Cooling System.Hydraulic iron worker can punch,cut,notch and bend for flat bar,square bar,round bar,equal angle,channel.It is the latest product of the punching and shearing machine at home and abroad.The machine adopts hydraulic driver, is the latest products in our country. It can shear and cut punch a hole and cut moulds for square steel, steel strip channel,“工“ shape and angle steel and equip with empress anticipate.
Specification
Model | Q35Y-20 | Q35Y-25 | Q35Y-30 | Q35Y-40 | Q35Y-50 | |
Overall dimension(L*W*H) | mm | 1950×920×1950 | 2355×1000×2150 | 2840×1200×2330 | 2940×1200×2330 | 2940×1200×2330 |
Punching Pressure | Mpa | 20 | 20 | 23 | 23 | 23 |
Punching Press | t | 100 | 120 | 160 | 250 | 250 |
Max cutting thickness of steel plate | mm | 20 | 25 | 30 | 40 | 40 |
Plate strength | N/mm² | ≦450 | ≦450 | ≦450 | ≦450 | ≦450 |
Angel of shear | ° | 6 | 8 | 8 | 8 | 8 |
A trip size | mm | 20X330 / 10X480 | 25×300 / 16×600 | 30×330 / 18×600 | 40×335 / 20×700 | 40×335 / 20×700 |
round bar | mm | 50 | 60 | 65 | 80 | 80 |
Square bar | mm | 45×45 | 50×50 | 60×60 | 75×75 | 75×75 |
Equal angle | mm | 140×140×12 | 160×160×14 | 180×180×16 | 200×200×18 | 200×200×18 |
joist | mm | 140×80×5.5 | 180×94×6.5 | 220×112×9.5 | 320×130×9.5 | 320×130×9.5 |
Channel | mm | 160×63×6.5 | 200×73×7 | 280×82×7.5 | 320×92×12 | 320×92×12 |
Slider trip | mm | 80 | 80 | 100 | 100 | 100 |
Punch trip times | 次/分 | 15 | 15 | 15 | 15 | 15 |
Throat depth | mm | 800 | 600 | 600 | 600 | 600 |
Punch depth | mm | 20 | 25 | 30 | 38 | 38 |
Max.punch diameter | mm | 30 | 35 | 38 | 40 | 40 |
Main motor power | Kw | 7.5 | 11 | 11 | 15 | 15 |
Toleration of location | mm | ＜0.1 | ＜0.1 | ＜0.1 | ＜0.1 | ＜0.1 |
Toleration of shearing area | mm | ＜0.2 | ＜0.2 | ＜0.2 | ＜0.2 | ＜0.2 |
Running noise | dB | ＜85 | ＜85 | ＜85 | ＜85 | ＜85 |
Weight | Kg | 2600 | 4200 | 7200 | 8200 | 8200 |

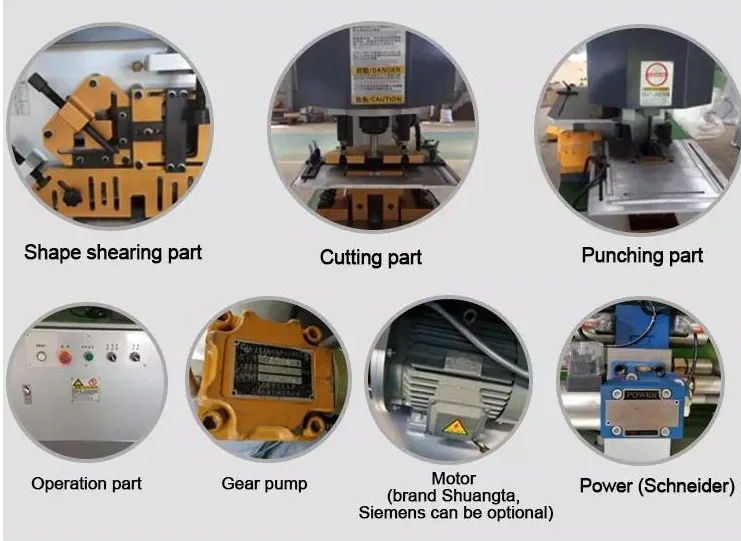

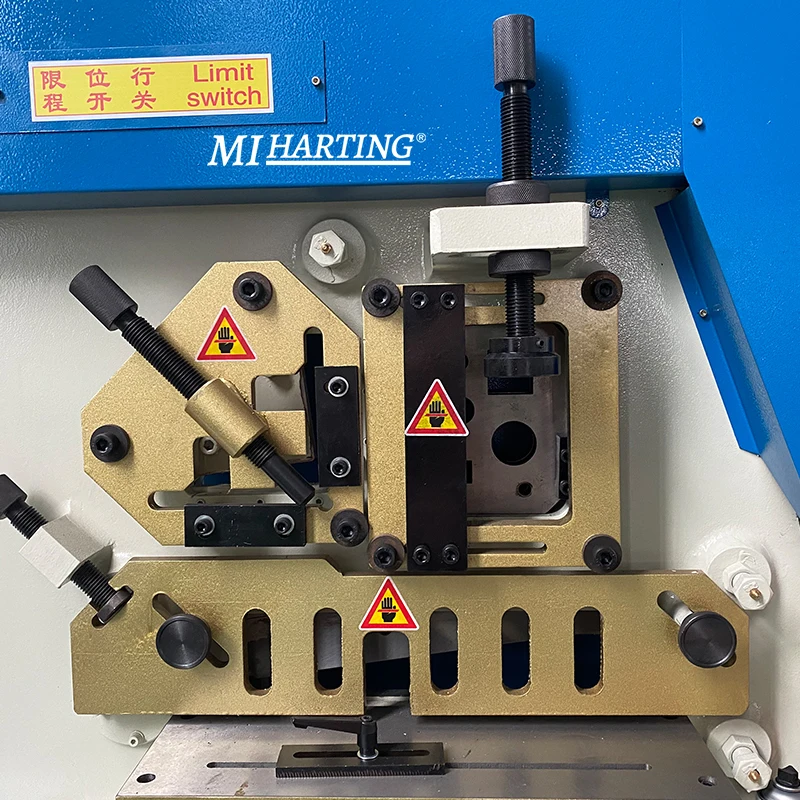

Details Images
Company Profile
Our company.
Anhui Harting Machinery Technology Co.,Ltd is a modern management enterprise which mainly produce ordinary and numerical control bending machine, shearing machine, punch machine, three or four rolling machine, combined punching and shearing machine, cutting edge mold accessories. We have all kinds of mechanical engineer and serves the production and after-sales lines of the company. We are a professional manufacturer and exporter of air duct equipment, shear plasma laser cutting, punching and shearing machines and other machine tools in China, with more than 10 years of experience.
We serve customers from all countries in the world, Europe, America, Central and South Asia, the Middle East and other continents. Our products are widely used in professional production fields such as decoration, metallurgy, shipbuilding, automobiles, machinery, aviation, etc.
We serve customers from all countries in the world, Europe, America, Central and South Asia, the Middle East and other continents. Our products are widely used in professional production fields such as decoration, metallurgy, shipbuilding, automobiles, machinery, aviation, etc.
Certifications
Customer Photos

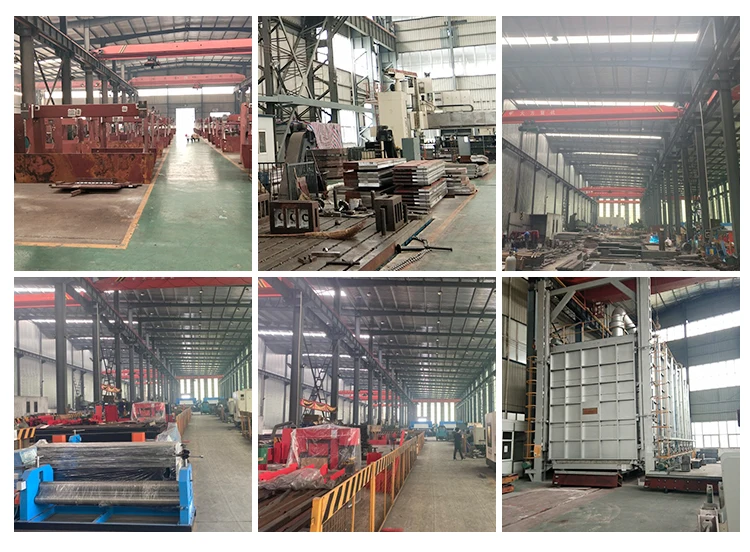

Our Workshop
Contact Info
