Product Overview
2.9 inch eink display with front light backlit GDEW029T5D-FL02
2.9 inch e-paper screen with 4 LEDs frontlight, 296x128 resolution, SPI interface, and the display is capable to display images with black and white content. Support partial refresh, support 4 Grayscale.
Put up your image, then shut down the power. Once these e-paper modules are updated they don't require any power and can actually be disconnected entirely and the content will remain on the display indefinitely.
This e-paper display GDEW029T5D-FL02 is perfect for dark environment.
Use our free e-paper software to prepare your bitmap image for this display.
FEATURES AT A GLANCE
● 296x128 resolution
● With 4 LEDs frontlight. If you need any other accessories, please contact us
● With 4 LEDs frontlight. If you need any other accessories, please contact us
● Support partial refresh
● Support 4 Grayscale
● I2C Signal Master Interface to read external temperature sensor
● I2C Signal Master Interface to read external temperature sensor
Front elevation
Side elevation
Back elevation
PRODUCT SPECIFICATIONS
PART NUMBER | GDEW029T5D-FL02 |
TYPE | Dot Matrix |
OUTSIDE DIMENSION(mm) | 79x36.7x2.3 |
IC | UC8151D |
RESOLUTION | 296x128 |
PIXEL PITCH(mm) | 0.227x0.226 |
ACTIVE SIZE(mm) | 66.9x29.06 |
OPERATING TEMP. | 0℃~50℃ |
STORAGE TEMP. | -25℃~70℃ |
CONNECTOR | 24 Pin FPC |
MAX GRAYSCALE | 4 |
COLOR | Black,White |
INTERFACE | SPI |
FULL REFRESH(s) | 3 |
TIME OF PARTIAL REFRESH(ms) | 0.3 |

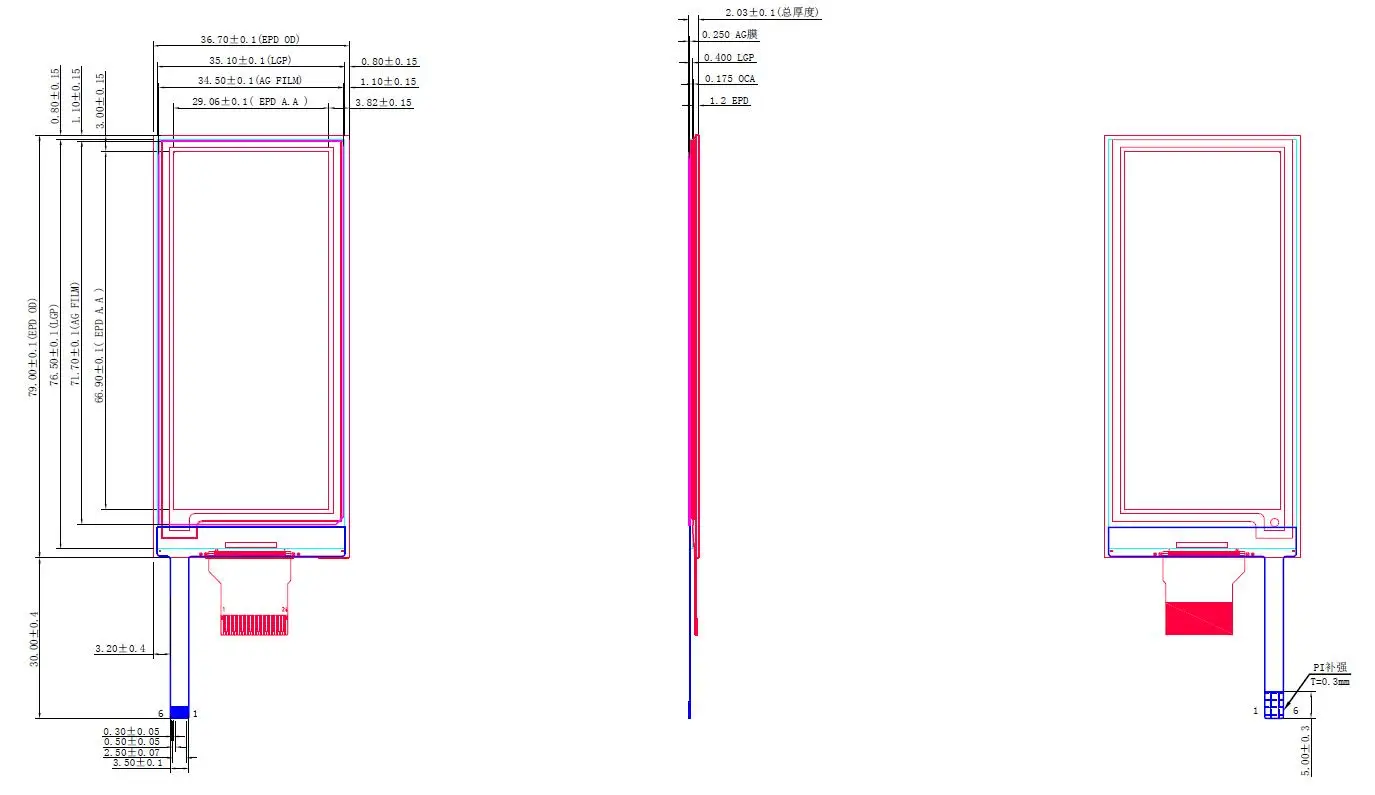

Drawing / Structure
PRODUCT CONFIGURATION
2.9'' E-paper GDEW029T5D * 1
2.9 inch Front light * 1
24 Pin FPC * 1 & 6 Pin FPC * 1
Related Products
Successful Applications
Nuclear Radiation Detector
NFC E-paper Tag-Battery Free
Digital Humidity & Temperature Meter
FAQ

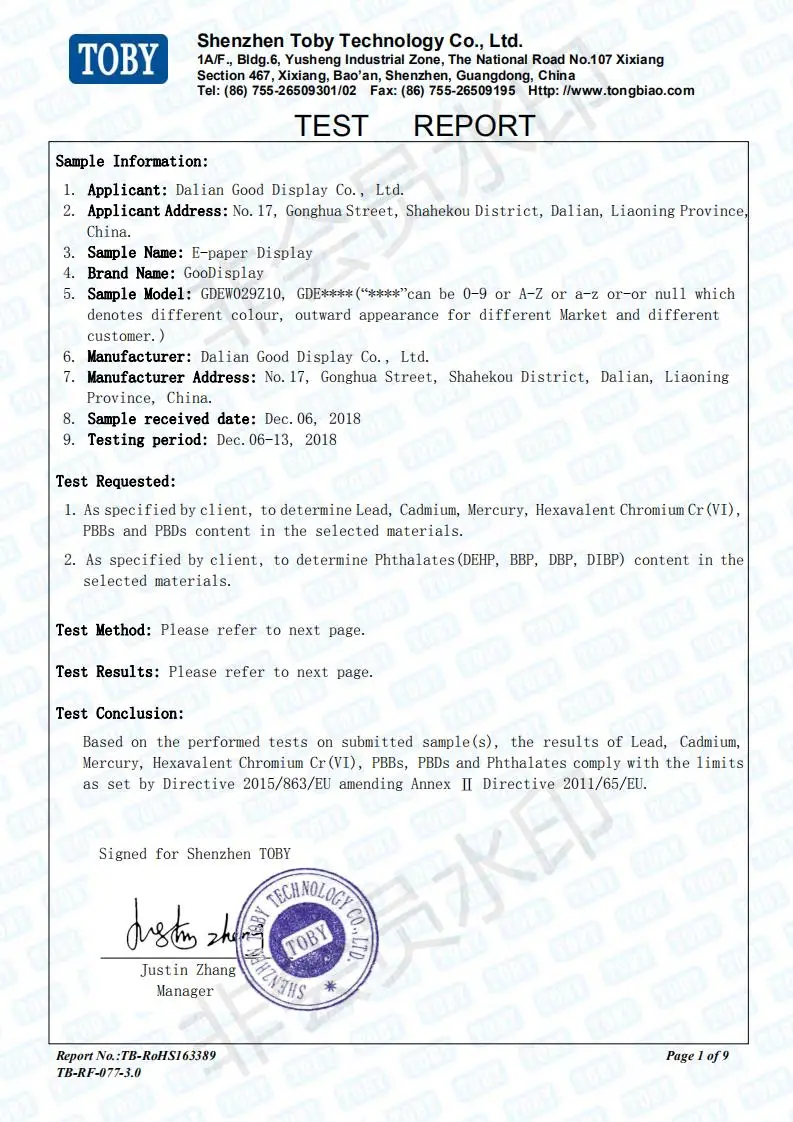

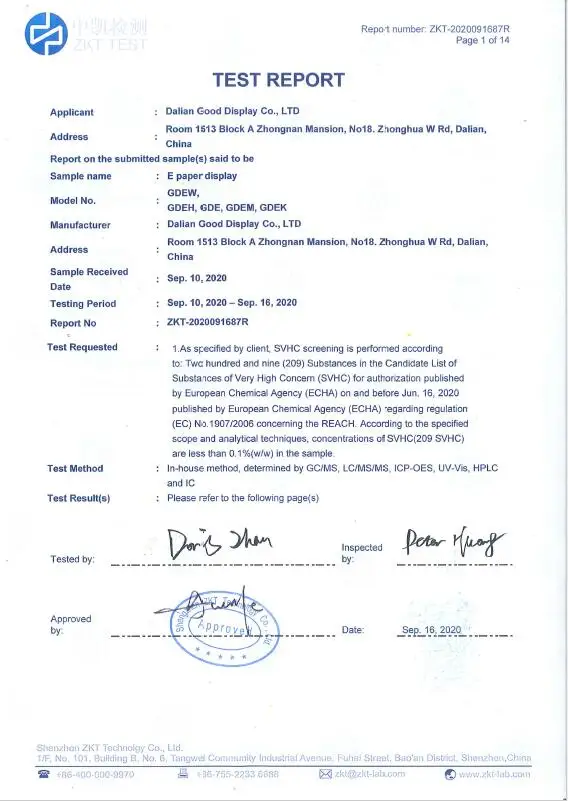

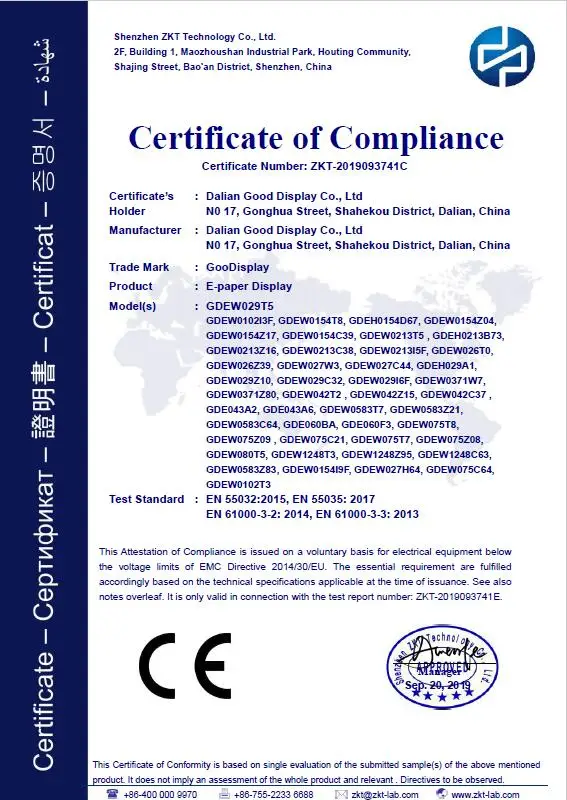

Q: Do your products have relevant certifications?
